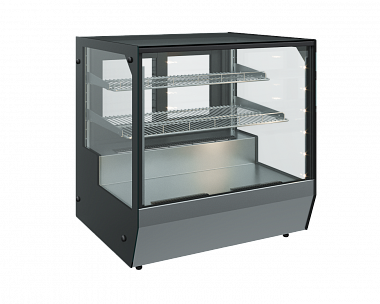

AC59 (AMRA) display cases
Main features:

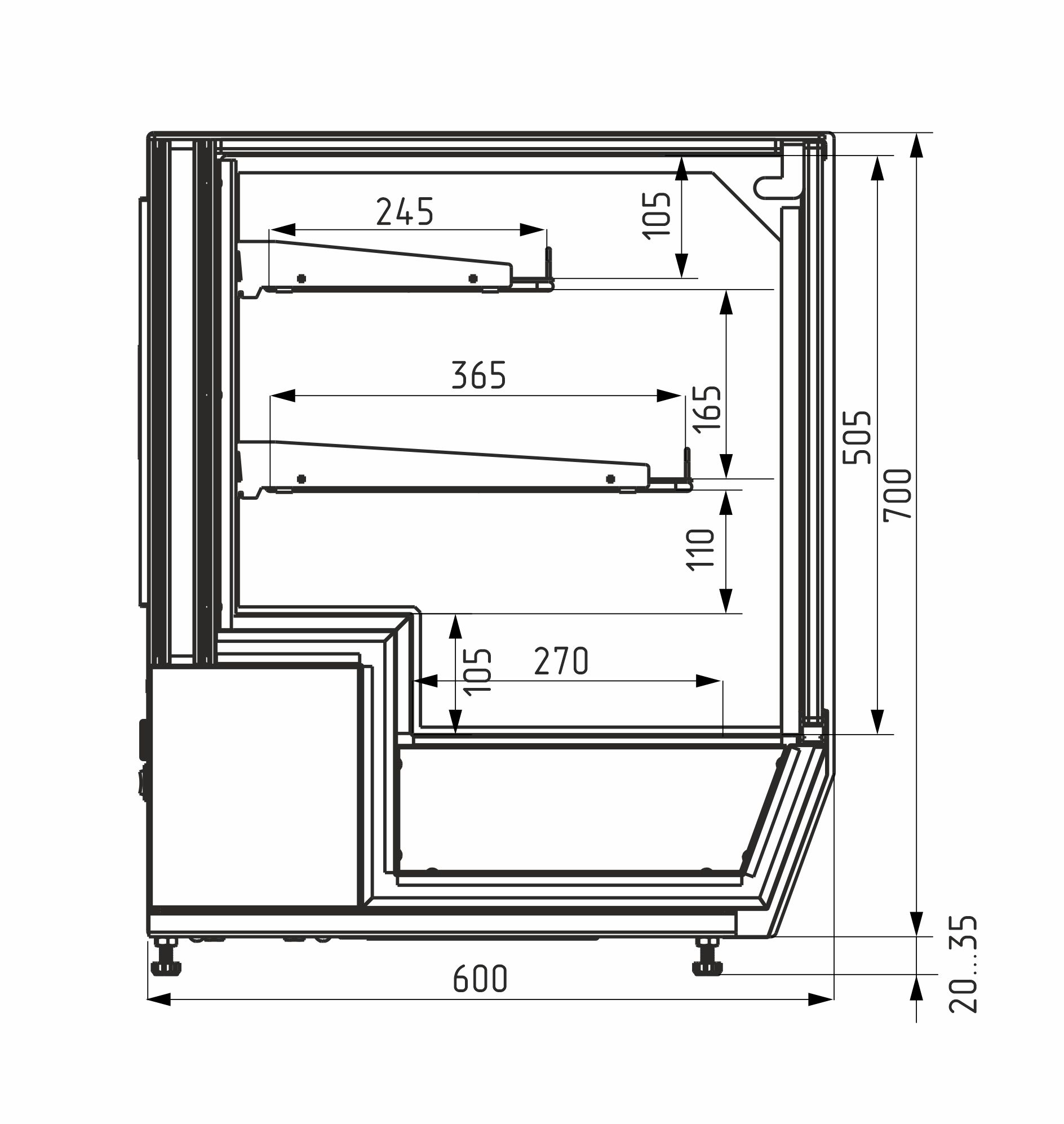

DEPTH: 270 (365, 245 wire shelves)
Download Amra leafletThe AMRA series of display cases is designed for use in small spaces such as bar counters and shop counters. The bar display case has a modern cubic design and is intended for both surface mounting and integration into a bar counter.
INSTALLATION of the refrigerated display case:
The display case must be installed no closer than 2 m from heating devices. Do not operate the display case if it is exposed to direct sunlight or air currents from air conditioners, fans, or heaters.
SOME PARTS HAVE A PROTECTIVE COATING (FILM) THAT MUST BE REMOVED.
After starting the unit and reaching the required temperature, load the display case with products that have been pre-cooled to the temperature of the usable volume.
The height of the products for display should be no more than 150 mm on the lower tray and no more than 100 mm on the shelves.
Please note that the load on the wire shelf should not exceed:
0.7 upper - 8 kg; lower - 12 kg
0.9 upper - 11; lower - 16 kg
1.2 upper - 14 kg; lower - 21 kg

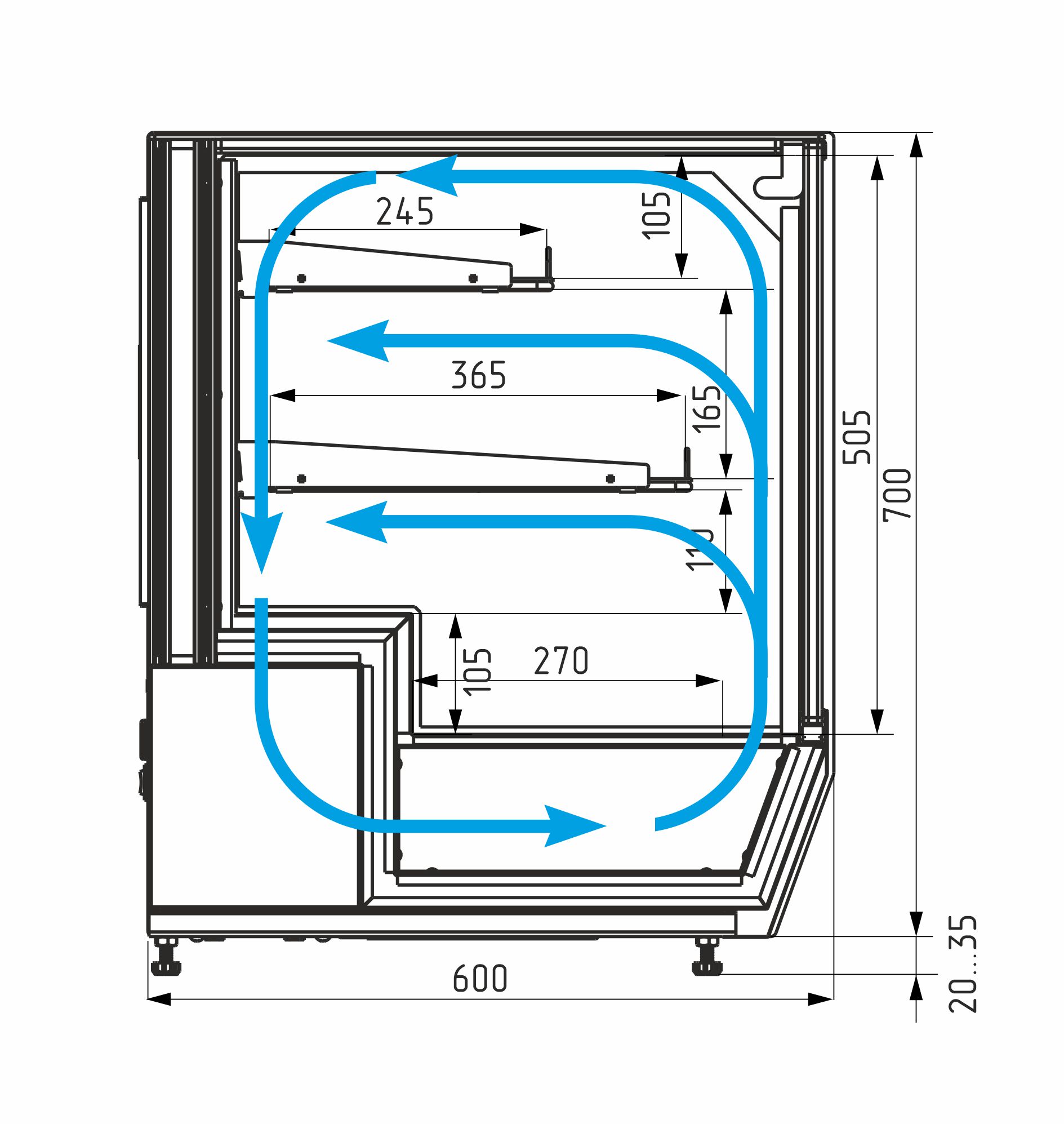

Do not block the air ducts.
Failure to comply with these requirements will disrupt air circulation and impair the performance of the product, which may lead to food spoilage.
In rainy or humid weather, condensation may form on the display case. This is not a malfunction. In this case, wipe the display case with a soft cloth from time to time.
INSTALLATION of the heated display case:
The display case must be installed at least 1 m away from flammable materials.
Do not operate the display case if it is exposed to air currents from air conditioners or fans.
SOME PARTS HAVE A PROTECTIVE COATING (FILM) THAT MUST BE REMOVED.
The temperature of the shelves is not adjustable.
Load the display case with products, distributing them evenly on the shelves. The load on the shelf should not exceed 3 kg per running meter of distributed load.
Use the metal tray to display products that do not require heating.
ATTENTION! All work should be carried out only after disconnecting the display case from the power supply.
Overall dimensions of the package LxWxH, mm (wooden crate):
0.7 850x750x890
0.9 1050x750x890
1.2 1350x750x890
INSTALLATION of the refrigerated display case:
The display case must be installed no closer than 2 m from heating devices. Do not operate the display case if it is exposed to direct sunlight or air currents from air conditioners, fans, or heaters.
SOME PARTS HAVE A PROTECTIVE COATING (FILM) THAT MUST BE REMOVED.
After starting the unit and reaching the required temperature, load the display case with products that have been pre-cooled to the temperature of the usable volume.
The height of the products for display should be no more than 150 mm on the lower tray and no more than 100 mm on the shelves.
Please note that the load on the wire shelf should not exceed:
0.7 upper - 8 kg; lower - 12 kg
0.9 upper - 11; lower - 16 kg
1.2 upper - 14 kg; lower - 21 kg
Do not block the air ducts.
Failure to comply with these requirements will disrupt air circulation and impair the performance of the product, which may lead to food spoilage.
In rainy or humid weather, condensation may form on the display case. This is not a malfunction. In this case, wipe the display case with a soft cloth from time to time.
INSTALLATION of the heated display case:
The display case must be installed at least 1 m away from flammable materials.
Do not operate the display case if it is exposed to air currents from air conditioners or fans.
SOME PARTS HAVE A PROTECTIVE COATING (FILM) THAT MUST BE REMOVED.
The temperature of the shelves is not adjustable.
Load the display case with products, distributing them evenly on the shelves. The load on the shelf should not exceed 3 kg per running meter of distributed load.
Use the metal tray to display products that do not require heating.
ATTENTION! All work should be carried out only after disconnecting the display case from the power supply.
Overall dimensions of the package LxWxH, mm (wooden crate):
0.7 850x750x890
0.9 1050x750x890
1.2 1350x750x890
- Carel electronic control unit
- Steel body
- Casing insulation: polyurethane foam
- Stainless steel display surface
- 2 wire shelves with stops, can be installed at a 5° angle
- Condensate evaporator (refrigeration)
- Side LED lighting
- Glazing - double glazing
- Sliding rear doors
- Macaron tray (1 section, 2 sections)
- Sandwich display stand
