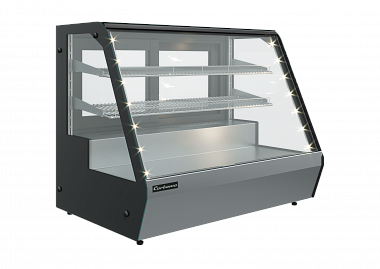

A59 (ASTI) display cases
Main features:
- Nominal voltage 220 V, 50 Hz
- Cooling type – dynamic (refrigeration)
- Equipment climate class: 3
- Refrigerant R600a, R290
- The display cases are designed for use in enclosed spaces with natural ventilation at an ambient temperature of +12 to +25°C and relative humidity of no more than 60%.

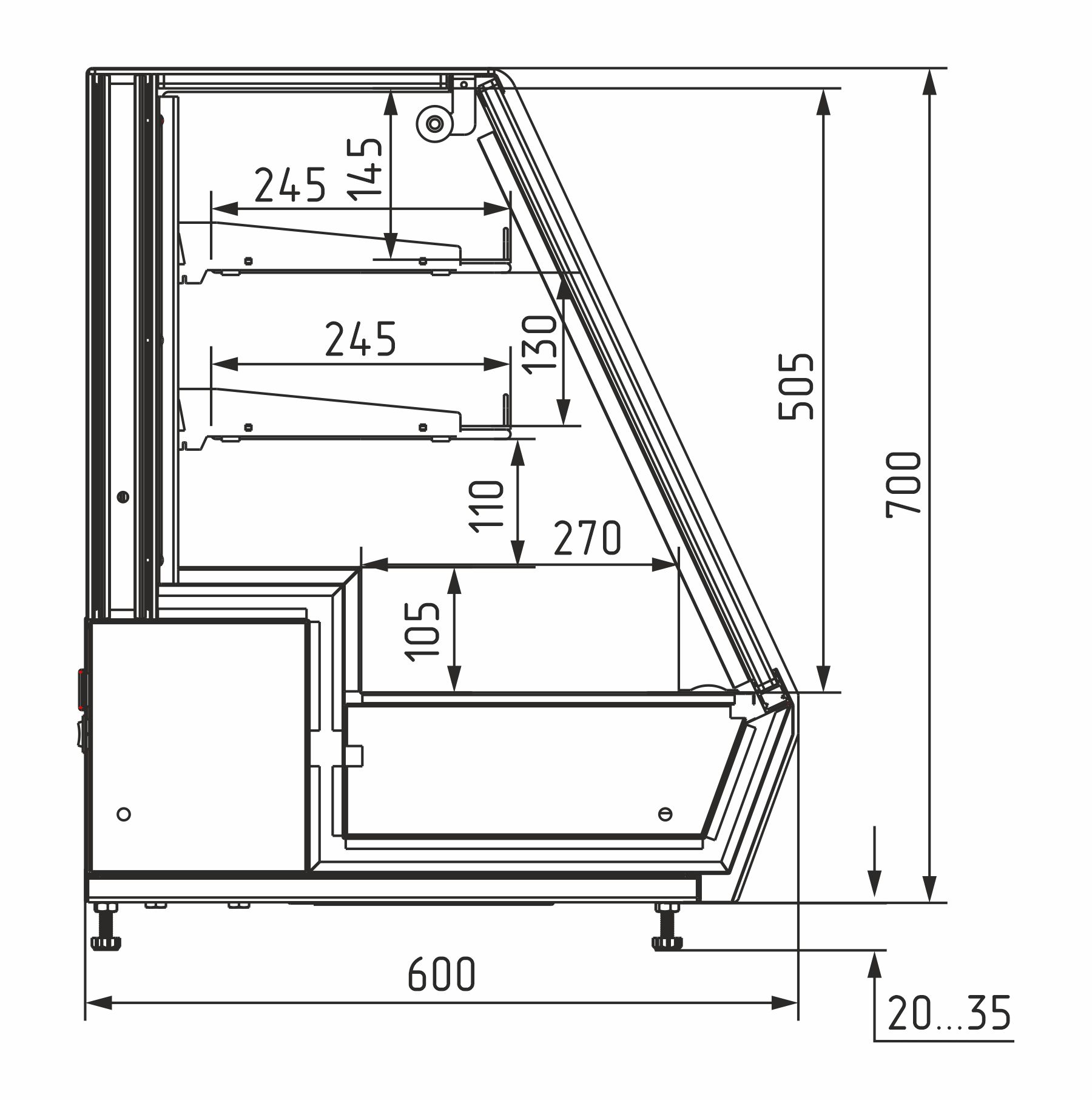

DEPTH: 270 (245 mm 2 wire shelves)
Download Asti leafletINSTALLATION of the refrigerated display case:
The display case must be installed no closer than 2 m from heating devices. It is prohibited to operate the display case if it is exposed to direct sunlight, air currents from air conditioners, fans, and heaters.
SOME PARTS HAVE A PROTECTIVE COATING (FILM) THAT MUST BE REMOVED.
After starting the unit and reaching the required temperature, load the display case with products that have been pre-cooled to the temperature of the usable volume.
The height of the products on display should be no more than 150 mm on the bottom tray and no more than 100 mm on the shelves.
Please note that the load on the wire shelf should not exceed:
0.7 -8 kg
0.9 11 kg
1.2 14 kg

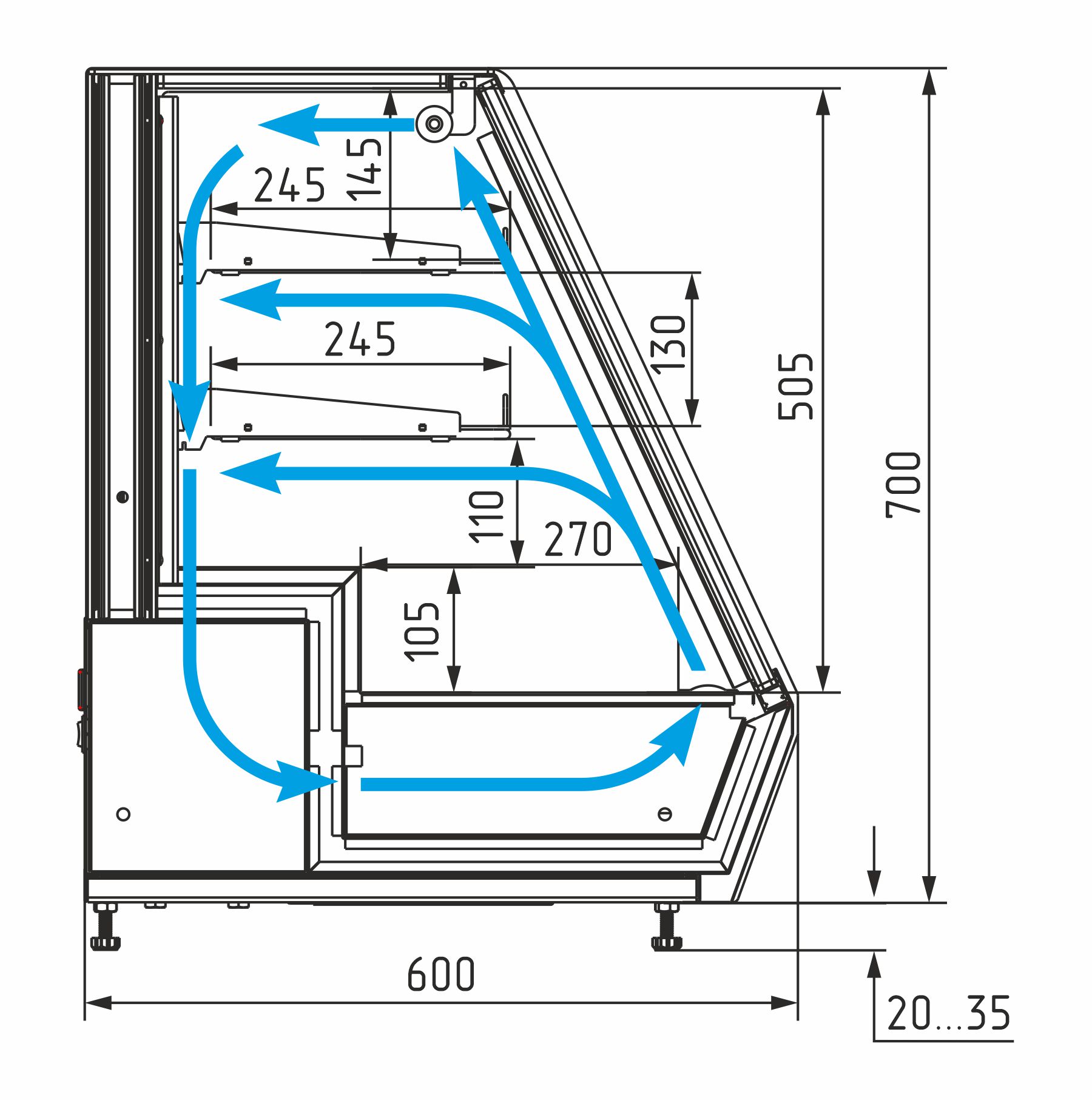

It is forbidden to block the air ducts.
Failure to comply with these requirements will disrupt air circulation and impair the performance of the product, which may lead to food spoilage.
In rainy or humid weather, condensation may form on the display case. This is not a malfunction. In this case, wipe the display case with a soft cloth from time to time.
Overall dimensions of the package LxWxH, mm (wooden crate):
0.7 850x750x890
0.9 1050x750x890
1.2 1350x750x890
The display case must be installed no closer than 2 m from heating devices. It is prohibited to operate the display case if it is exposed to direct sunlight, air currents from air conditioners, fans, and heaters.
SOME PARTS HAVE A PROTECTIVE COATING (FILM) THAT MUST BE REMOVED.
After starting the unit and reaching the required temperature, load the display case with products that have been pre-cooled to the temperature of the usable volume.
The height of the products on display should be no more than 150 mm on the bottom tray and no more than 100 mm on the shelves.
Please note that the load on the wire shelf should not exceed:
0.7 -8 kg
0.9 11 kg
1.2 14 kg
It is forbidden to block the air ducts.
Failure to comply with these requirements will disrupt air circulation and impair the performance of the product, which may lead to food spoilage.
In rainy or humid weather, condensation may form on the display case. This is not a malfunction. In this case, wipe the display case with a soft cloth from time to time.
Overall dimensions of the package LxWxH, mm (wooden crate):
0.7 850x750x890
0.9 1050x750x890
1.2 1350x750x890
- Carel electronic control unit
- Steel body
- Casing insulation: polyurethane foam
- Stainless steel display surface
- 2 wire shelves with stops, can be installed at a 5° angle
- Condensate evaporator (refrigeration)
- Side LED lighting
- Glazing - double glazing
- Sliding rear doors
- Macaron tray (1 section, 2 sections)
- Sandwich display stand
- Price tag tray for small baked goods
