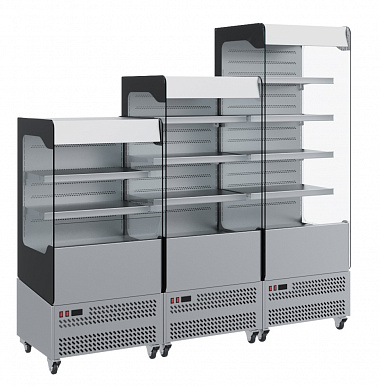

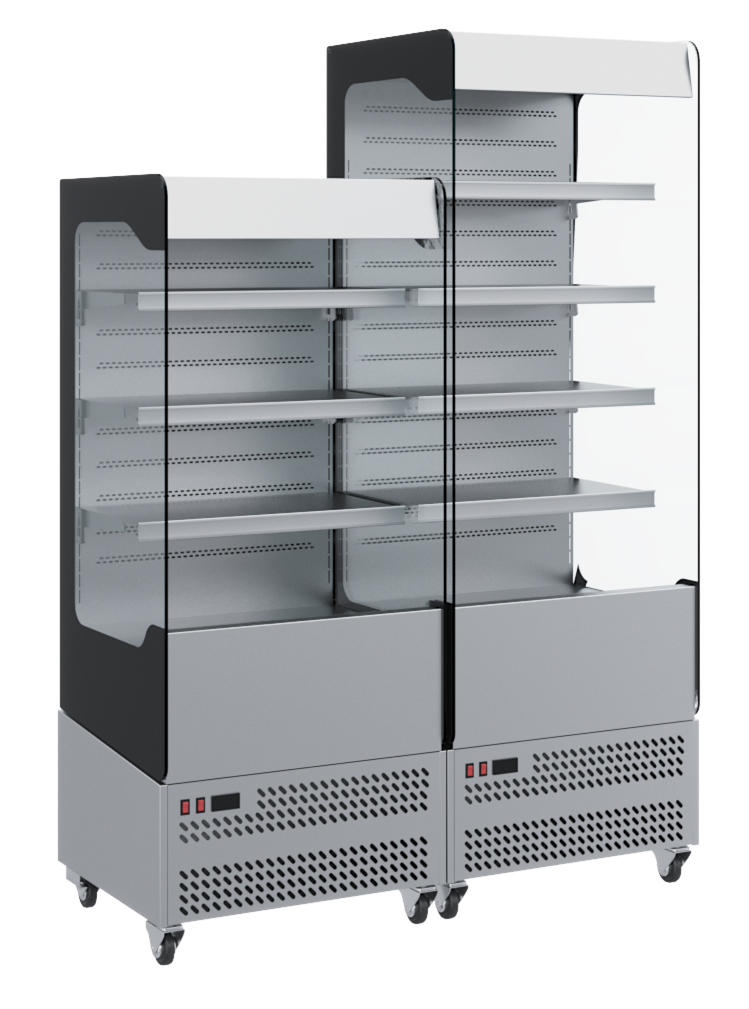

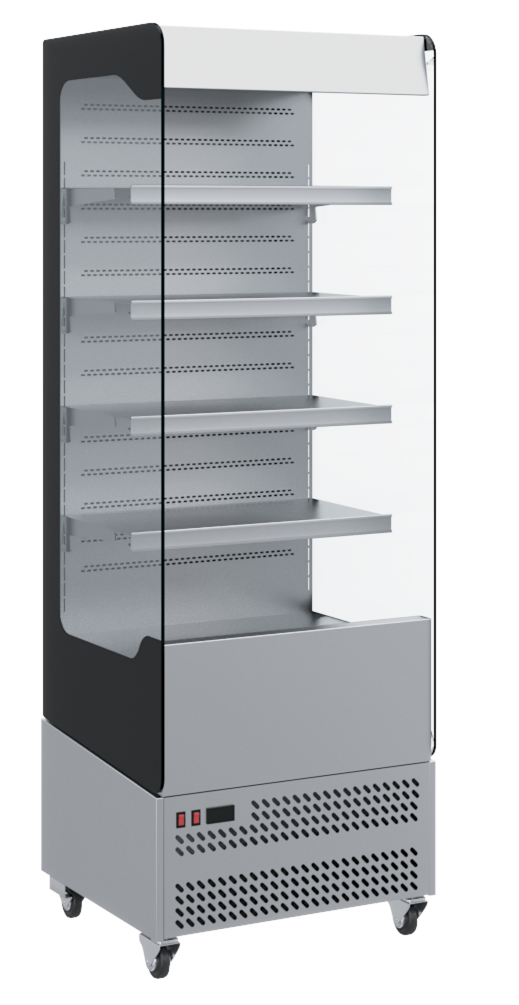

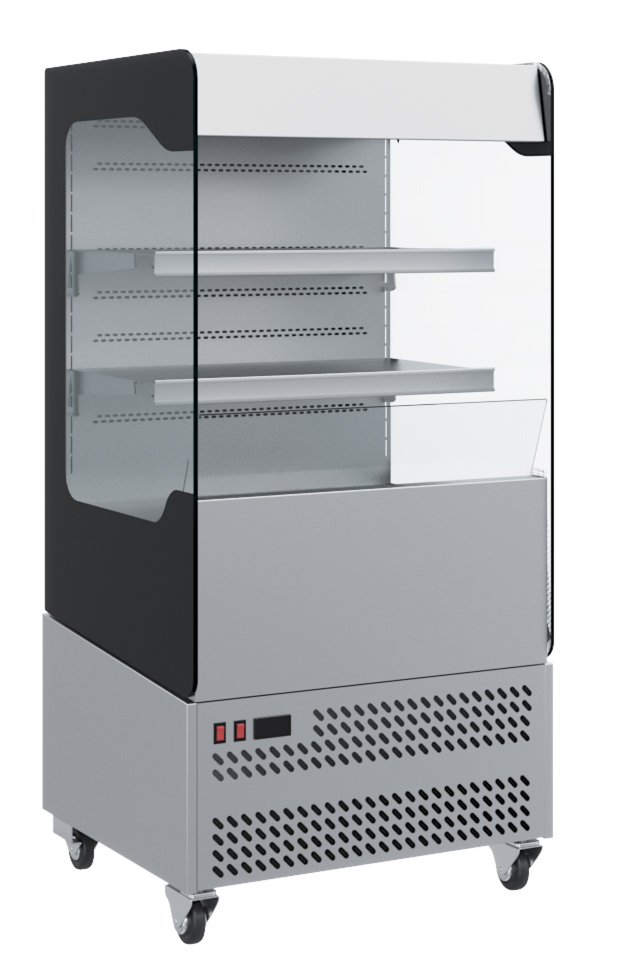

FC14-06, FC16-06, FC18-06 display cases (VIVARA)

NEW

Main features:

Nominal voltage 220 V, 50 Hz
Cooling type – dynamic
Equipment climate class: 3
Refrigerant R290, R404a
The display cases are designed for use in enclosed spaces with natural ventilation at an ambient temperature of +12 to +25 °C and relative humidity of no more than 60%.

DEPTH: 460 (+shelves)

Download Vivara leaflet

The ideal solution for displaying food and beverages. The compact dimensions of the FC14-06, FC16-06, and FC18-06 allow the display case to be placed in small spaces. The depth of the display case is only 590 mm. The display case must be installed no closer than 2 m from heating devices. Do not use the display case if it is exposed to direct sunlight or air currents from air conditioners, fans, or heaters. The gap between the back wall of the display case and the wall of the room must be at least 0.25 m.

IT IS MANDATORY TO PROVIDE AN OVERFLOW FROM THE EVAPORATION TRAY TO THE GENERAL DRAINAGE SYSTEM OF THE ROOM!

The maximum load on the shelf is: 9 kg for VM 0.6-2, 12 kg for VM 0.7-2.

European compressor

Carel electronic control unit

Steel body

Body insulation: polyurethane foam

LED lighting on each shelf

Night curtain

Condensate evaporator

Tempered glass side panels with silk screen printing

4 rows of perforated shelves (FC18-06);

3 rows of perforated shelves (FC16-06);

2 rows of perforated shelves (FC14-06);

Defrosting method - natural heat flow

Built-in price tag holder-limiter

Wheel support h-100mm

Additional shelves with LED lighting and brackets

Can's hanger

0430 (INOX)

To watch the video in your language, click the "subtitles" button at the bottom of the YouTube player, and then click the "settings" button to select your language.

FC14-06, FC16-06, FC18-06 display cases (VIVARA)

Main features:

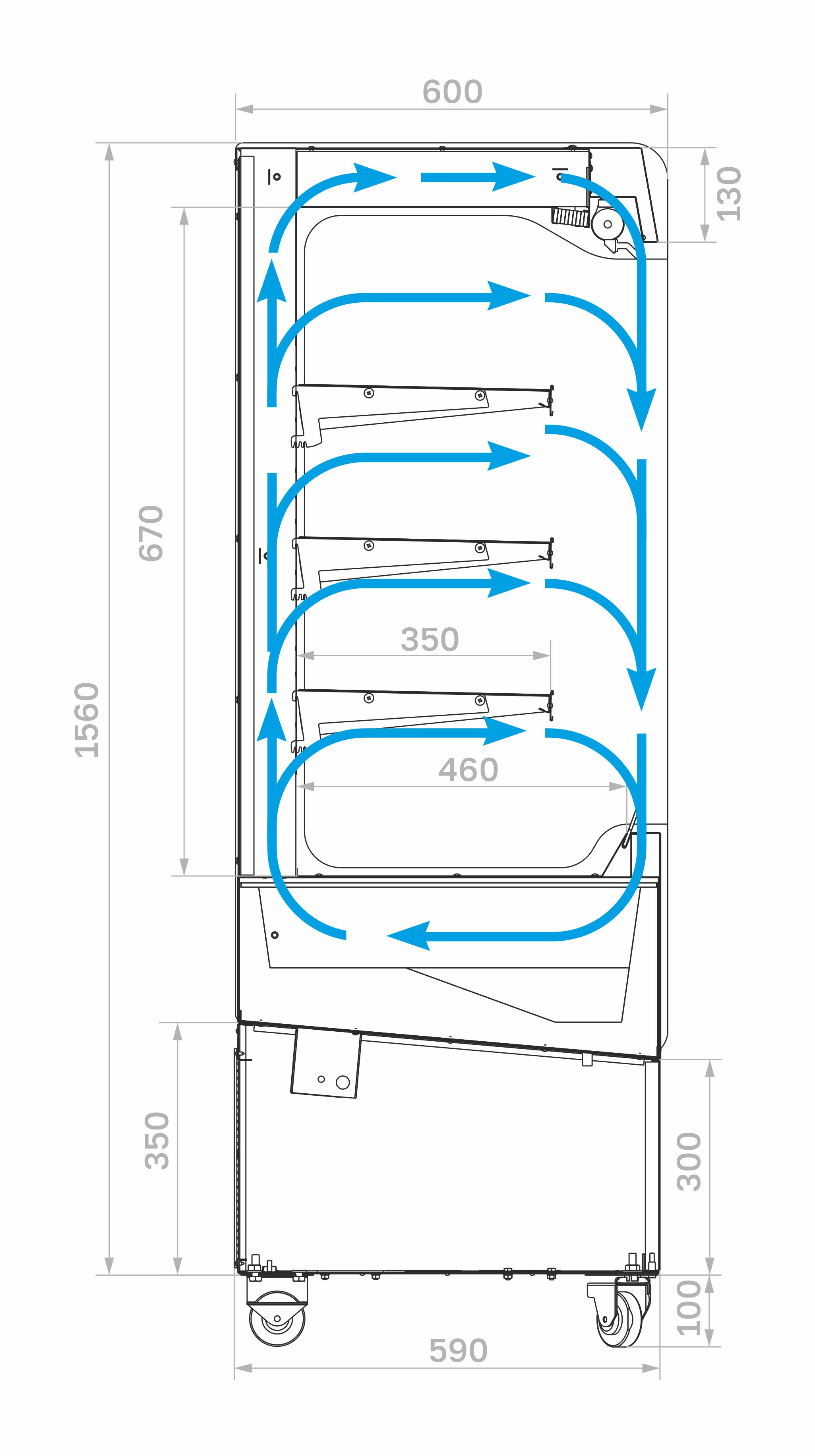

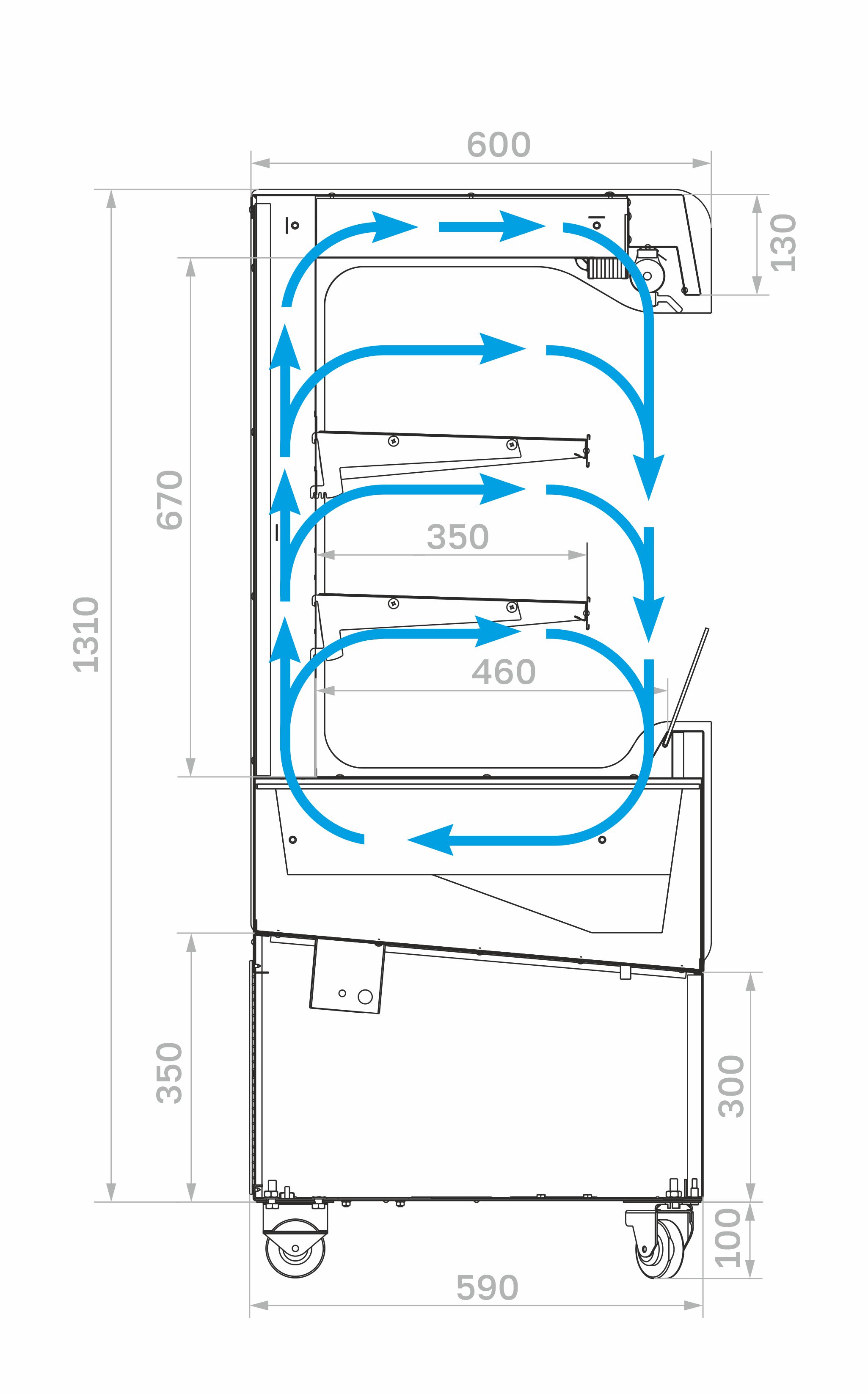

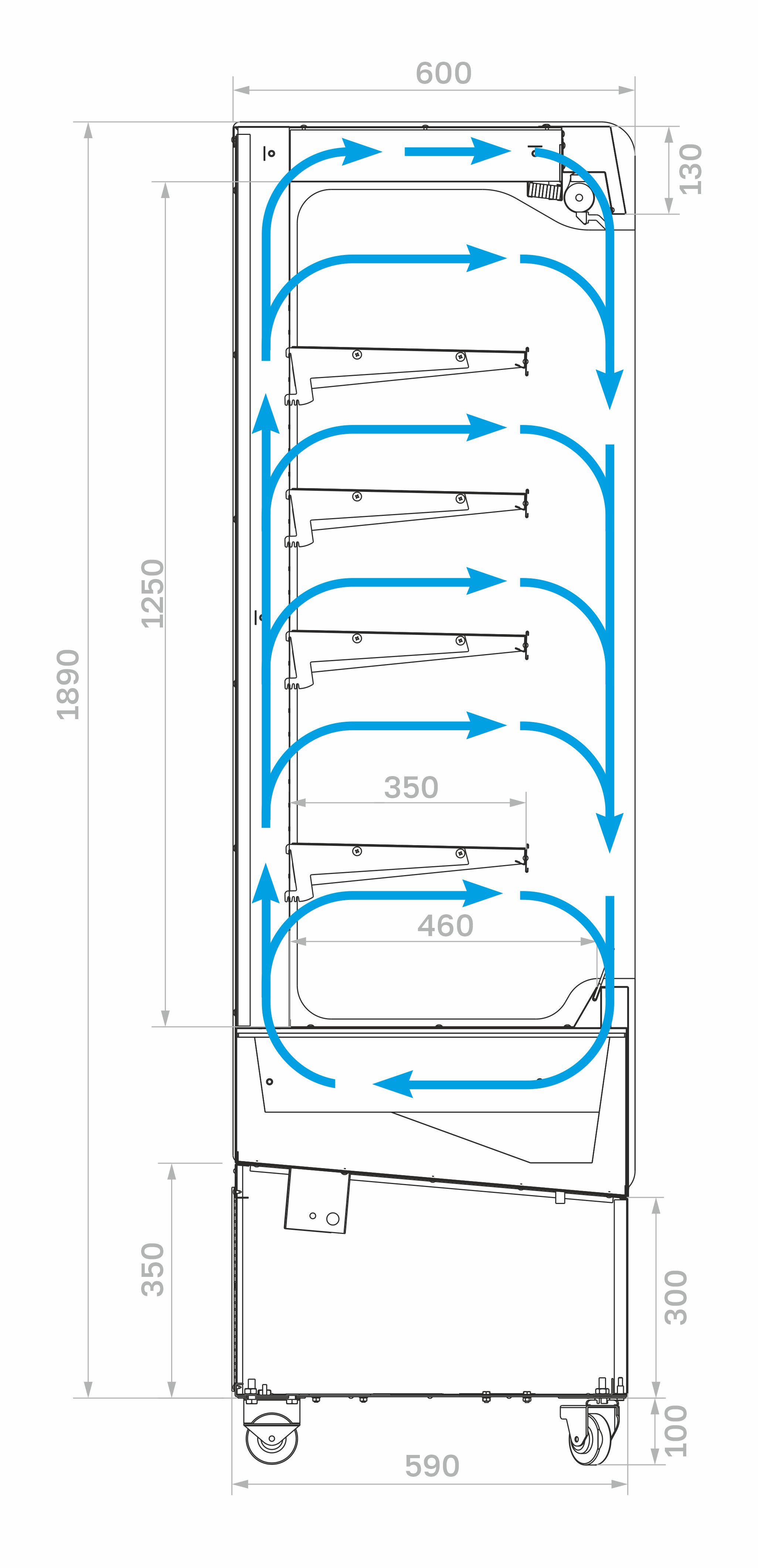

Blueprints
