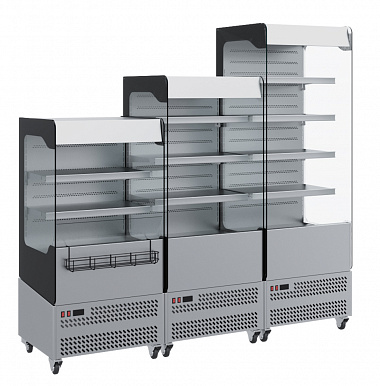

Showcases FC14-06, FC16-06, FC18-06 (VIVARA)

Main features:

Rated voltage 220 V, 50 Hz
Cooling type – dynamic
Climatic class of equipment: 3
Refrigerant R290, R404a
The display cases are intended for use indoors with natural ventilation at ambient temperatures from +12 to +25 and relative humidity no more than 60%

DEPTH: 460 (+shelves)

Загрузить листовку VIVARA FC18-06, FC16-06, FC14-06 Загрузить цветовую схему VIVARA FC18-06, FC16-06, FC14-06 Загрузить 3D модели Загрузить листовку ОПЦИИ Загрузить Изображения ОПЦИИ

Ideal for displaying food and beverages. The compact sizes of FC14-06, FC16-06, FC18-06 allow you to place the display case in small areas. The depth of the display case is only 590 mm. The display case should be installed no closer than 2 m from heating appliances.

It is prohibited to operate the display case if it is exposed to direct sunlight, air flows from air conditioners, fans and heaters. The clearance between the back wall of the display case and the wall of the room must be at least 0.25 m.

IT IS NECESSARY TO PROVIDE FOR THE OUTPUT OF THE EVAPORATORY BATH OVERFLOW TO THE GENERAL DRAINAGE SYSTEM OF THE PREMISES!

Load on the shelf no more than: 9kg - for VM 0.6-2, 12kg - for VM 0.7-2.

European-made compressor

Carel electronic control unit

Steel body

Thermal insulation of the body - polyurethane foam

LED lighting for each shelf

Night blind

Condensate evaporator

Side panels made of tempered glass with silk-screen printing

4 rows of perforated shelves (FC18-06);

3 rows of perforated shelves (FC16-06);

2 rows of perforated shelves (FC14-06);

Method of thawing - natural heat influx

Built-in price tag holder-limiter

Wheel support h-100mm

Additional shelves with LED lighting and brackets

Can hanger

0430 (INOX)

To watch the video in your language, click the "subtitles" button at the bottom of the YouTube player, and then click the "settings" button to select your language.

Showcases FC14-06, FC16-06, FC18-06 (VIVARA)

Main features:

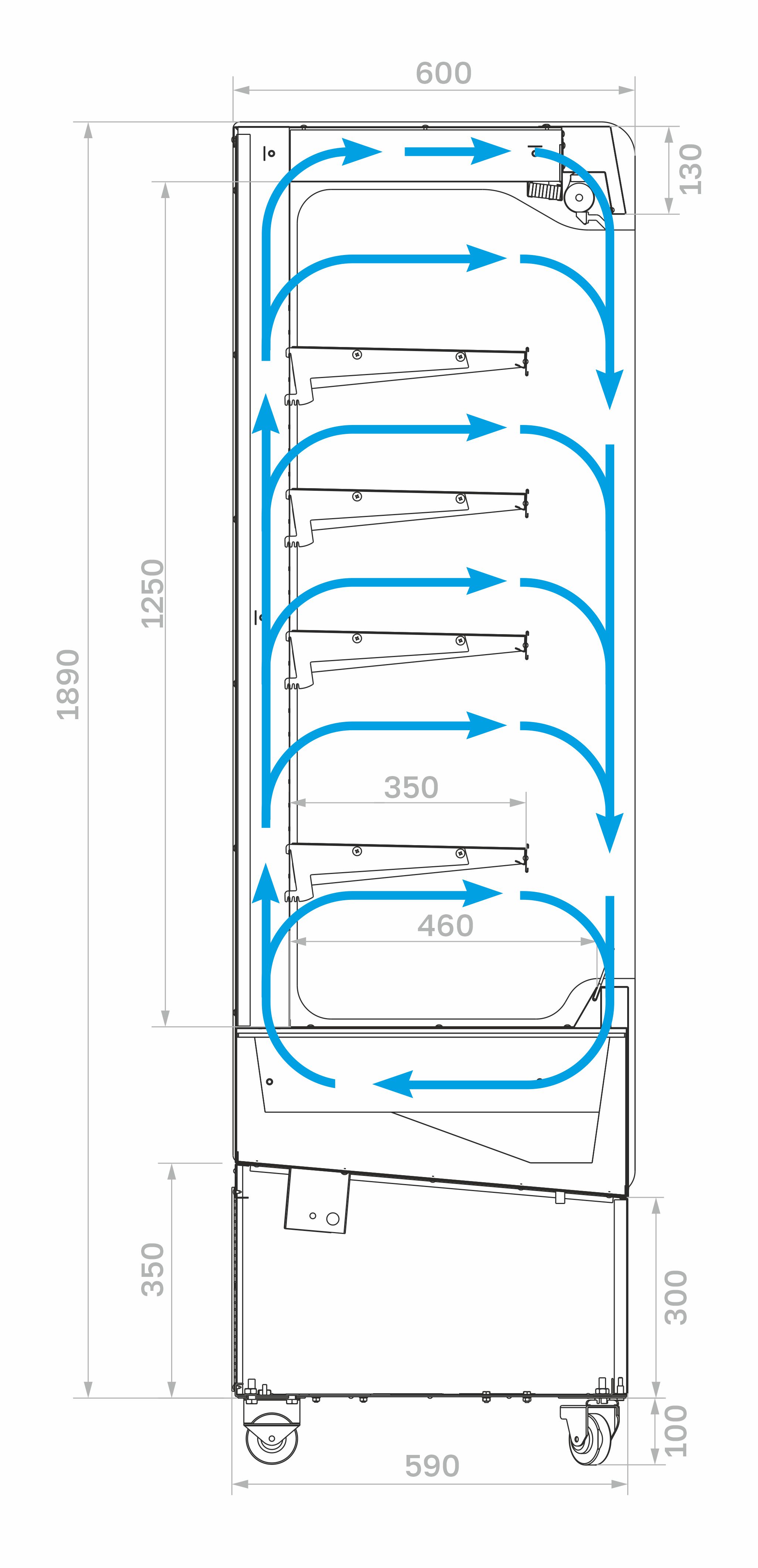

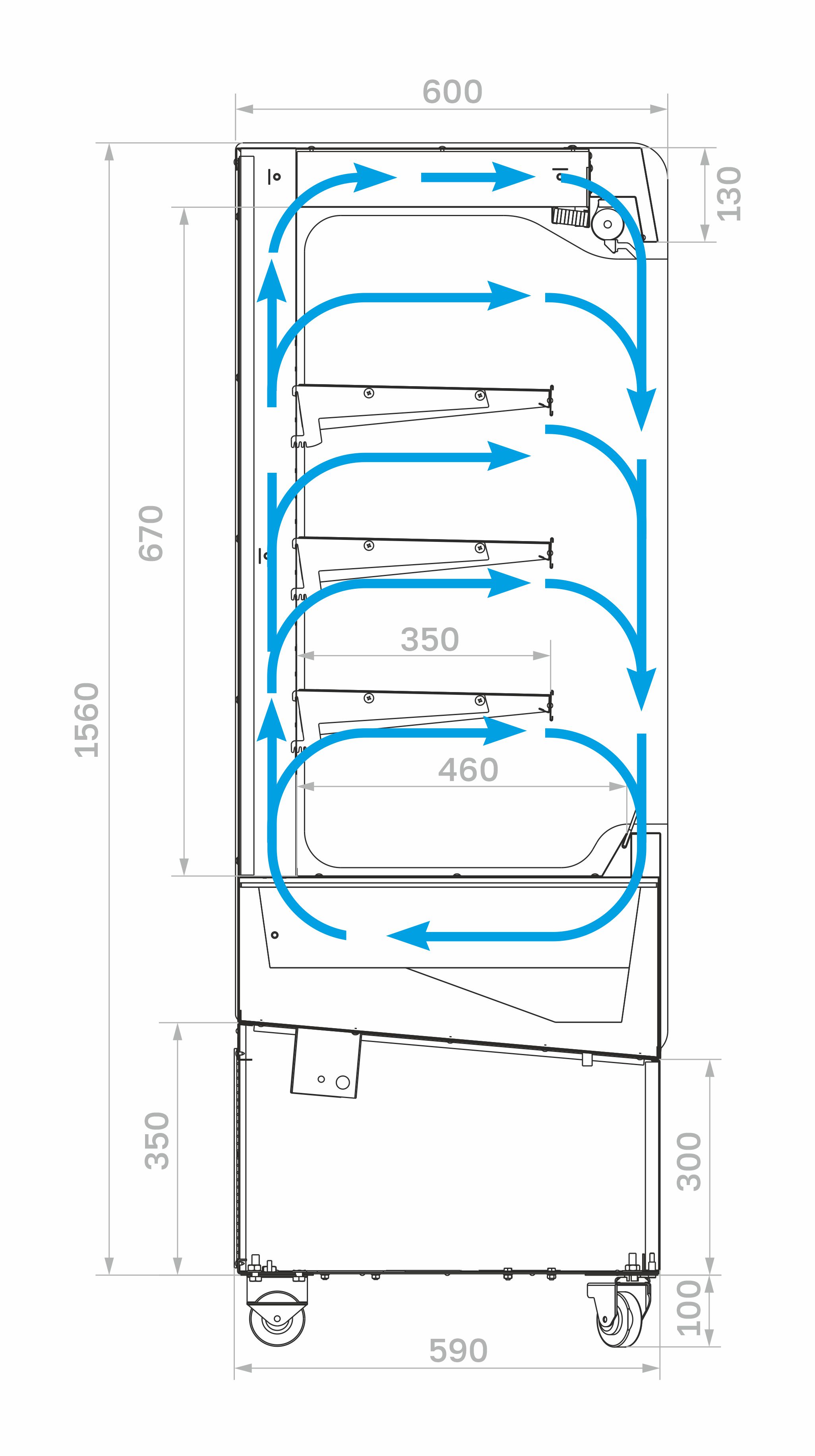

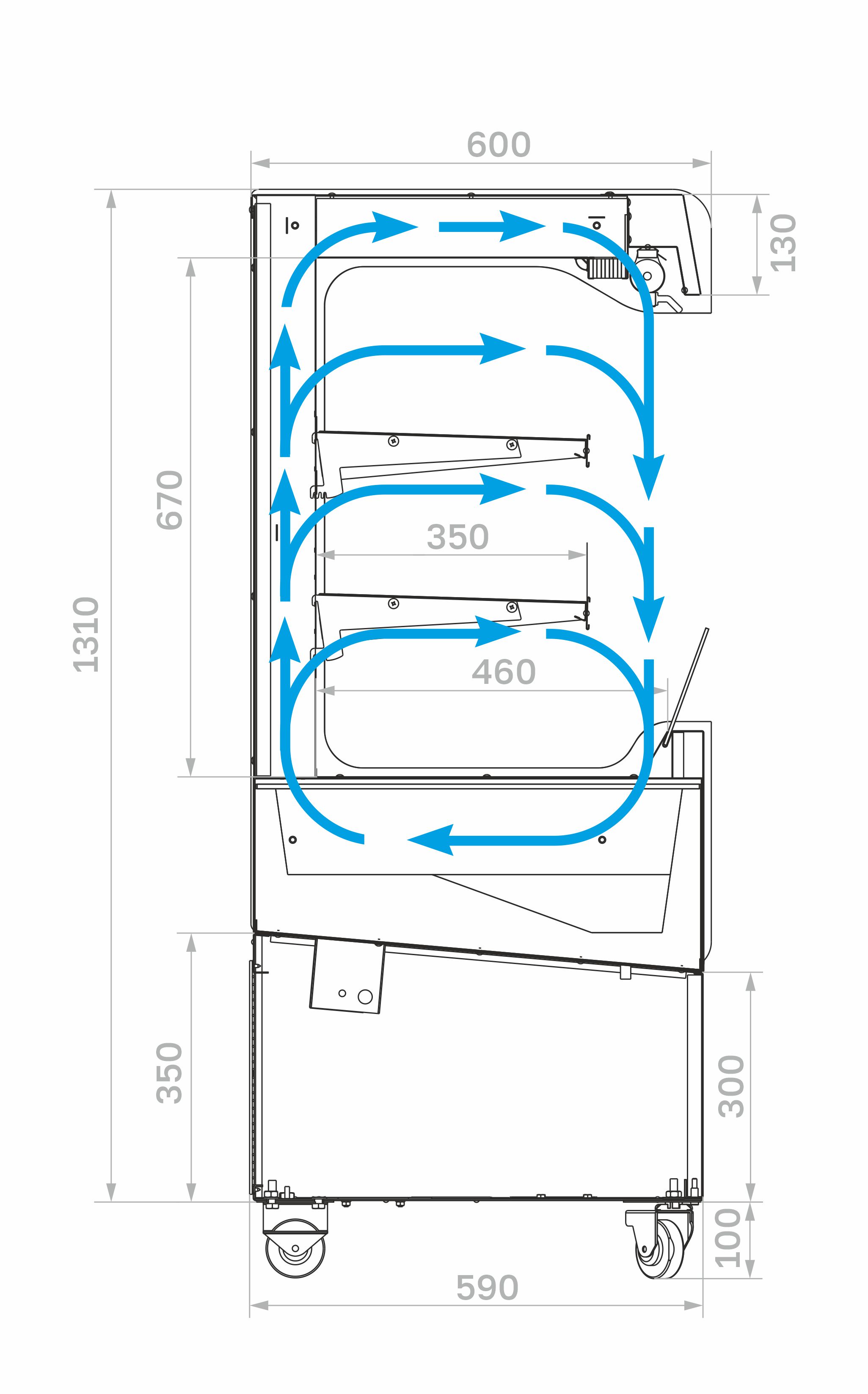

Blueprints
