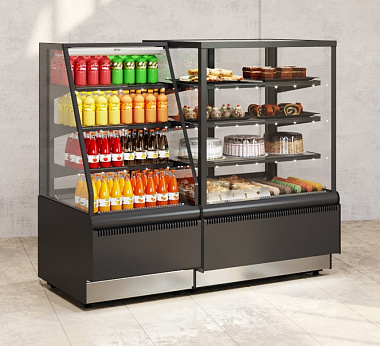

DISPLAY CASES KC70 STANDARD (Cube)
Main features:
- Rated voltage 220 V, 50 Hz
- Cooling type – dynamic (refrigeration)
- Climatic class of equipment: 3
- Refrigerant R290, R404a
- The display cases are intended for use indoors with natural ventilation at ambient temperatures from +12 to +25 and relative humidity no more than 60%

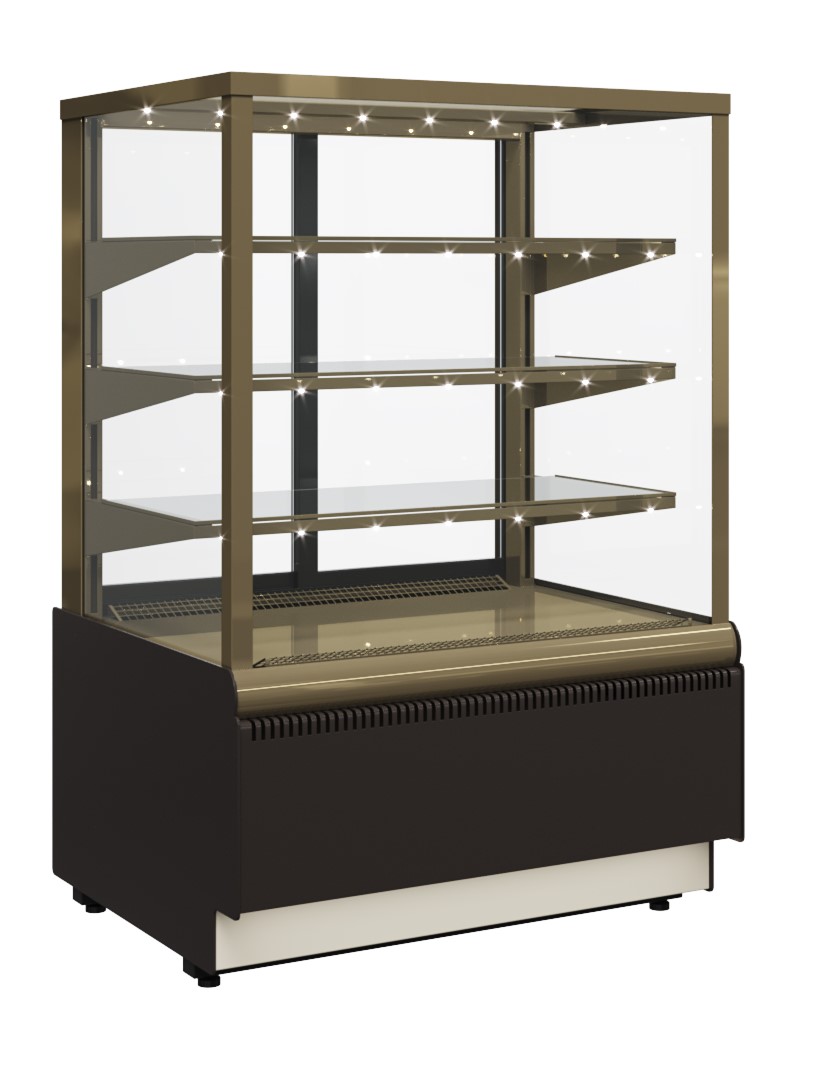

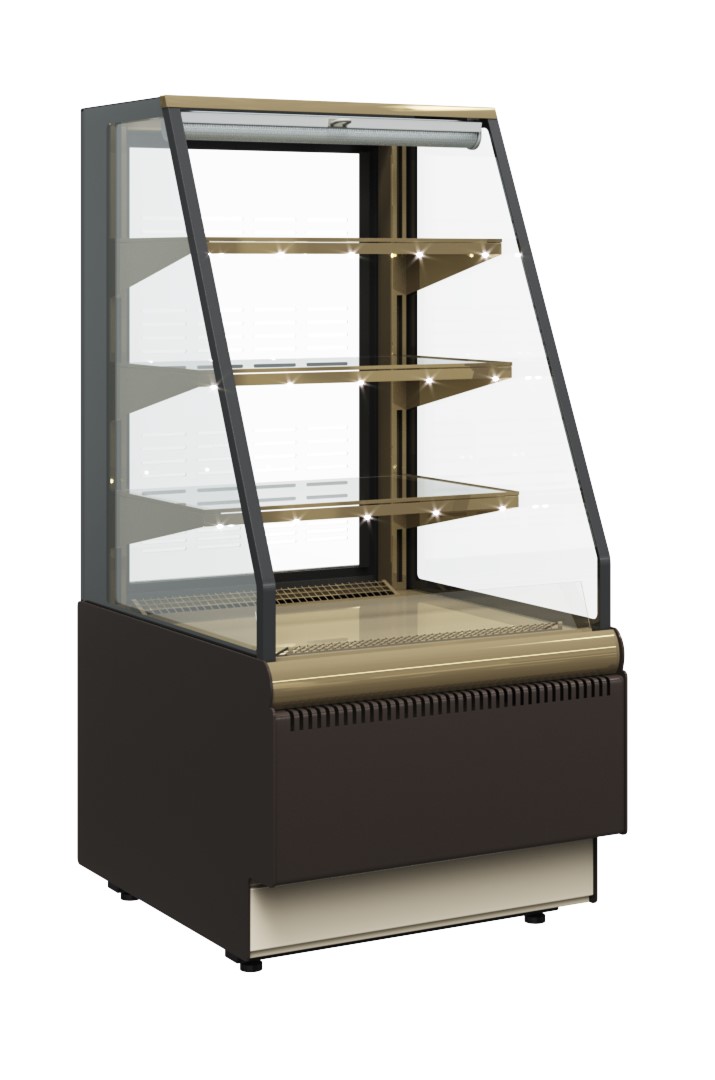

The CUBE STANDARD series of confectionery display cases features: a modern cubic design; stable temperature control thanks to double glazing; efficient use of space in cafes, bars, and shops of any size; a variety of models ranging from counter service to self-service; a range of color options; LED lighting on each shelf; protective metal racks covering the double-glazed window joints.
INSTALLATION of VM open display cases, VV:
The display case must be installed no closer than 2 m from heating devices. It is prohibited to operate the display case if it is exposed to direct sunlight or air currents from air conditioners, fans, and heaters.
DISPLAY CASE INSTALLATION:<br>
The display case must be installed no closer than 2 m from heating devices. Do not operate the display case if it is exposed to direct sunlight or air currents from air conditioners, fans, or heaters.<br>
<br>
SOME PARTS HAVE A PROTECTIVE COATING (FILM) THAT MUST BE REMOVED.<br>
After starting the unit and reaching the required temperature, load the display case with products pre-cooled to the temperature of the usable volume, placing them evenly on the trays. The height of the products on display should not exceed 150 mm.
The load on the glass shelf should not exceed 3 kg per running meter of distributed load.<br>
It is forbidden to block the air ducts.<br>
Failure to comply with these requirements will disrupt air circulation and impair the performance of the product, which may lead to food spoilage.<br>
In rainy or humid weather, condensation may form on the display case. This is not a malfunction. In this case, wipe the display case with a soft cloth from time to time.
Standard version:

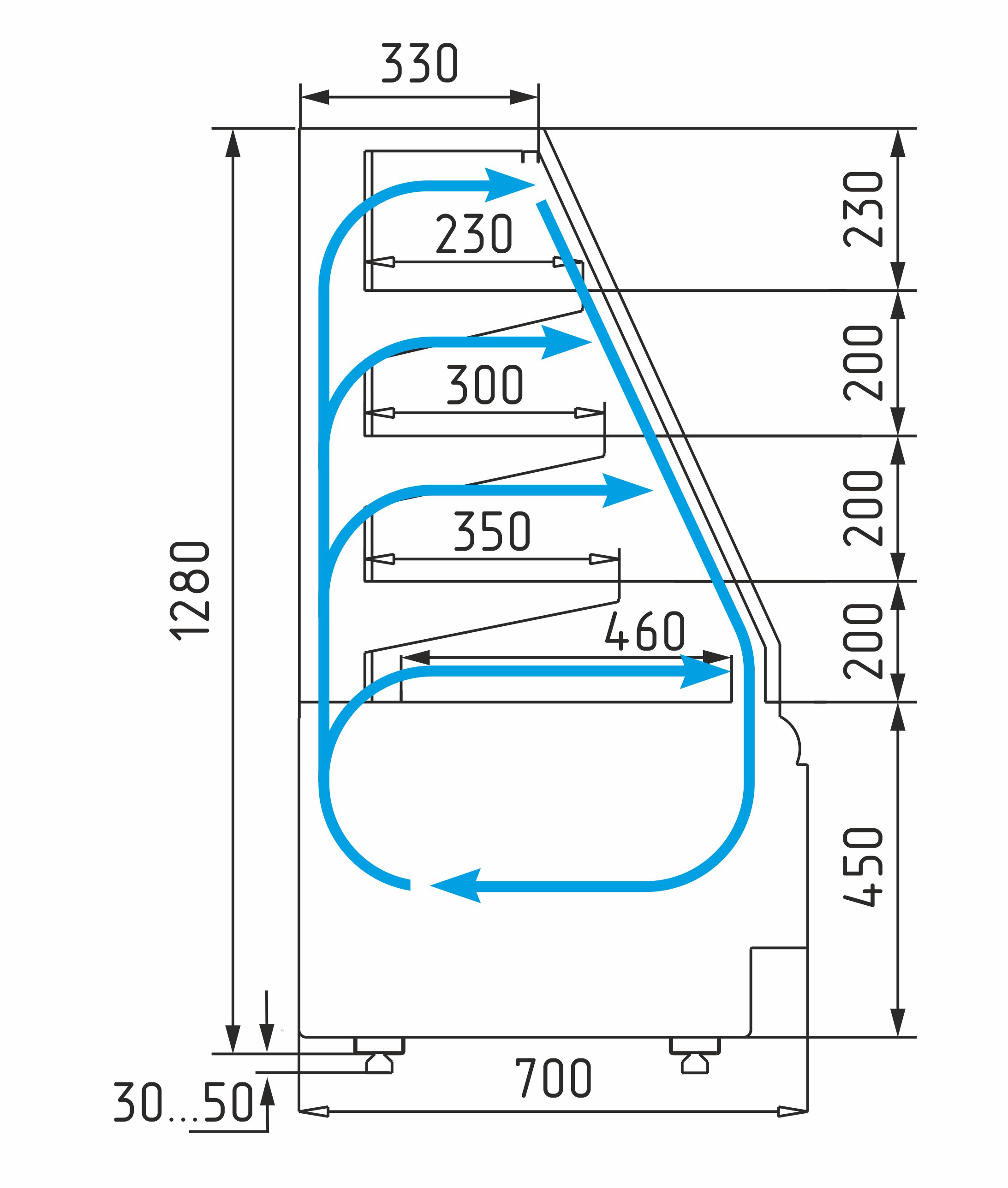

display cases 0102-0109 (diagram 1)

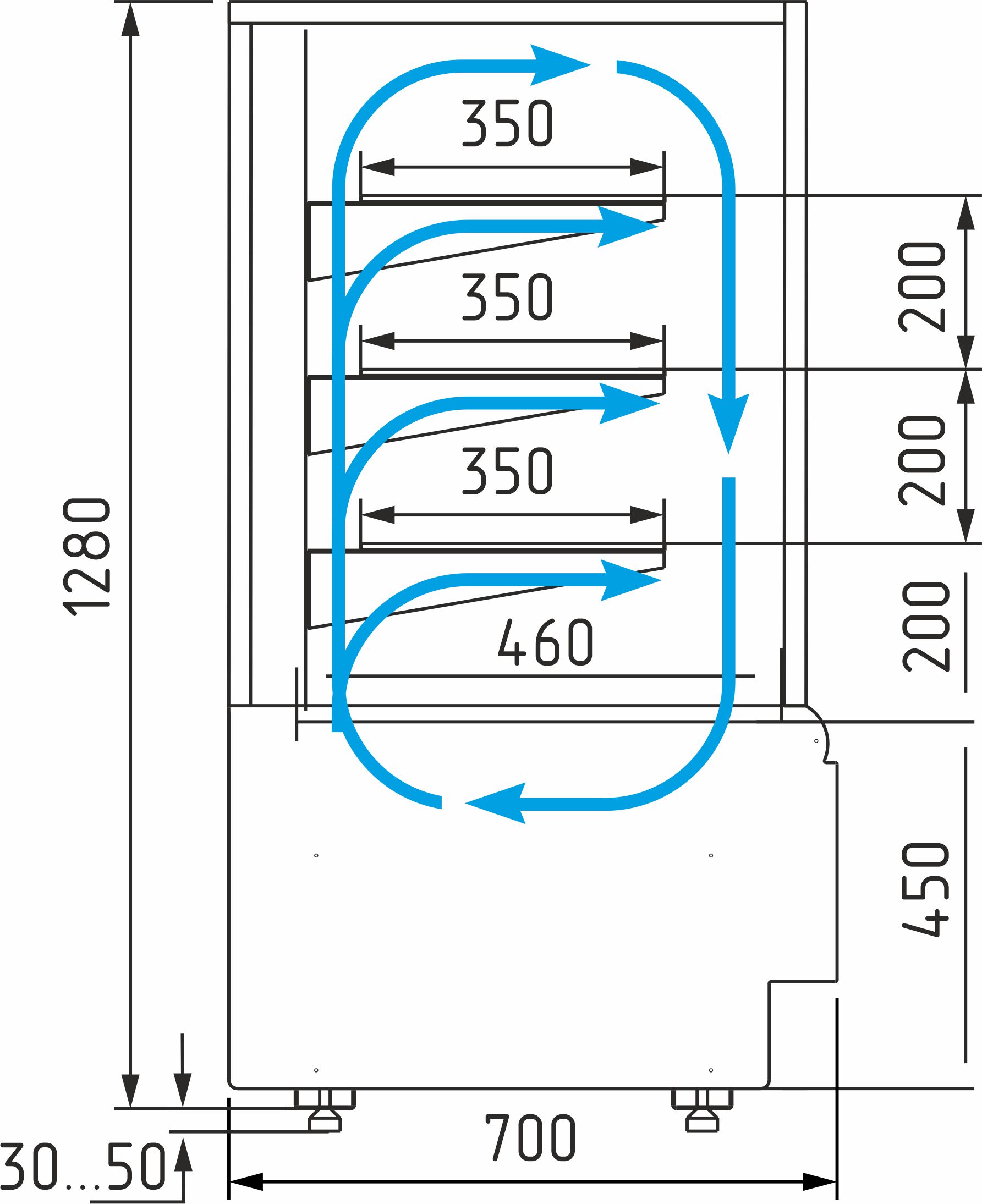

display cases 9006-9005 (diagram 2)
INSTALLATION of VM open display cases, VV:
The display case must be installed no closer than 2 m from heating devices. It is prohibited to operate the display case if it is exposed to direct sunlight or air currents from air conditioners, fans, and heaters.
DISPLAY CASE INSTALLATION:<br>
The display case must be installed no closer than 2 m from heating devices. Do not operate the display case if it is exposed to direct sunlight or air currents from air conditioners, fans, or heaters.<br>
<br>
SOME PARTS HAVE A PROTECTIVE COATING (FILM) THAT MUST BE REMOVED.<br>
After starting the unit and reaching the required temperature, load the display case with products pre-cooled to the temperature of the usable volume, placing them evenly on the trays. The height of the products on display should not exceed 150 mm.
The load on the glass shelf should not exceed 3 kg per running meter of distributed load.<br>
It is forbidden to block the air ducts.<br>
Failure to comply with these requirements will disrupt air circulation and impair the performance of the product, which may lead to food spoilage.<br>
In rainy or humid weather, condensation may form on the display case. This is not a malfunction. In this case, wipe the display case with a soft cloth from time to time.
Standard version:
display cases 0102-0109 (diagram 1)
display cases 9006-9005 (diagram 2)
- Compressor made in Europe
- Electronic control unit
- Steel body
- Thermal insulation of the body - polyurethane foam
- Metal sidewalls t-2.5 mm
- Glazing - double-glazed windows
- Sliding rear glass windows on rollers - VV
- Hinged rear glass doors (VM open)
- 3 refrigerated shelves with LED lighting each (refrigerated)
- Condensate evaporator

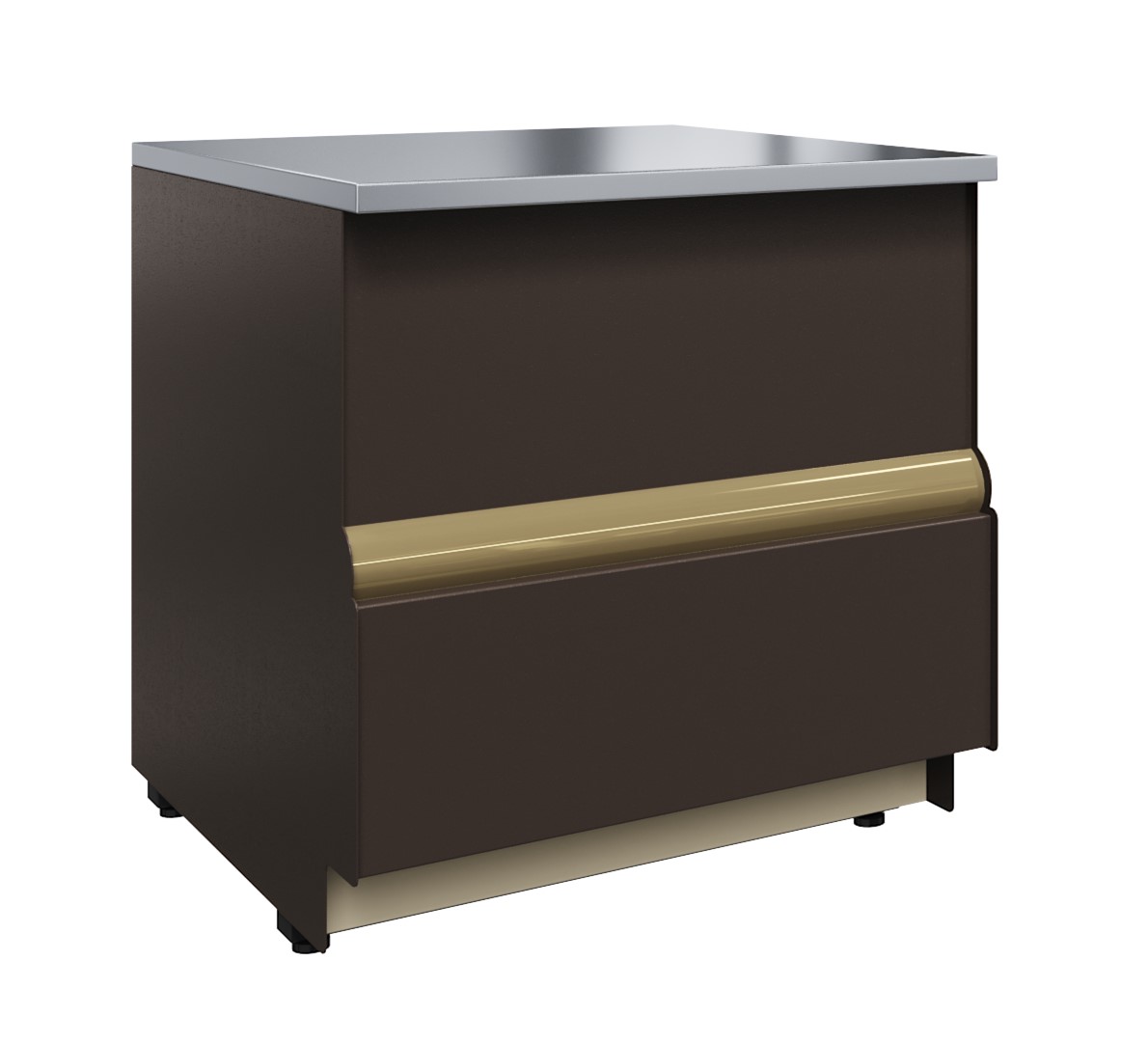

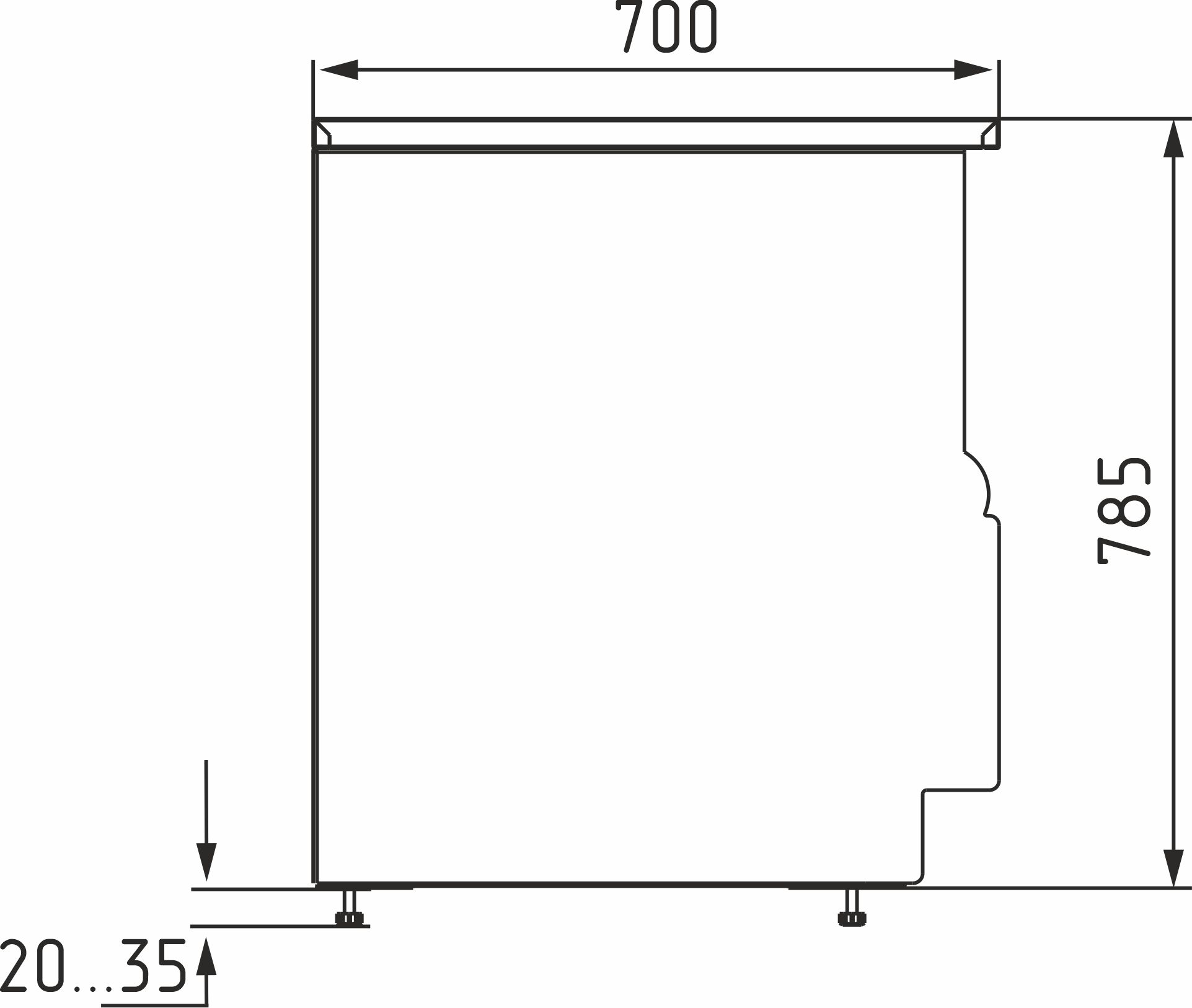

- Neutral showcase - without refrigeration system, with front double-glazed windows , LED lighting for each shelf
