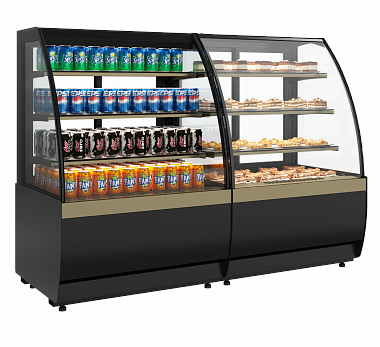

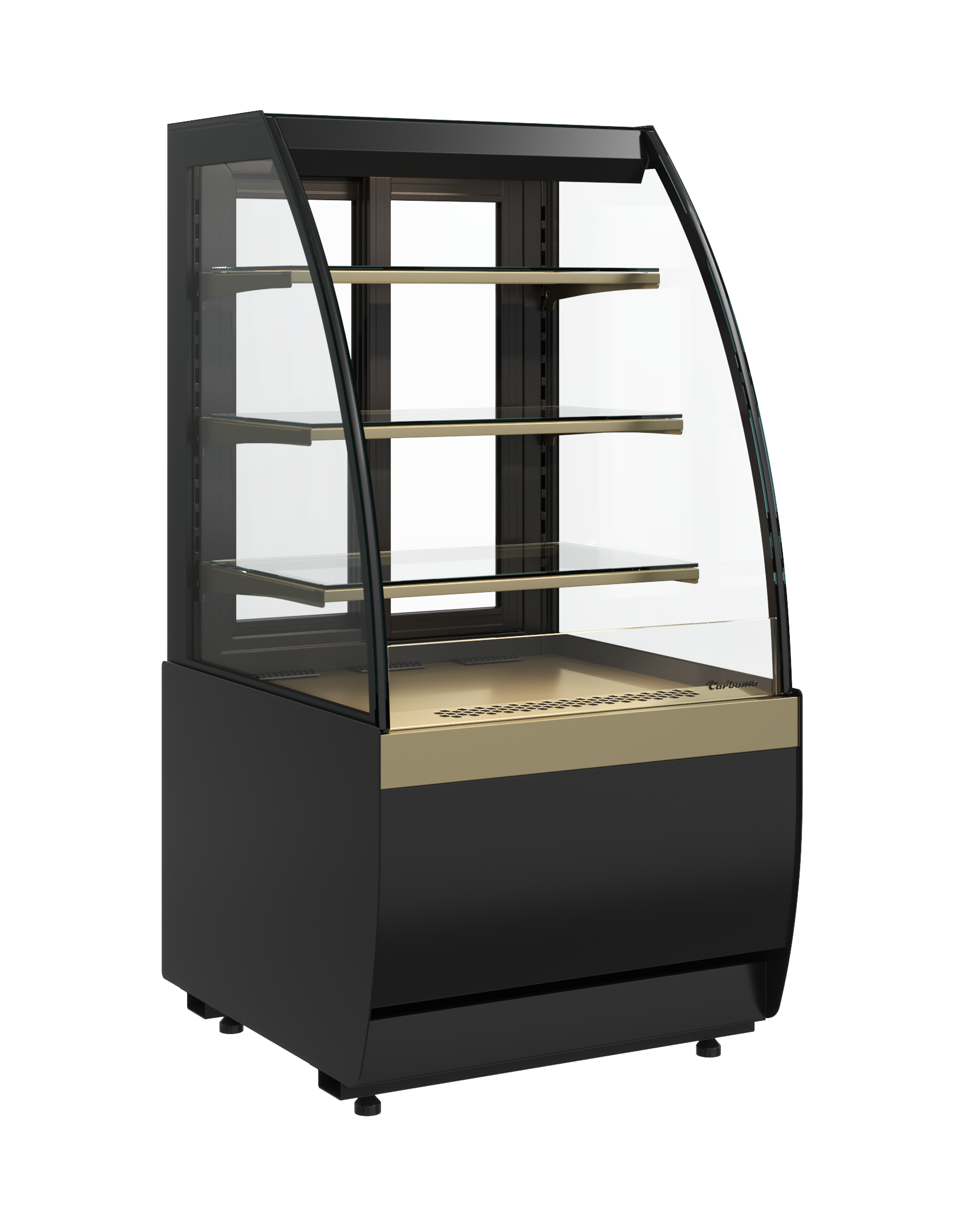

DISPLAY CASES K70 STANDARD 2.0 (Flandria 2)

Main features:

Rated voltage 220 V, 50 Hz

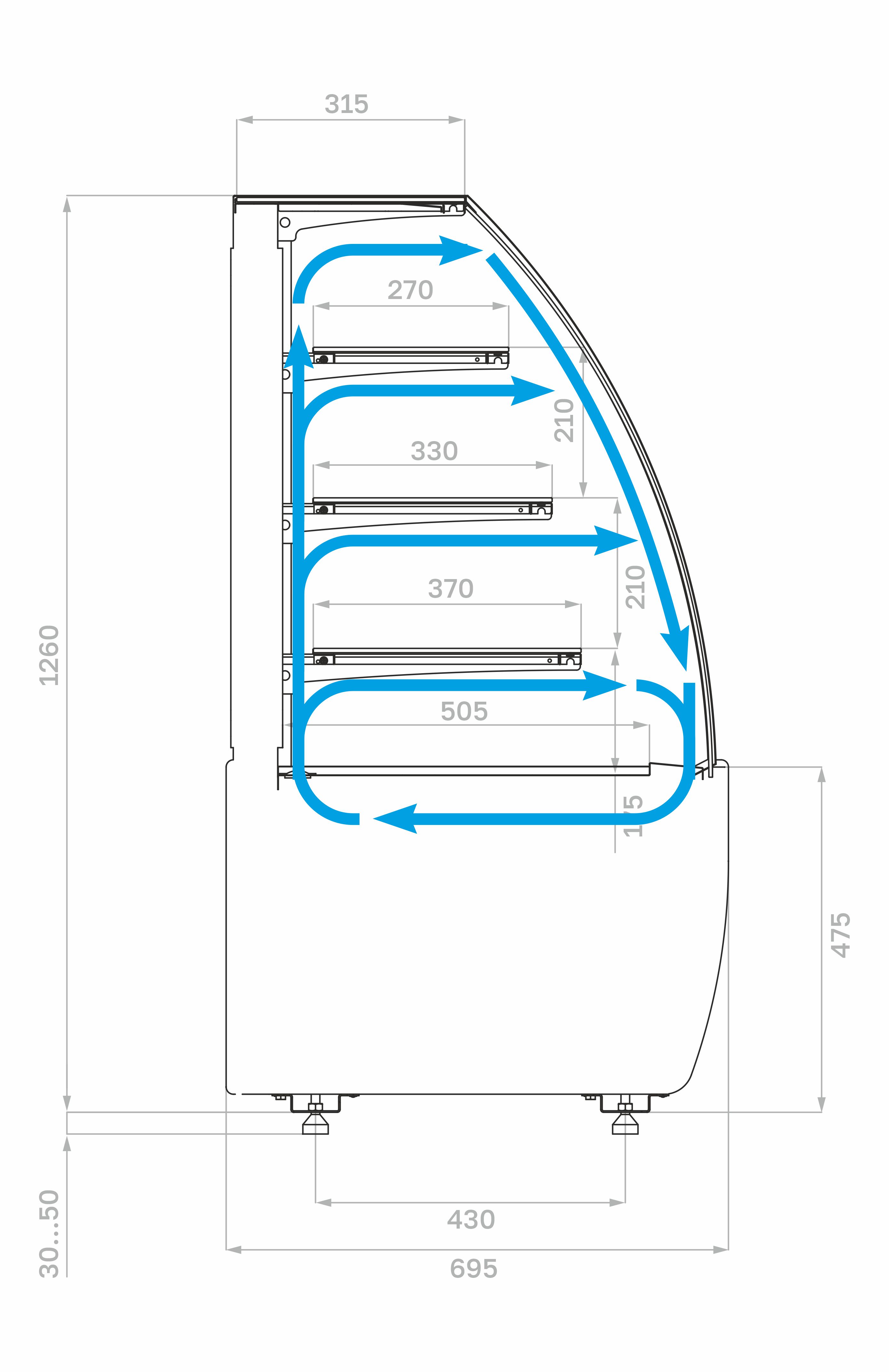

Cooling type Ц dynamic (refrigeration)

Climatic class of equipment: 3

Refrigerant R290, R404a

The display cases are intended for use indoors with natural ventilation at ambient temperatures from +12 to +25 and relative humidity no more than 60%

Загрузить листовку K70 Standard (FLANDRIA 2) Загрузить BIM модели Загрузить цветовые схемы K70 (FLANDRIA 2) Декорирование КОНДИТЕРСКИЕ ВИТРИНЫ ВЕРСИЯ 2.0

Model		Dimensions, mm			Weight, kg	t, °C	Exhibited area, mm	Electricity consumption per day, kW
Model		Length	Width	Height	Weight, kg	t, °C	Exhibited area, mm	Electricity consumption per day, kW

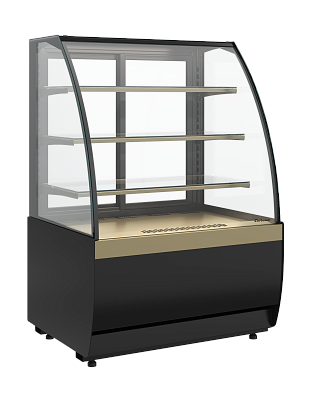

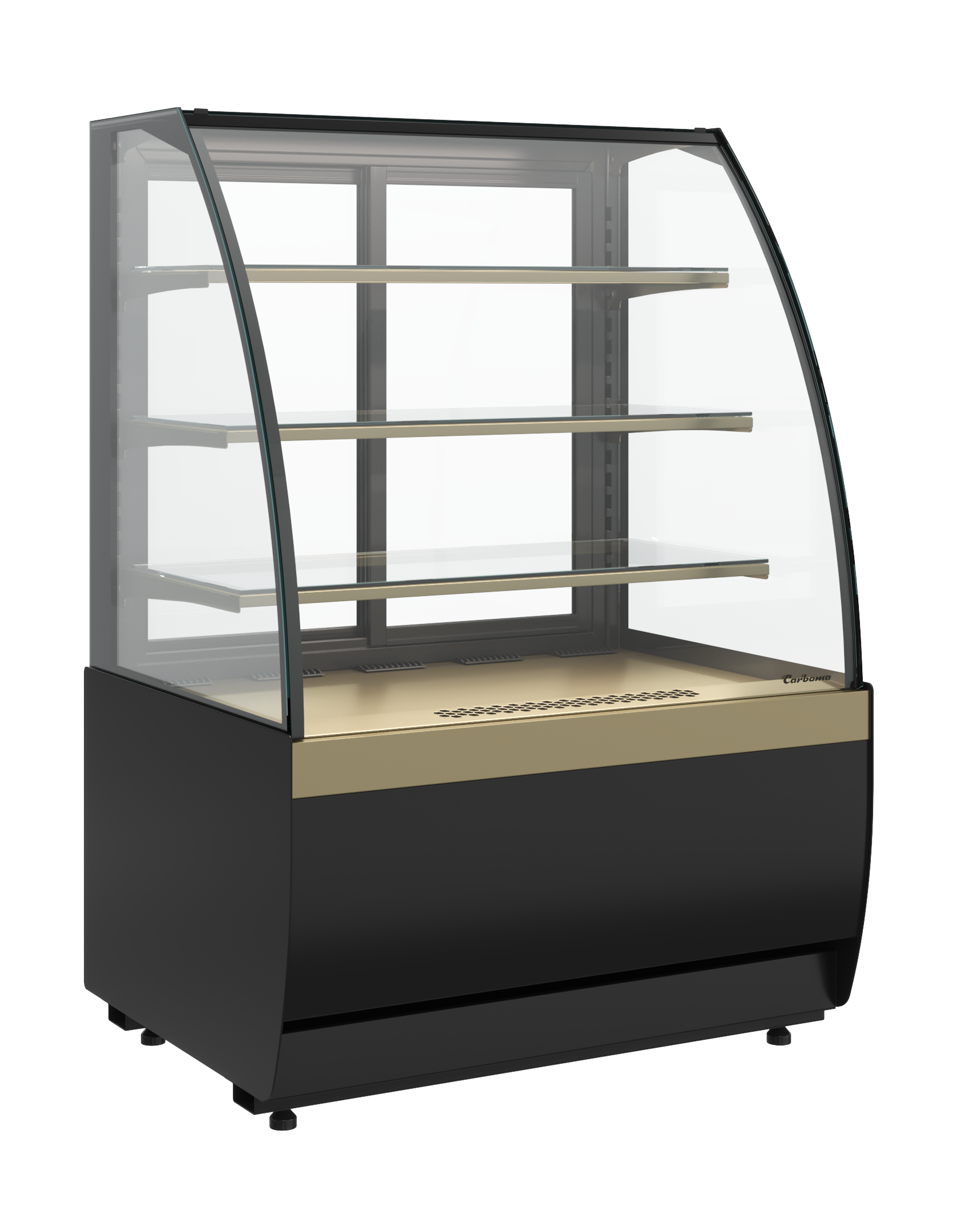

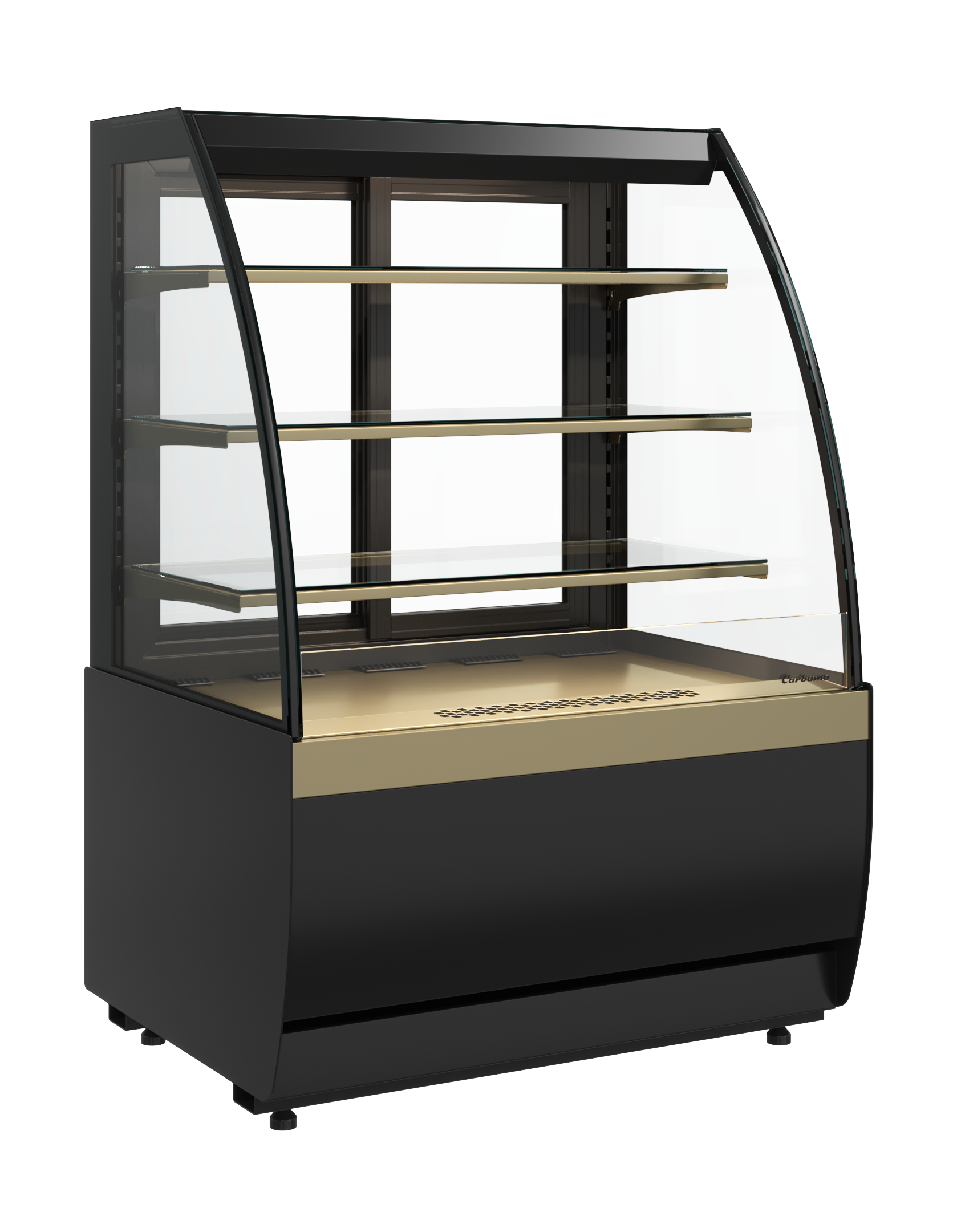

	K70 VV 0,9-1 STANDARD (version 2.0) (9005-0109) Blueprint	880	695	1260 (1310)	137	0...+7	1,16	7,8
	K70 VV 1,3-1 STANDARD (version 2.0) (9005-0109) Blueprint	1330	695	1260 (1310)	166	0...+7	1,84	8,4

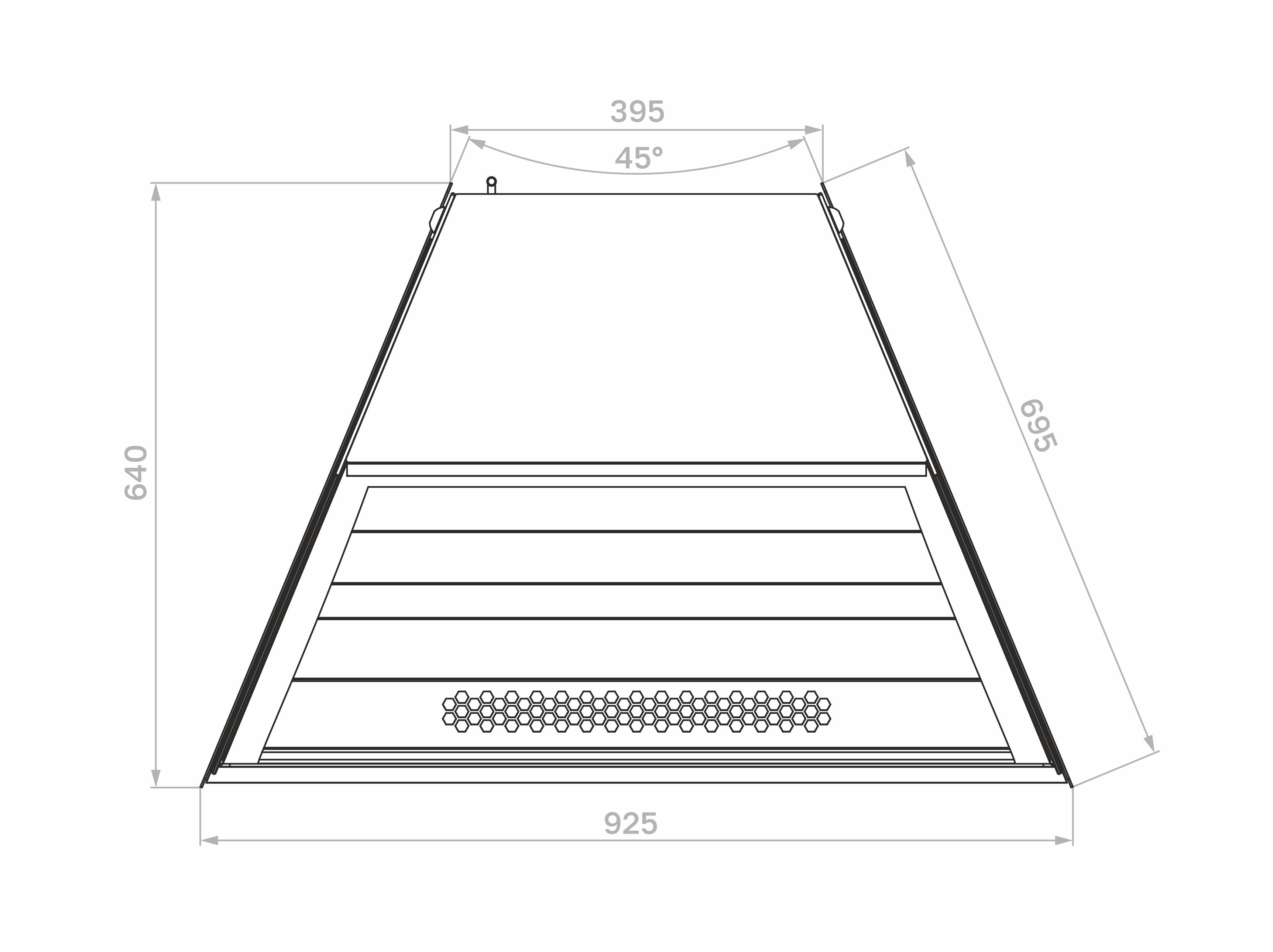

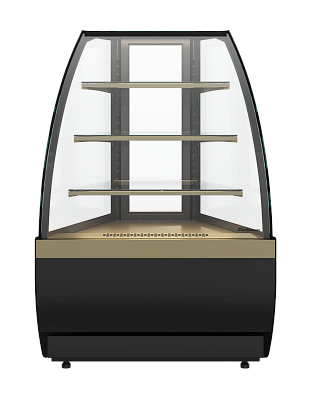

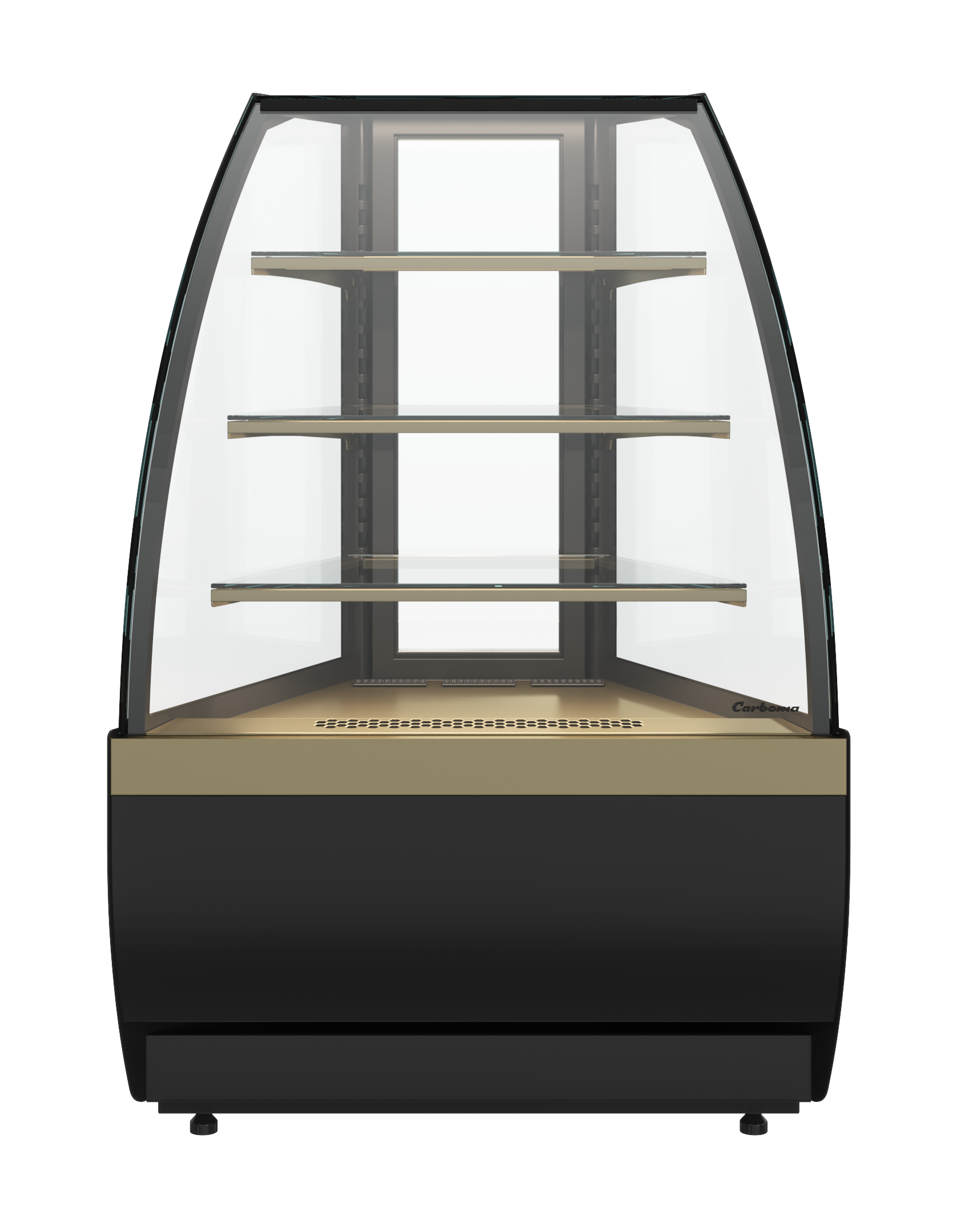

	K70 VV-3 STANDARD (version 2.0) (9005-0109) Blueprint	925	695	1260 (1310)	112	0...+7	0,74	7,2

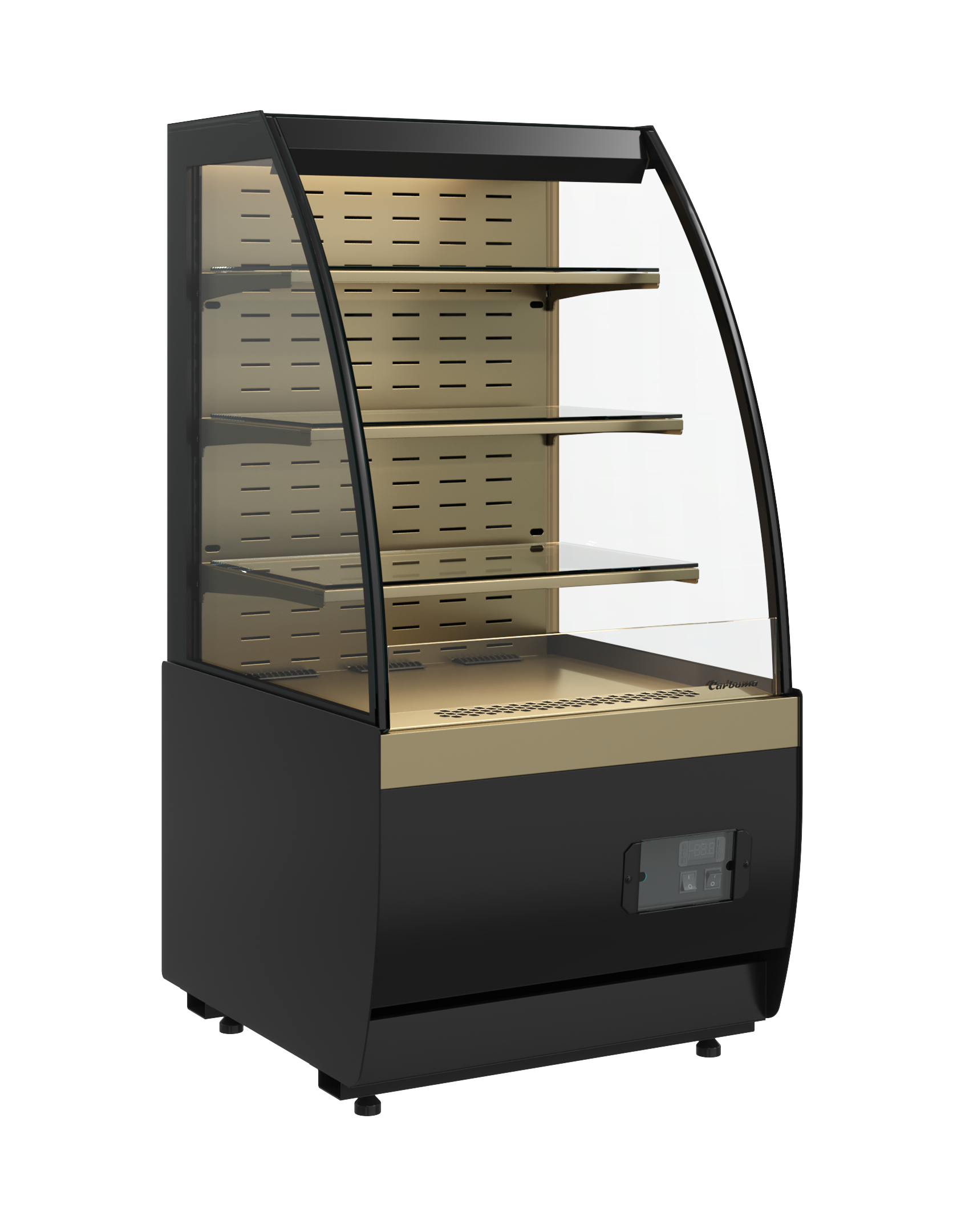

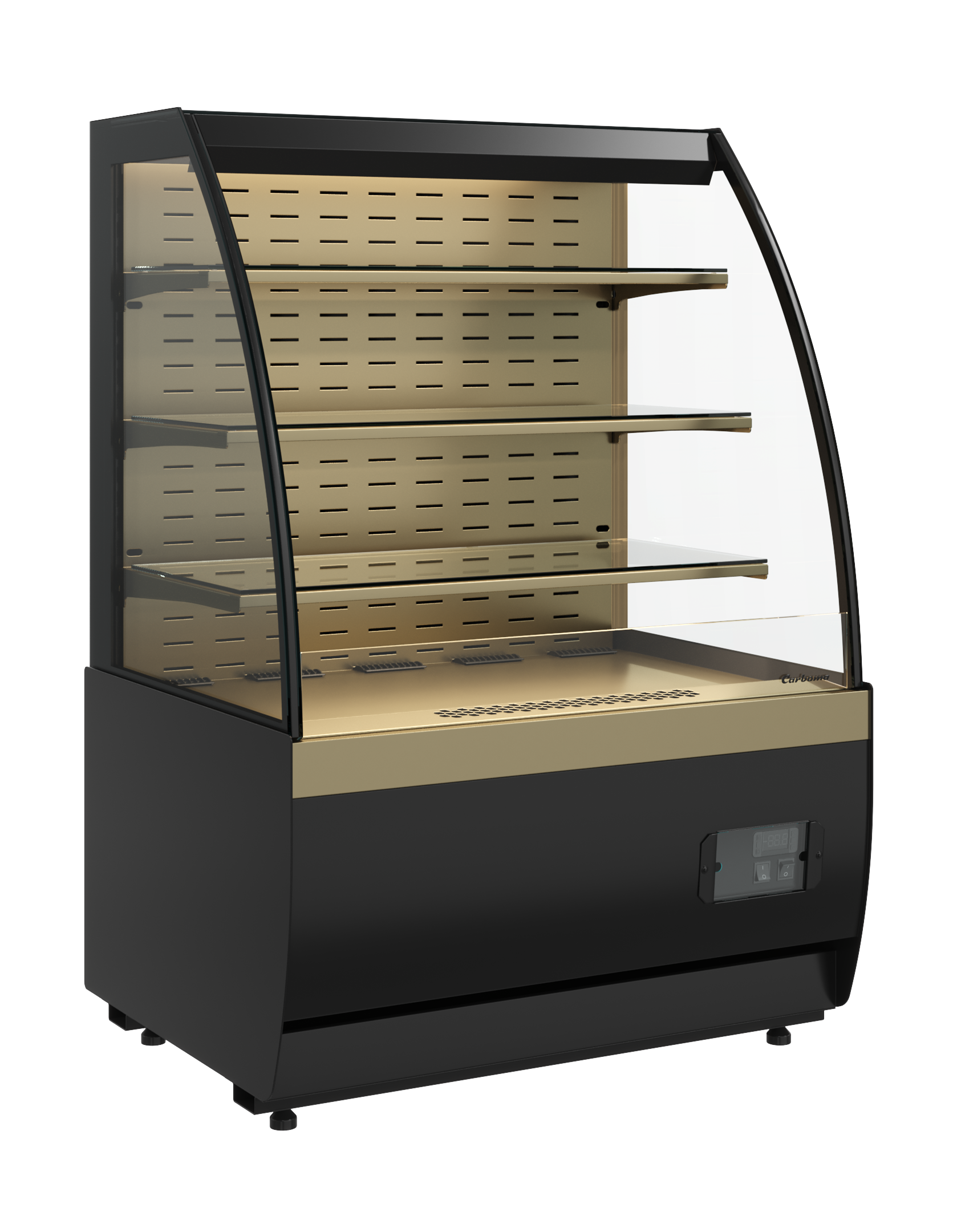

	K70 VM 0,6-2 STANDARD open (version 2.0) (9005-0109) Blueprint	640	695	1260 (1310)		+4...+12	0,78
	K70 VM 0,6-2 STANDARD open, refrigerated display counter (version 2.0) (9005-0109) Blueprint	640	695	1260 (1310)	103	+4...+12	0,78	10,5

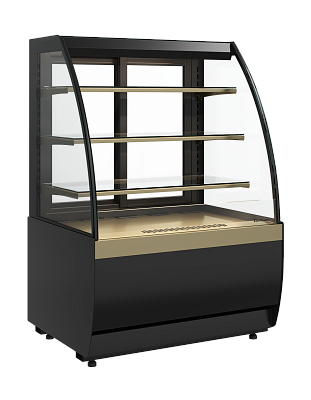

	K70 VM 0,9-2 STANDARD open (version 2.0) (9005-0109) Blueprint	880	695	1260 (1310)	127	+4...+12	1,16	11
	K70 VM 0,9-2 STANDARD open, refrigerated display counter (version 2.0) (9005-0109) Blueprint	880	695	1260 (1310)	123	+4...+12	1,1	10,5
	K70 VM 1,3-2 STANDARD open (version 2.0) (9005-0109) Blueprint	1330	695	1260 (1310)	156	+4...+12	1,84	12

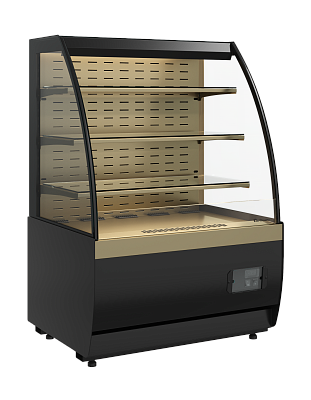

	K70 VM 1,3-2 STANDARD open, refrigerated display counter (version 2.0) (9005-0109) Blueprint	1330	695	1260 (1310)	139	+4...+12	1,69	11,5

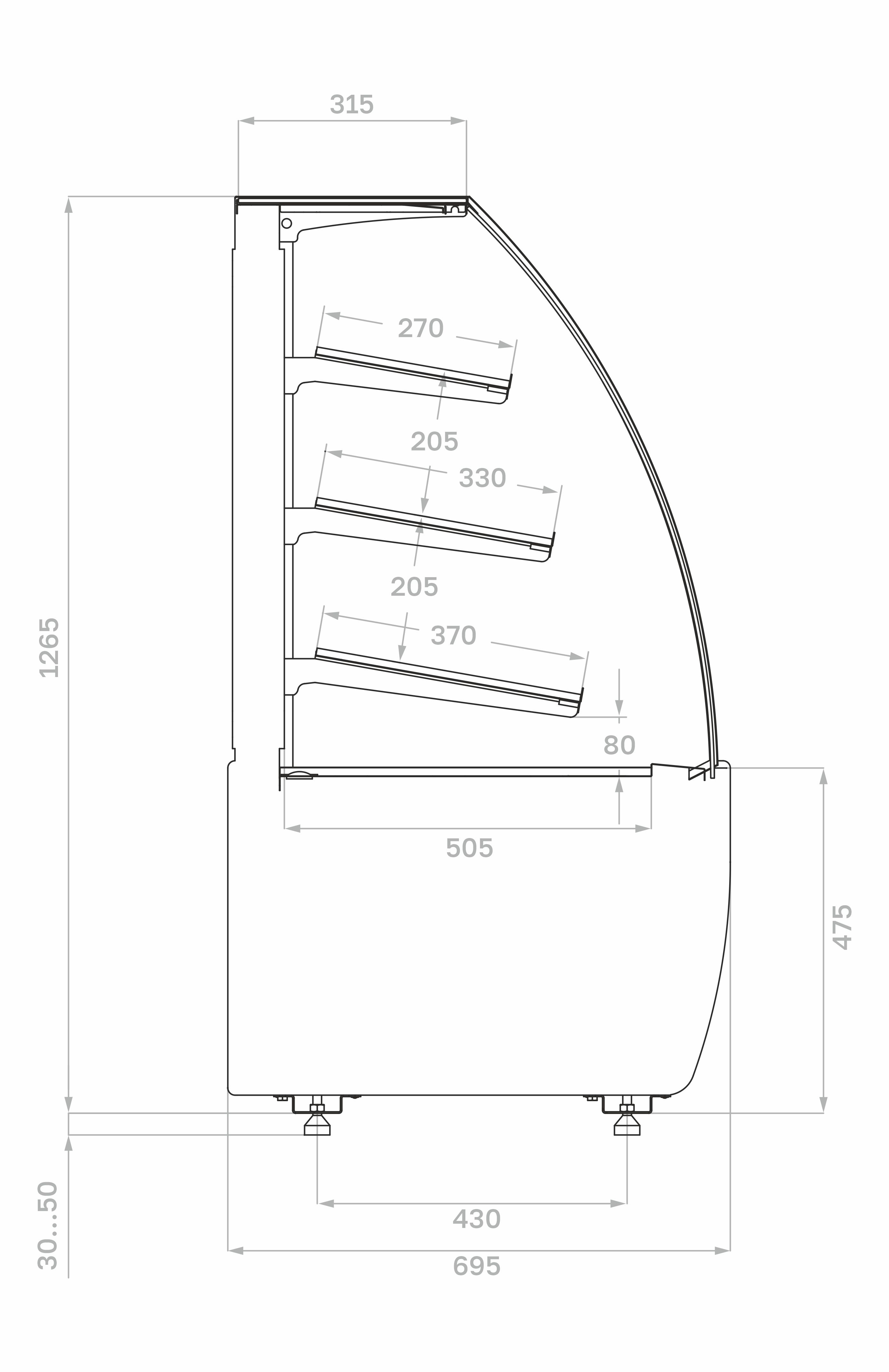

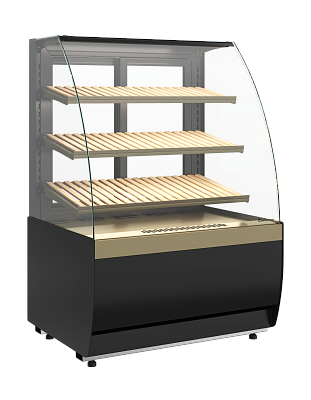

	BreadK70 N 0,9-1 LIGHT Bread (version 2.0) (9005-0109) Blueprint	880	695	1265 (1315)		-	1,18	0,36

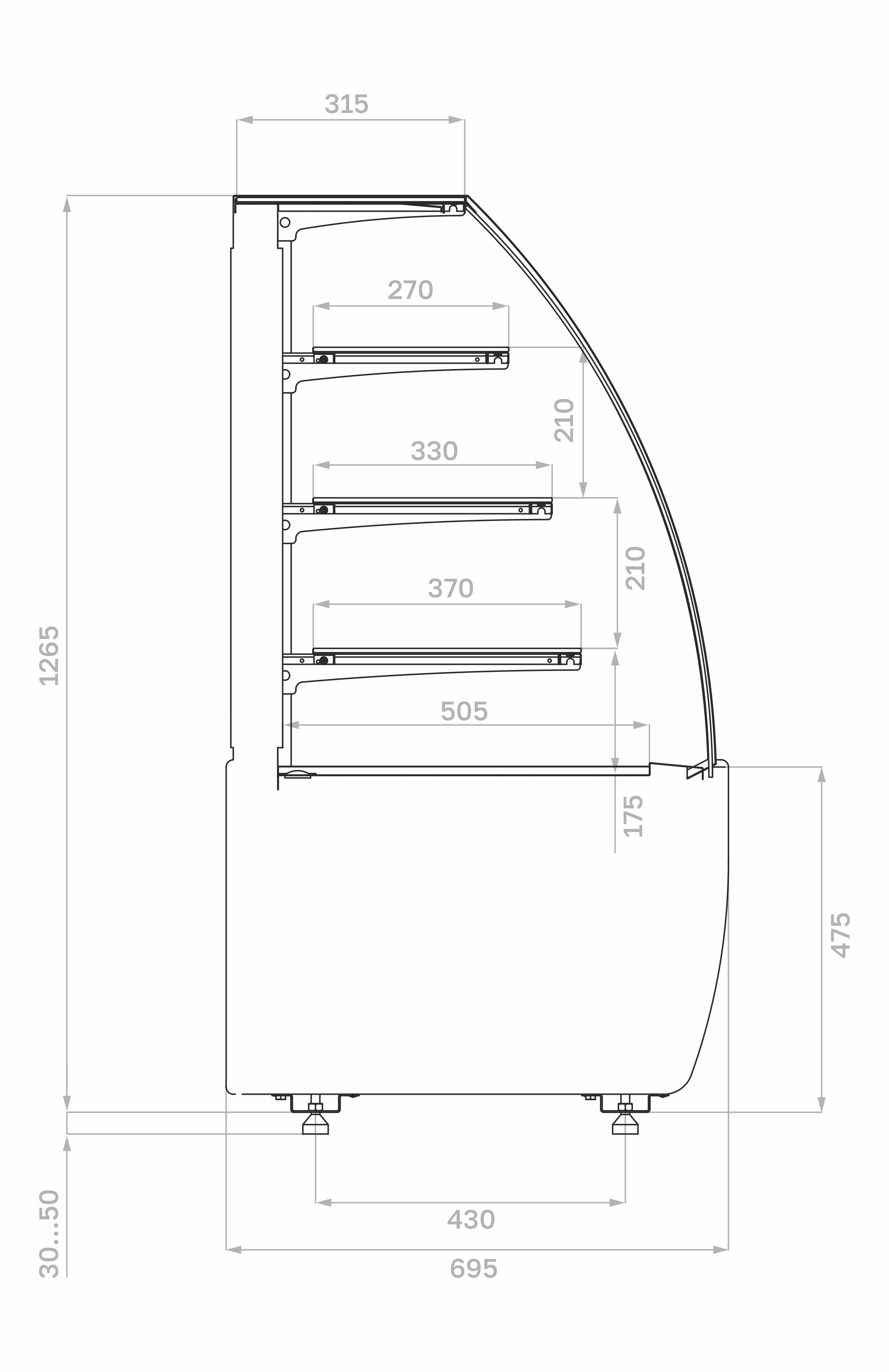

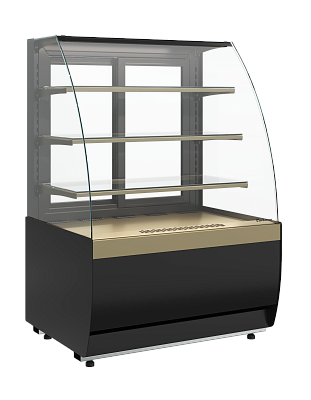

	neutral K70 N 0,9-1 LIGHT (version 2.0) (9005-0109) Blueprint	880	695	1265 (1315)		-	1,18	0,48
	BreadK70 N 1,3-1 LIGHT Bread (version 2.0) (9005-0109) Blueprint	1330	695	1265 (1315)		-	1,69	0,36
	neutral K70 N 1,3-1 LIGHT (version 2.0) (9005-0109) Blueprint	1330	695	1265 (1315)		-	1,69	0,48

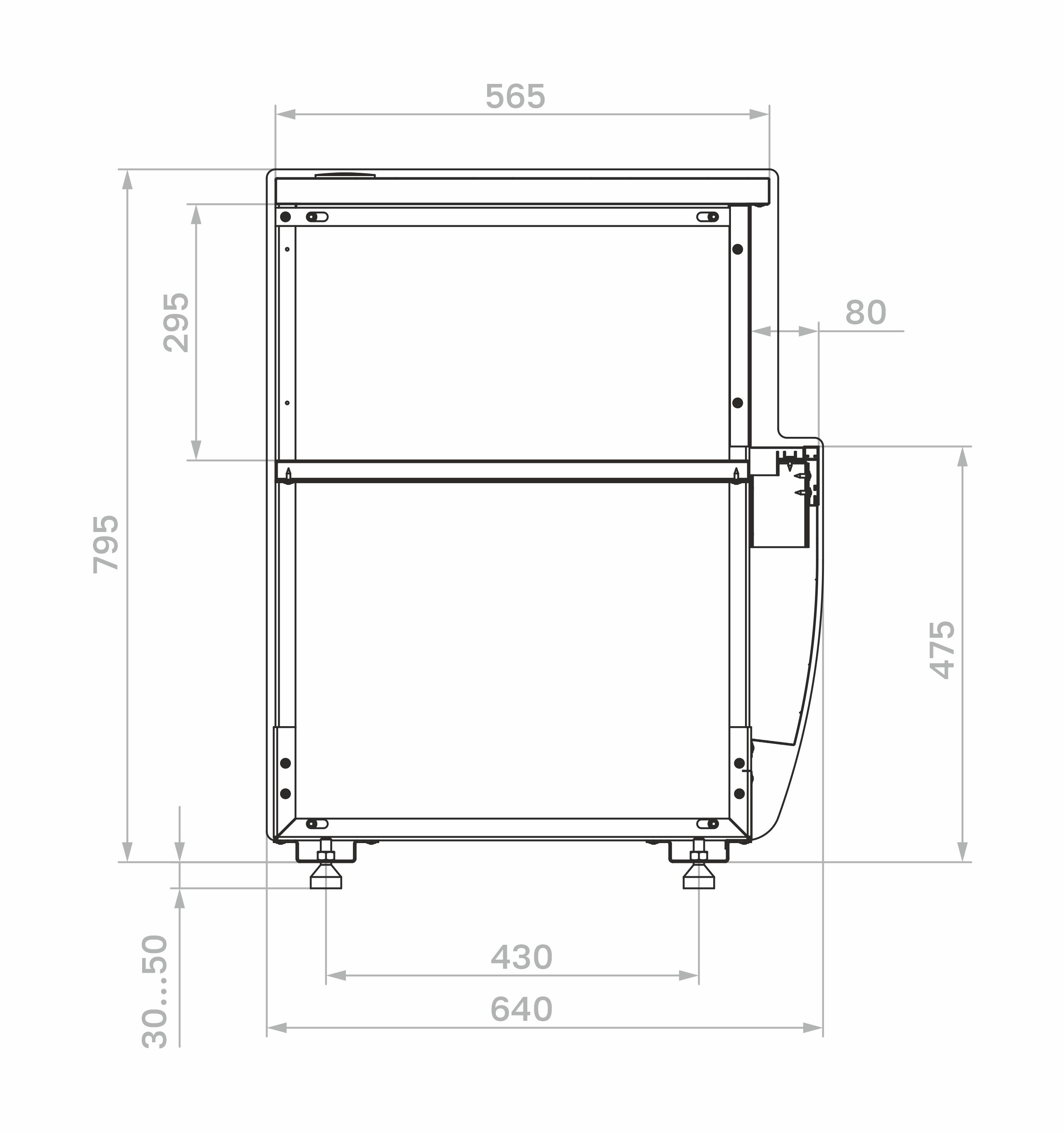

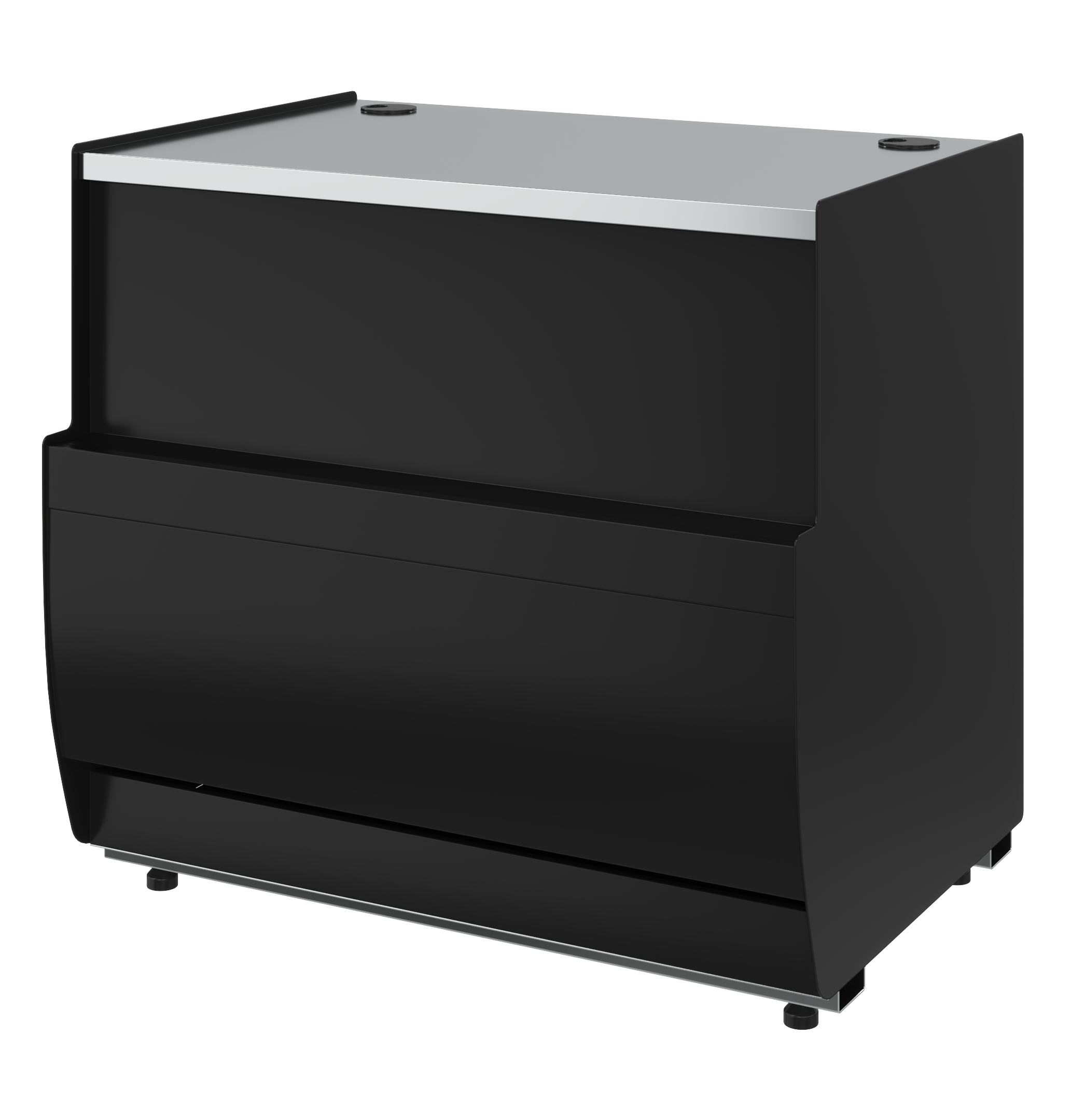

	counter K70 N 0,6-7 (version 2.0) (9005) Blueprint	640	640	795 (845)		-	-	-

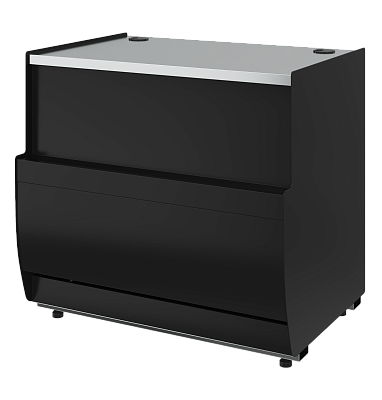

	counter K70 N 0,9-7 (version 2.0) (9005) Blueprint	880	640	795 (845)		-	-	-

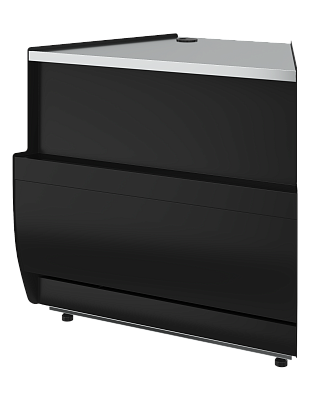

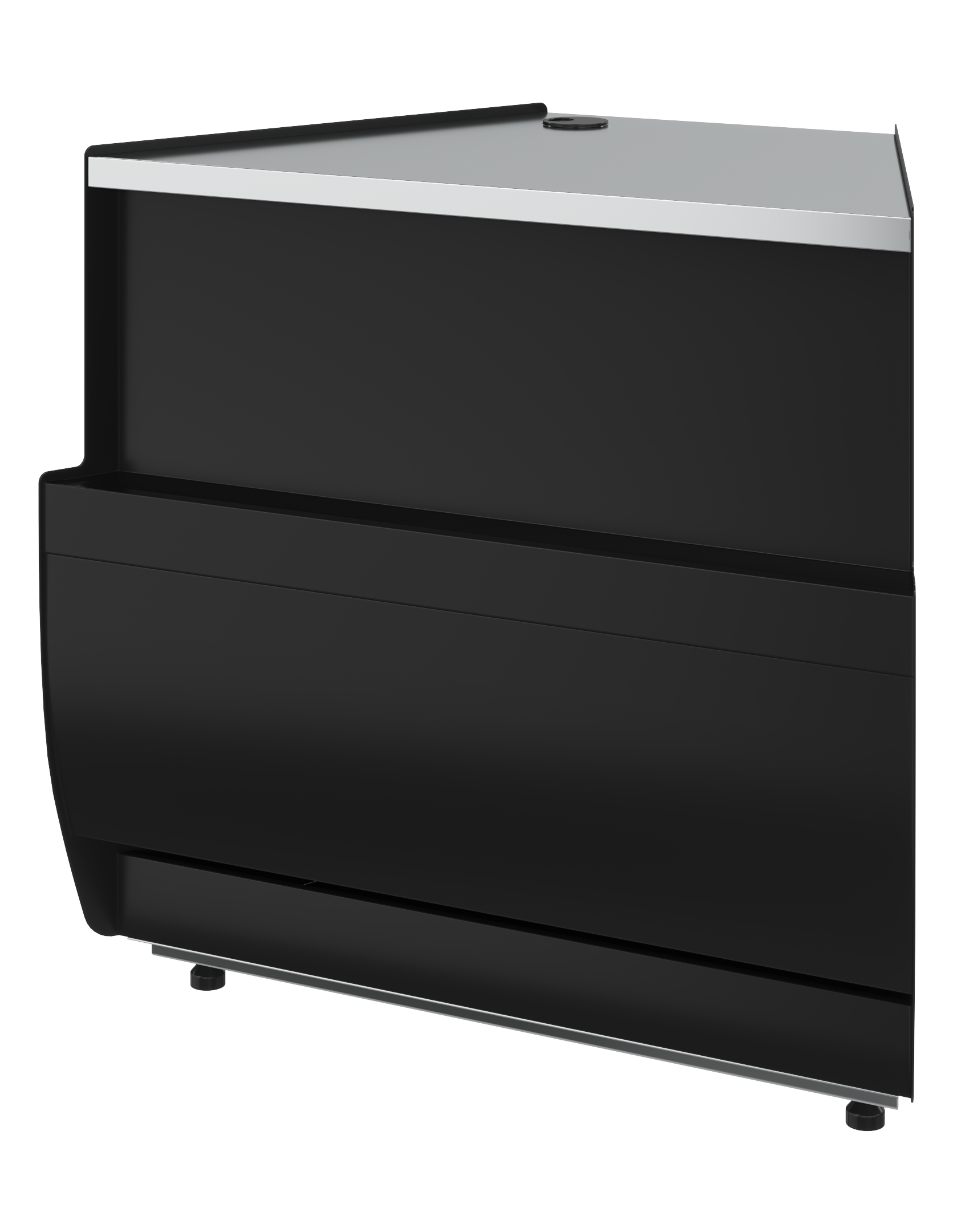

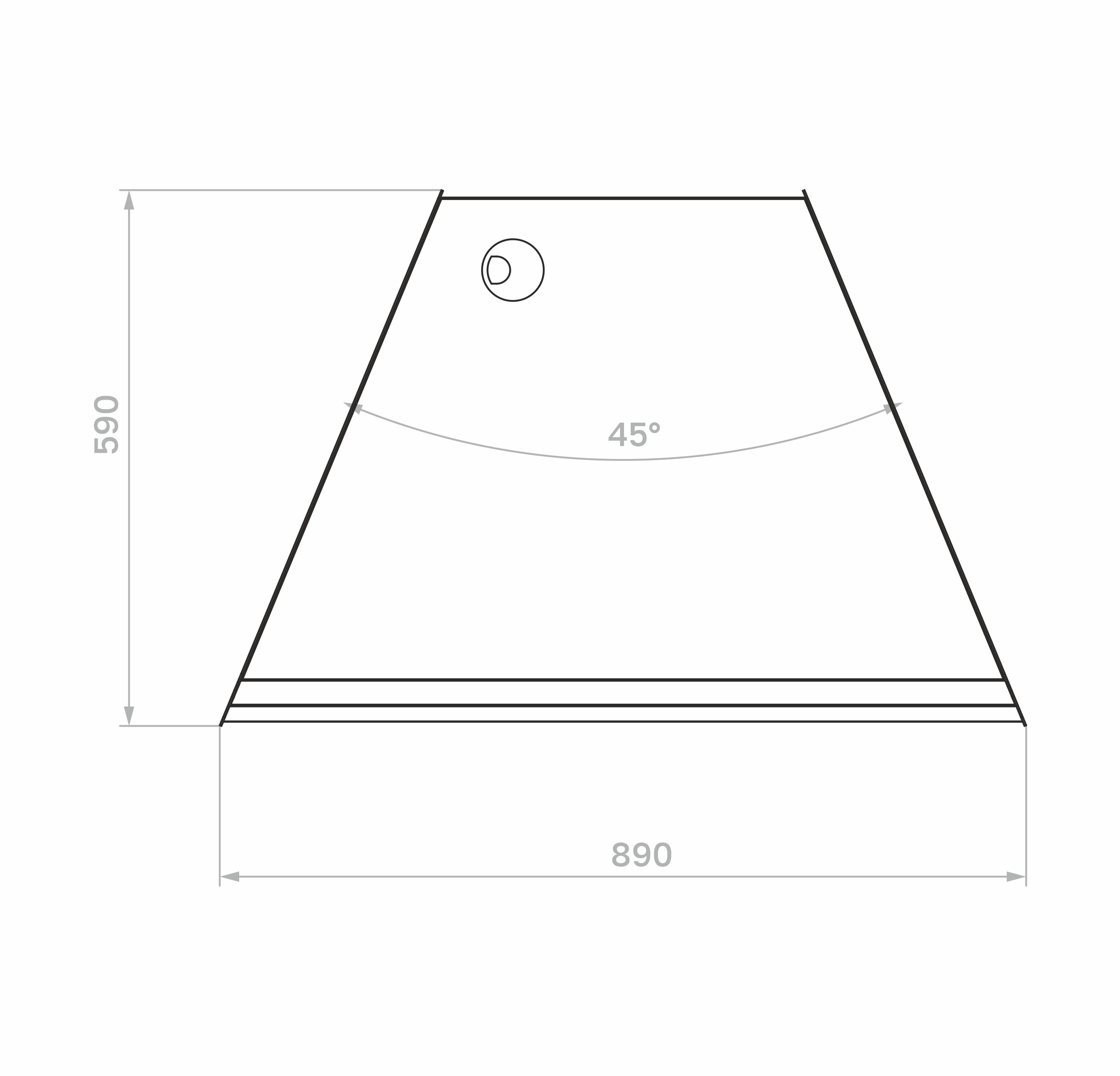

	counter K70 N-8 (version 2.0) (9005) Blueprint	890	590	795 (845)		-	-	-

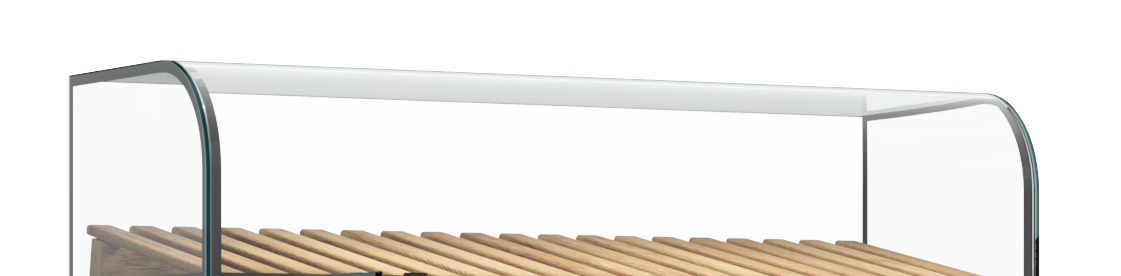

	Upper Deck with SILK SCREEN PRINTING made of glass (curved glass) (0,9)	880	315	200
	Upper Deck with SILK SCREEN PRINTING made of glass (curved glass) (0,9 with shutter doors)	880	315	200
	Upper Deck with SILK SCREEN PRINTING made of glass (curved glass) (1,3)	1300	315	200
	Upper Deck with SILK SCREEN PRINTING made of glass (curved glass) (1,3 with shutter doors)	1300	315	200

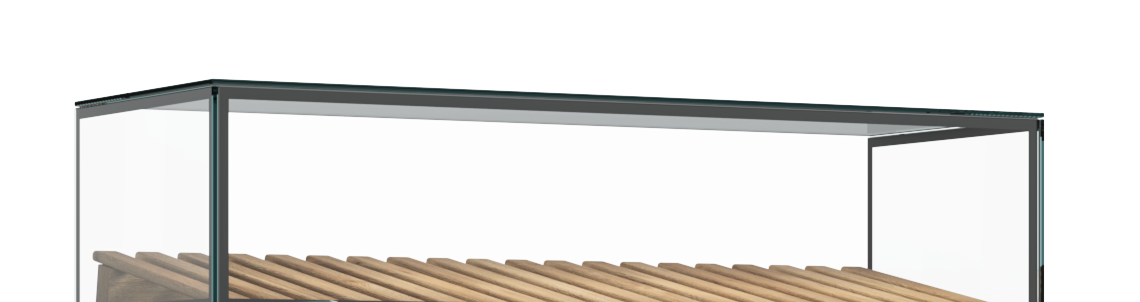

	Upper Deck with SILK SCREEN PRINTING made of glass (cube) (0,9 h-200)	880	315	200

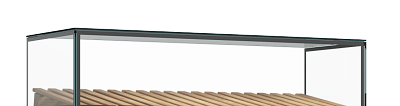

	Upper Deck with SILK SCREEN PRINTING made of glass (cube) (0,9 h-200 with shutter doors)	880	315	200
	Upper Deck with SILK SCREEN PRINTING made of glass (cube) (1,3 h-200)	1300	315	200
	Upper Deck with SILK SCREEN PRINTING made of glass (cube) (1,3 h-200 with shutter doors)	1300	315	200

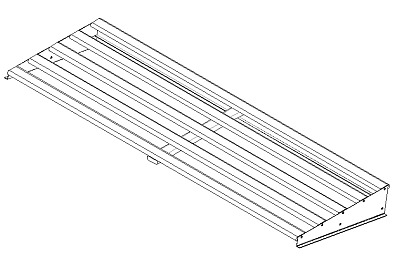

	Wooden rack for upper deck KR70/KS70/K70 (0,9)	825	265	65
	Wooden rack for upper deck KR70/KS70/K70 (1,3)	1275	265	65

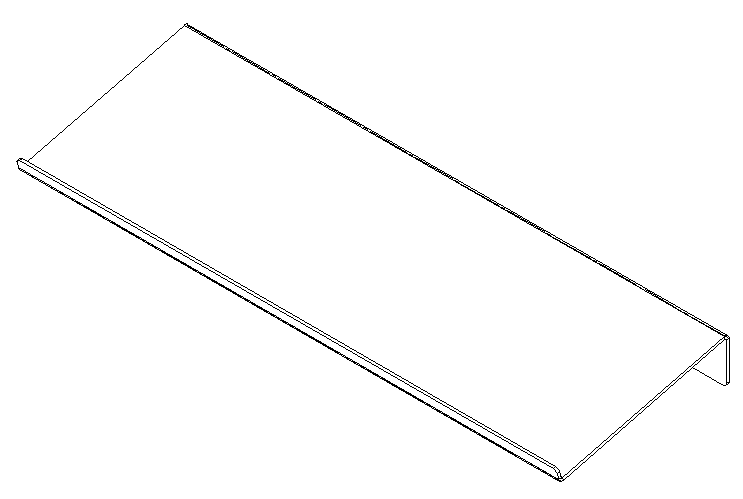

	upper deck stand KR70/KS70/K70 (polycarbonate) (0,9)	825	265	65
	upper deck stand KR70/KS70/K70 (polycarbonate) (1,3)	1275	265	65

DISPLAY CASE INSTALLATION:
The display case must be installed no closer than 2 m from heating devices. Do not operate the display case if it is exposed to direct sunlight or air currents from air conditioners, fans, or heaters.

SOME PARTS HAVE A PROTECTIVE COATING (FILM) THAT MUST BE REMOVED.
After starting the unit and reaching the required temperature, load the display case with products pre-cooled to the temperature of the usable volume, placing them evenly on the trays. The height of the products on display should not exceed 150 mm.
The load on the glass shelf should not exceed 3 kg per running meter of distributed load.

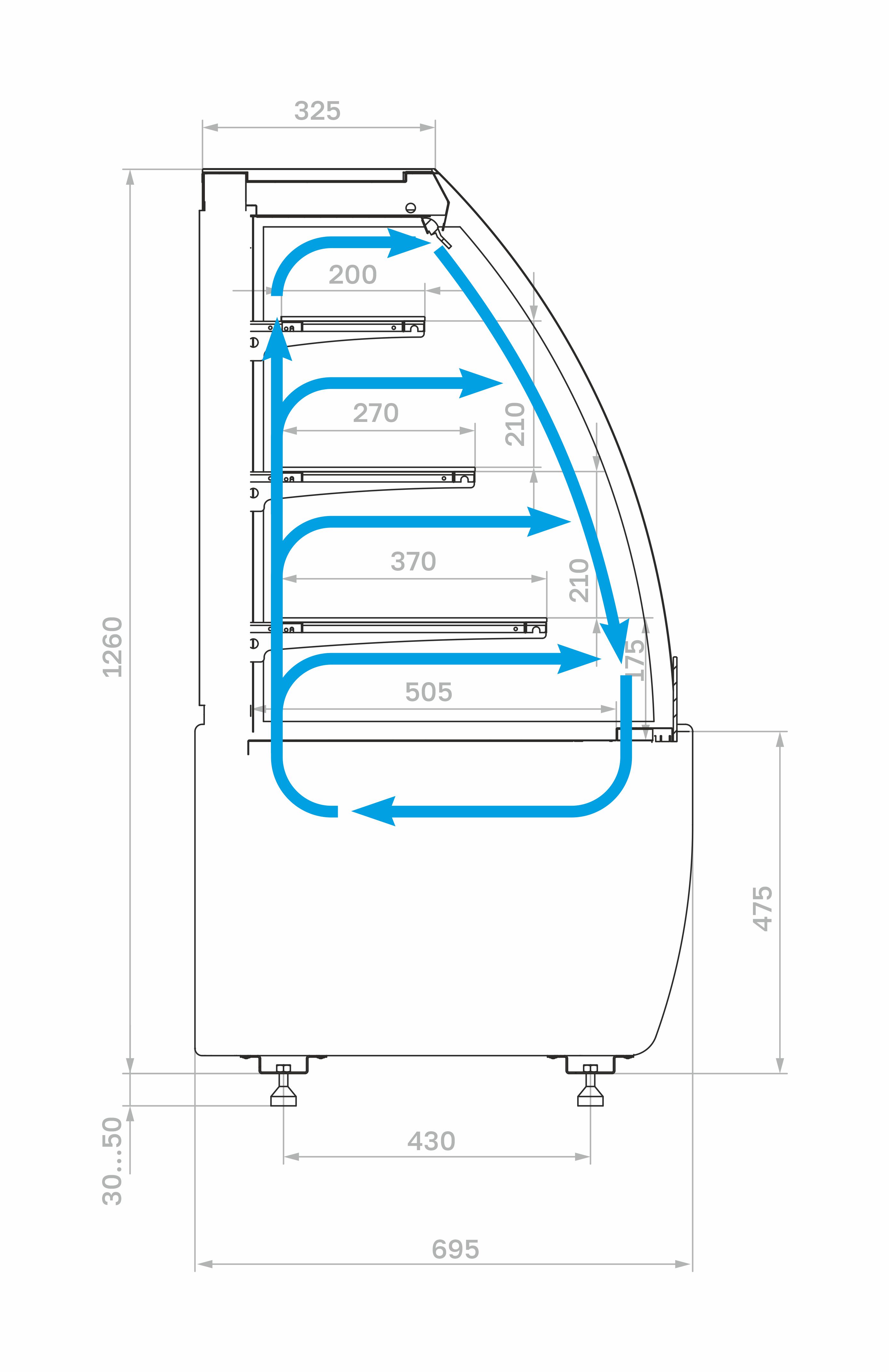

It is forbidden to block the air ducts.
Failure to comply with these requirements will disrupt air circulation and impair the performance of the product, which may lead to food spoilage.
In rainy or humid weather, condensation may form on the display case. This is not a malfunction. In this case, wipe the display case with a soft cloth from time to time.

Standard design:
9005 (TECHNO)
<img width="217" alt="9005.jpg" src="/upload/medialibrary/144/31n9vrvaku4g8a8goo6c9wl99l2e2lv3/9005.jpg" height="113" title="9005.jpg">

9005-0109 (BRONZE)
<img width="215" alt="черный-золото.jpg" src="/upload/medialibrary/dde/mwxj67oc3hoq1gwlko3w942grwnhv1n5/черный-золото.jpg" height="113" title="черный-золото.jpg">

Electronic control unit

Steel body

Thermal insulation of the body - polyurethane foam

Glazing - structural double glazed windows

Rear sliding doors (glazed windows) with built-in handle (closed, open modules)

Hinged sash (glass unit) (outer corner)

Metal back wall, shelves (open, slide)

Cascading shelves with LED lighting, adjustable in height

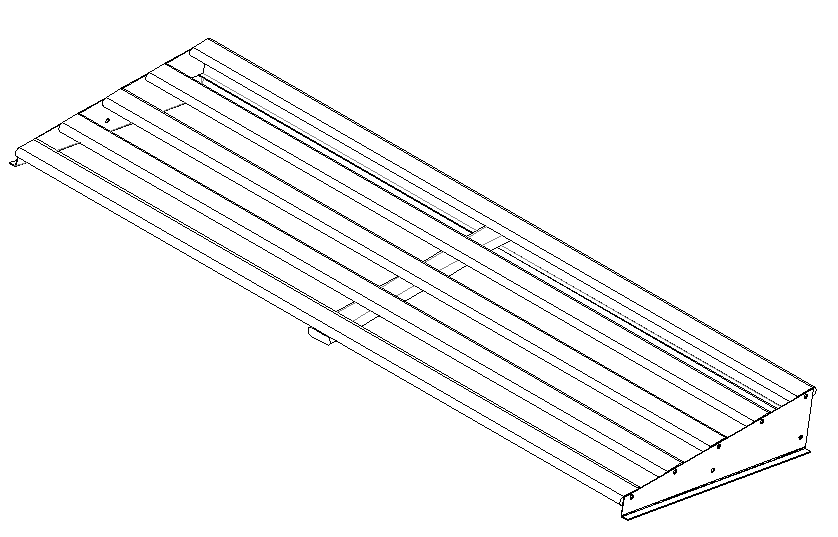

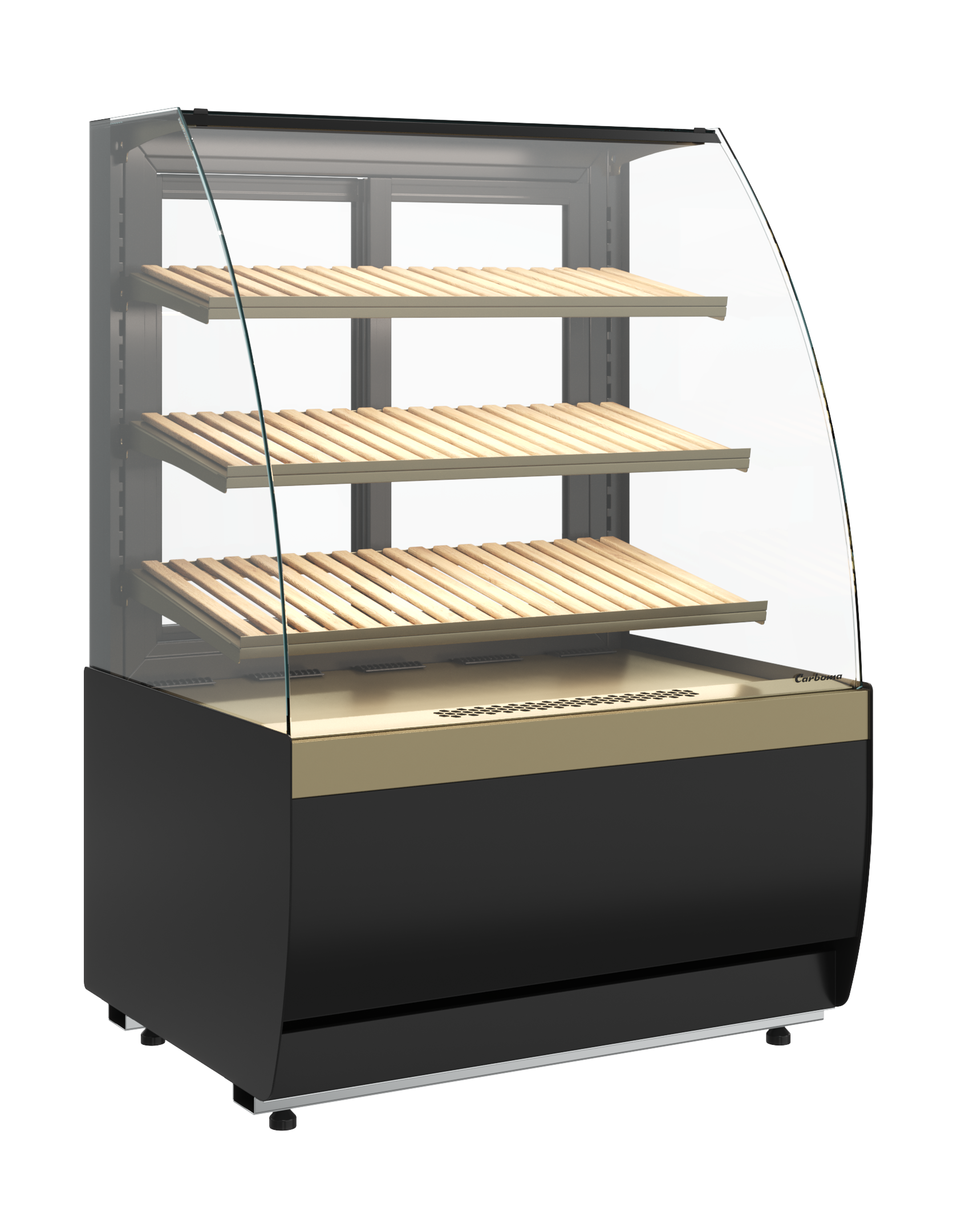

Bread display - without refrigeration system, LED lighting, wooden grates

Neutral showcase - without refrigeration system, LED - backlight

Adjustable support legs

SILK SCREEN superstructure (curved glass, straight glass)
Wooden grating for superstructure KR70/KC70/K70 (825x260, 1275x260 mm)
LED backlight (3000K, 6000K)
Wheel support h-70 mm
Night curtain (open, slide)
Set of MDF panels
Front lighting kit
Egger Finish
Plexiglas limiter (open, slide)
Price holders (open, slide)
Pasta tray (1 section, 2 sections)
Price tray for small baked goods
Sandwich stand

Egger 3303 Дуб Гамильтон

0108 ТЕМНЫЙ ДУБ (Паттерн)

0110 МАРИЕЛЬ (Паттерн)

1008 ТЕМНЫЙ ДУБ (МДФ)

1003 БЕЛЫЙ (МДФ)
