DISPLAY CASES КС84 (COSMO)

картинка DISPLAY CASES КС84 (COSMO)
картинка DISPLAY CASES КС84 (COSMO)
картинка DISPLAY CASES КС84 (COSMO)
картинка DISPLAY CASES КС84 (COSMO)
картинка DISPLAY CASES КС84 (COSMO)
картинка DISPLAY CASES КС84 (COSMO)
картинка DISPLAY CASES КС84 (COSMO)
картинка DISPLAY CASES КС84 (COSMO)
картинка DISPLAY CASES КС84 (COSMO)

Confectionary showcases COSMO are ideal for any configurations of cafes, bakeries and confectionaries. It’s possible easily change and expand the concept by varying space and volume of product exposure. Flat edgesof doubleglazed windows and the absence of connecting strips in the external glazing contourgives the windows a lightness and the effect of INFINITY.

Main features:

    • Nominal voltage 220 V, 50 Hz
    • Type of cooling: dynamic
    • Climate class: 3
    • Showcases are designed for indoor use with natural ventilation, ambient temperature +12…+25 °С, relative humidity not more than 60%
    Brochure_ENG Brochure_IT
Model Dimensions, mm Weight, kg t, °C Exhibited area, mm
Length Width Height
КС84-110 VV 0,9-1КС84-110 VV 0,9-1 КС84-110 VV 0,9-1
Blueprint
900 850 1100 (1150) +2...+10 1,32
КС84-110 VV 1,2-1КС84-110 VV 1,2-1 КС84-110 VV 1,2-1
Blueprint
1200 850 1100 (1150) +2...+10 1,80
КС84-110 VV 1,5-1КС84-110 VV 1,5-1 КС84-110 VV 1,5-1
Blueprint
1500 850 1100 (1150) +2...+10 2,28
КС84-130 VV 0,9-1КС84-130 VV 0,9-1 КС84-130 VV 0,9-1
Blueprint
900 850 1300 (1350) +2...+10 1,78
КС84-130 VV 1,2-1КС84-130 VV 1,2-1 КС84-130 VV 1,2-1
Blueprint
1200 850 1300 (1350) +2...+10 2,42
КС84-130 VV 1,5-1КС84-130 VV 1,5-1 КС84-130 VV 1,5-1
Blueprint
1500 850 1300 (1350) +2...+10 3,06
КС84-150 VV 0,9-1КС84-150 VV 0,9-1 КС84-150 VV 0,9-1
Blueprint
900 850 1500 (1550) +2...+10 2,23
КС84-150 VV 1,2-1КС84-150 VV 1,2-1 КС84-150 VV 1,2-1
Blueprint
1200 850 1500 (1550) +2...+10 3,84
КС84-150 VV 1,5-1КС84-150 VV 1,5-1 КС84-150 VV 1,5-1
Blueprint
1500 850 1500 (1550) +2...+10 3,84
  • European-made compressor
  • Electronic control unit with temperature indicator Carel
  • The body is made of steel/plastic
  • Thermal insulation - polyurethane foam
  • Level-adjustable shelves
  • LED lighting of each shelf
  • Bottom LED-lighting of basic shelf
  • Integrated price tags

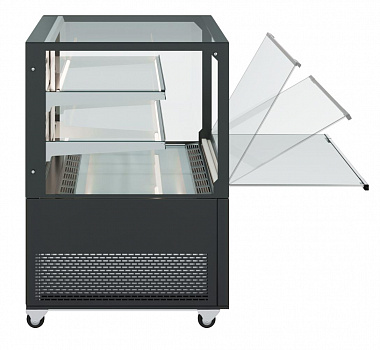

  • Front tilt double-glazed window (OPENING ANGLE-40 degrees)
  • wheel support H-100 mm
  • double-glazed window with a mirror on sliding sash
  • overlay of stainless steel (working surface)
  • To watch the video in your language, click the "subtitles" button at the bottom of the YouTube player, and then click the "settings" button to select your language.

    Blueprints

    КС84-110 VV 0,9-1
    Чертеж КС84-110 VV 0,9-1
    • Depth 510 mm (+2 shelves 545mm )
    • Volume 0,20
    КС84-110 VV 1,2-1
    Чертеж КС84-110 VV 1,2-1
    • Depth 510 mm (+2 shelves 545 mm )
    • Volume 0,27
    КС84-110 VV 1,5-1
    Чертеж КС84-110 VV 1,5-1
    • Depth 510 mm (+2 shelves 545 mm )
    • Volume 0,34
    КС84-130 VV 0,9-1
    Чертеж КС84-130 VV 0,9-1
    • Depth 510 mm (+3 shelves 545 mm )
    • Volume 0,27
    КС84-130 VV 1,2-1
    Чертеж КС84-130 VV 1,2-1
    • Depth 510 mm (+3 shelves 545 mm )
    • Volume 0,36
    КС84-130 VV 1,5-1
    Чертеж КС84-130 VV 1,5-1
    • Depth 510 mm (+3 shelves 545 mm )
    • Volume 0,46
    КС84-150 VV 0,9-1
    Чертеж КС84-150 VV 0,9-1
    • Depth 510 mm (+4 shelves 545 mm )
    • Volume 0,33
    КС84-150 VV 1,2-1
    Чертеж КС84-150 VV 1,2-1
    • Depth 510 mm (+4 shelves 545 mm )
    • Volume 0,46
    КС84-150 VV 1,5-1
    Чертеж КС84-150 VV 1,5-1
    • Depth 510 mm (+4 shelves 545 mm )
    • Volume 0,58
