Glass Refrigerated Cabinets

картинка Glass Refrigerated Cabinets
картинка Glass Refrigerated Cabinets
картинка Glass Refrigerated Cabinets
картинка Glass Refrigerated Cabinets
картинка Glass Refrigerated Cabinets
картинка Glass Refrigerated Cabinets
картинка Glass Refrigerated Cabinets
картинка Glass Refrigerated Cabinets

WIDE (wide) system design of the cabinets, 20% more product overview* (*compared to cabinets of equal volume designed according to the DEEP system (deep).

Ideal for kitchens with limited space, fit into professional technological lines with a depth of 700 and 800 mm.

2 temperature ranges, 5 paint options available at base price.

Main features:

  • Refrigeration unit Danfoss (R134a, R404a)
  • Type of cooling: dynamic
Brochure
Model Dimensions, mm Weight, kg t, °C Exhibited area, mm Electricity consumption per day, kW
Length Width Height

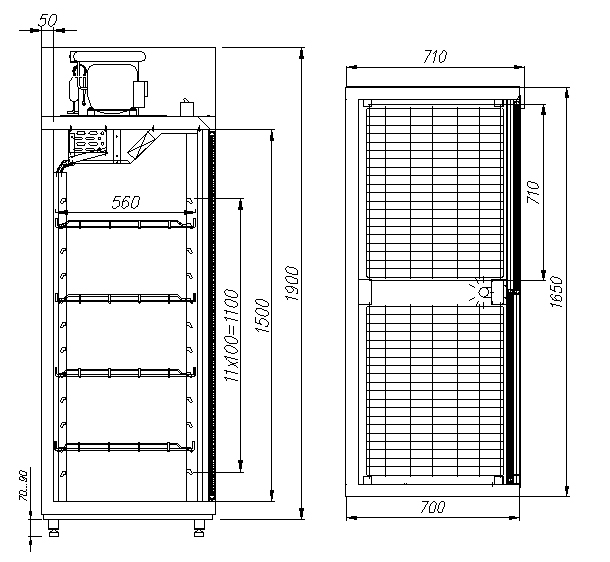

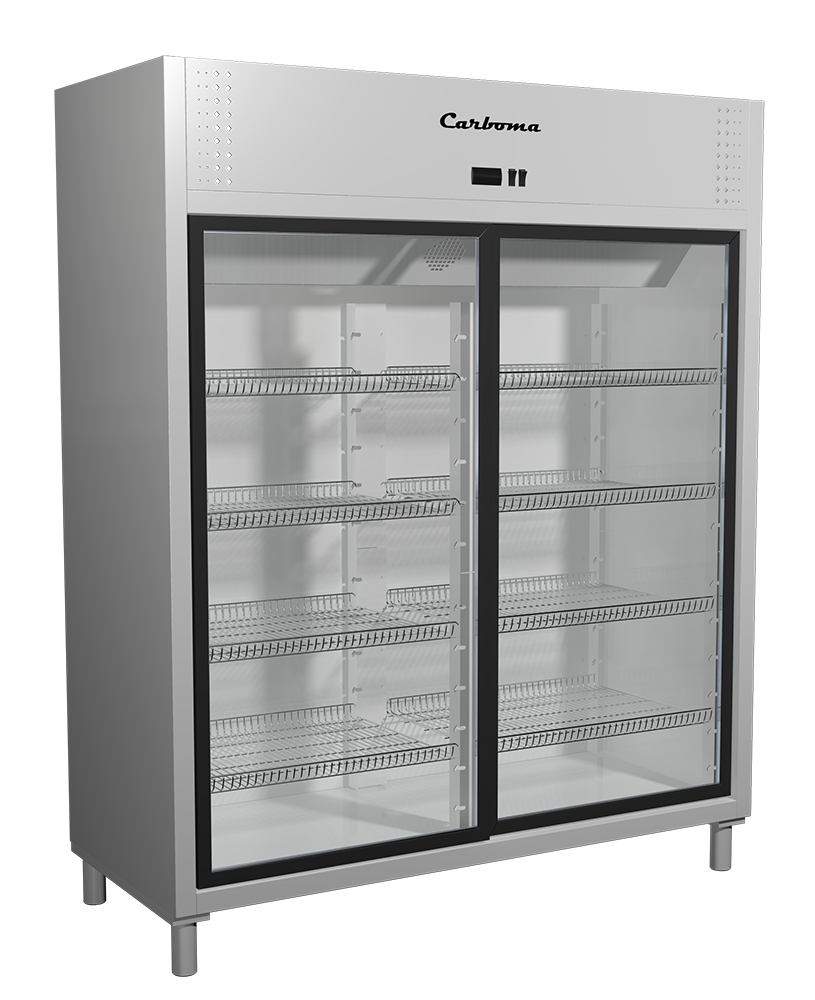

R1400К (sliding doors) СarbomaR1400К (sliding doors) Сarboma R1400К (sliding doors) Сarboma
Blueprint
1650 710 1900 (1990) 230 +1...+12 4,11 10,2

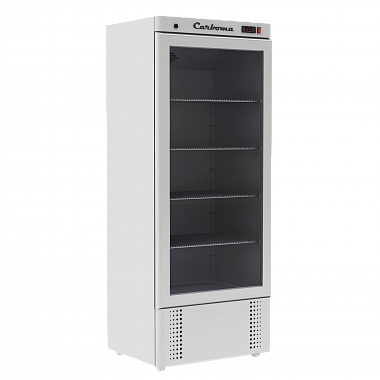

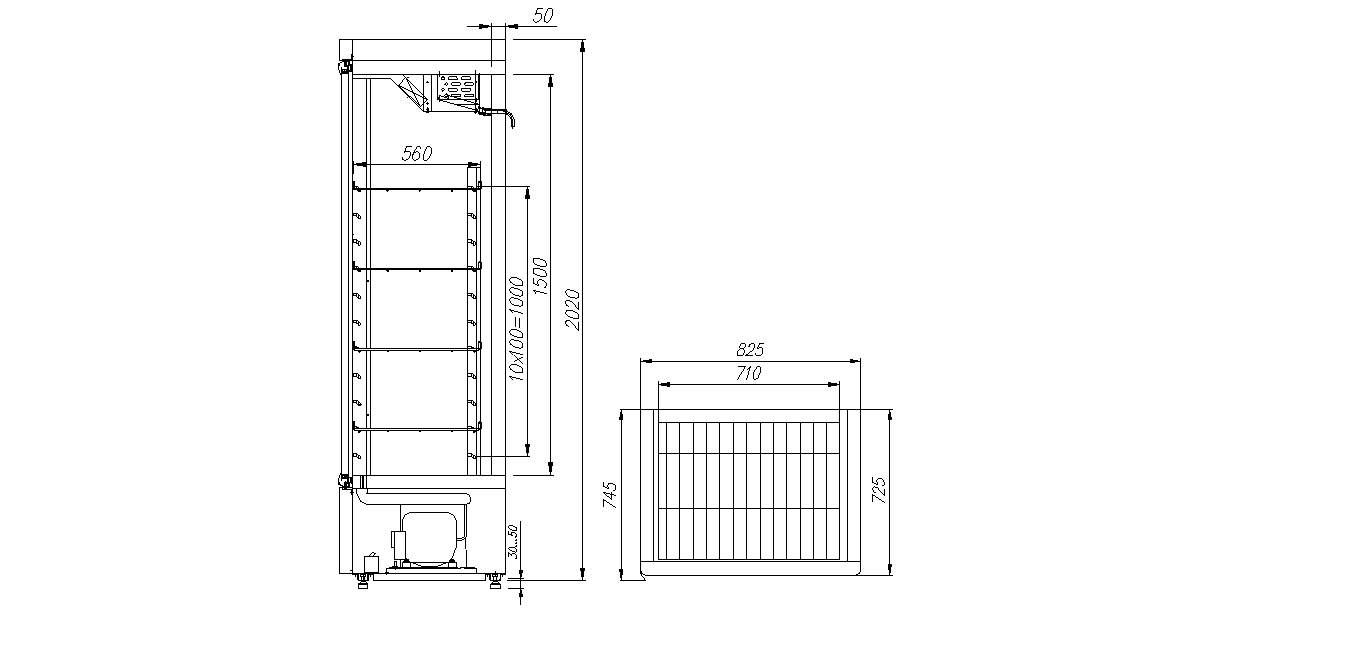

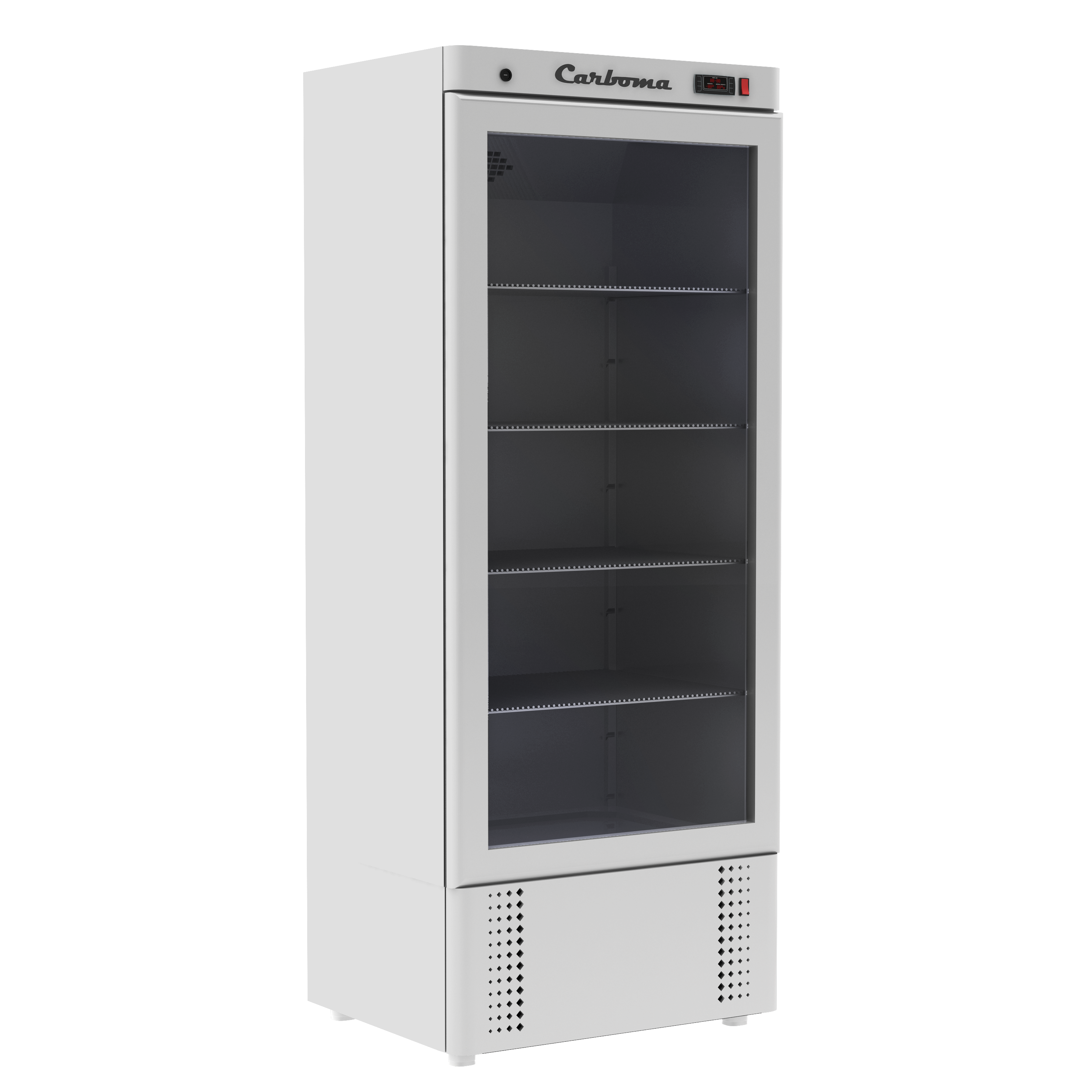

R560 С (glass) СarbomaR560 С (glass) Сarboma R560 С (glass) Сarboma

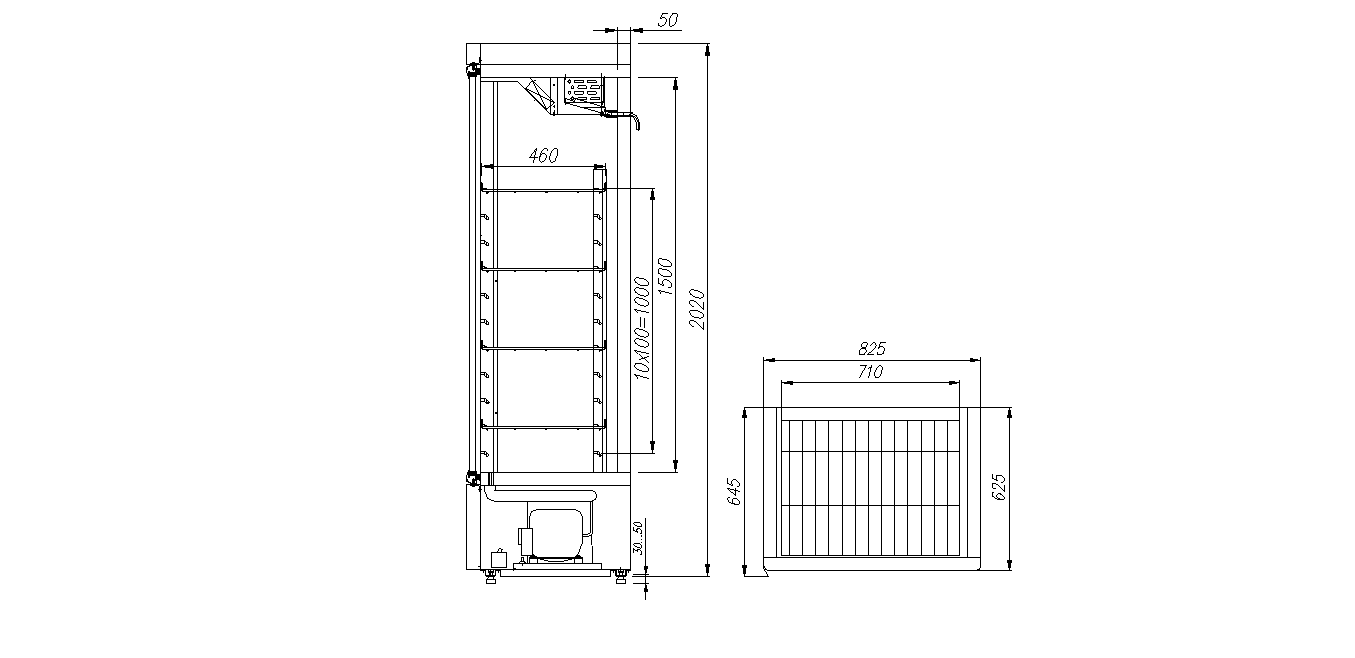

Blueprint
825 645 2020 120 +1...+12 1,68 6,2

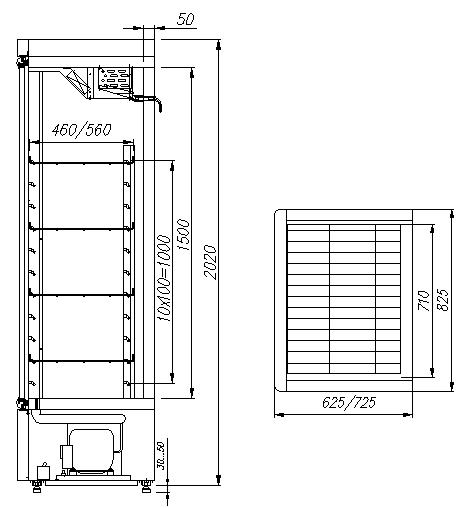

R700 С (glass) СarbomaR700 С (glass) Сarboma R700 С (glass) Сarboma
Blueprint
825 745 2020 145 +1...+12 2,04 7,6
V560 С (glass) СarbomaV560 С (glass) Сarboma V560 С (glass) Сarboma
Blueprint
825 645 2020 120 -5...+5 1,68 7,6
V700 С (glass) СarbomaV700 С (glass) Сarboma V700 С (glass) Сarboma
Blueprint
825 745 2020 145 -5...+5 2,04 8,6

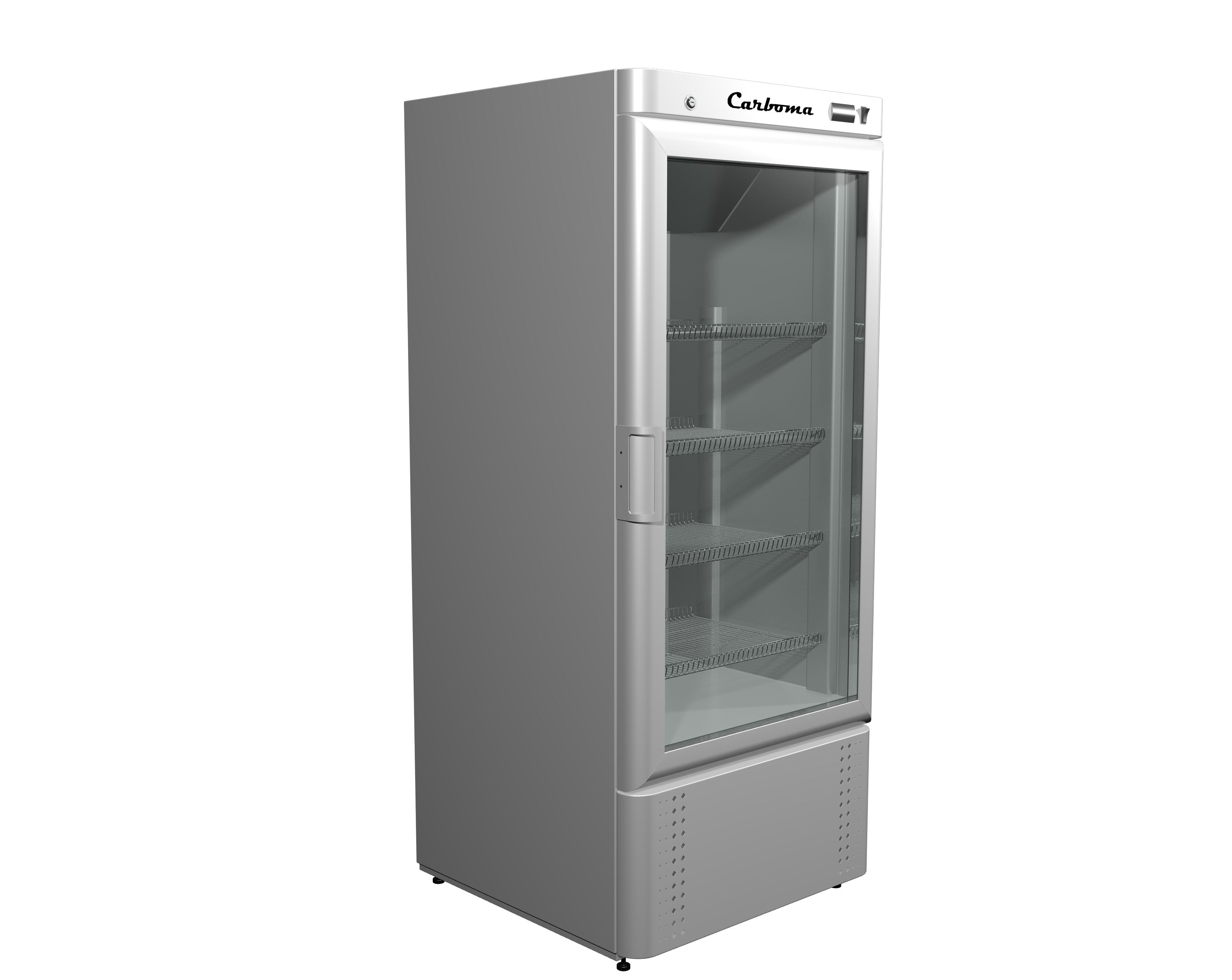

R560 С (glass) Сarboma INOX
Blueprint
825 645 2020 120 +1...+12 1,68 6,2
V560 С (glass) Сarboma INOX
Blueprint
825 645 2020 120 -5...+5 1,68 7,6

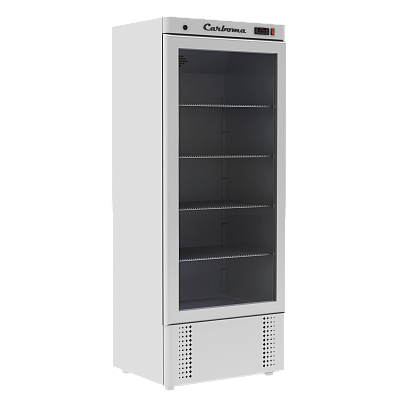

R700 С (glass) Сarboma INOX
Blueprint
825 745 2020 145 +1...+12 2,04 7,6
V700 С (glass) Сarboma INOX
Blueprint
825 745 2020 145 -5...+5 2,04 8,6
R1400К (sliding doors) Сarboma INOX
Blueprint
1650 710 1900 (1990) 230 +1...+12 4,11 10,2

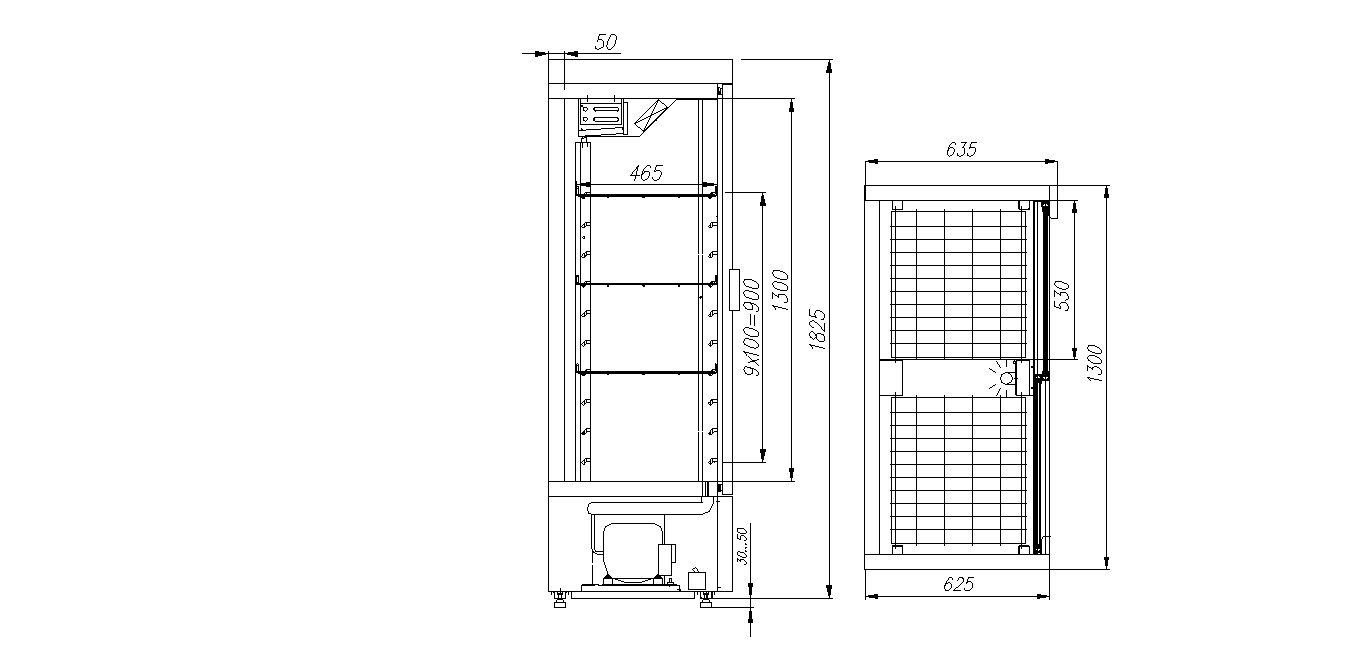

ШХ-0,8К (sliding doors)
Blueprint
1300 625 1825 150 +1...+12 3 8,5
ШХ-0,8К (sliding doors) INOX
Blueprint
1300 625 1825 150 +1...+12 3 8,5
  • The body is made of galvanized steel -color: metallic gray (RAL 9006), white (RAL9003)-ШХ-0,8
  • Full length ergonomic handle (with metal door)
  • Possibility of door re-hanging in production conditions
  • Lattice shelves
  • Built-in door locks
  • Horizontal thermal insulating partition (RF 700, RF 1120)
  • Polystyrene sheet door (RF 700 - 1 piece, RF 1120 - 2 pieces)
  • additional shelves
  • wheel support
  • INOX execution
  • color solutions of the front panel according to RAL
  • H.A.C.C.P. controller
  • branding of side walls
