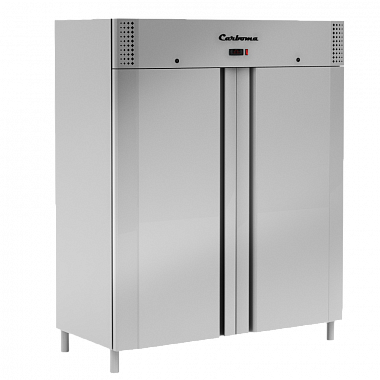

With metal doors

Main features:

Rated voltage 220 V, 50 Hz

Cooling type Ц dynamic/static (SHH-0.8)

Climatic class of equipment: 3

Refrigerant R290, R404a

The cabinets are intended for use indoors with natural ventilation at ambient temperatures from +12 to +32 and relative humidity no more than 60%

Загрузить листовку Шкафы с металлическими дверьми Carboma

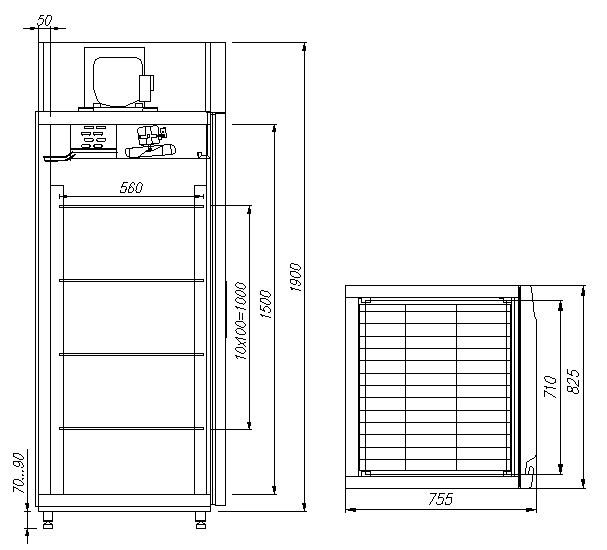

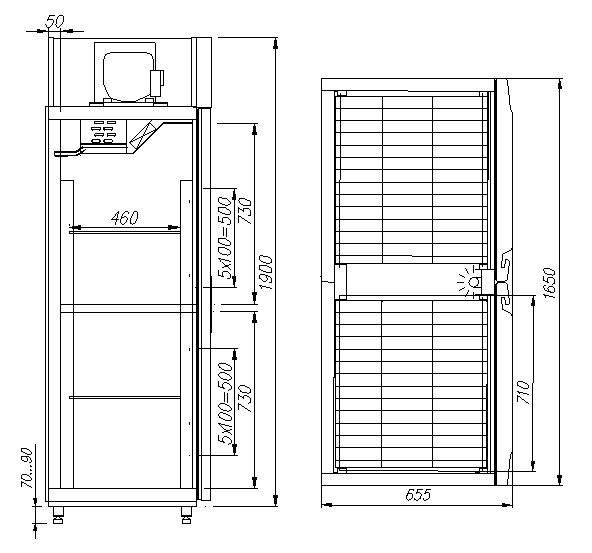

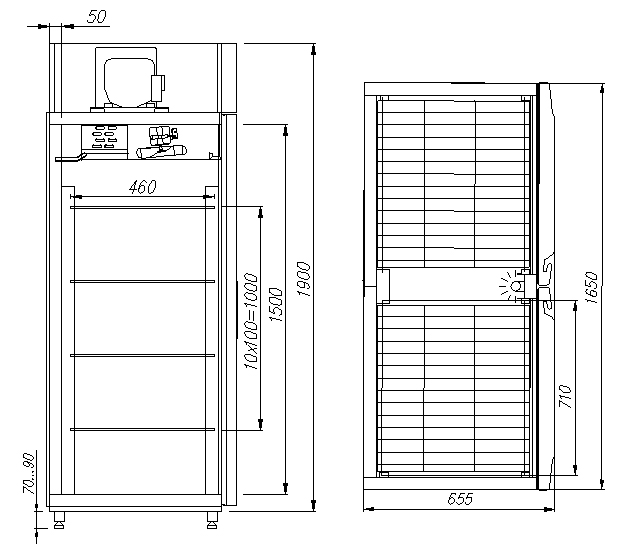

Model		Dimensions, mm			Weight, kg	t, °C	Exhibited area, mm	Electricity consumption per day, kW
Model		Length	Width	Height	Weight, kg	t, °C	Exhibited area, mm	Electricity consumption per day, kW
	R560 Сarboma Blueprint	825	655	1900 (1990)	100	0…+7	1,68	5,8
	V560 Сarboma Blueprint	825	655	1900 (1990)	100	-5...+5	1,68	8
	F560 Сarboma Blueprint	825	655	1900 (1990)	110	up to -18	1,68	10
	R700 Сarboma Blueprint	825	755	1900 (1990)	120	0…+7	2,04	7,2
	RF700 Сarboma Blueprint	825	755	1900 (1990)	120	0...+7/up to -13	1,7	10
	V700 Сarboma Blueprint	825	755	1900 (1990)	120	-5...+5	2,04	8,2
	F700 Сarboma Blueprint	825	755	1900 (1990)	130	up to -18	2,04	10,6
	R1120 Сarboma Blueprint	1650	655	1900 (1990)	185	0…+7	3,42	8,6
	RF1120 Сarboma Blueprint	1650	655	1900 (1990)	185	0…+7/up to -13	2,93	11,8
	R1400 Сarboma Blueprint	1650	755	1900 (1990)	190	0…+7	4,15	9,2
	V1400 Сarboma Blueprint	1650	755	1900 (1990)	190	-5...+5	4,15	10,6
	F1400 Сarboma Blueprint	1650	755	1900 (1990)	200	up to -18	4,15	13,2
	R560 Сarboma INOX Blueprint	825	655	1900 (1990)	100	0…+7	1,68	5,8
	V560 Сarboma INOX Blueprint	825	655	1900 (1990)	100	-5...+5	1,68	8
	F560 Сarboma INOX Blueprint	825	655	1900 (1990)	110	up to -18	1,68	10
	R700 Сarboma INOX Blueprint	825	755	1900 (1990)	120	0…+7	2,04	7,2
	V700 Сarboma INOX Blueprint	825	755	1900 (1990)	120	-5...+5	2,04	8,2
	F700 Сarboma INOX Blueprint	825	755	1900 (1990)	130	up to -18	2,04	10,6
	RF700 Сarboma INOX Blueprint	825	755	1900 (1990)	120	0...+7/up to -13	1,7	10

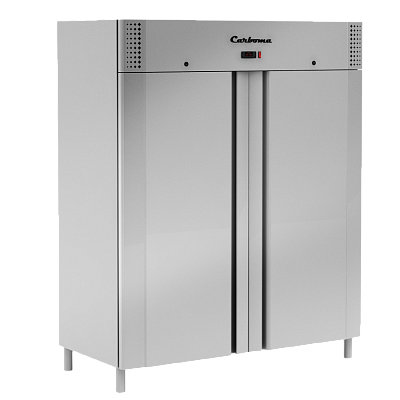

	R1120 Сarboma INOX Blueprint	1650	655	1900 (1990)	185	0…+7	3,42	8,6
	RF1120 Сarboma INOX Blueprint	1650	655	1900 (1990)	185	0…+7/up to -13	2,93	11,8
	R1400 Сarboma INOX Blueprint	1650	755	1900 (1990)	190	0…+7	4,15	9,2
	V1400 Сarboma INOX Blueprint	1650	755	1900 (1990)	190	-5...+5	4,15	10,6
	F1400 Сarboma INOX Blueprint	1650	755	1900 (1990)	200	up to -18	4,15	13,2

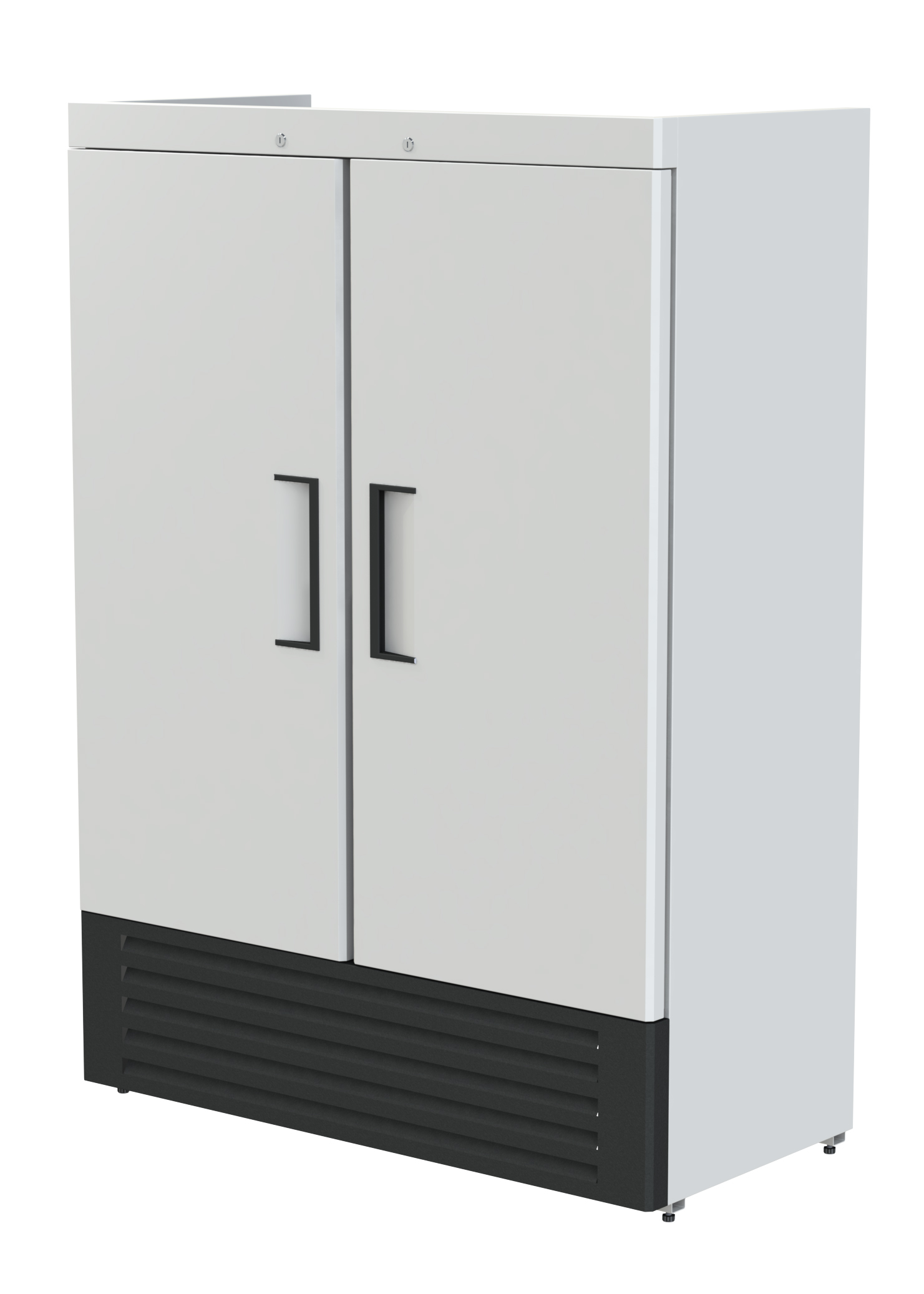

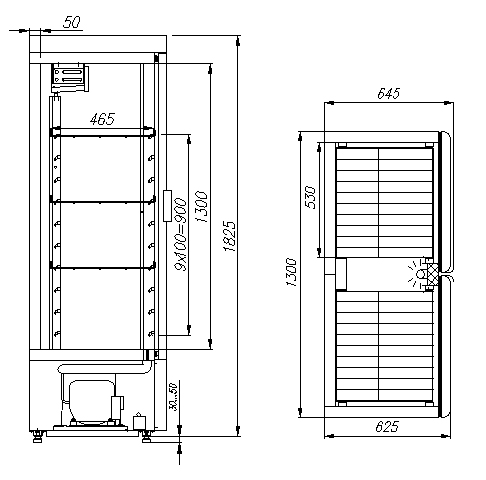

	SHKH-0,8 INOX Blueprint	1300	625	1825 (1875)	140	0…+7	2,11	7,2
	SHKH-0,8 Blueprint	1300	625	1825 (1875)	140	0…+7	2,11	7,2

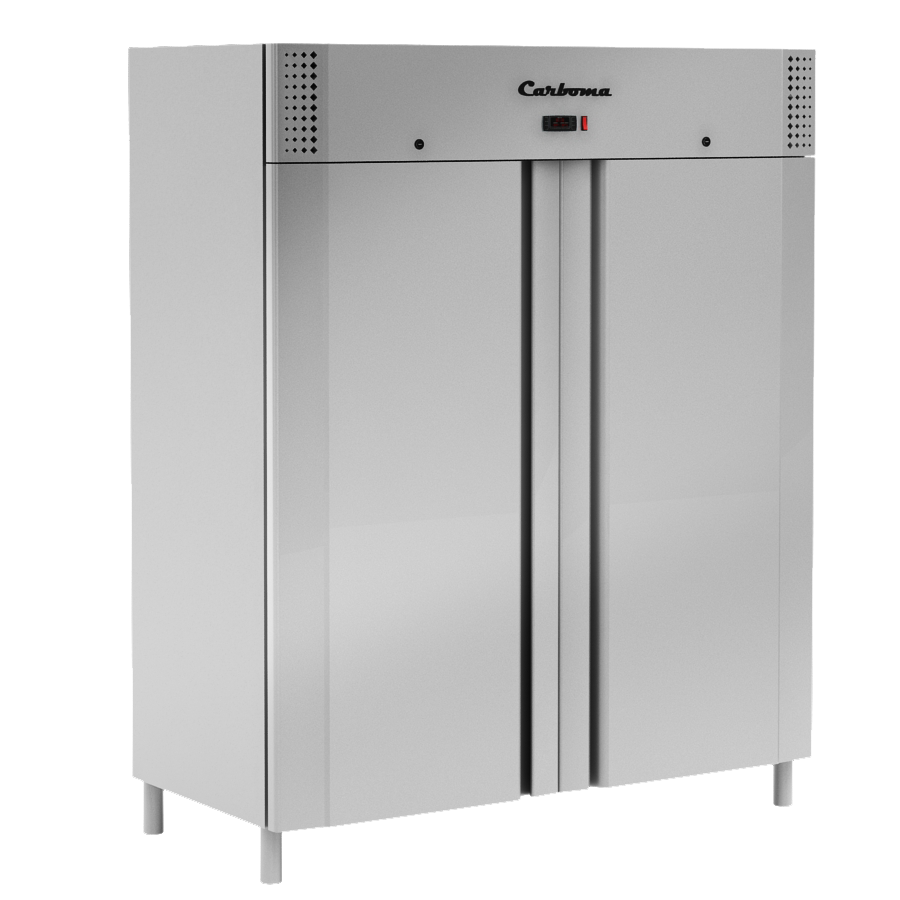

Refrigerated cabinets with metal doors are reliable, multifunctional cabinets designed for storing and selling chilled or frozen food and beverages in trade and catering establishments.

The cabinet must be installed no closer than 2 m from heating appliances. It is prohibited to operate the cabinet when it is exposed to direct sunlight, air flows from air conditioners, fans and heaters.

The cabinet is loaded with products pre-cooled to the temperature of the useful volume, evenly placing them on the shelves. The distance from the food to the cabinet walls must be at least 40 mm.
The load on the grid is no more than 20 kg.

It is forbidden to block the air ducts. If the requirements are not met, air circulation is disrupted, the performance characteristics of the product deteriorate, which can lead to food spoilage.

SOME PARTS OF THE CABINET HAVE A PROTECTIVE COATING (FILM) THAT MUST BE REMOVED.

PROVIDE FOR WATER DRAIN AFTER EVAPORATOR DEFROST TO THE GENERAL DRAINAGE SYSTEM OF THE PREMISES!

In rainy or humid weather, condensation may occur. This is not a malfunction. In this case, wipe the cabinet with a soft cloth from time to time.

Standard version - STAINLESS STEEL, GALVANIZED STEEL RAL9006 (560, 700, 1120, 400), GALVANIZED STEEL RAL9016 (WH-0.8)

Compressor made in Europe
Carel electronic control unit
Ergonomic handle integrated along the entire length (Carboma cabinets)
Lattice shelves (2 pcs-RF700; 4 pcs-RF1120; 4 pcs-560, 700; 6 pcs-SHH-0.8; 8 pcs-1120,1400)
Built-in lock
LED lighting (for cabinets with a volume of 1120, 1400; SHH-0.8)
Door closer (except ShKh-08)
