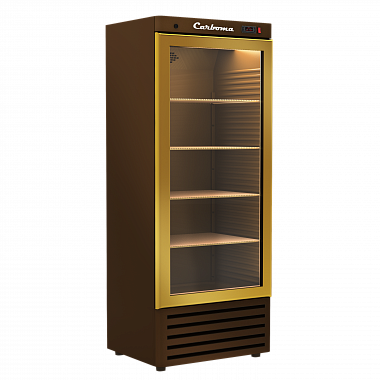

Cabinet for Drinks R560 CV

картинка Cabinet for Drinks R560 CV
картинка Cabinet for Drinks R560 CV

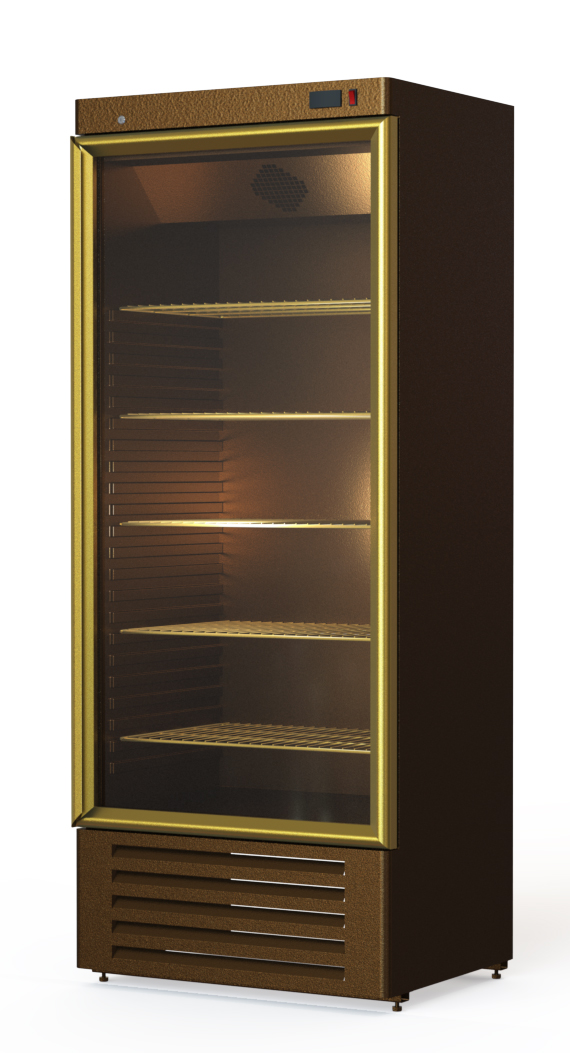

Cabinet for drinks R560 CV Carboma was designed for demonstration of drinks, confectionary, and desserts in stores, cafes and restaurants.

Main features:

  • Nominal voltage 220 V, 50 Hz
  • Type of cooling: dynamic
  • Climate class: 3
  • Refrigerant R134a, R404a
  • Ambient temperature +12…+25 °С, relative humidity not more than 60%
  • Showcases are designed for indoor use with natural ventilation
Brochure
Model Dimensions, mm Weight, kg t, °C Exhibited area, mm Electricity consumption per day, kW
Length Width Height
CABINET FOR DRINKS R560 CVCABINET FOR DRINKS R560 CV CABINET FOR DRINKS R560 CV

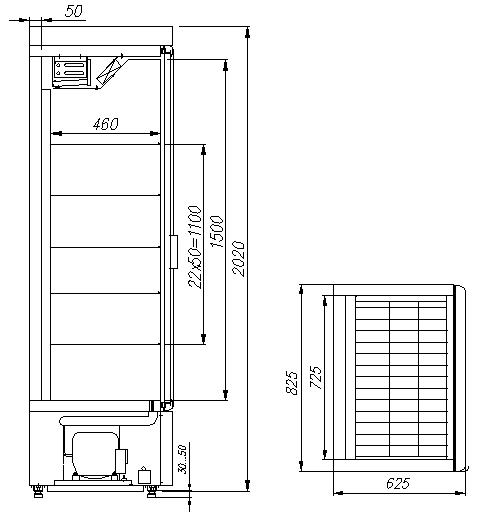

Blueprint
825 645 2020 120 +1...+12 5 shelves 725х460 6,2
  • European-made compressor
  • Electronic control unit with temperature indicator Carel
  • 5 shelves with the ability to install at different heights
  • LED-lighting
  • Lock

  • Additional shelves
  • Wheel support
  • Branding of sidewalls

Blueprints
