Table-top display cases for ice-cream (JOY 2)

картинка Table-top display cases for ice-cream (JOY 2)
картинка Table-top display cases for ice-cream (JOY 2)
картинка Table-top display cases for ice-cream (JOY 2)
картинка Table-top display cases for ice-cream (JOY 2)
картинка Table-top display cases for ice-cream (JOY 2)
картинка Table-top display cases for ice-cream (JOY 2)
картинка Table-top display cases for ice-cream (JOY 2)
картинка Table-top display cases for ice-cream (JOY 2)
картинка Table-top display cases for ice-cream (JOY 2)
картинка Table-top display cases for ice-cream (JOY 2)
картинка Table-top display cases for ice-cream (JOY 2)
картинка Table-top display cases for ice-cream (JOY 2)

Main features:

  • Nominal voltage 220 V, 50 Hz
  • Cooling type Ц dynamic
  • Equipment climate class: 3
  • Propane R290
  • The display cases are designed for use in enclosed spaces with natural ventilation at an ambient temperature of +25∞C and relative humidity of 60%.
Download Joy 2 leaflet
Model Dimensions, mm Weight, kg t, °C
Length Width Height
I83 VL 0,8-1I83 VL 0,8-1 I83 VL 0,8-1
Blueprint
805 840 670 (720) -25...-12
I83 VL 1,2-1I83 VL 1,2-1 I83 VL 1,2-1
Blueprint
1165 840 670 (720) -25...-12

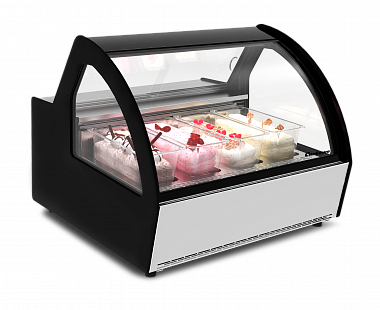

The JOY 2 soft ice cream display case will fit perfectly into any interior design. The display case has curved front and side glass panels. Excellent visibility of the product range is ensured by raised gastronorm containers.
  • European-made compressor
  • Electronic control unit
  • Thermal insulation of the body and tabletop - polyurethane foam
  • Hot gas defrosting
  • LED lighting in the main area (warm white)
  • Adjustable support legs
  • Stainless steel trays for gastronorm containers
  • 325x176x100 mm polycarbonate gastronorm containers
  • Stainless steel gastronorm containers for ice cream, 360x165x120 mm
  • Additional trays for gastronorm containers, 360x165x120 mm

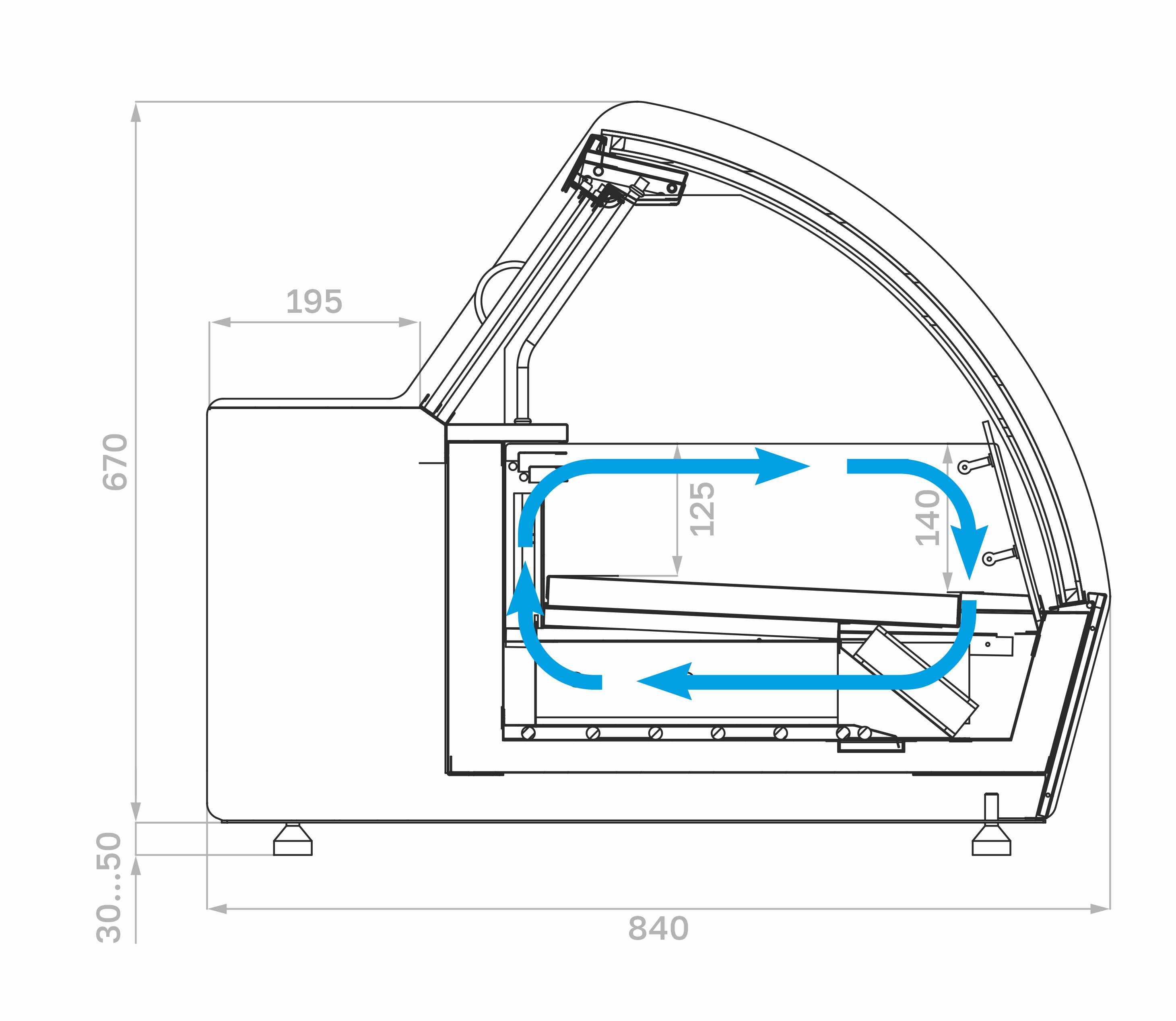

  • Blueprints

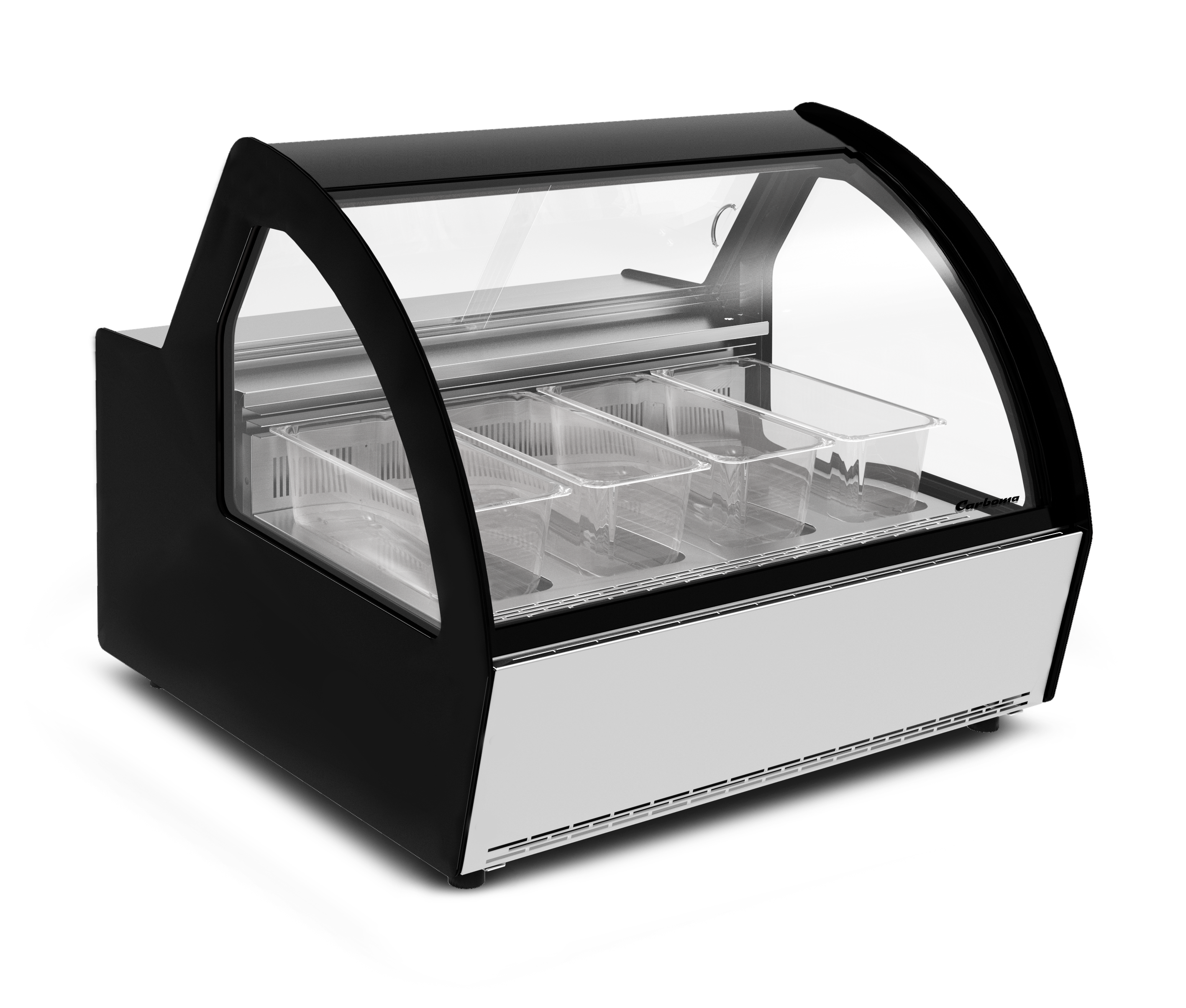

    I83 VL 0,8-1
    Чертеж I83 VL 0,8-1
    • Volume 14,4

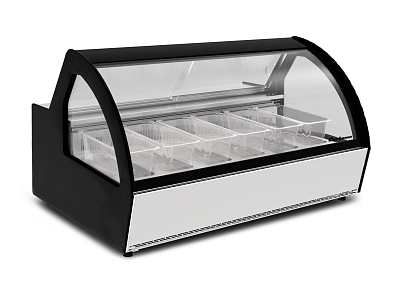

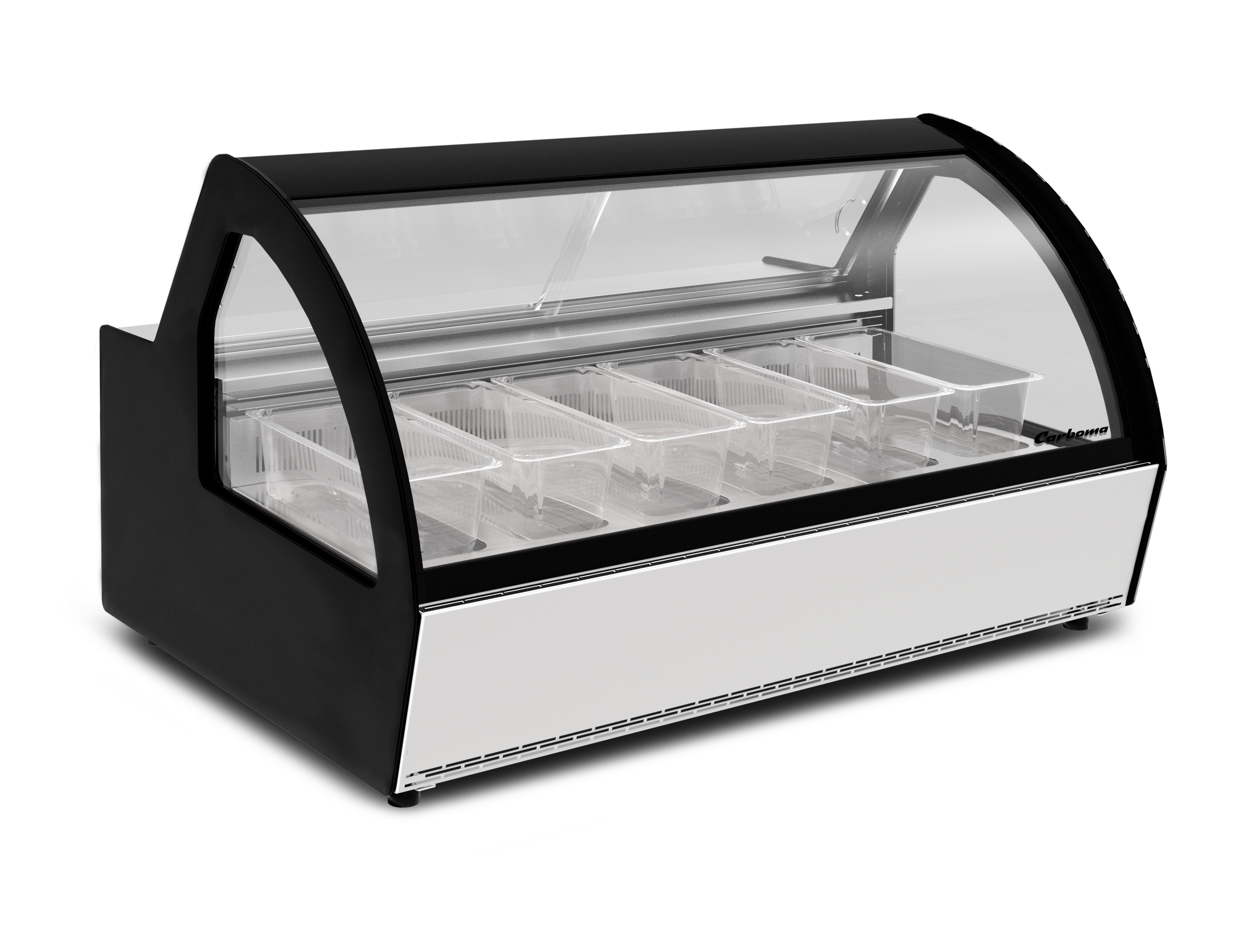

    I83 VL 1,2-1
    Чертеж I83 VL 1,2-1
    • Volume 21,6
