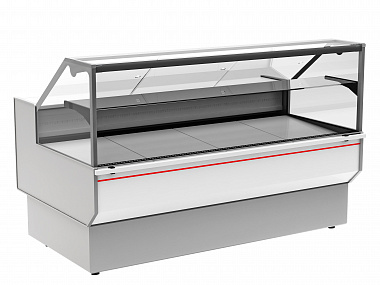

DISPLAY CASES GC95 (Palm 2)

картинка DISPLAY CASES GC95 (Palm 2)
картинка DISPLAY CASES GC95 (Palm 2)
картинка DISPLAY CASES GC95 (Palm 2)

Display cases GC95 combine:
- Concise forms that maximizes the focus on products;
- Energy-saving technologies (low-emission glass, LED-lighting in standard complectation)

Main features:

  • Nominal voltage 220 V, 50 Hz
  • Type of cooling: static / dynamic
  • Climate class: 3
  • Ambient temperature +12…+25 °С, relative humidity not more than 60%
  • Compressors of the world leading manufacturers
  • Electronic control unit with temperature indicator Carel

Possible colors:

  • KombiLux (scheme 2)
  • Optional colors by RAL (front panel)
  • INOX

DEPTH: up to 760 mm

Brochure Color scheme 3D models
Model Dimensions, mm Weight, kg t, °C Exhibited area, mm Electricity consumption per day, kW
Length Width Height
GC95 SM 1,0-1 (ВХС-1,0 Carboma GC95 )

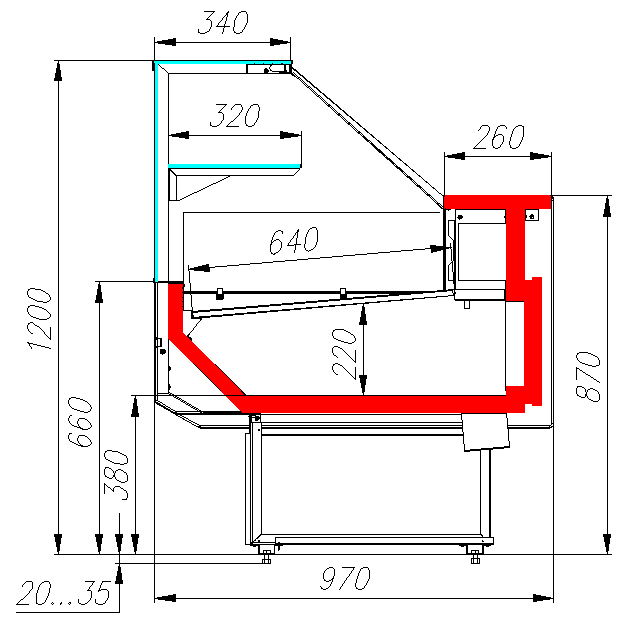

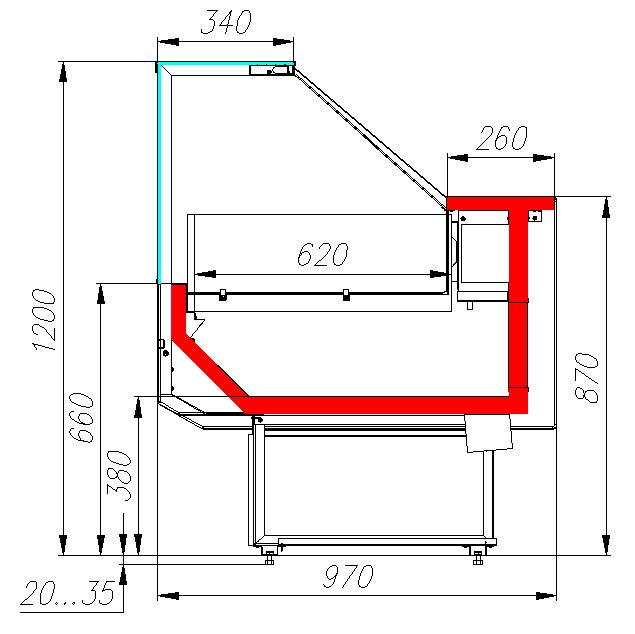

Blueprint
1020 970 1200(1235) 115 0...+7 0,6 4,0
GC95 SM 1,2-1 (ВХС-1,2 Carboma GC95 )
Blueprint
1180 970 1200(1235) 140 0...+7 0,7 5,0
GC95 SM 1,5-1 (ВХС-1,5 Carboma GC95)
Blueprint
1480 970 1200(1235) 150 0...+7 0,9 5,0
GC95 SM 1,8-1 (ВХС-1,8 Carboma GC95)
Blueprint
1780 970 1200(1235) 170 0...+7 1,09 6,0
GC95 SM 2,0-1 (ВХС-2,0 Carboma GC95)
Blueprint
1955 970 1200(1235) 180 0...+7 1,2 6,0
GC95 SV 1,0-1 (ВХСр-1,0 Carboma GC95)
Blueprint
1020 970 1200(1235) 115 -5...+5 0,6 5,6
GC95 SV 1,2-1 (ВХСр-1,2 Carboma GC95)
Blueprint
1180 970 1200(1235) 145 -5...+5 0,7 5,8
GC95 SV 1,5-1 (ВХСр-1,5 Carboma GC95)
Blueprint
1480 970 1200(1235) 155 -5...+5 0,9 6,6
GC95 SV 1,8-1 (ВХСр-1,8 Carboma GC95)
Blueprint
1780 970 1200(1235) 175 -5...+5 1,09 7,2
GC95 SV 2,0-1 (ВХСр-2,0 Carboma GC95)
Blueprint
1955 970 1200(1235) 185 -5...+5 1,2 8,2
GC95 SL 1,0-1 (ВХСн-1,0 Carboma GC95)
Blueprint
1020 970 1200(1235) 140 up to -18 0,56 6,6
GC95 SL 1,2-1 (ВХСн-1,2 Carboma GC95)
Blueprint
1180 970 1200(1235) 150 up to -18 0,66 6,8
GC95 SL 1,5-1 (ВХСн-1,5 Carboma GC95)
Blueprint
1480 970 1200(1235) 162 up to -18 0,84 7,2
GC95 SL 1,8-1 (ВХСн-1,8 Carboma GC95)
Blueprint
1780 970 1200(1235) 185 up to -18 1,03 9,2
GC95 SL 2,0-1 (ВХСн-2,0 Carboma GC95)
Blueprint
1955 970 1200(1235) 192 up to -18 1,14 11,2

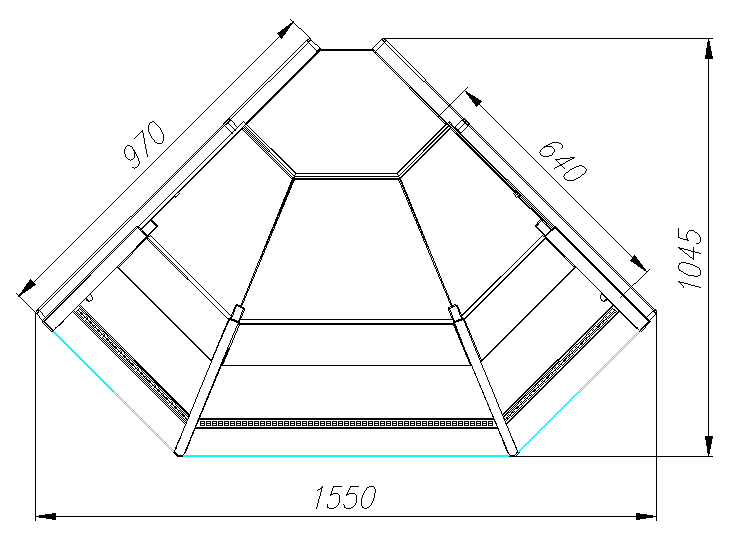

GC95 VM-5 (ВХСу-1 Carboma GC95 external 90)
Blueprint
1550 1045 1200 (1235) 0...+7 0.7

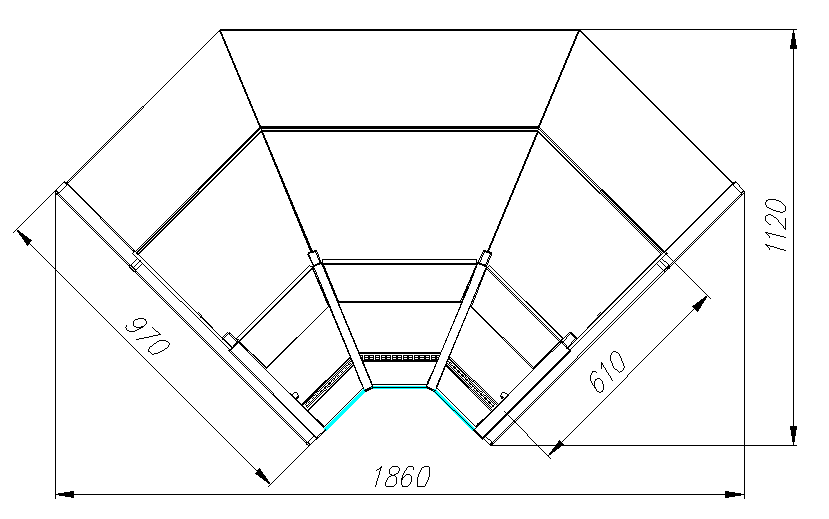

GC95 VM-6 (ВХСу-2 Carboma GC95 internal 90)
Blueprint
1860 1120 1200 (1235) 0...+7
GC95 SM 1,0-1 KombiLux / INOX (ВХС-1,0 Carboma GC95) 1020 970 1200(1235) 115 0...+7 0,6 4,0
GC95 SM 1,2-1 KombiLux / INOX (ВХС-1,2 Carboma GC95) 1180 970 1200(1235) 140 0...+7 0,7 5,0
GC95 SM 1,5-1 KombiLux / INOX (ВХС-1,5 Carboma GC95) 1480 970 1200(1235) 150 0...+7 0,9 5,0
GC95 SM 1,8-1 KombiLux / INOX (ВХС-1,8 Carboma GC95) 1780 970 1200(1235) 170 0...+7 1,09 6,0
GC95 SM 2,0-1 KombiLux / INOX (ВХС-2,0 Carboma GC95) 1955 970 1200(1235) 180 0...+7 1,2 6,0
GC95 SV 1,0-1 KombiLux / INOX (ВХСр-1,0 Carboma GC95) 1020 970 1200(1235) 115 -5...+5 0,6 5,6
GC95 SV 1,2-1 KombiLux / INOX (ВХСр-1,2 Carboma GC95) 1180 970 1200(1235) 145 -5...+5 0,7 5,8
GC95 SV 1,5-1 KombiLux / INOX (ВХСр-1,5 Carboma GC95) 1480 970 1200(1235) 155 -5...+5 0,9 6,6
GC95 SV 1,8-1 KombiLux / INOX (ВХСр-1,8 Carboma GC95) 1780 970 1200(1235) 175 -5...+5 1,09 7,2
GC95 SV 2,0-1 KombiLux / INOX (ВХСр-2,0 Carboma GC95) 1955 970 1200(1235) 185 -5...+5 1,2 8,2
GC95 SL 1,0-1 KombiLux / INOX (ВХСн-1,0 Carboma GC95) 1020 970 1200(1235) 140 up to -18 0,56 6,6
GC95 SL 1,2-1 KombiLux / INOX (ВХСн-1,2 Carboma GC95) 1180 970 1200(1235) 150 up to -18 0,66 6,8
GC95 SL 1,5-1 KombiLux / INOX (ВХСн-1,5 Carboma GC95) 1480 970 1200(1235) 162 up to -18 0,84 7,2
GC95 SL 1,8-1 KombiLux / INOX (ВХСн-1,8 Carboma GC95) 1780 970 1200(1235) 185 up to -18 1,03 9,2
GC95 SL 2,0-1 KombiLux / INOX (ВХСн-2,0 Carboma GC95) 1955 970 1200(1235) 192 up to -18 1,14 11,2
GC95 VM-5 KombiLux / INOX (ВХСу-1 Carboma GC95 external 90) 1550 970 1200 (1235) 0...+7 0,7
GC95 VM-6 KombiLux / INOX (ВХСу-2 Carboma GC95 internal 90)
Blueprint
1860 1120 1200 (1235) 0...+7
  • Microprocessor control unit with temperature indicator
  • Defrost way - natural heat input
  • Uncooled glass shelf
  • Exposition surface, tabletop made of steel RAL9006 (silver metallic)
  • LED-lightning of the main zone (warm white)
  • Thermal insulation - polyurethane foam (the body, tabletop, sidewalls)
  • The body is made of steel
  • LED-ligtning of the front
  • LED-lightning of shelf
  • A shelf for the weights
  • Lightning of the main zone (warm white, neutral white, pink meat)
  • INOX
  • Grids for low-temperature
