DISPLAY CASES GC85 (PRAIA 2)

NEW

Main features:

Rated voltage 220 V, 50 Hz

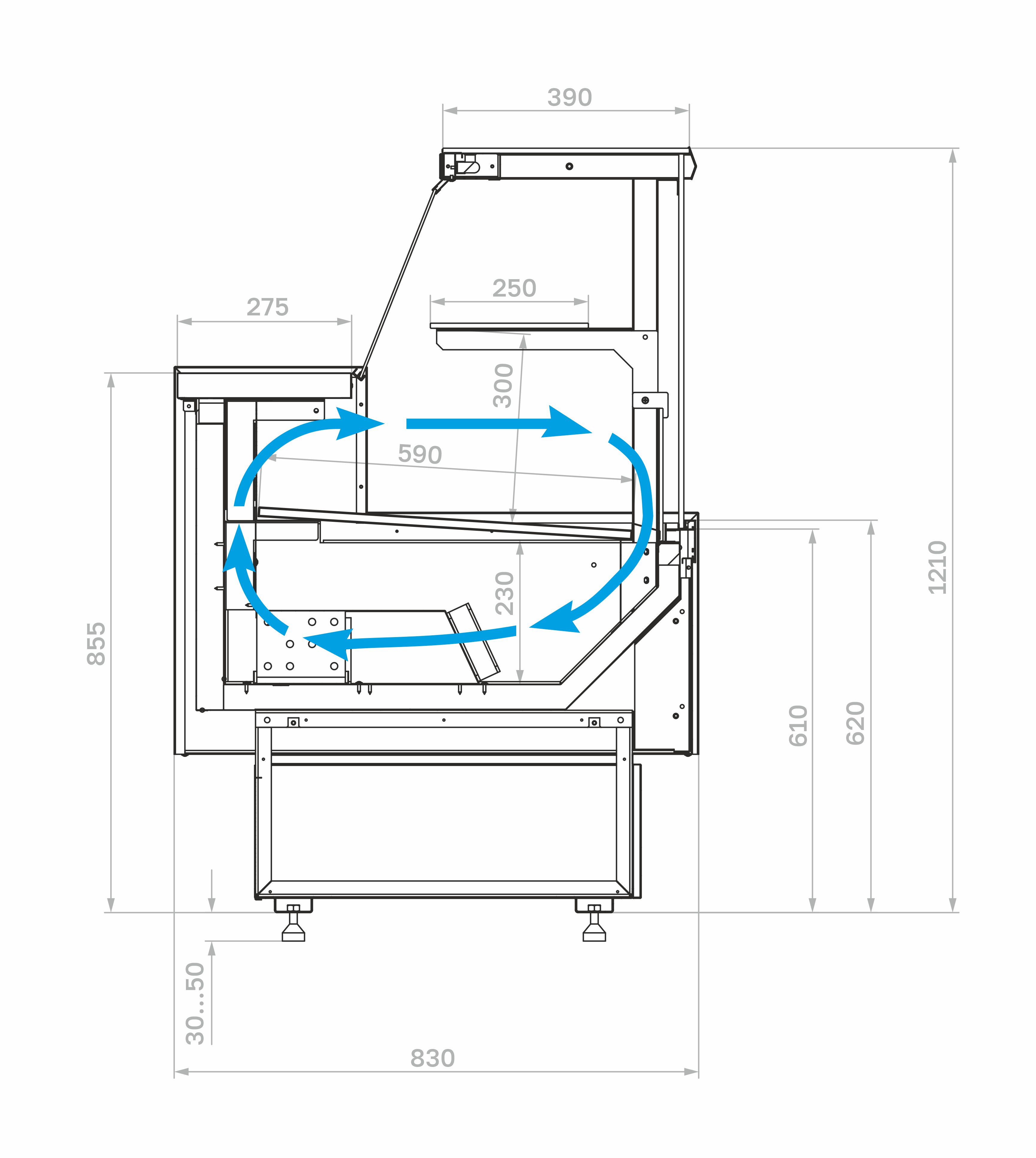

Cooling type Ц static / dynamic
Climatic class of equipment: 3
Refrigerant R290
The display cases are intended for use indoors with natural ventilation at ambient temperatures from +12 to +25 and relative humidity no more than 60%

Загрузить листовку GC85 Praia 2

Model		Dimensions, mm			Weight, kg	t, °C
Model		Length	Width	Height	Weight, kg	t, °C
	GC85 SM 0,94-1 with sidewalls Blueprint	1010	830	1210 (1260)		0...+7
	GC85 SM 1,25-1 with sidewalls Blueprint	1320	830	1210 (1260)		0...+7

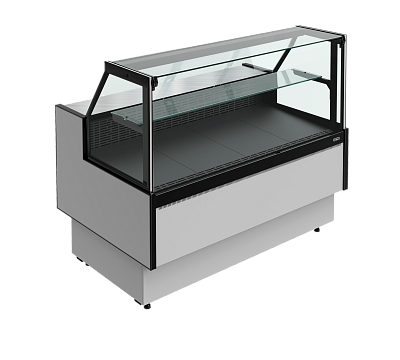

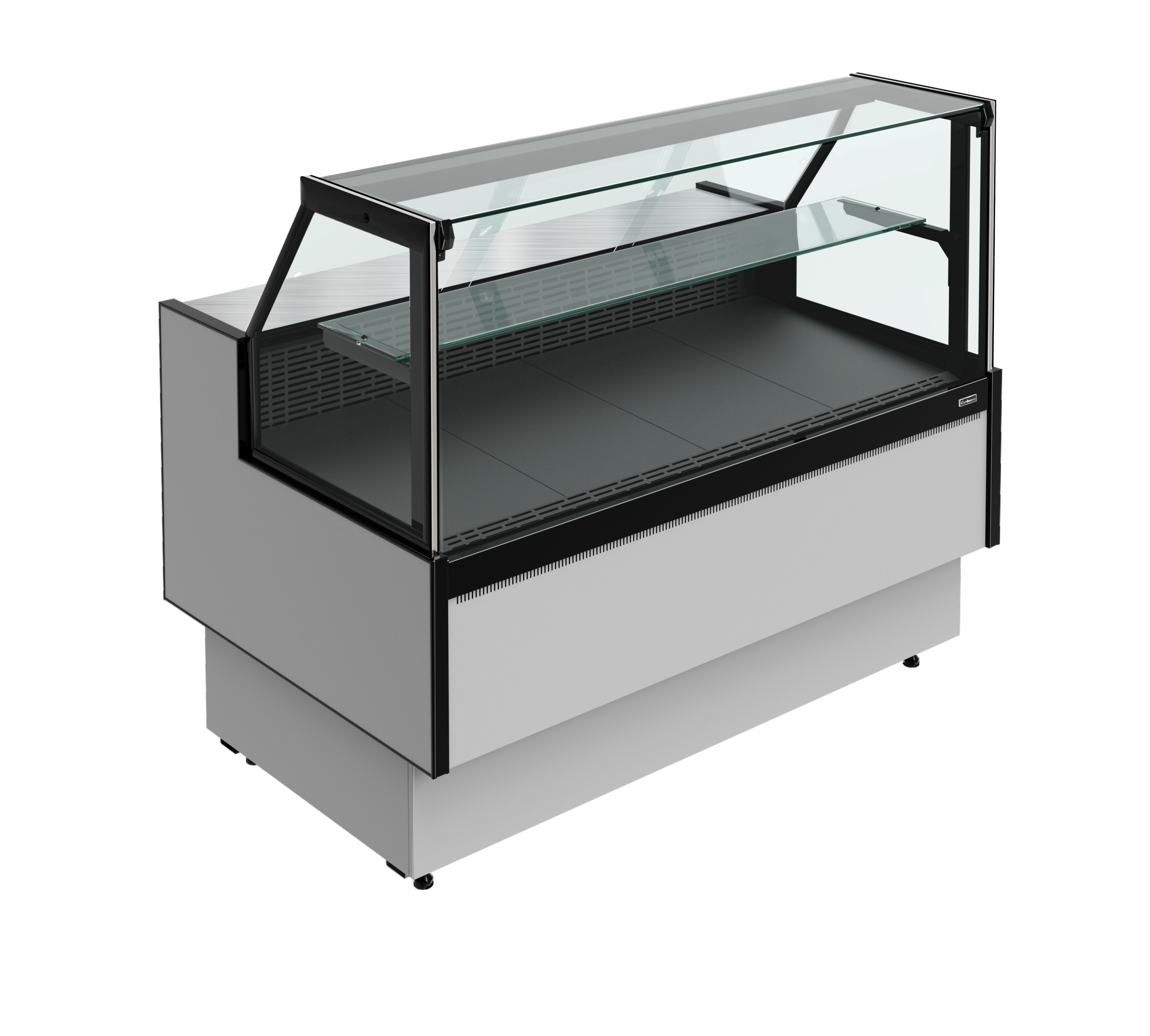

	GC85 SM 1,5-1 with sidewalls Blueprint	1490	830	1210 (1260)		0...+7

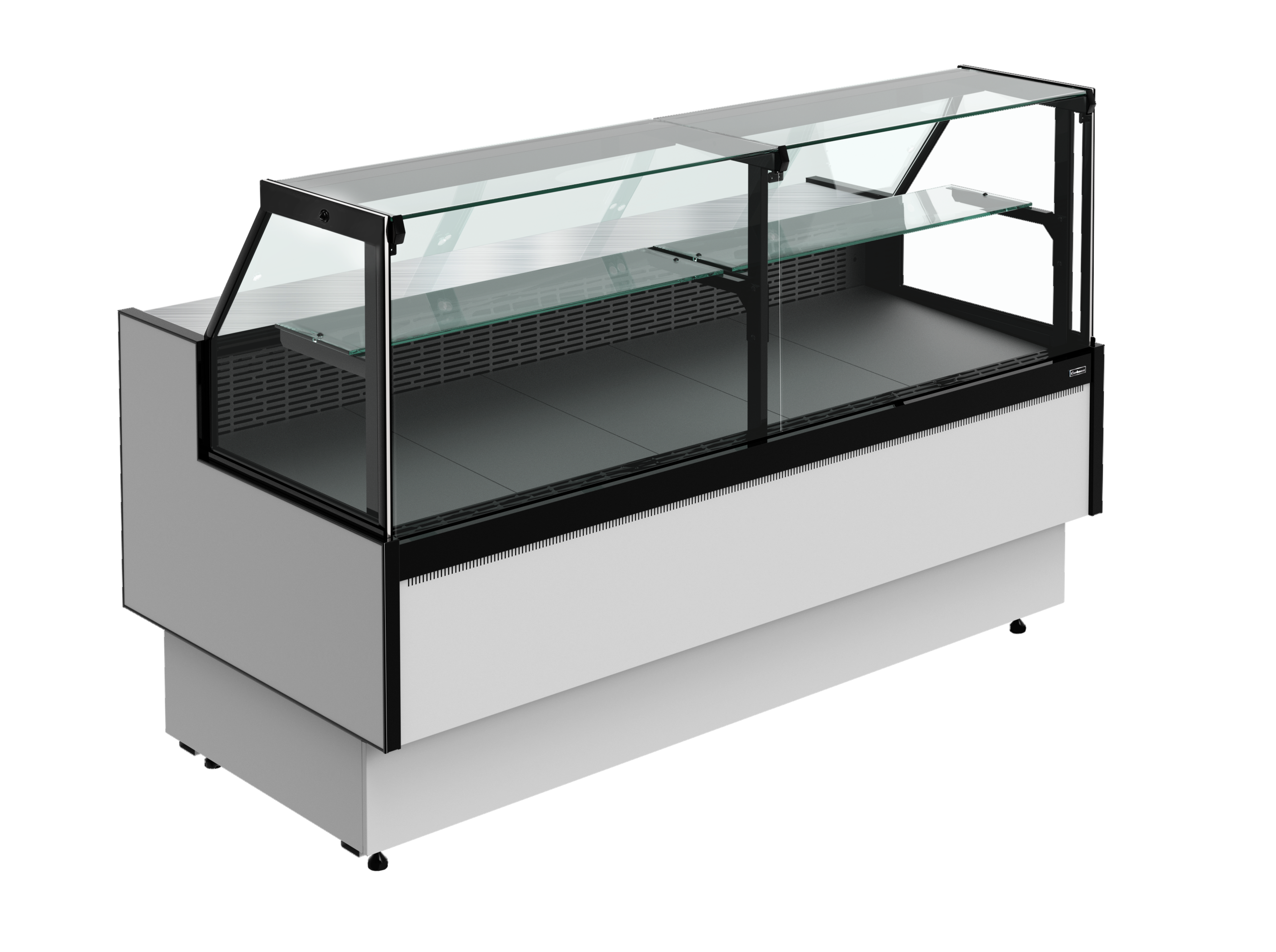

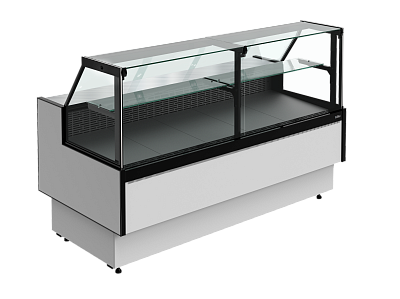

	GC85 SM 1,8-1 with sidewalls Blueprint	1770	830	1210 (1260)		0...+7
	GC85 SV 0,94-1 with sidewalls Blueprint	1010	830	1210 (1260)		-5...+5
	GC85 SV 1,25-1 with sidewalls Blueprint	1320	830	1210 (1260)		-5...+5
	GC85 SV 1,5-1 with sidewalls Blueprint	1490	830	1210 (1260)		-5...+5
	GC85 SV 1,8-1 with sidewalls Blueprint	1770	830	1210 (1260)		-5...+5

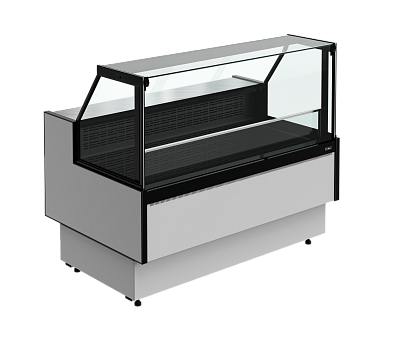

	GC85 SL 0,94-1 with sidewalls	1010	830	1210 (1260)		up to -13
	GC85 SL 1,25-1 with sidewalls	1320	830	1210 (1260)		up to -13
	GC85 SL 1,5-1 with sidewalls	1490	830	1210 (1260)		up to -13
	GC85 VM 0,94-1 with sidewalls Blueprint	1010	830	1210 (1260)		0...+7
	GC85 VM 1,25-1 with sidewalls Blueprint	1320	830	1210 (1260)		0...+7
	GC85 VM 1,5-1 with sidewalls Blueprint	1490	830	1210 (1260)		0...+7
	GC85 VM 1,8-1 with sidewalls Blueprint	1770	830	1210 (1260)		0...+7
	GC85 VV 0,94-1 with sidewalls Blueprint	1010	830	1210 (1260)		-5...+5
	GC85 VV 1,25-1 with sidewalls Blueprint	1320	830	1210 (1260)		-5...+5

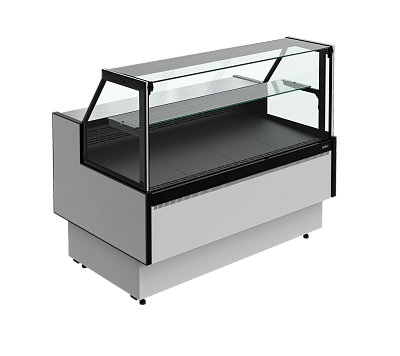

	GC85 VV 1,5-1 with sidewalls Blueprint	1490	830	1210 (1260)		-5...+5

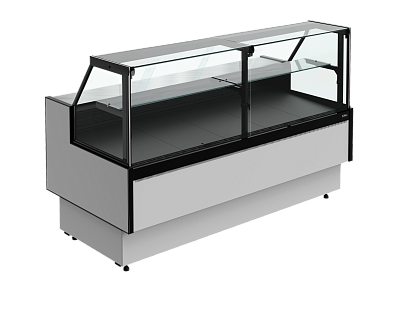

	GC85 VV 1,8-1 with sidewalls Blueprint	1770	830	1210 (1260)		-5...+5

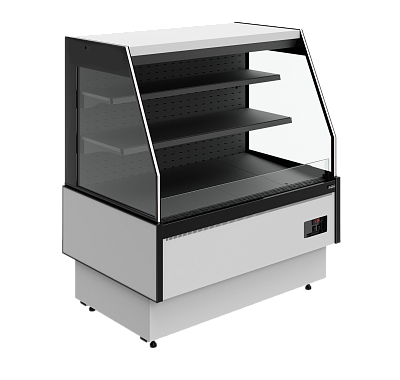

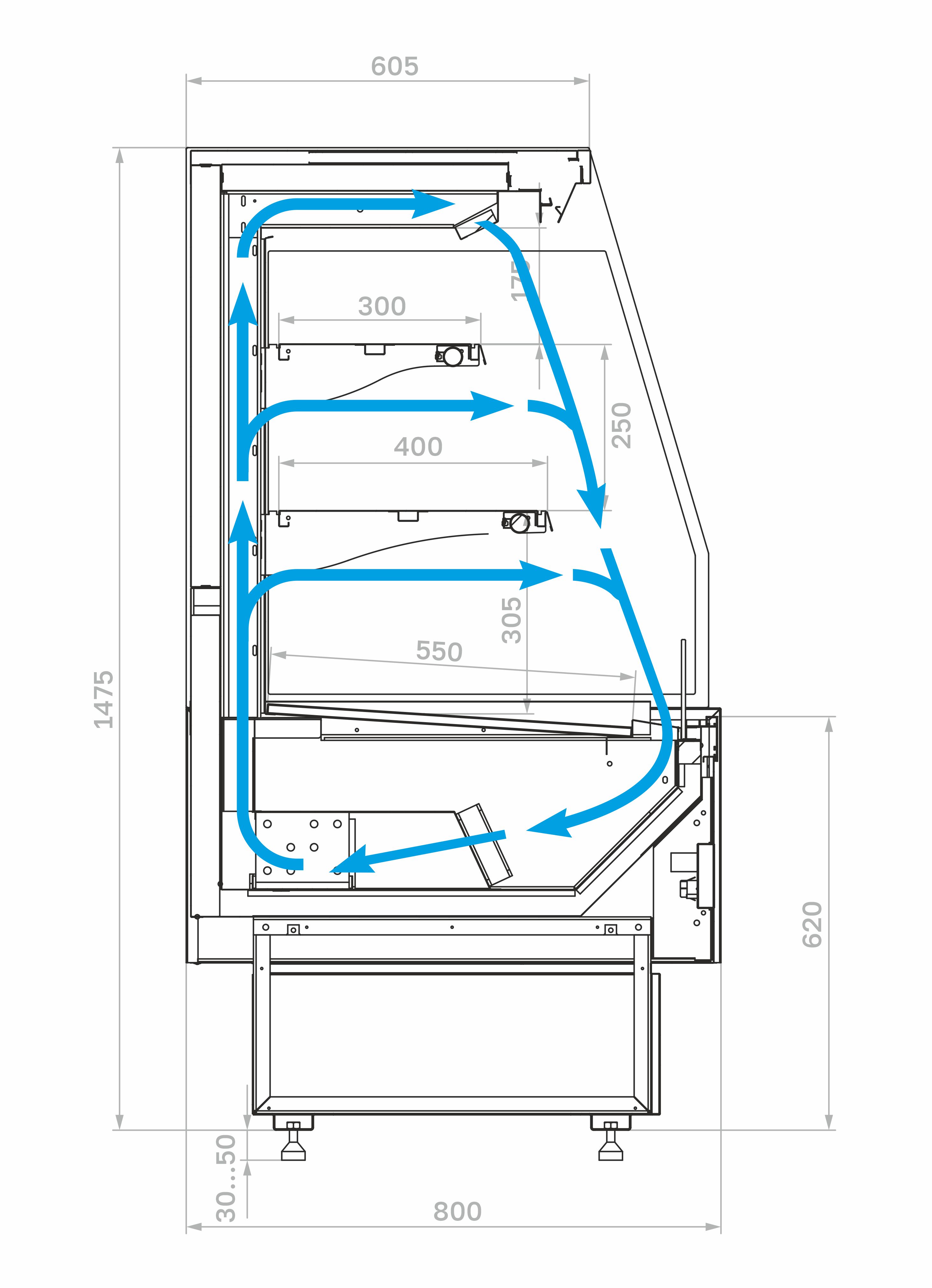

	GC85 VM 1,25-2 refrigerated display counter with sidewalls Blueprint	1320	830	1475 (1525)		+4...+10

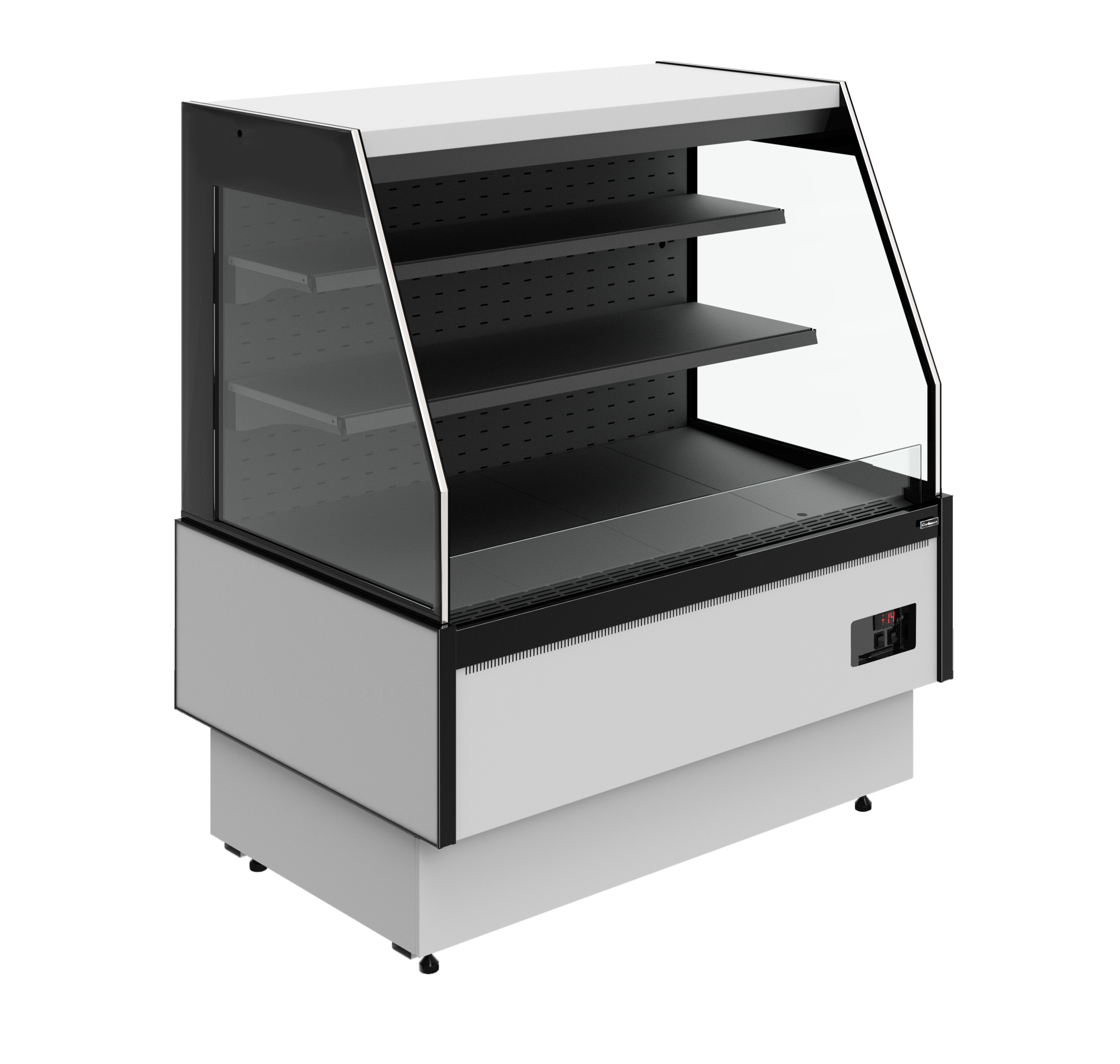

	GC85 VM 1,5-2 refrigerated display counter with sidewalls Blueprint	1490	830	1475 (1525)		+4...+10

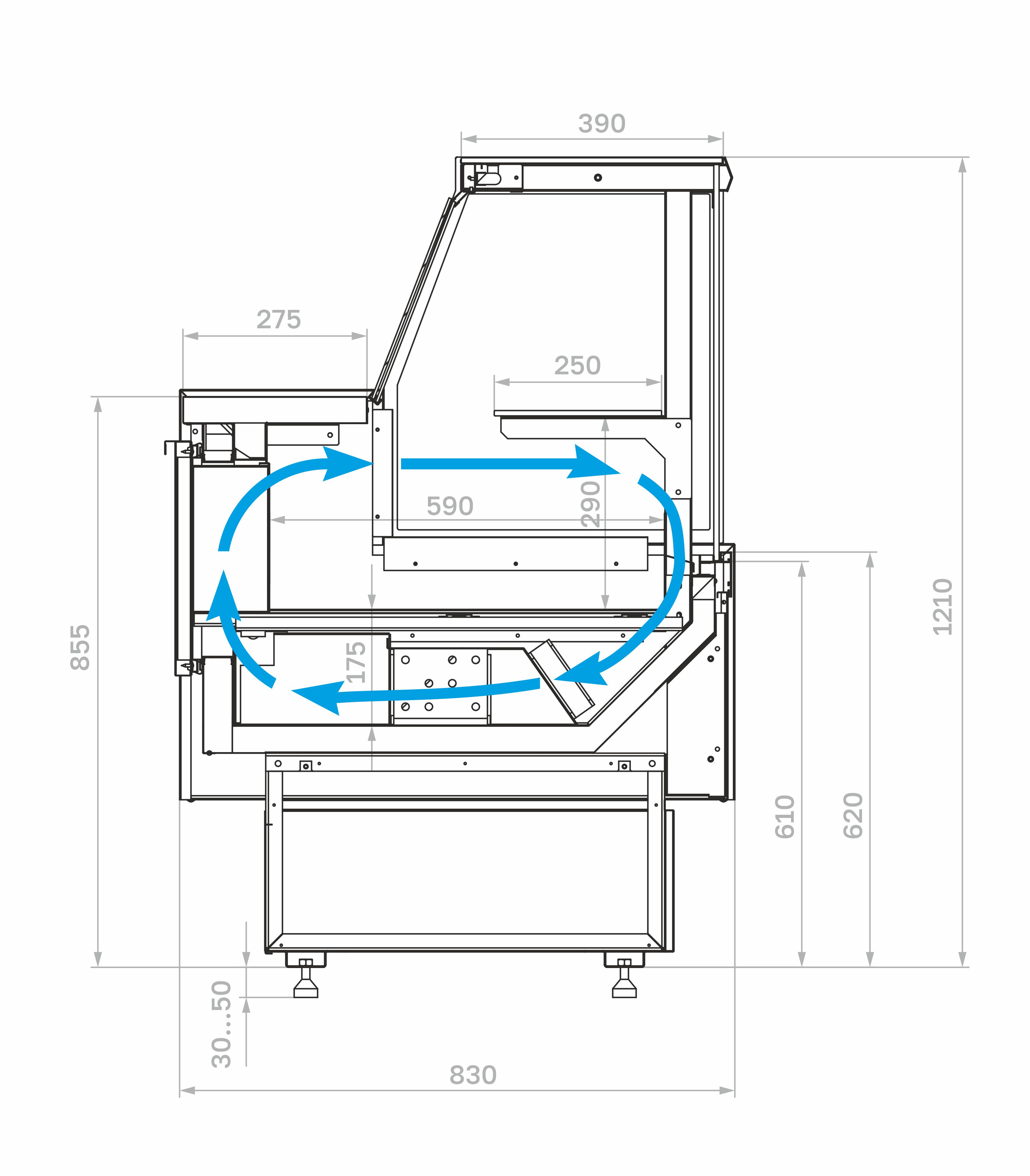

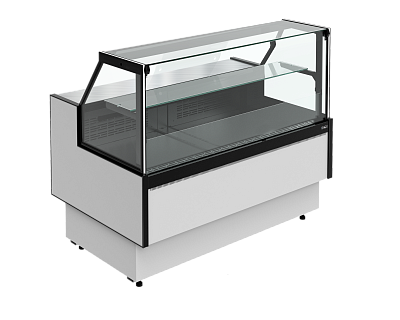

	GC85 VM 1,25-1 pull-out trays with sidewalls Blueprint	1320	830	1210 (1260)		0...+7

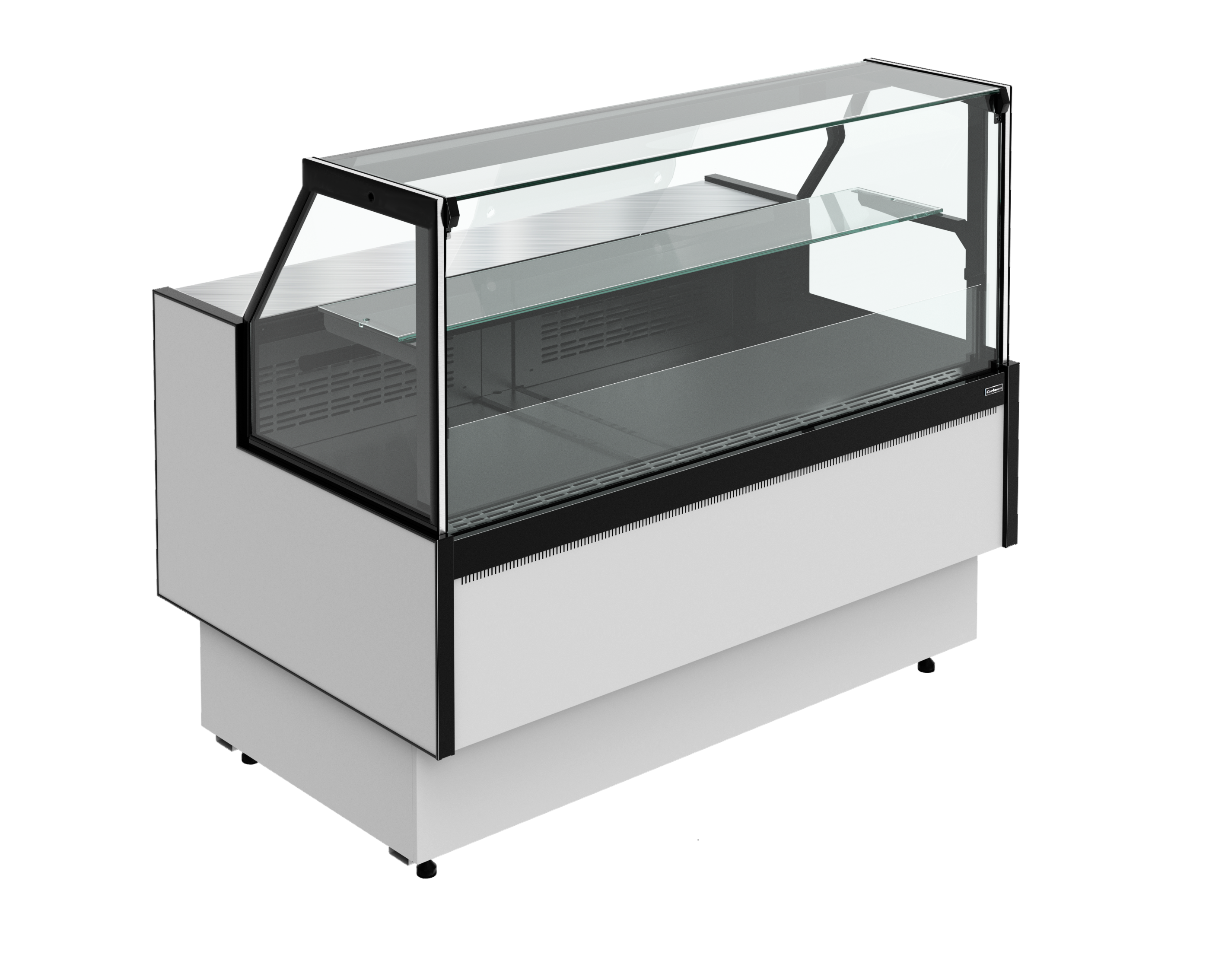

	GC85 VM 1,5-1 pull-out trays with sidewalls Blueprint	1490	830	1210 (1260)		0...+7

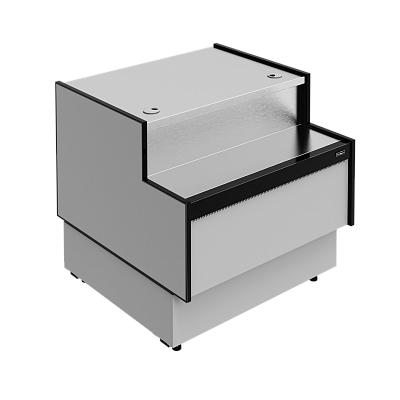

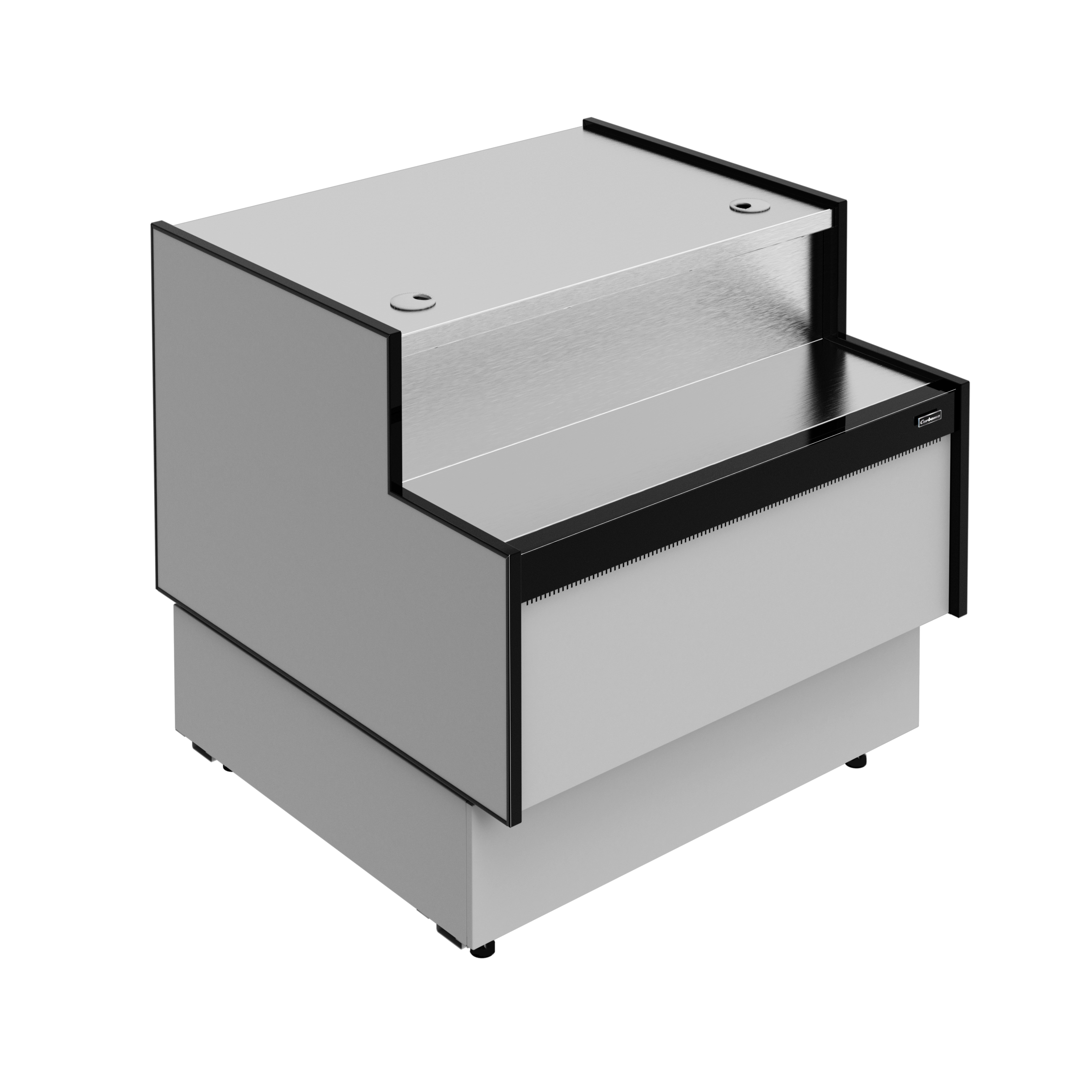

	counter GC85 N 0,9-7	900	830

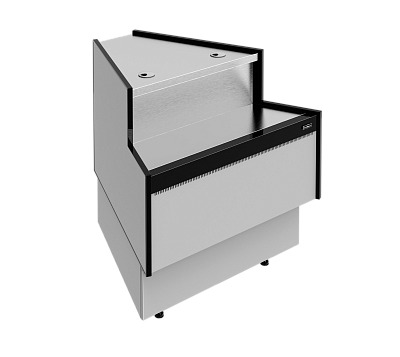

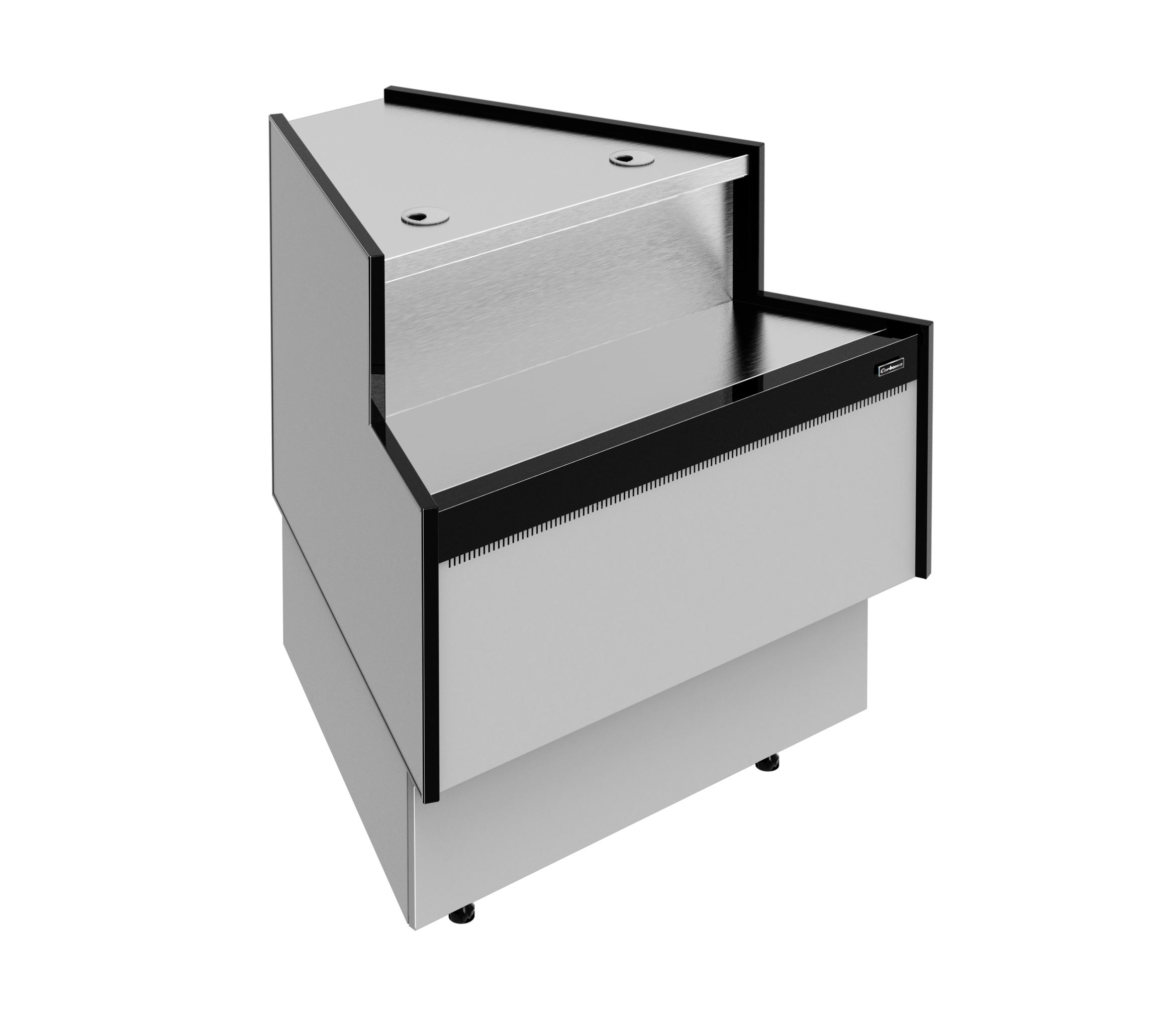

	counter GC85 N-8		830

Showcase prices include the cost of front panels
Side panels WITH 35 mm thick DOUBLE GLAZING are INCLUDED in the showcase price

The dimensions in the technical specifications are given taking into account the side panels

ATTENTION! The RRP is indicated for the STANDARD VERSION 9006-9005 (external design 9006, internal design 9005).

Microprocessor control unit with temperature indication
Fixed front glass
Structural glass unit side
Defrost by natural heat inflows (medium temperature)
Automatic electric defrost mode (reversible, low temperature)
Uncooled glass shelf
Height-adjustable metal shelves with a tilt angle of 15 degrees (Slide)
LED lighting of the main area (4000 K)
Mesh grids (low temperature)
Energy-saving curtains (except Gorka)
Exhibition surface made of painted steel
Tabletop made of brushed stainless steel
Additional storage - static (medium temperature, reversible), dynamic, low temperature - WITHOUT RESERVE.
Glass cold breakers (medium-temperature, reversible), double-glazed windows (low-temperature)
PEN defrost condensate drain pan (low temperature, reversible)

LED lighting of the main area (3000 K, PINK)
Leading edge lighting (3000K, 4000K, PINK)
Automatic electric defrost (heater) (medium temperature, slide, display case with sliding trays)
Shelf for scales (HDPE)
2-stage pallets for display.
Wheel support h-130 mm
Protective bumper
Night curtain (Slide)
Illumination of each shelf 3000 K, 4000K, PINK (Slide)
Wire/plexiglass limiter (Slide)
Price holders (Slide)
Any color scheme (according to RAL)
Front panel pattern
Egger front panel finish
