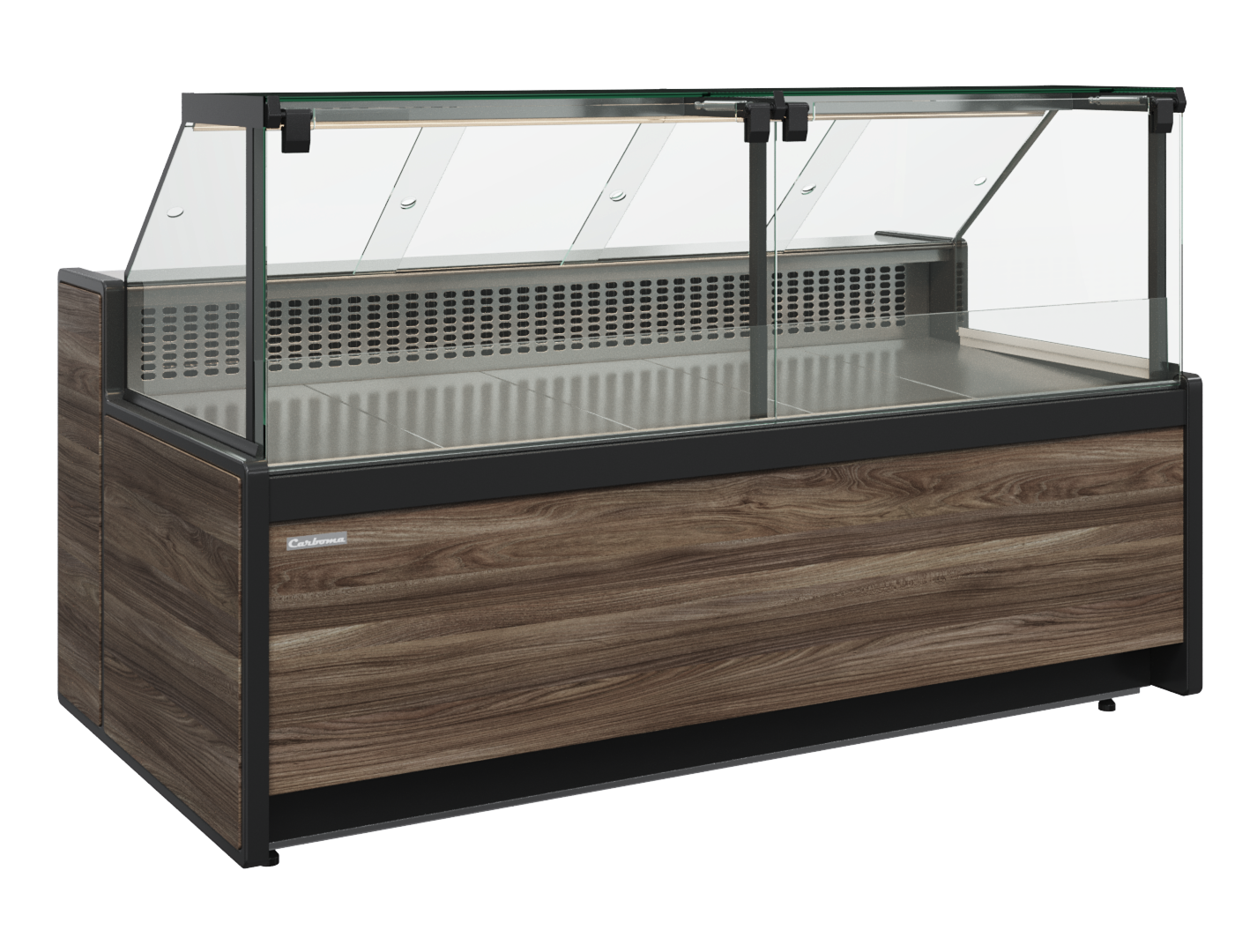

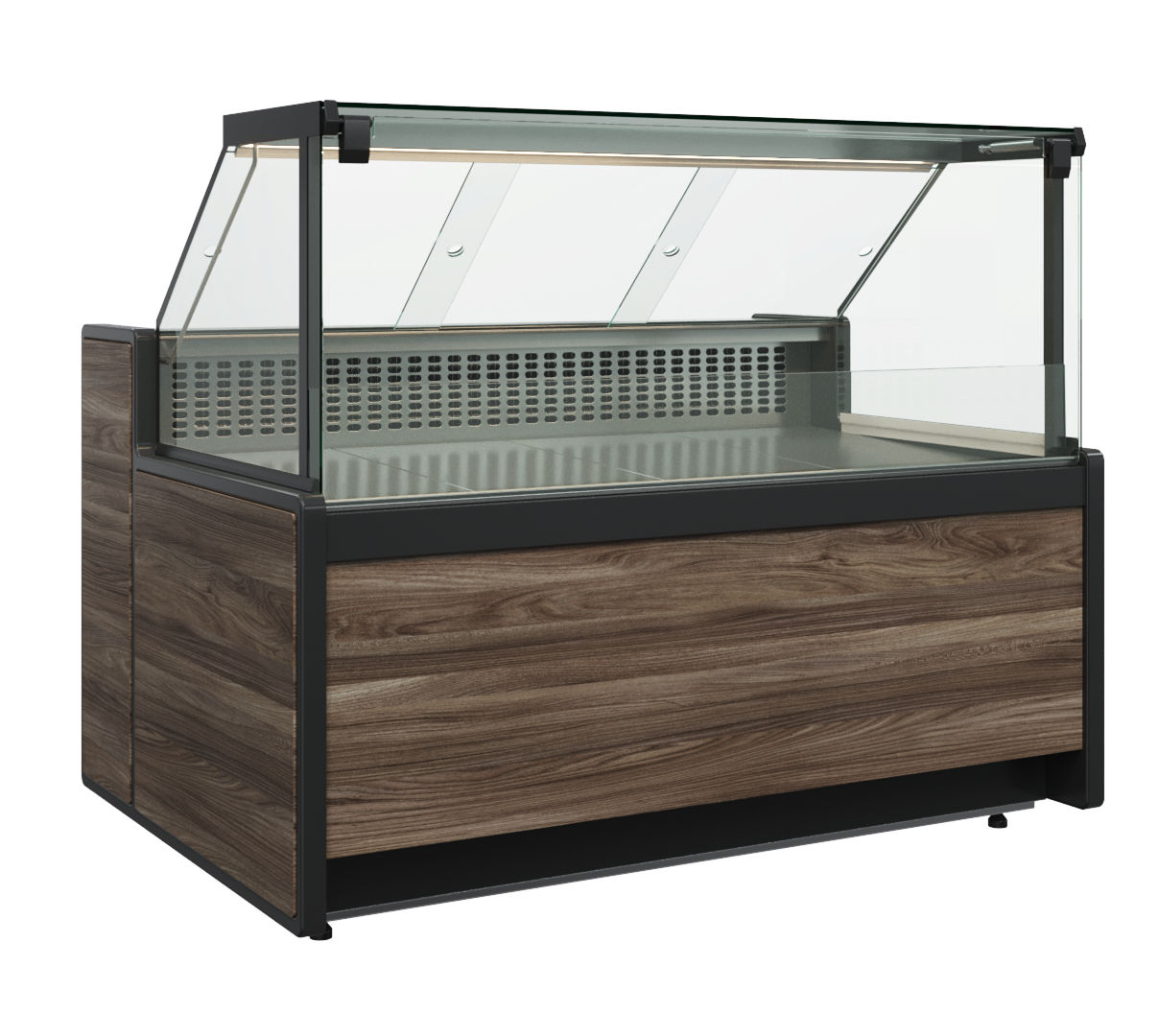

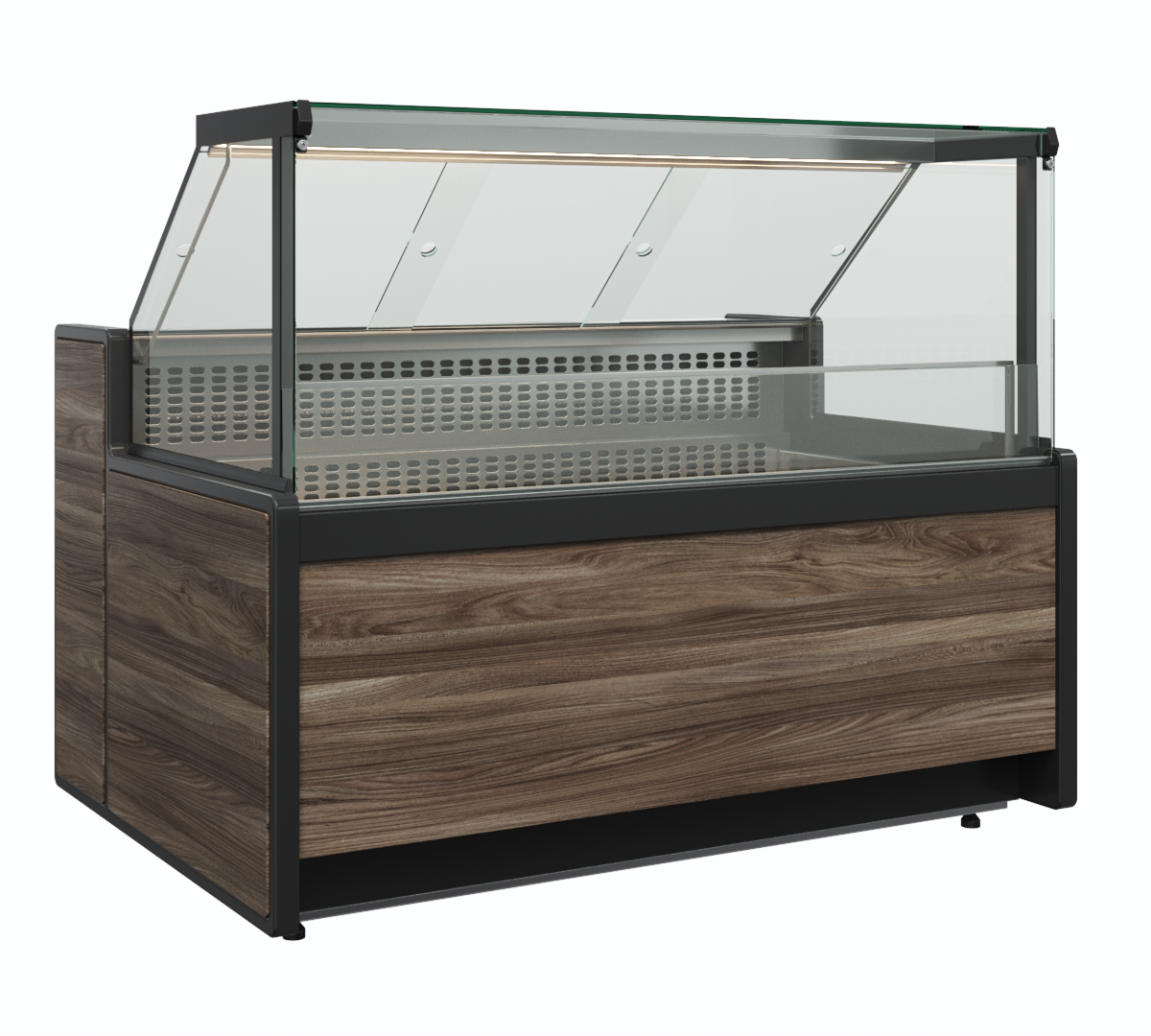

DISPLAY CASES GC111 (Gelios) FIXED GLASS

Main features:

Rated voltage 220 V, 50 Hz
Cooling type Ц static / dynamic
Climatic class of equipment: 3
Refrigerant R290, R404a
The display cases are intended for use indoors with natural ventilation at ambient temperatures from +12 to +25 and relative humidity no more than 60%

Загрузить листовку GC111 (Gelios) Загрузить цветовую схему GC111 Загрузить изображения GC 111 BIM модели

Model		Dimensions, mm			Weight, kg	t, °C	Exhibited area, mm	Electricity consumption per day, kW
Model		Length	Width	Height	Weight, kg	t, °C	Exhibited area, mm	Electricity consumption per day, kW

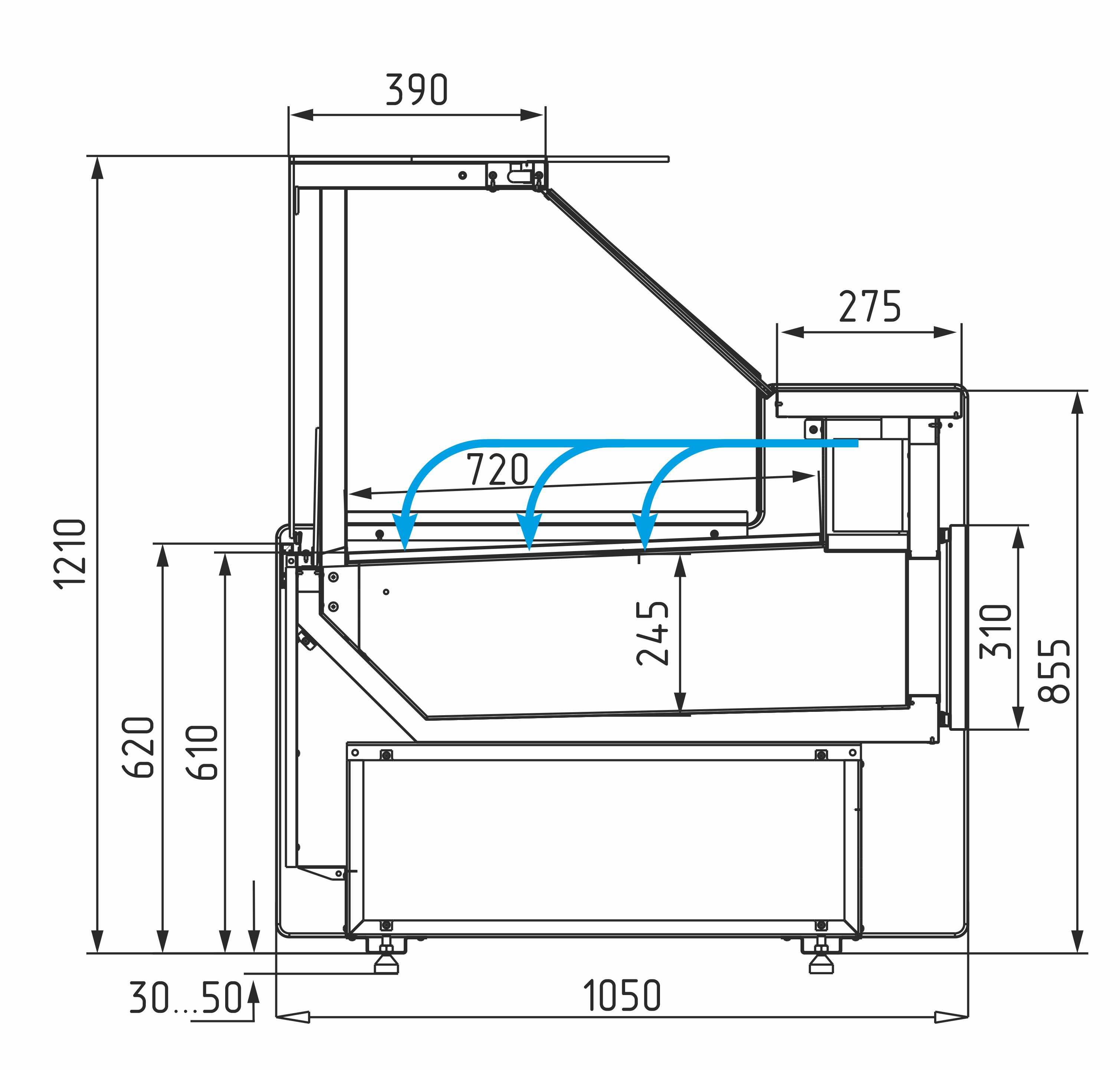

	GC111 SM 0,94-1 (no sidewalls ) Blueprint	1030	1050	1210 (1260)	156	0...+7	0,68	4
	GC111 SM 1,25-1 (no sidewalls ) Blueprint	1340	1050	1210 (1260)	178	0...+7	0,9	5
	GC111 SM 1,5-1 (no sidewalls ) Blueprint	1510	1050	1210 (1260)	194	0...+7	1,02	5
	GC111 SM 2,0-1 (no sidewalls ) Blueprint	1965	1050	1210 (1260)	212	0...+7	1,02	6
	GC111 SM 2,5-1 (no sidewalls ) Blueprint	2590	1050	1210 (1260)	252	0...+7	1,8	11
	GC111 SM 3,75-1 (no sidewalls ) Blueprint	3840	1050	1210 (1260)	290	0...+7	2,7	15
	GC111 SV 0,94-1 (no sidewalls ) Blueprint	1030	1050	1210 (1260)	158	-5...+5	0,68	6,6
	GC111 SV 1,25-1 (no sidewalls ) Blueprint	1340	1050	1210 (1260)	180	-5...+5	0,9	7,6
	GC111 SV 1,5-1 (no sidewalls ) Blueprint	1510	1050	1210 (1260)	196	-5...+5	1,02	8
	GC111 SV 2,0-1 (no sidewalls ) Blueprint	1965	1050	1210 (1260)	215	-5...+5	1,35	10,2
	GC111 SV 2,5-1 (no sidewalls ) Blueprint	2590	1050	1210 (1260)	255	-5...+5	1,8	12,8
	GC111 SV 3,75-1 (no sidewalls ) Blueprint	3840	1050	1210 (1260)	295	-5...+5	2,7	17
	GC111 SL 0,94-1 (no sidewalls ) Blueprint	1030	1050	1210 (1260)	168	up to -18	0,64	10,6
	GC111 SL 1,25-1 (no sidewalls ) Blueprint	1340	1050	1210 (1260)	189	up to -18	0,85	12

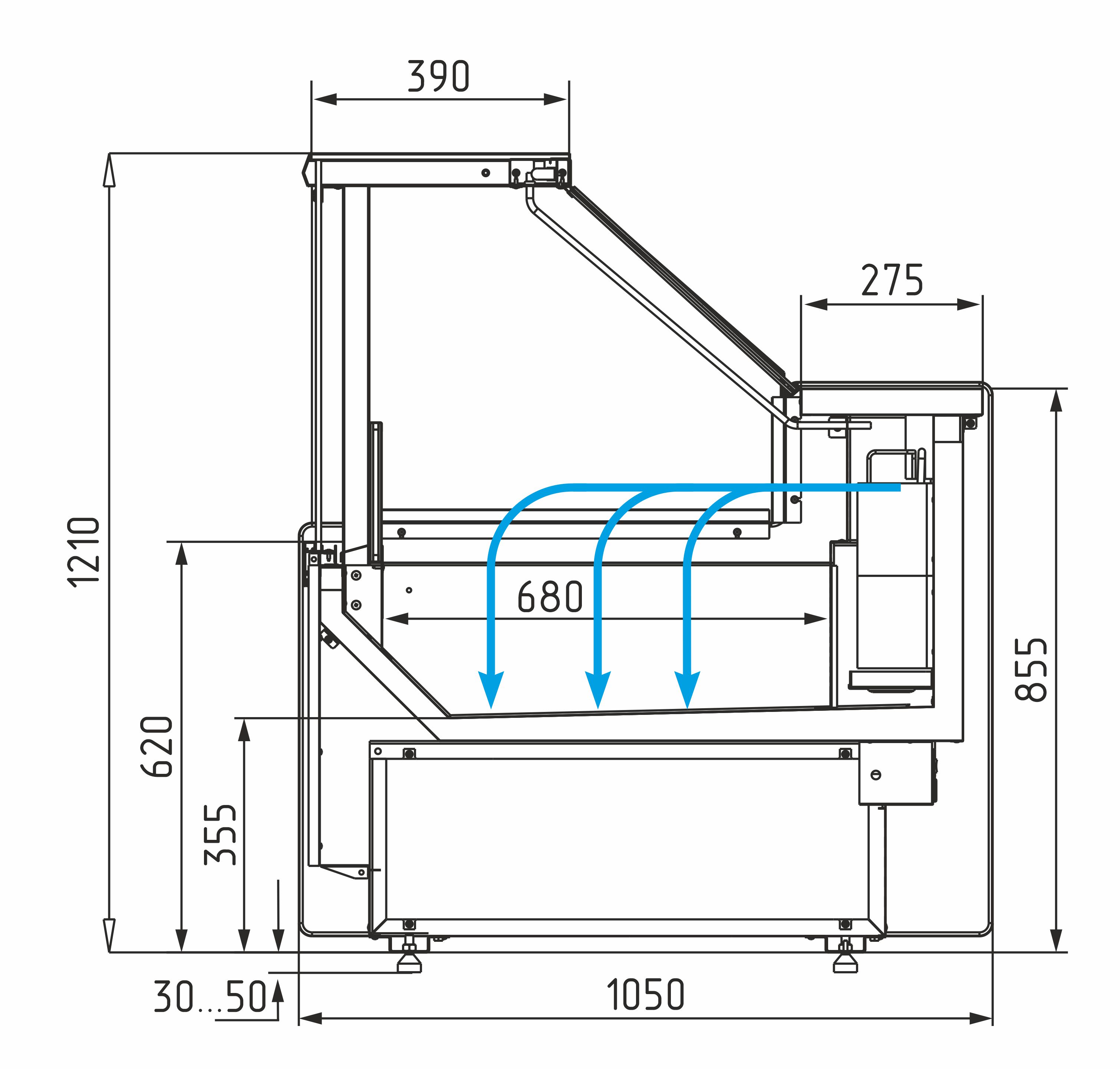

	GC111 SL 1,5-1 (no sidewalls ) Blueprint	1510	1050	1210 (1260)	209	up to -18	0,97	13
	GC111 SL 2,0-1 (no sidewalls ) Blueprint	1965	1050	1210 (1260)	227	up to -18	1,28	15,2

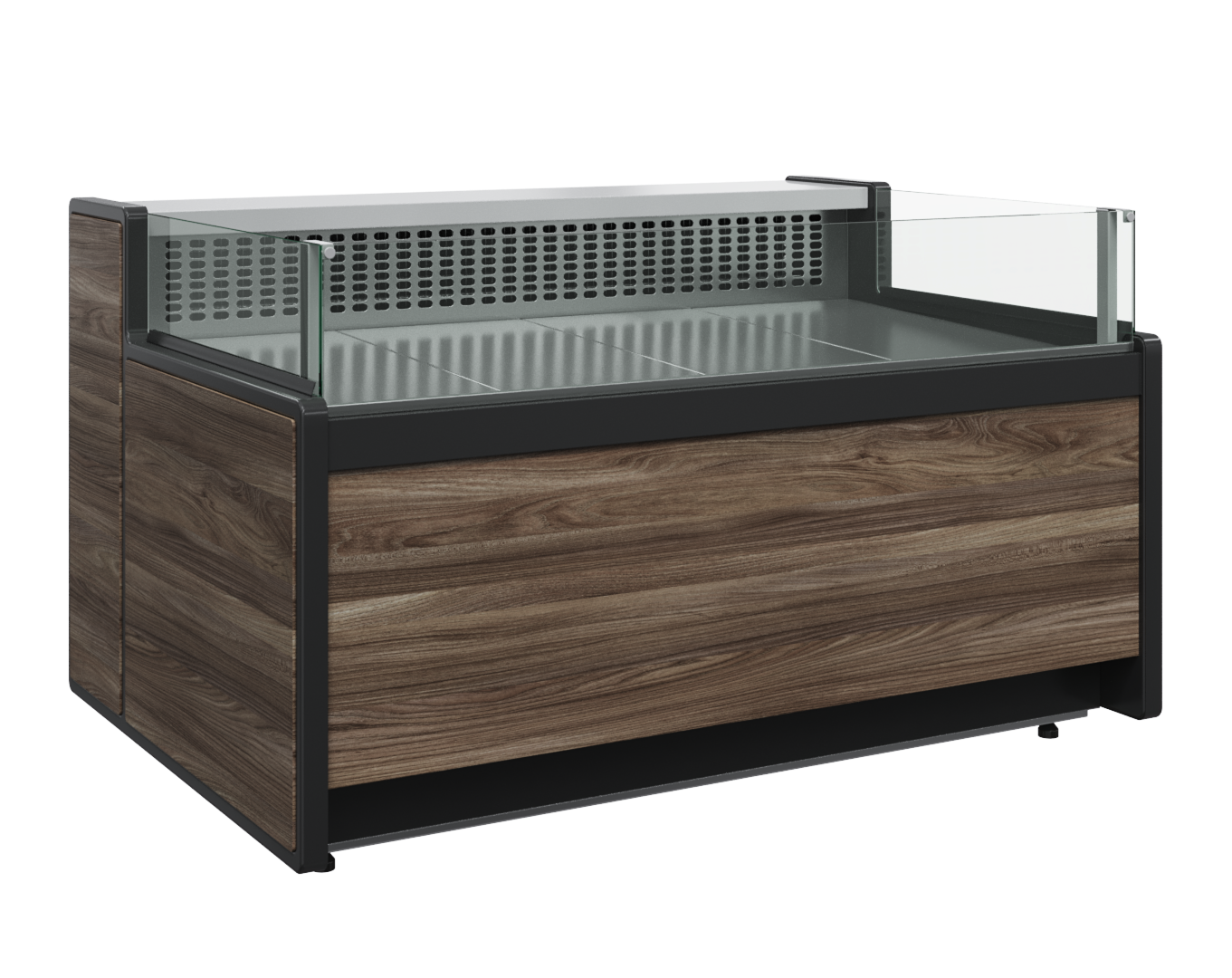

	GC111 SM 0,94-2 open (no sidewalls ) Blueprint	1030	1050	1210 (1260)	138	+2...+6	0,68	6,9
	GC111 SM 1,25-2 open (no sidewalls ) Blueprint	1340	1050	1210 (1260)	149	+2...+6	0,9	7,9

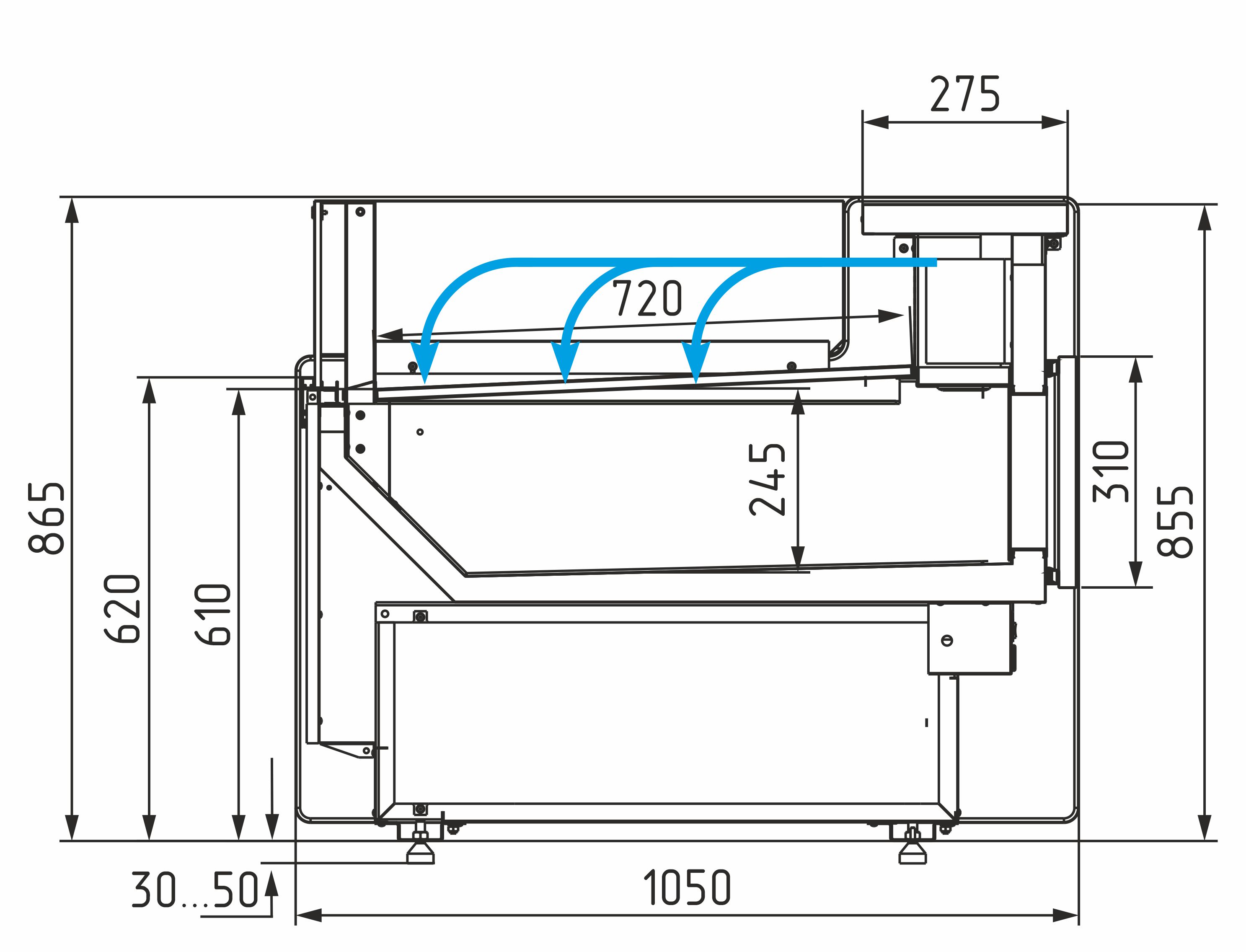

	GC111 SM 1,5-2 open (no sidewalls ) Blueprint	1510	1050	1210 (1260)	175	+2...+6	1,02	8,5
	GC111 SM 2,0-2 open (no sidewalls ) Blueprint	1965	1050	1210 (1260)	190	+2...+6	1,35	10,5

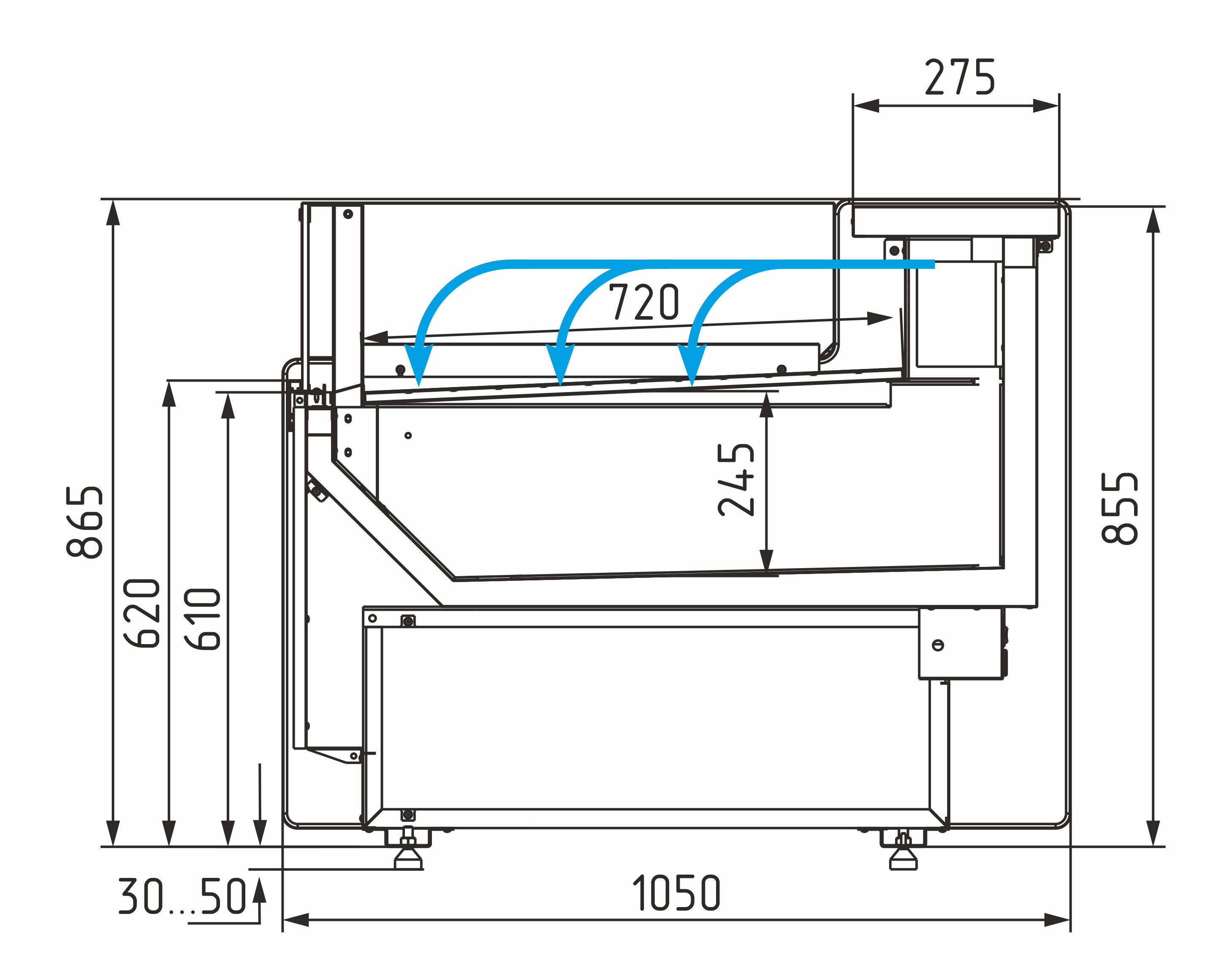

	GC111 SP 0,94-2 fish on ice, open (no sidewalls ) Blueprint	1030	1050	1210 (1260)	138	-1...+2	0,68	7,2
	GC111 SP 1,25-2 fish on ice, open (no sidewalls ) Blueprint	1340	1050	1210 (1260)	149	-1...+2	0,9	8,2
	GC111 SP 1,5-2 fish on ice, open (no sidewalls ) Blueprint	1510	1050	1210 (1260)	175	-1...+2	1,02	8,8
	GC111 SP 2,0-2 fish on ice, open (no sidewalls ) Blueprint	1965	1050	1210 (1260)	199	-1...+2	1,35	10,9
	GC111 SP 0,94-1 fish on ice closed (no sidewalls ) Blueprint	1030	1050	1210 (1260)	158	-1...+1	0,68	7,2
	GC111 SP 1,25-1 fish on ice closed (no sidewalls ) Blueprint	1340	1050	1210 (1260)	180	-1...+1	0,9	8,2

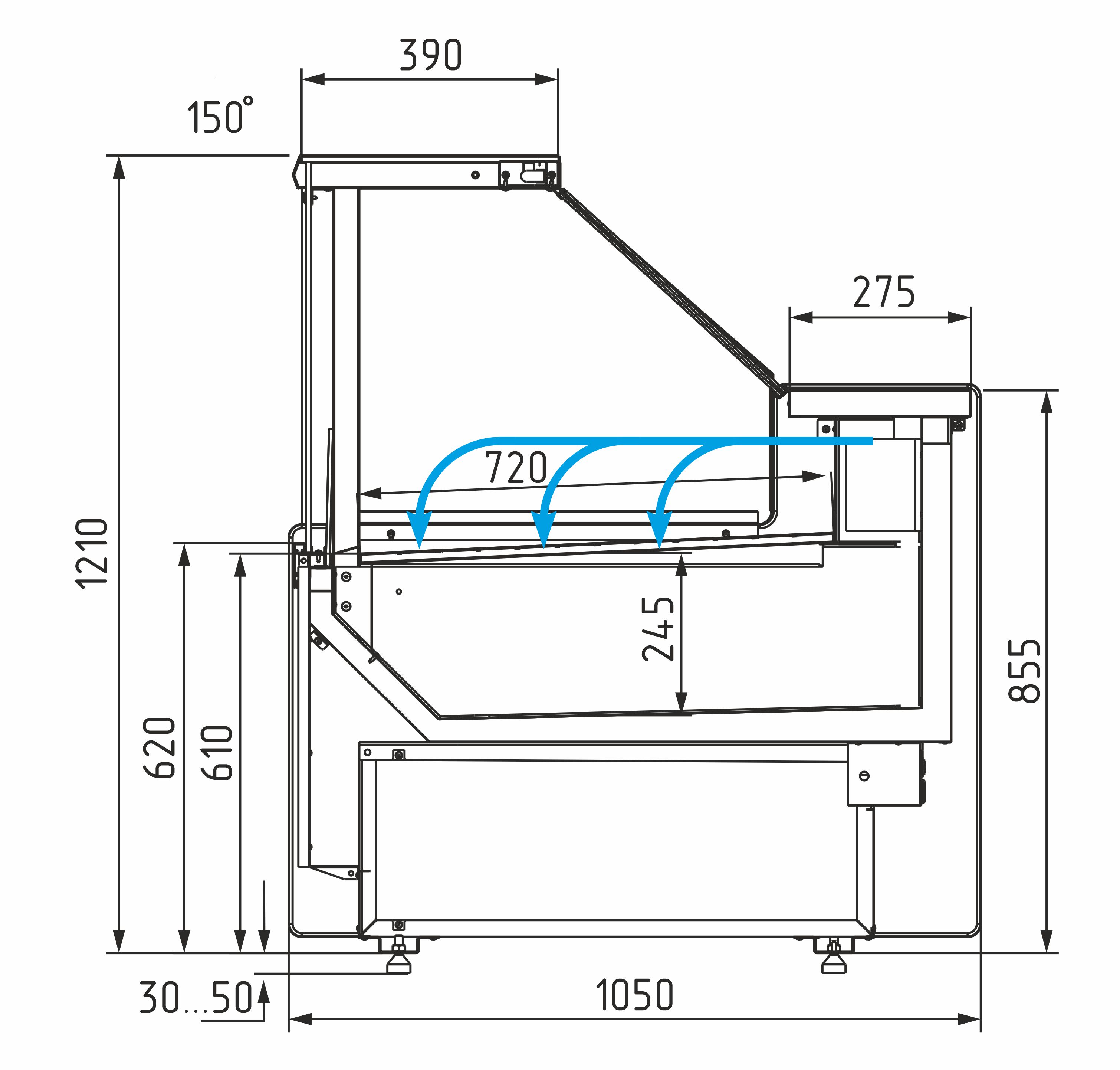

	GC111 SP 1,5-1 fish on ice closed (no sidewalls ) Blueprint	1510	1050	1210 (1260)	196	-1...+1	1,02	8,8
	GC111 SP 2,0-1 fish on ice closed (no sidewalls ) Blueprint	1965	1050	1210 (1260)	215	-1...+1	1,35	10,9

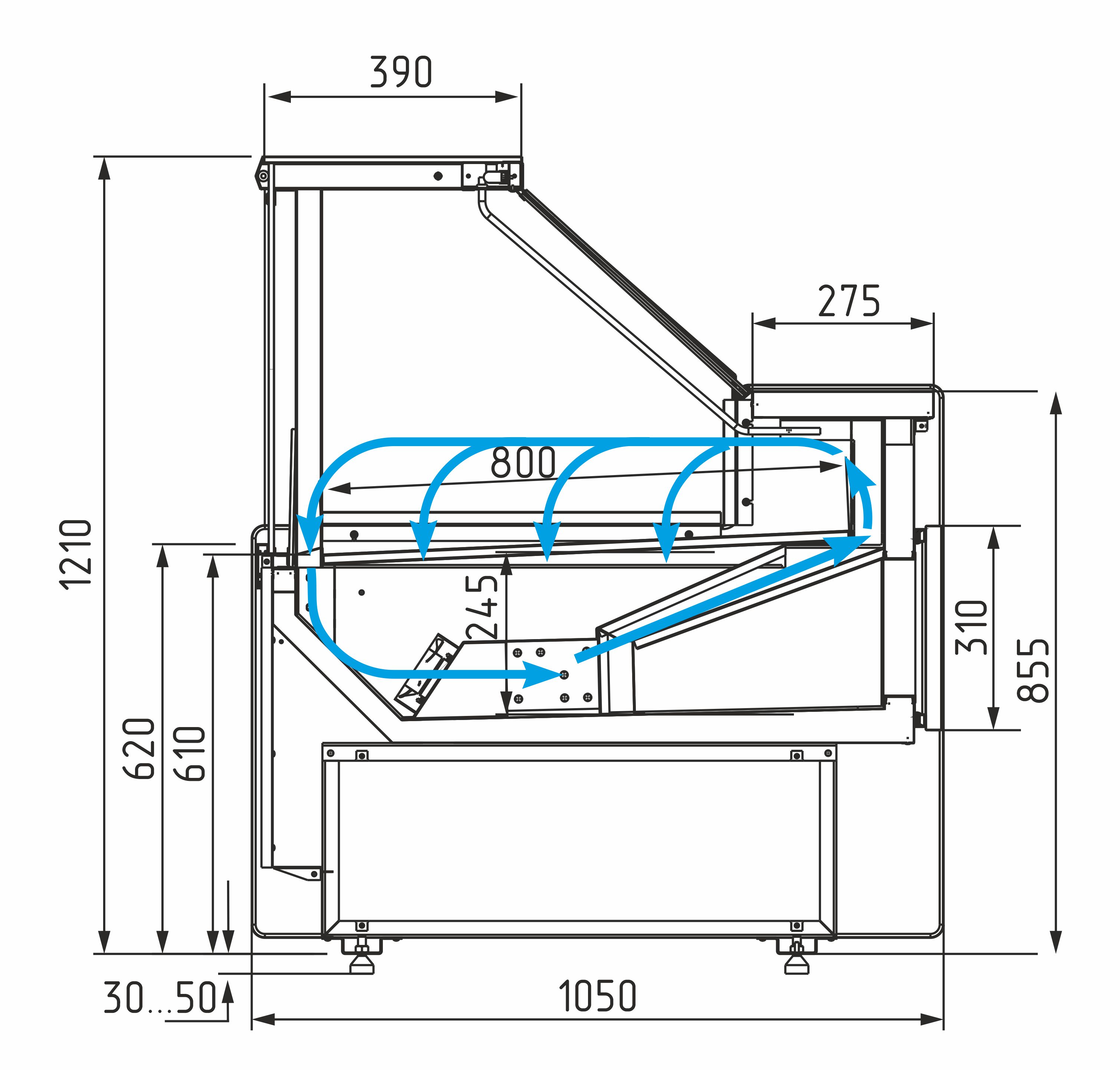

	GC111 VM 0,94-1 dynamics (no sidewalls ) Blueprint	1030	1050	1210 (1260)	161	0...+7	0,75	4,2
	GC111 VM 1,25-1 dynamics (no sidewalls ) Blueprint	1340	1050	1210 (1260)	183	0...+7	1	5,7
	GC111 VM 1,5-1 dynamics (no sidewalls ) Blueprint	1510	1050	1210 (1260)	200	0...+7	1,14	6,1
	GC111 VM 2,0-1 dynamics (no sidewalls ) Blueprint	1965	1050	1210 (1260)	219	0...+7	1,25	7,6
	GC111 VM 2,5-1 dynamics (no sidewalls ) Blueprint	2590	1050	1210 (1260)	260	0...+7	2	12,8
	GC111 VM 3,75-1 dynamics (no sidewalls ) Blueprint	3840	1050	1210 (1260)	305	0...+7	3	16
	GC111 VV 0,94-1 dynamics (no sidewalls ) Blueprint	1030	1050	1210 (1260)	163	-5...+5	0,75	6,8
	GC111 VV 1,25-1 dynamics (no sidewalls ) Blueprint	1340	1050	1210 (1260)	185	-5...+5	1	7,8
	GC111 VV 1,5-1 dynamics (no sidewalls ) Blueprint	1510	1050	1210 (1260)	202	-5...+5	1,14	8,2
	GC111 VV 2,0-1 dynamics (no sidewalls ) Blueprint	1965	1050	1210 (1260)	222	-5...+5	1,25	12,5
	GC111 VV 2,5-1 dynamics (no sidewalls ) Blueprint	2590	1050	1210 (1260)	263	-5...+5	2	20,8
	GC111 VV 3,75-1 dynamics (no sidewalls ) Blueprint	3840	1050	1210 (1260)	310	-5...+5	3	22
	GC111 VM 0,94-2 dynamics open (no sidewalls )	1030	1050	1210 (1260)	143	+2...+6	0,75	6,8
	GC111 VM 1,25-2 dynamics open (no sidewalls )	1340	1050	1210 (1260)	154	+2...+6	1	7,8
	GC111 VM 1,5-2 dynamics open (no sidewalls )	1510	1050	1210 (1260)	181	+2...+6	1,14	8,2
	GC111 VM 2,0-2 dynamics open (no sidewalls )	1965	1050	1210 (1260)	197	+2...+6	1,25	12,5

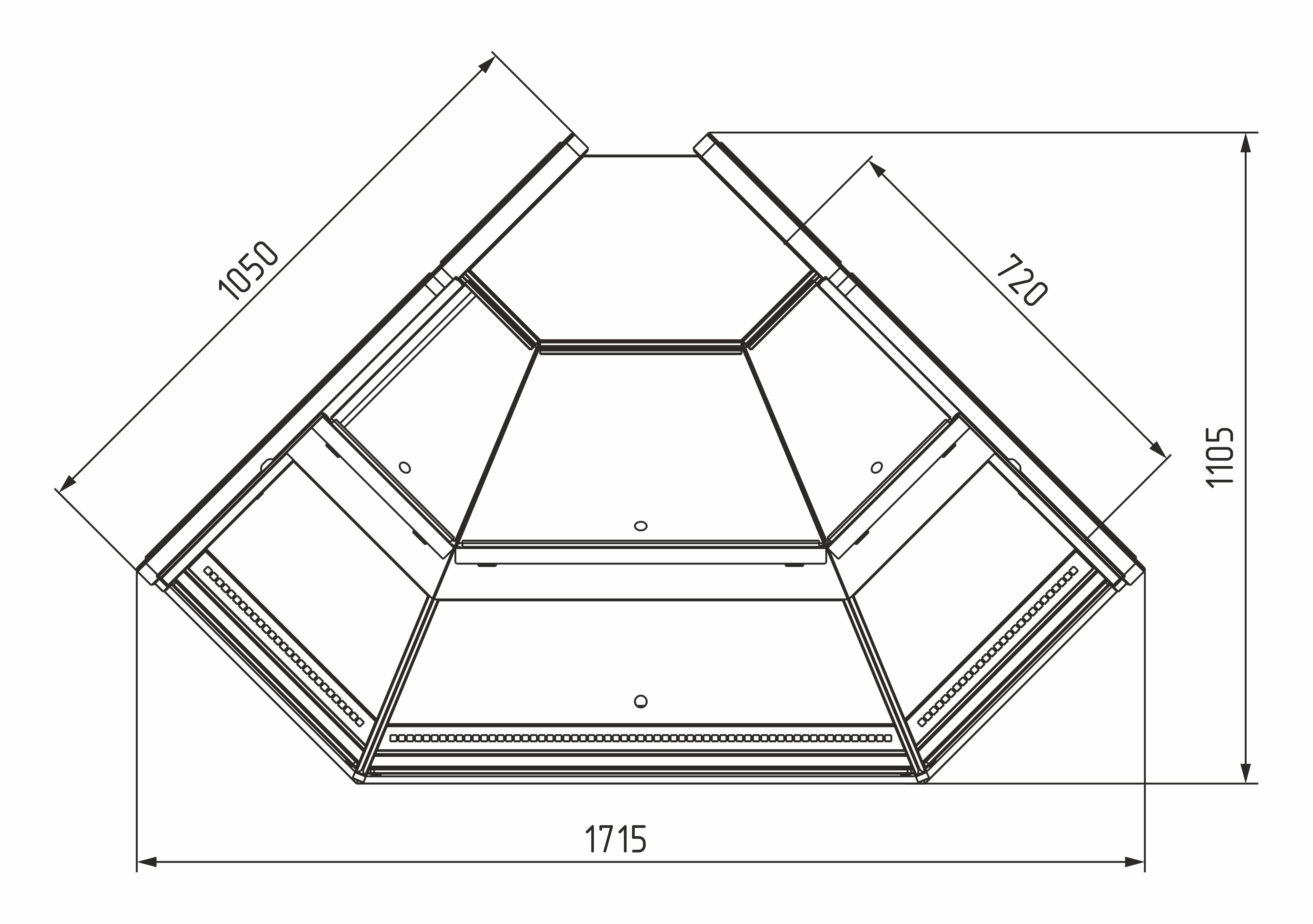

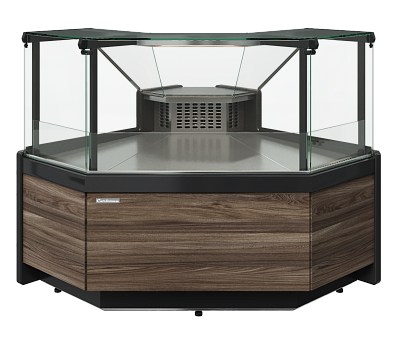

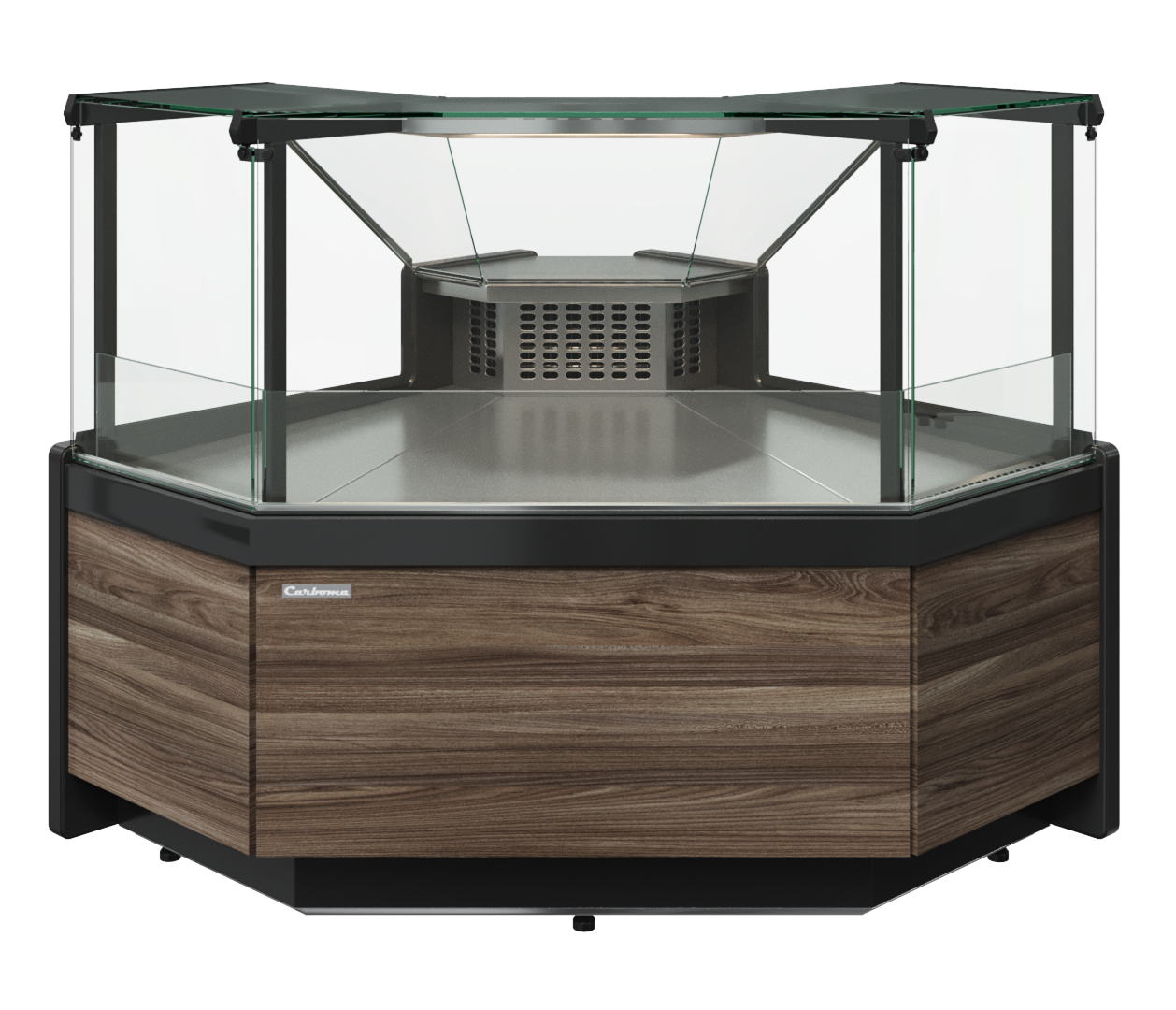

	GC111 VM-5-1 dynamics corner outside90 (no sidewalls ) Blueprint	1715	1105	1210 (1260)	200	0...+7	0,85	7,2

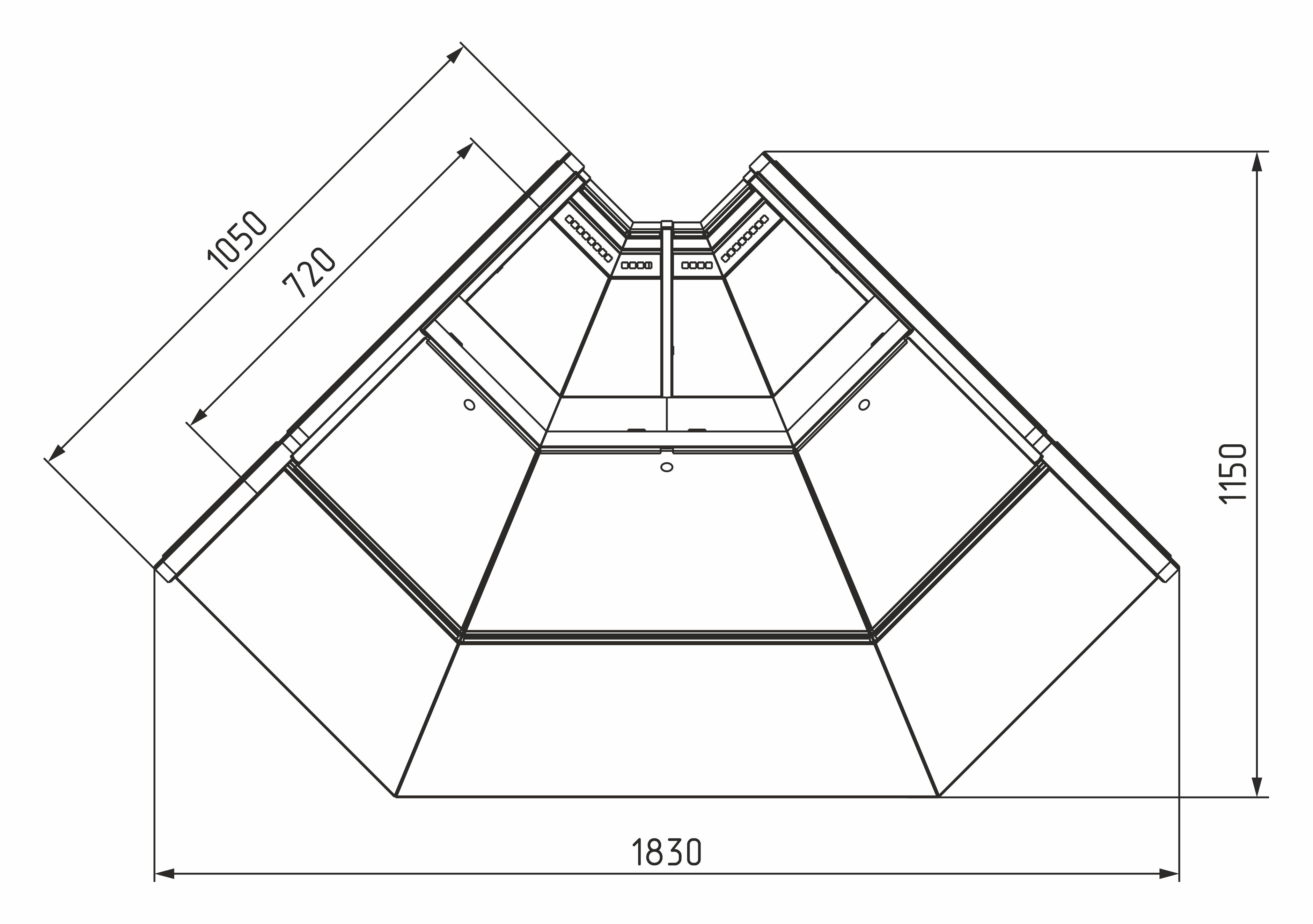

	GC111 VM-6-1 dynamics corner inside 90 (no sidewalls ) Blueprint	1830	1150	1210 (1260)	190	0...+7	0,84	7,7
	GC111 VV-5-1 dynamics corner outside90 (no sidewalls ) Blueprint	1715	1105	1210 (1260)	201	-5...+5	0,85	7,2
	GC111 VV-6-1 dynamics corner inside 90 (no sidewalls ) Blueprint	1830	1150	1210 (1260)	191	-5...+5	0,84	7,7
	GC111 SH 1,25-1 Thermal (no sidewalls )	1340	1150	1210 (1260)	178	up to +45	0,9	-
	GC111 N 0,94-1 neutral (no sidewalls )	1030	1050	1210 (1260)	156	-	0,1	-

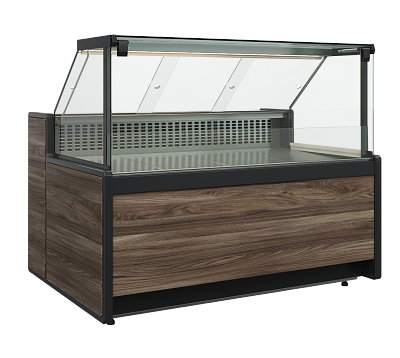

	GC111 N 1,25-1 neutral (no sidewalls )	1340	1150	1210 (1260)	178	-	0,14	-
	GC111 N 1,5-1 neutral (no sidewalls )	1510	1150	1210 (1260)	194	-	0,15	-
	GC111 N 2,0-1 neutral (no sidewalls )	1965	1150	1210 (1260)	212	-	1,35	-
	GC111 N 2,5-1 neutral (no sidewalls )	2590	1150	1210 (1260)	252	-	1,8	-
	GC111 N 3,75-1 neutral (no sidewalls )	3840	1150	1210 (1260)	290	-	2,7	-

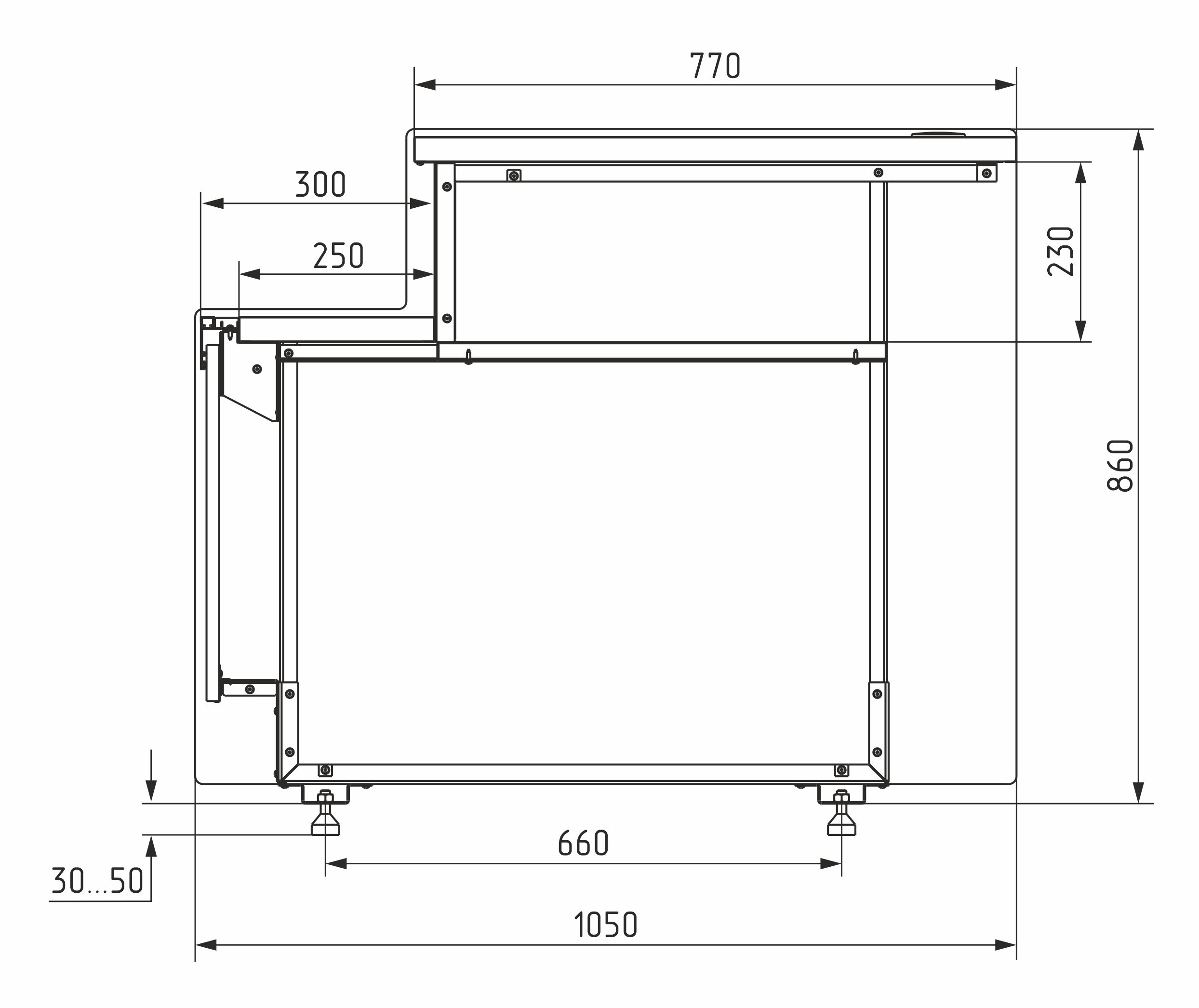

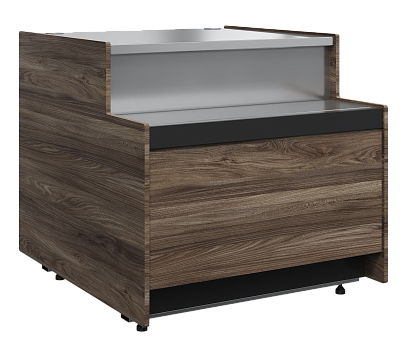

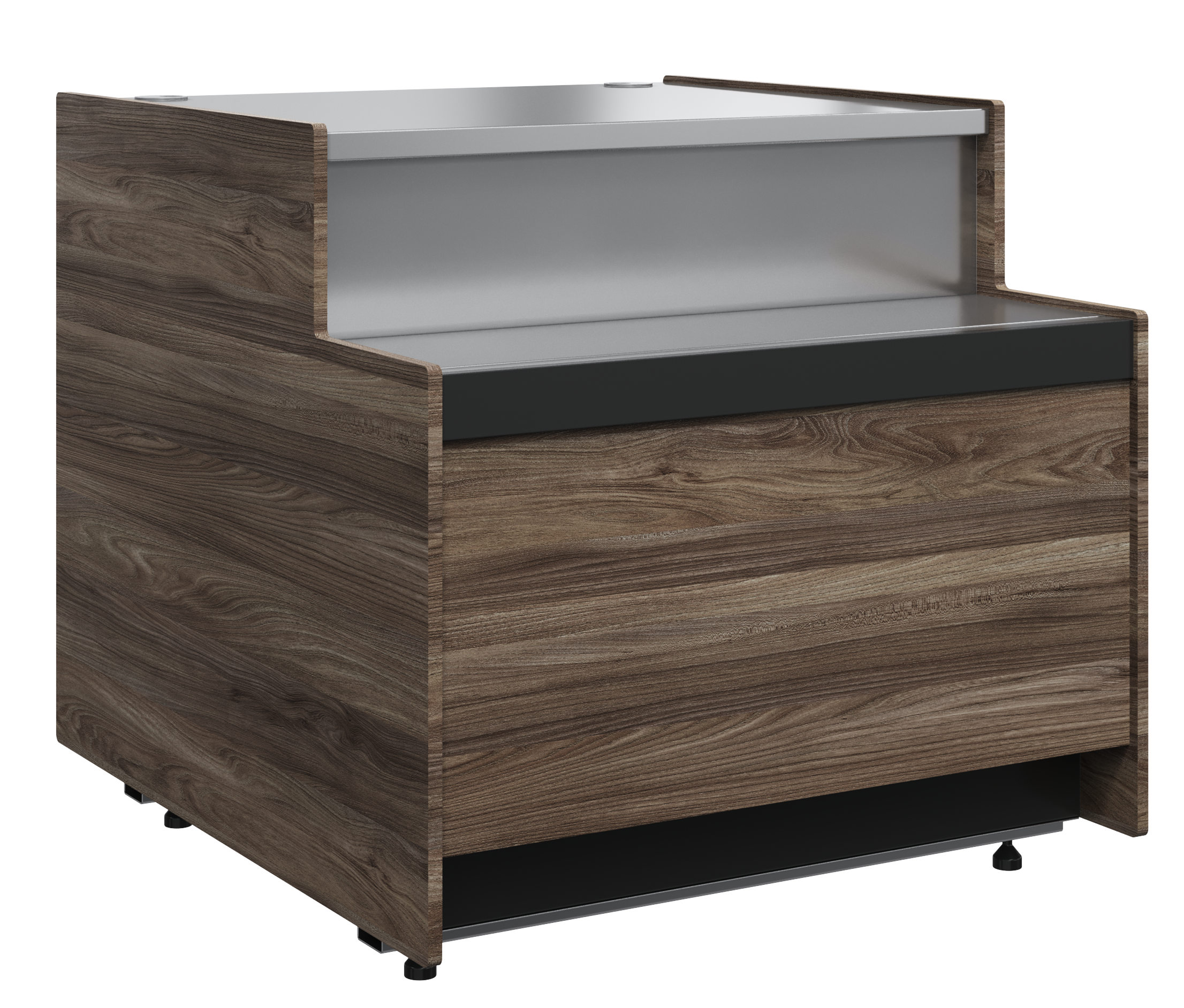

	neutral counter GC111 N 0,9-7 Blueprint	932	1050	860 (910)		-	-	-
	neutral counter GC111 N 1,2-7 Blueprint	1232	1050	860 (910)		-	-	-
	sidewall with insulated glass unit GC111 Closed modular units (Plastic + MDF), pcs							-
	sidewall with insulated glass unit GC111 Open modular units (Plastic + MDF), pcs							-

- Display case prices include the cost of front panels

- Front panel options: laminated MDF 1008 (DARK OAK), 1010 (MARIE)

- Side panels WITH DOUBLE GLAZING 45 mm thick are NOT INCLUDED in the display case price

- The dimensions in the technical specifi

Microprocessor control unit with temperature indication
Defrosting by natural heat inflows (for models SM, VM)
Automatic electric defrost mode (for models SV, VV, SL, SM open, VM open, SP)
Fixed front glass
Structural glass unit side
Exhibition surface, table top made of polished stainless steel
LED lighting of the main area (warm white)
Additional storage - static (models SM, SV, SM open), dynamics (models VM, VV, VM open)
WITHOUT ADDITIONAL STORAGE SP, SL, corner (VM-5, VM-6, VV-5, VV-6)
Cold deflector (for SV, VV models), front double-glazed windows (for SL models)
Energy-saving curtains
Decorative front panels (MDF)
Mesh grilles for SL
PEN for defrosting the condensate drain pan (for models SV, SL)

Side panels with double glazing (0011-1010 GRAY+MARIELLE; 0013-1008 BLACK+DARK OAK)
Docking kit (price on request)
Additional uncooled display shelf (models SM, SV, VM, VV)
Low volume divider (medium temperature, reversible) (price on request)
Full-profile divider (medium temperature, reversible) is placed between display cases or in display cases with a length of 2.0 2.5 3.75 (price on request)
Full-size divider is placed between display cases
Glass partition for joining closed and open modules (price on request)
Front panel lighting (warm white) (price on request)
Main area lighting (pink) (price on request)
Wooden shelf for bread, cheese, delicacies
Shelf for scales (HDPE material) 350x400 mm
2-stage pallets for display (price on request). The total height of the pallet is 120 mm, the total depth is 480 mm
Wheel support h-130 mm
Heating element defrost for medium-temperature display cabinets
