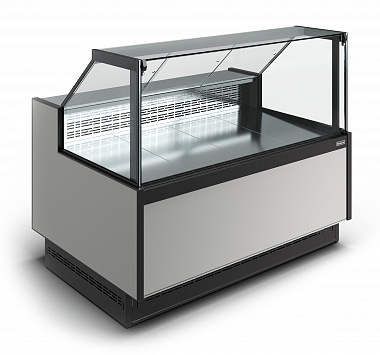

DISPLAY CASES GC110 2.0 (BAVARIA 4)

NEW

Main features:

Rated voltage 220 V, 50 Hz

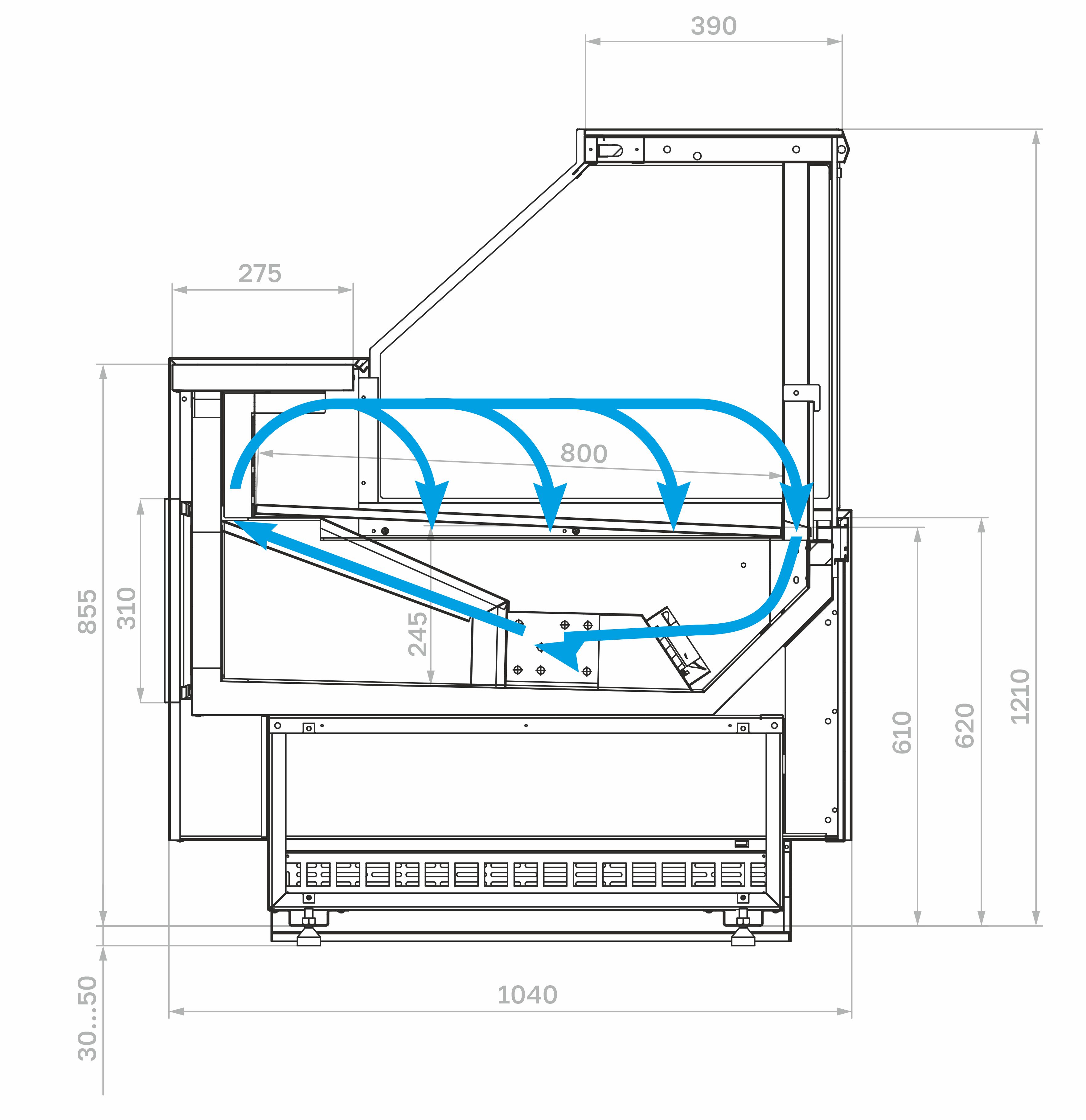

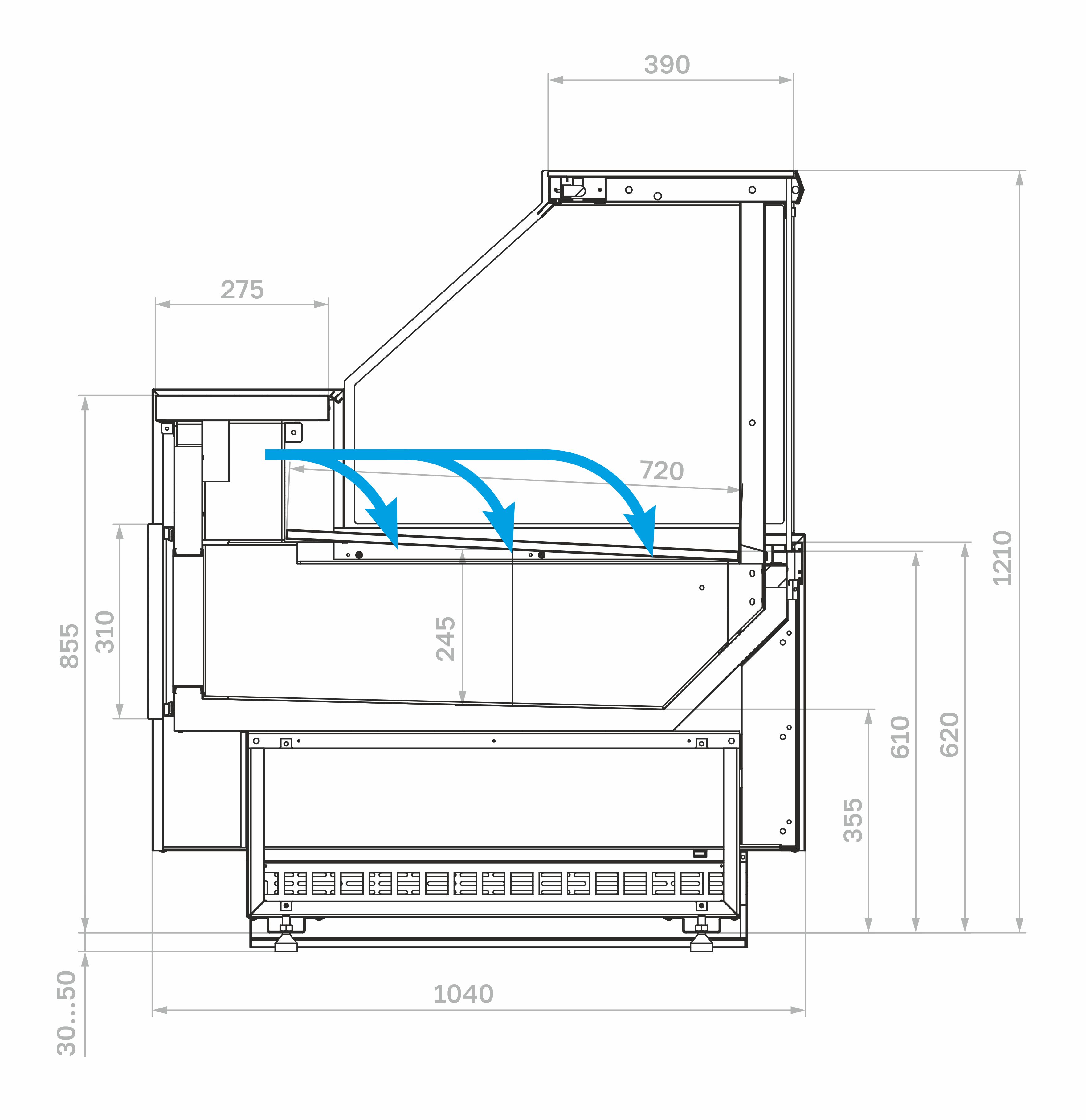

Cooling type Ц static / dynamic
Climatic class of equipment: 3
Refrigerant R290, R404a
The display cases are intended for use indoors with natural ventilation at ambient temperatures from +12 to +25 and relative humidity no more than 60%

DEPTH: up to 800 mm

Загрузить листовку GC110 версия 2.0 Bavaria 4 Загрузить цветовую схему GC110 версия 2.0 Bavaria 4 Загрузить BIM-модели

Model		Dimensions, mm			Weight, kg	t, °C	Exhibited area, mm	Electricity consumption per day, kW
Model		Length	Width	Height	Weight, kg	t, °C	Exhibited area, mm	Electricity consumption per day, kW
	GC110 SM 0,94-1 (version 2.0) (no sidewalls ) Blueprint	1010	1040	1210 (1260)	122	0...+7	0,68	4
	GC110 SM 1,25-1 (version 2.0) (no sidewalls ) Blueprint	1320	1040	1210 (1260)	139	0...+7	0,9	5

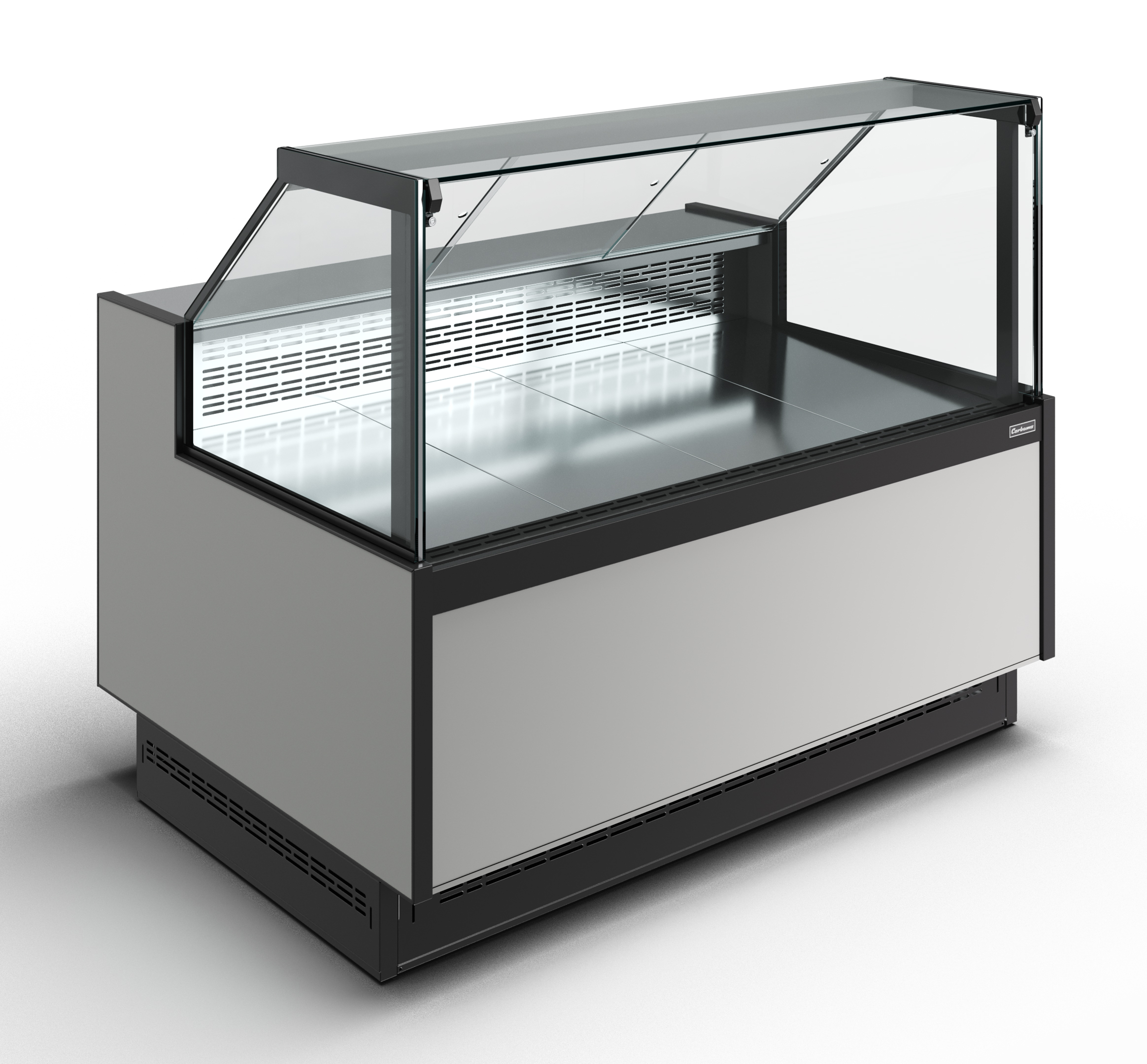

	GC110 SM 1,5-1 (version 2.0) (no sidewalls ) Blueprint	1490	1040	1210 (1260)	157	0...+7	1,02	5
	GC110 SM 2,0-1 (version 2.0) (no sidewalls ) Blueprint	1945	1040	1210 (1260)	193	0...+7	1,35	6

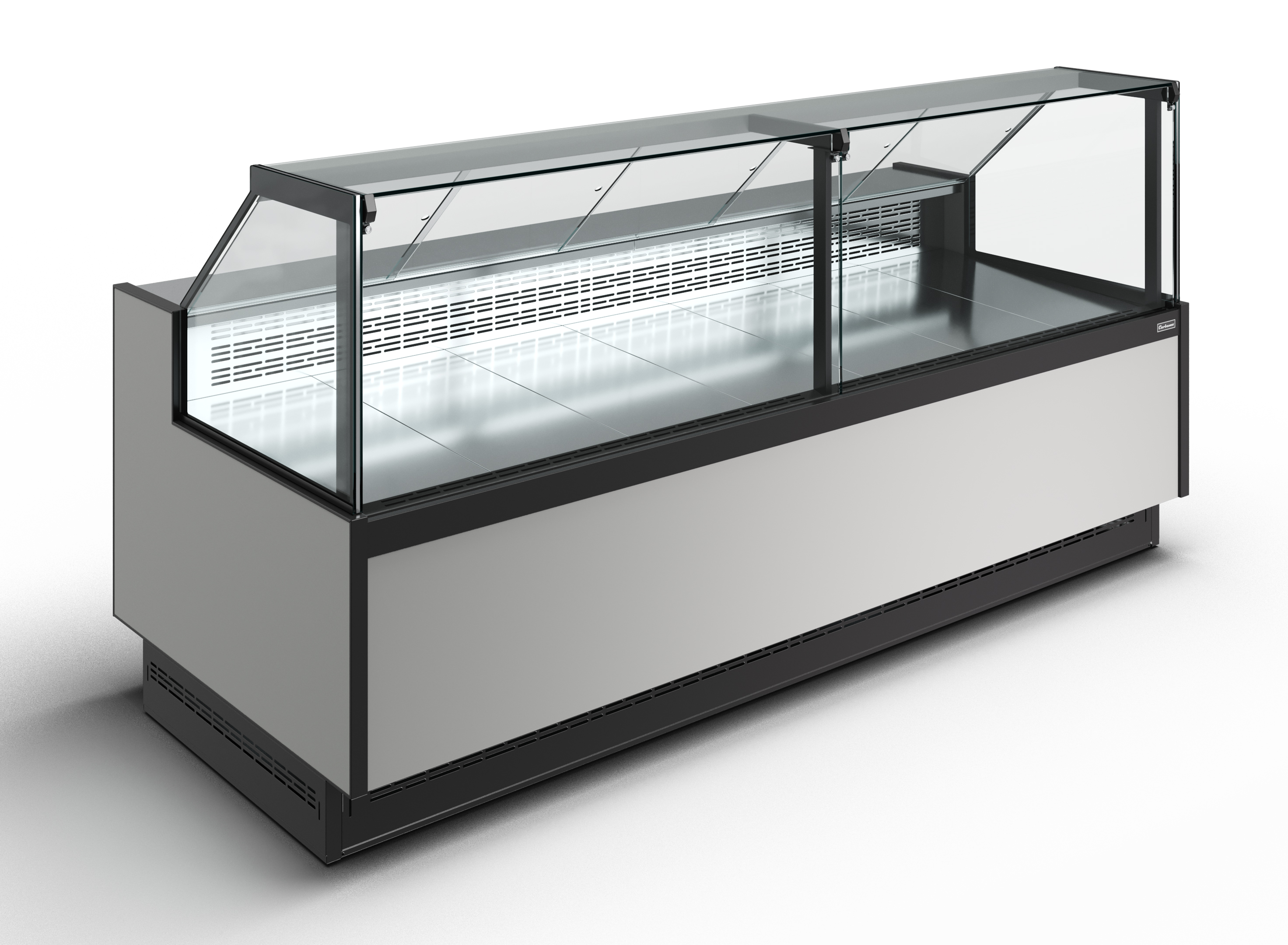

	GC110 SM 2,5-1 (version 2.0) (no sidewalls ) Blueprint	2570	1040	1210(1260)	229	0...+7	1,8	11

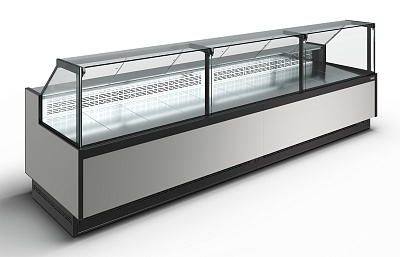

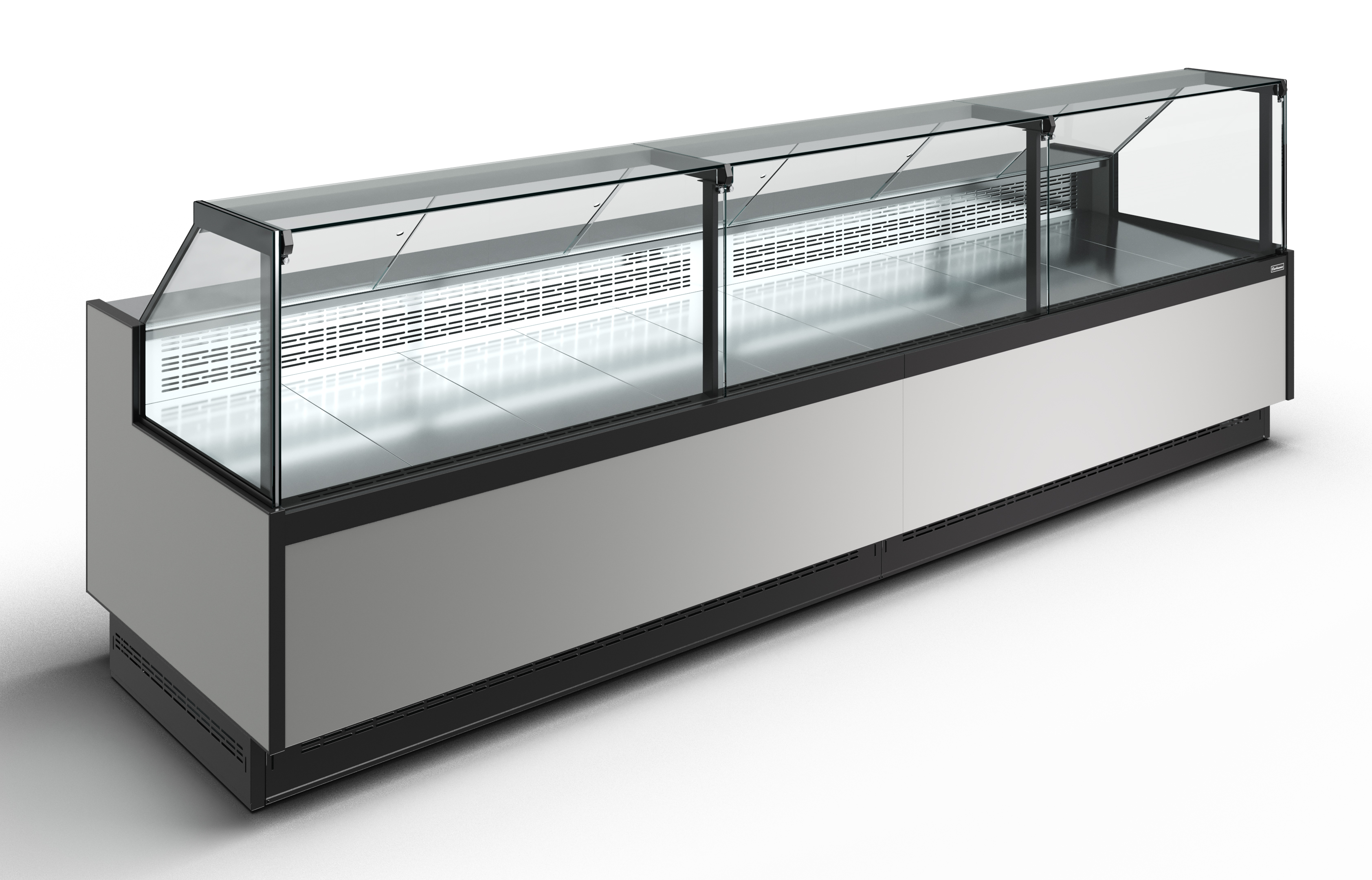

	GC110 SM 3,75-1 (version 2.0) (no sidewalls ) Blueprint	3820	1040	1210 (1260)	337	0...+7	2,7	15
	GC110 SV 0,94-1 (version 2.0) (no sidewalls ) Blueprint	1010	1040	1210 (1260)	124	-5...+5	0,68	6,8
	GC110 SV 1,25-1 (version 2.0) (no sidewalls ) Blueprint	1320	1040	1210 (1260)	142	-5...+5	0,9	7.0
	GC110 SV 1,5-1 (version 2.0) (no sidewalls ) Blueprint	1490	1040	1210 (1260)	161	-5...+5	1,02	7.0
	GC110 SV 2,0-1 (version 2.0) (no sidewalls ) Blueprint	1945	1040	1210 (1260)	198	-5...+5	1,35	07.май
	GC110 SV 2,5-1 (version 2.0) (no sidewalls ) Blueprint	2570	1040	1210(1260)	234	-5...+5	1,8	9
	GC110 SV 3,75-1 (version 2.0) (no sidewalls ) Blueprint	3820	1040	1210 (1260)	340	-5...+5	2,7	14.фев

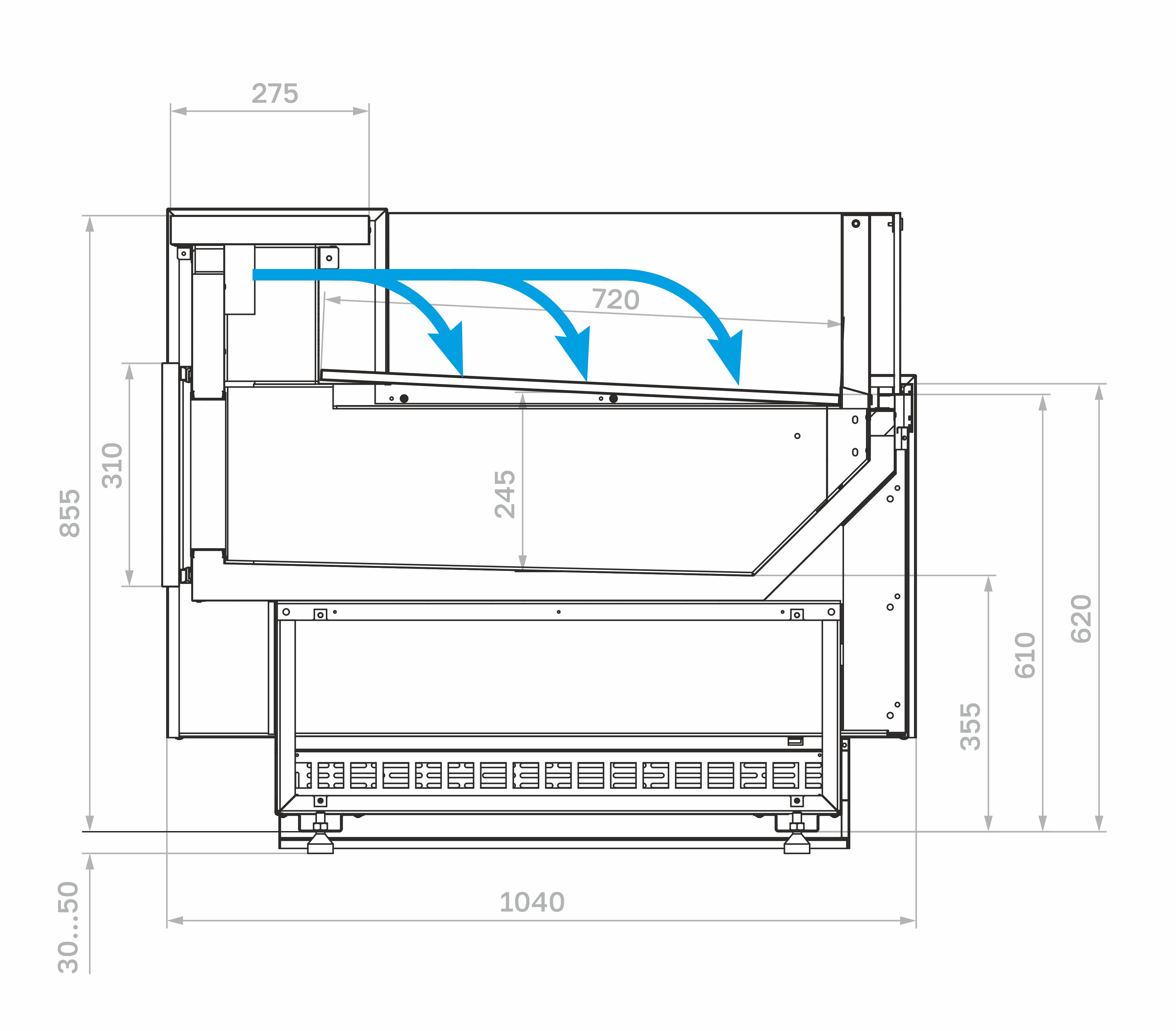

	GC110 SM 0,94-2 open (version 2.0) (no sidewalls ) Blueprint	1010	1040	855 (905)	105	+2...+6	0,68	06.авг
	GC110 SM 1,25-2 open (version 2.0) (no sidewalls ) Blueprint	1320	1040	855 (905)	120	+2...+6	0,9	7.0
	GC110 SM 1,5-2 open (version 2.0) (no sidewalls ) Blueprint	1490	1040	855 (905)	129	+2...+6	1,02	7.0
	GC110 SM 2,0-2 open (version 2.0) (no sidewalls ) Blueprint	1945	1040	855 (905)	166	+2...+6	1,35	07.май

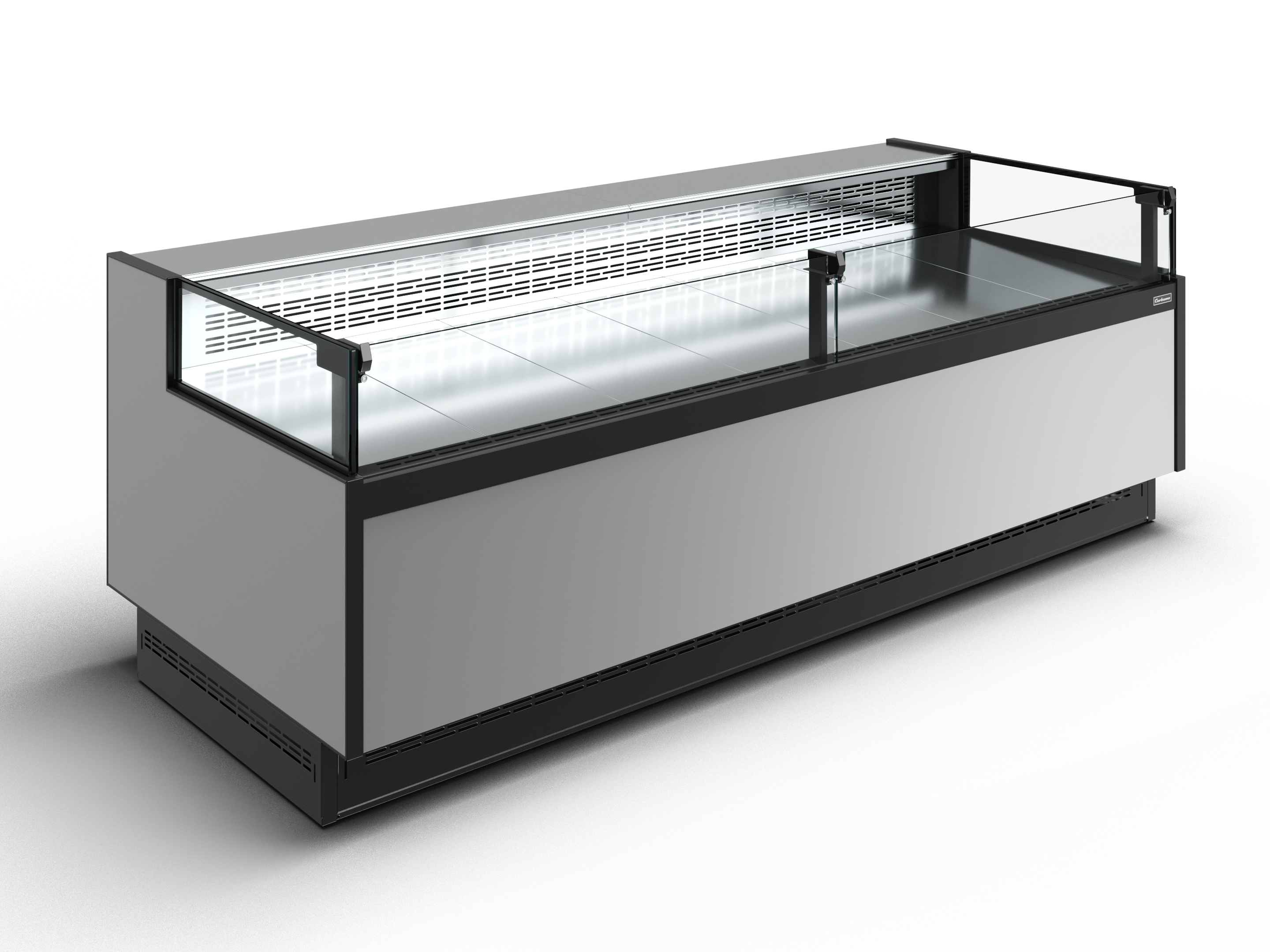

	GC110 SM 2,5-2 open (version 2.0) (no sidewalls ) Blueprint	2570	1040	855 (905)	203	+2...+6	1,8	9.0

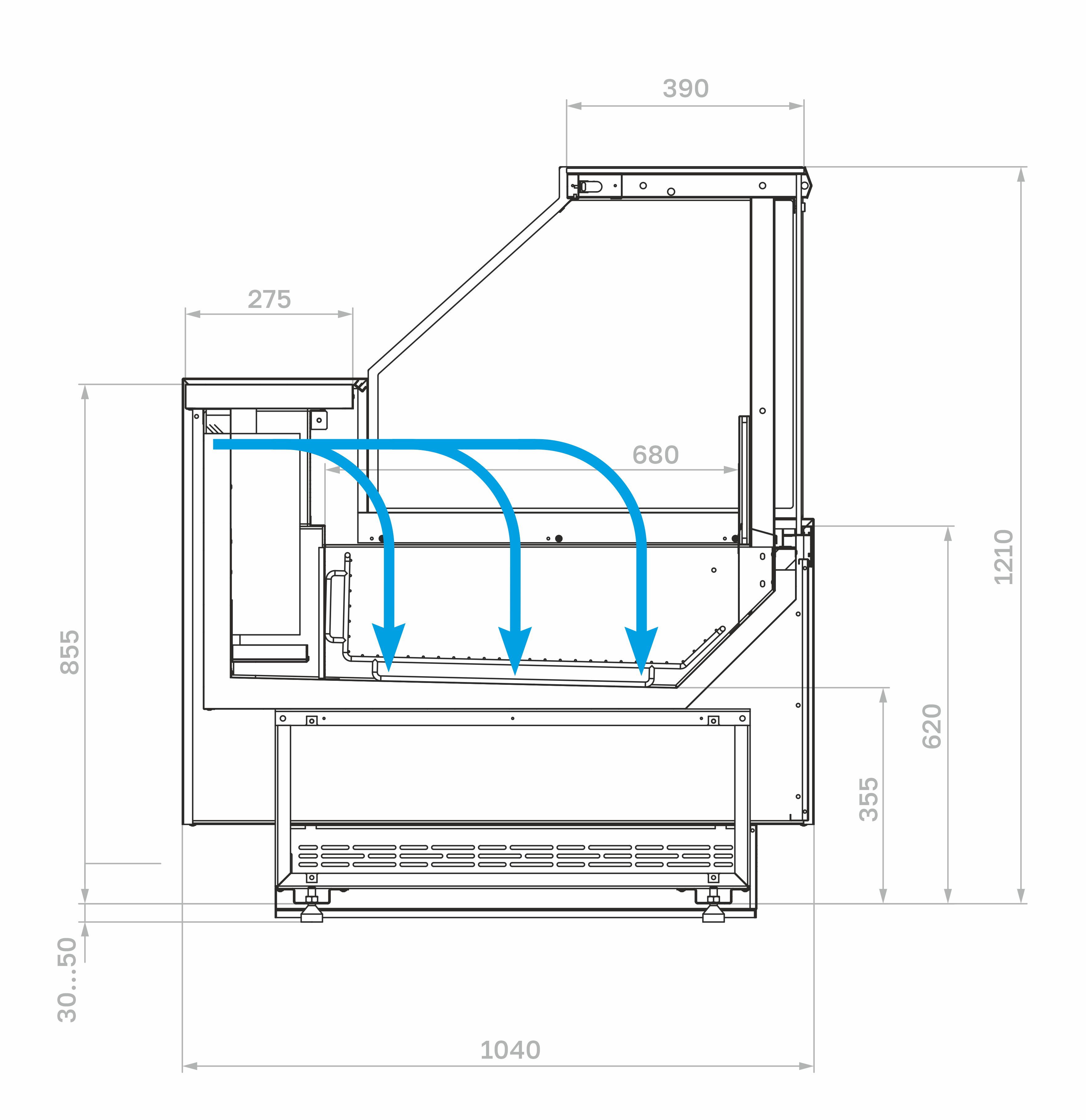

	GC110 SL 0,94-1 (version 2.0) (no sidewalls ) Blueprint	1010	1040	1210 (1260)	125	up to -18	0,61	8
	GC110 SL 1,25-1 (version 2.0) (no sidewalls ) Blueprint	1320	1040	1210 (1260)	145	up to -18	0,82	9

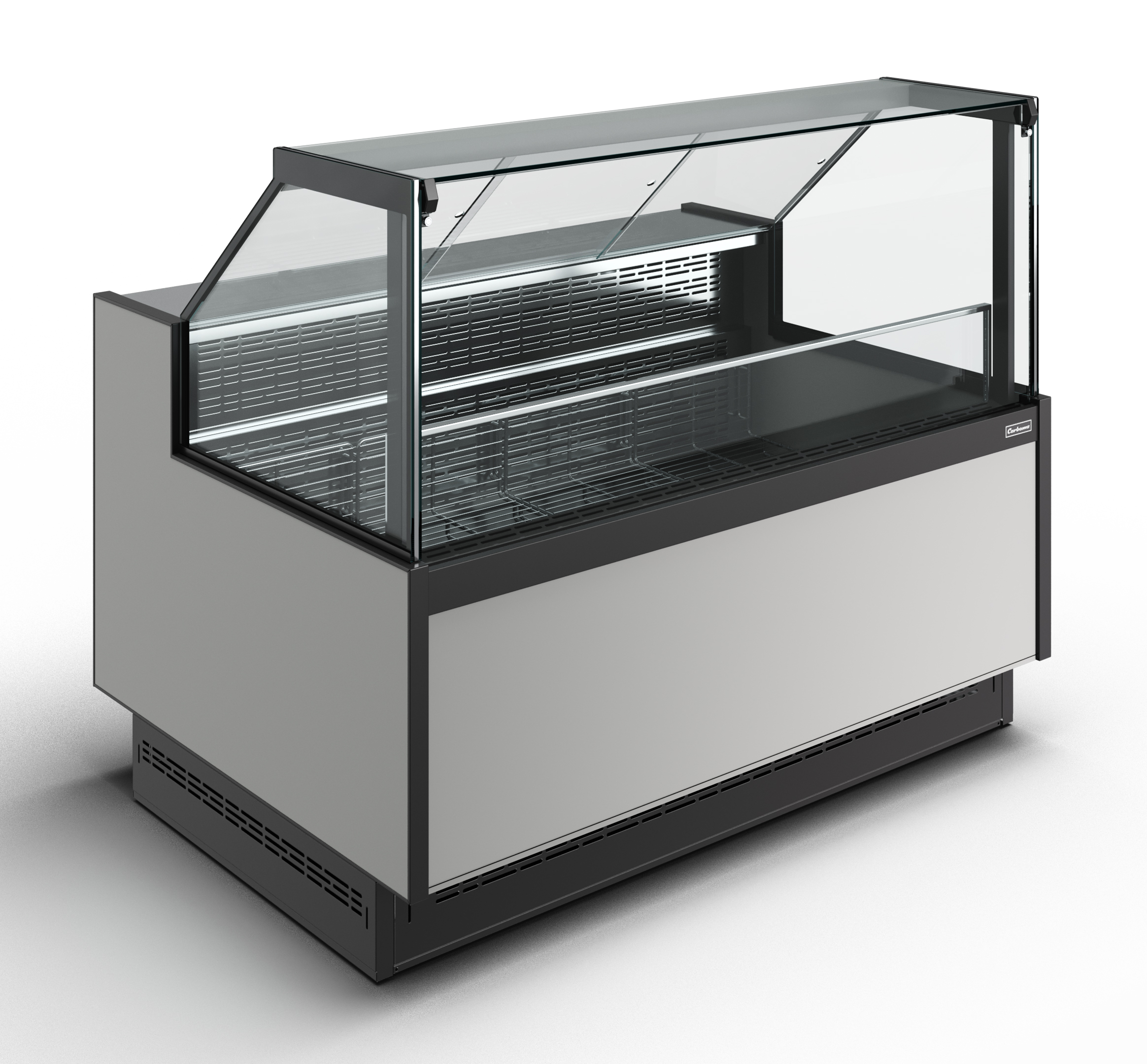

	GC110 SL 1,5-1 (version 2.0) (no sidewalls ) Blueprint	1490	1040	1210 (1260)	165	up to -18	0,93	10

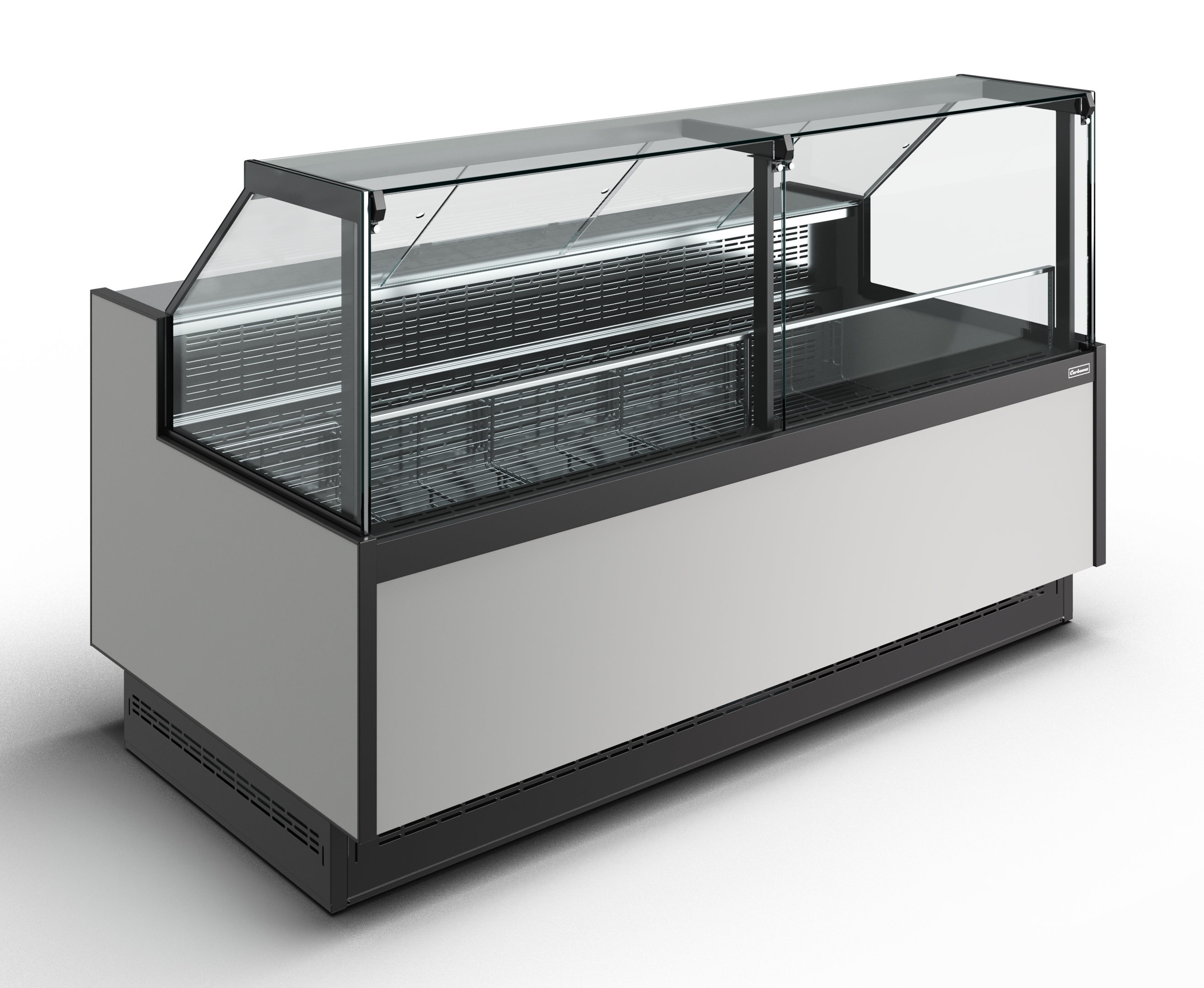

	GC110 SL 2,0-1 (version 2.0) (no sidewalls ) Blueprint	1945	1040	1210 (1260)	202	up to -18	1,24	16

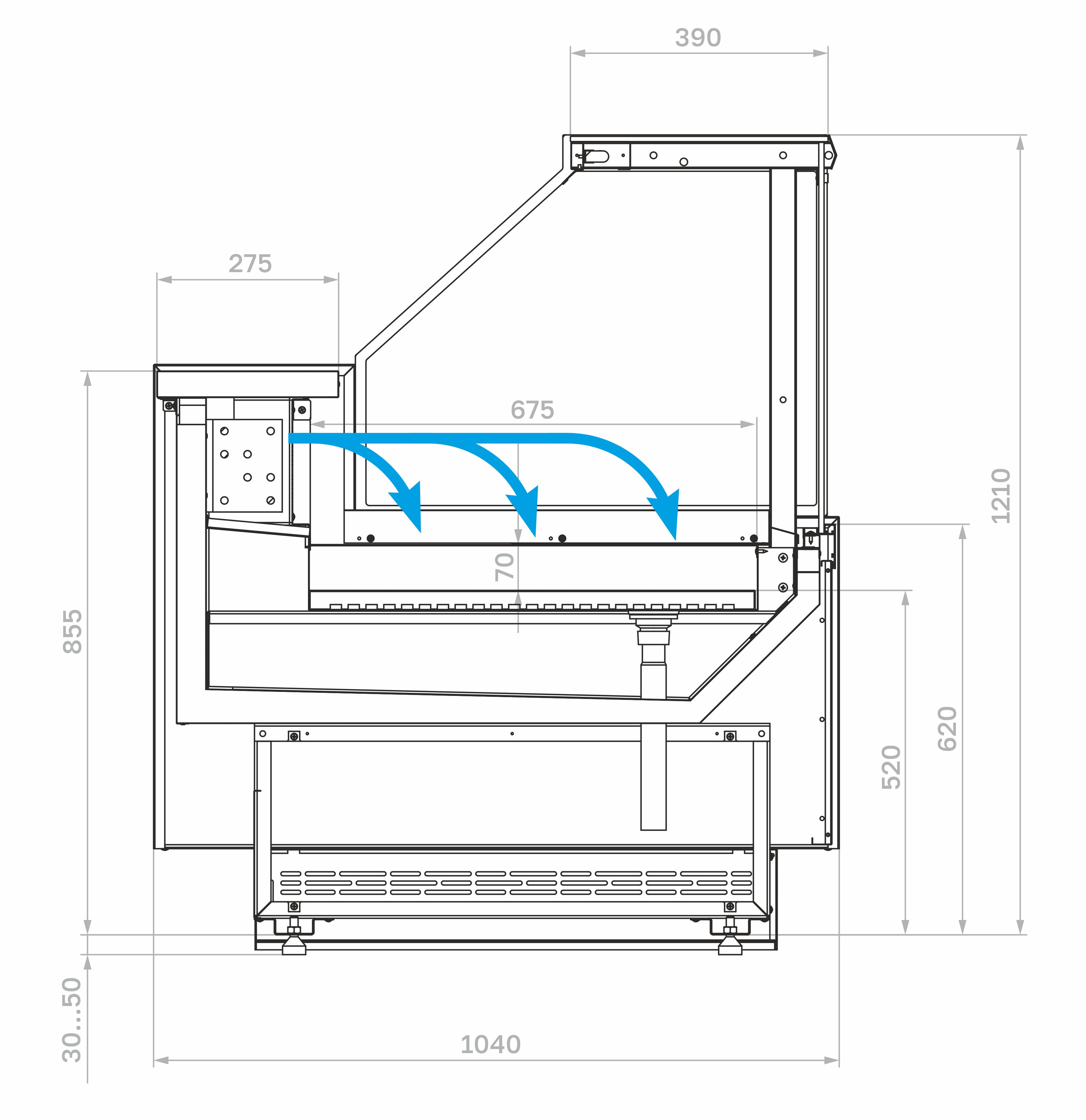

	GC110 SP 0,94-1 fish on ice closed (version 2.0) (no sidewalls ) Blueprint	1010	1040	1210 (1260)	122	-1...+2	0,68	6,8

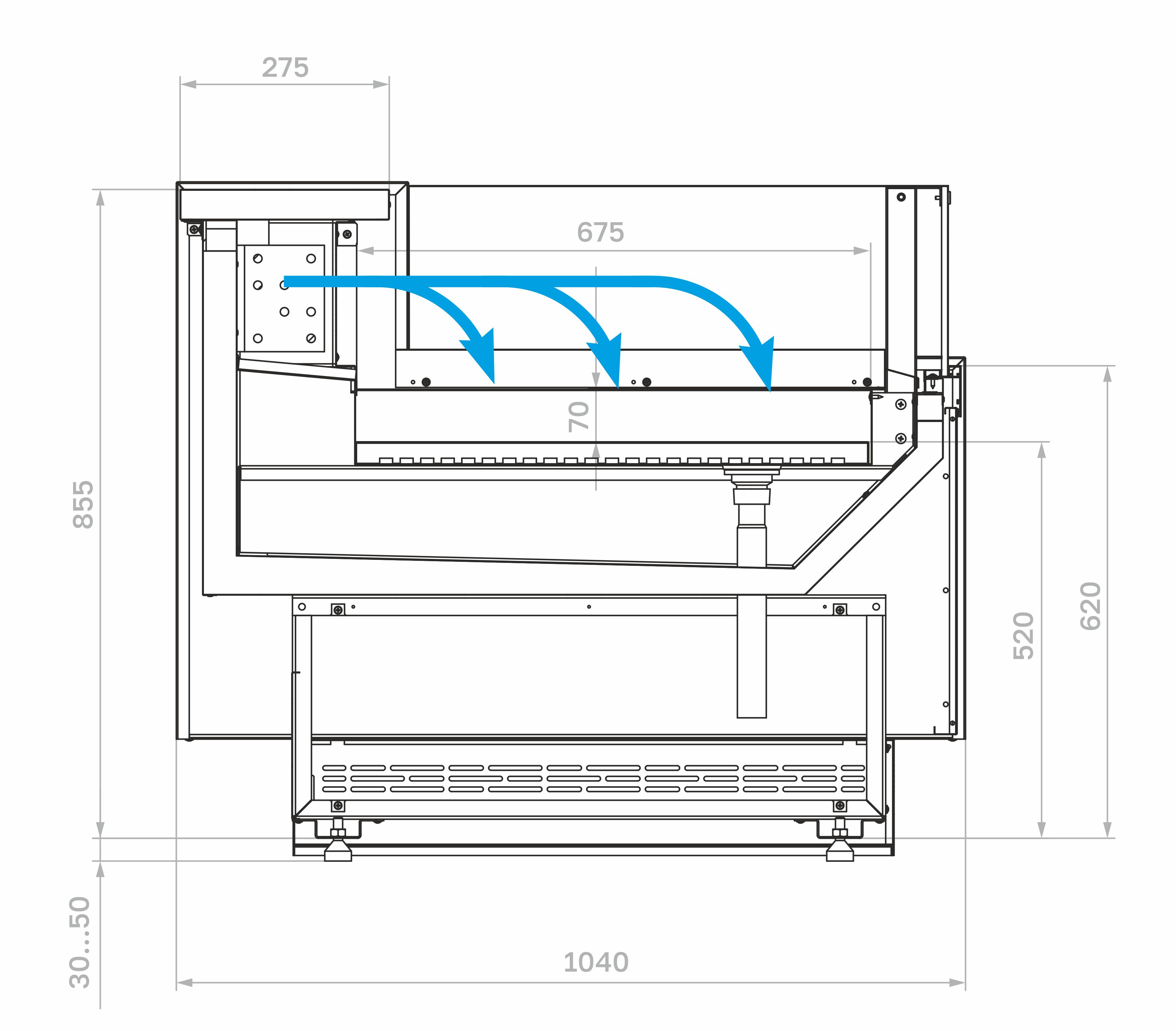

	GC110 SP 0,94-2 fish on ice, open (version 2.0) (no sidewalls ) Blueprint	1010	1040	855 (905)	105	-1...+2	0,68	6,8
	GC110 SP 1,25-1 fish on ice closed (version 2.0) (no sidewalls ) Blueprint	1320	1040	1210 (1260)	139	-1...+2	0,9	7
	GC110 SP 1,25-2 fish on ice, open (version 2.0) (no sidewalls ) Blueprint	1320	1040	855 (905)	120	-1...+2	0,9	7

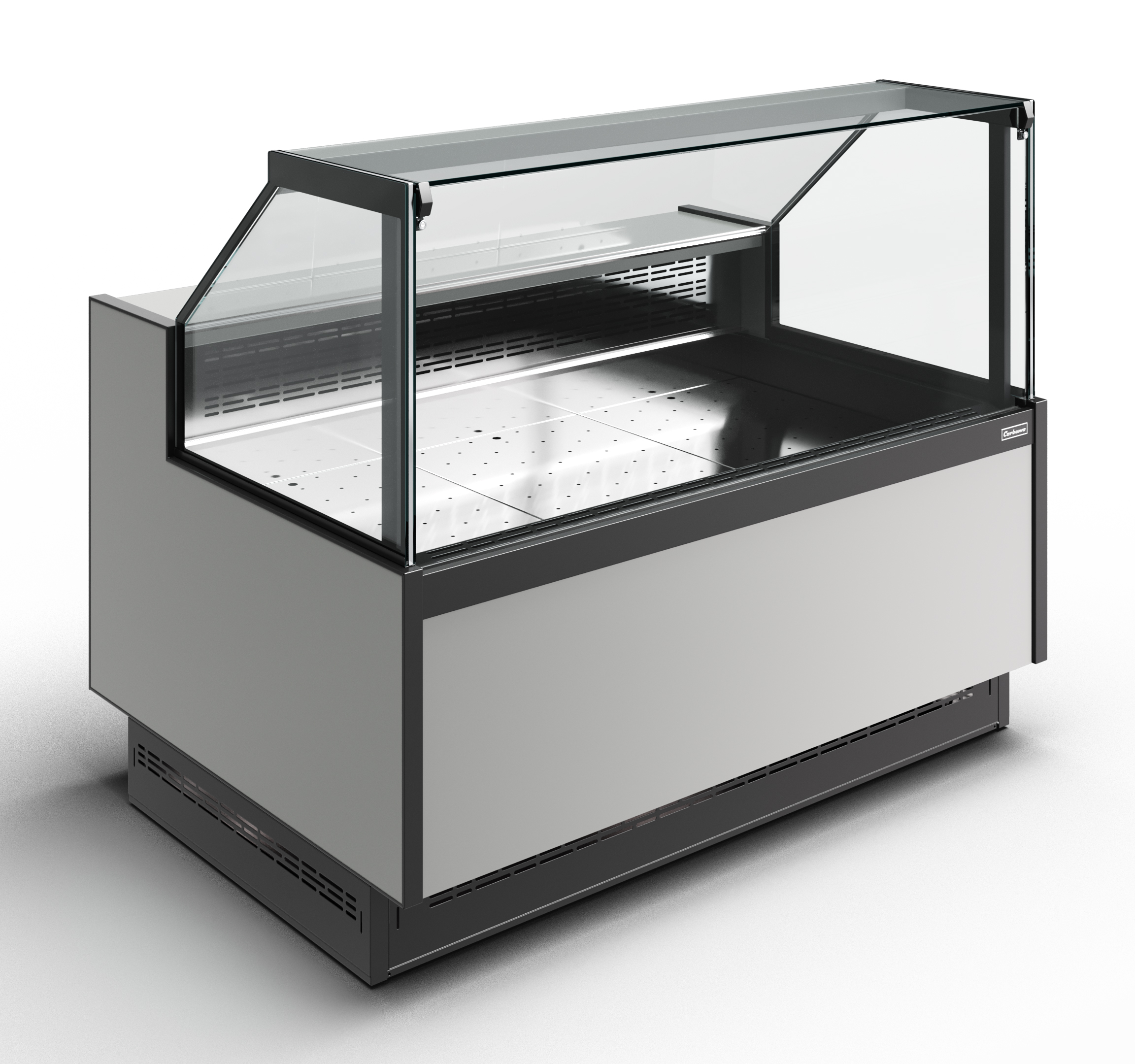

	GC110 SP 1,5-1 fish on ice closed (version 2.0) (no sidewalls ) Blueprint	1490	1040	1210 (1260)	157	-1...+2	1,02	7

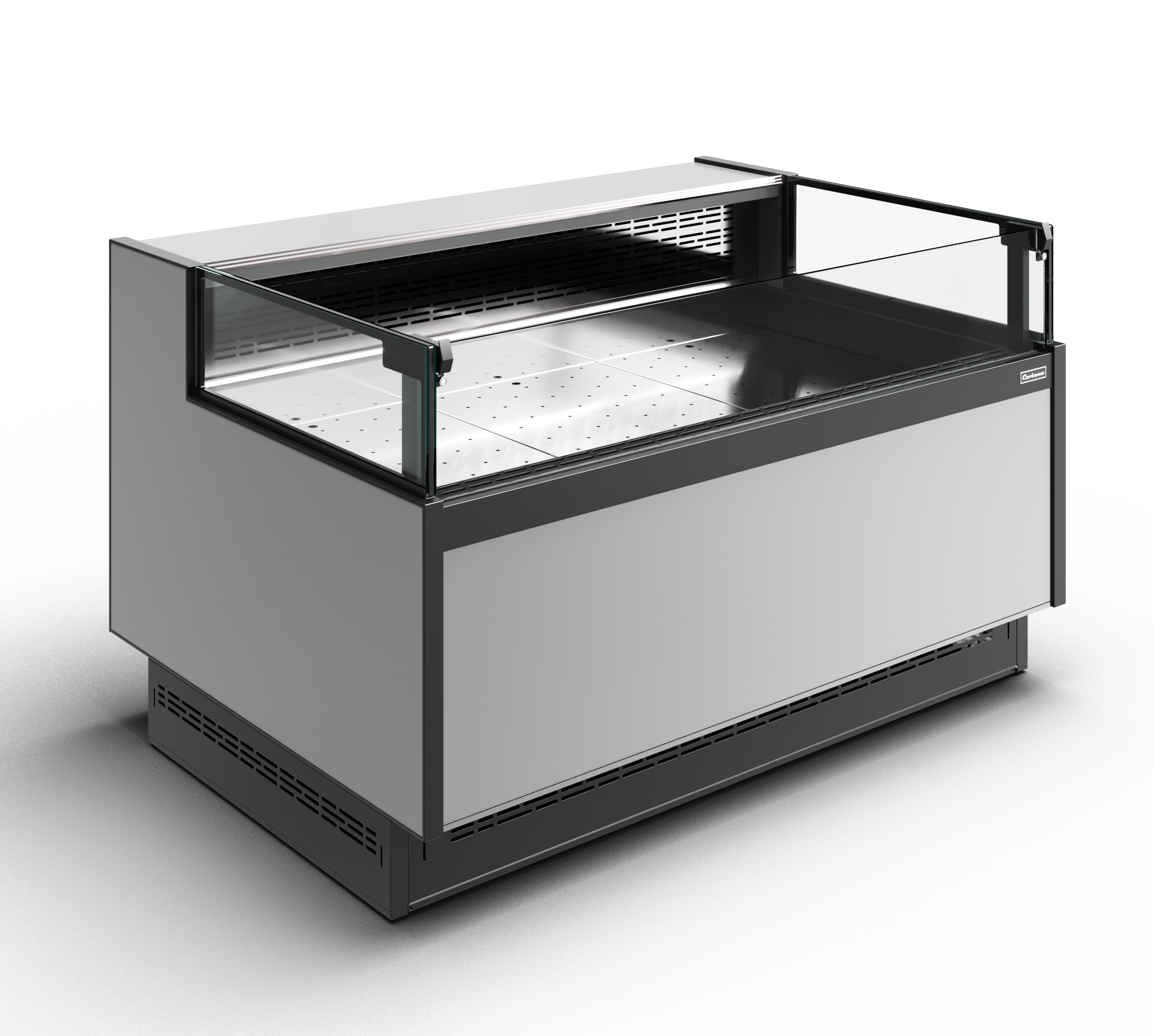

	GC110 SP 1,5-2 fish on ice, open (version 2.0) (no sidewalls ) Blueprint	1490	1040	855 (905)	129	-1...+2	1,02	7
	GC110 SP 2,0-1 fish on ice closed (version 2.0) (no sidewalls ) Blueprint	1945	1040	1210 (1260)	193	-1...+2	1,35	7,5
	GC110 SP 2,0-2 fish on ice, open (version 2.0) (no sidewalls ) Blueprint	1945	1040	855 (905)	193	-1...+2	1,35	7,5

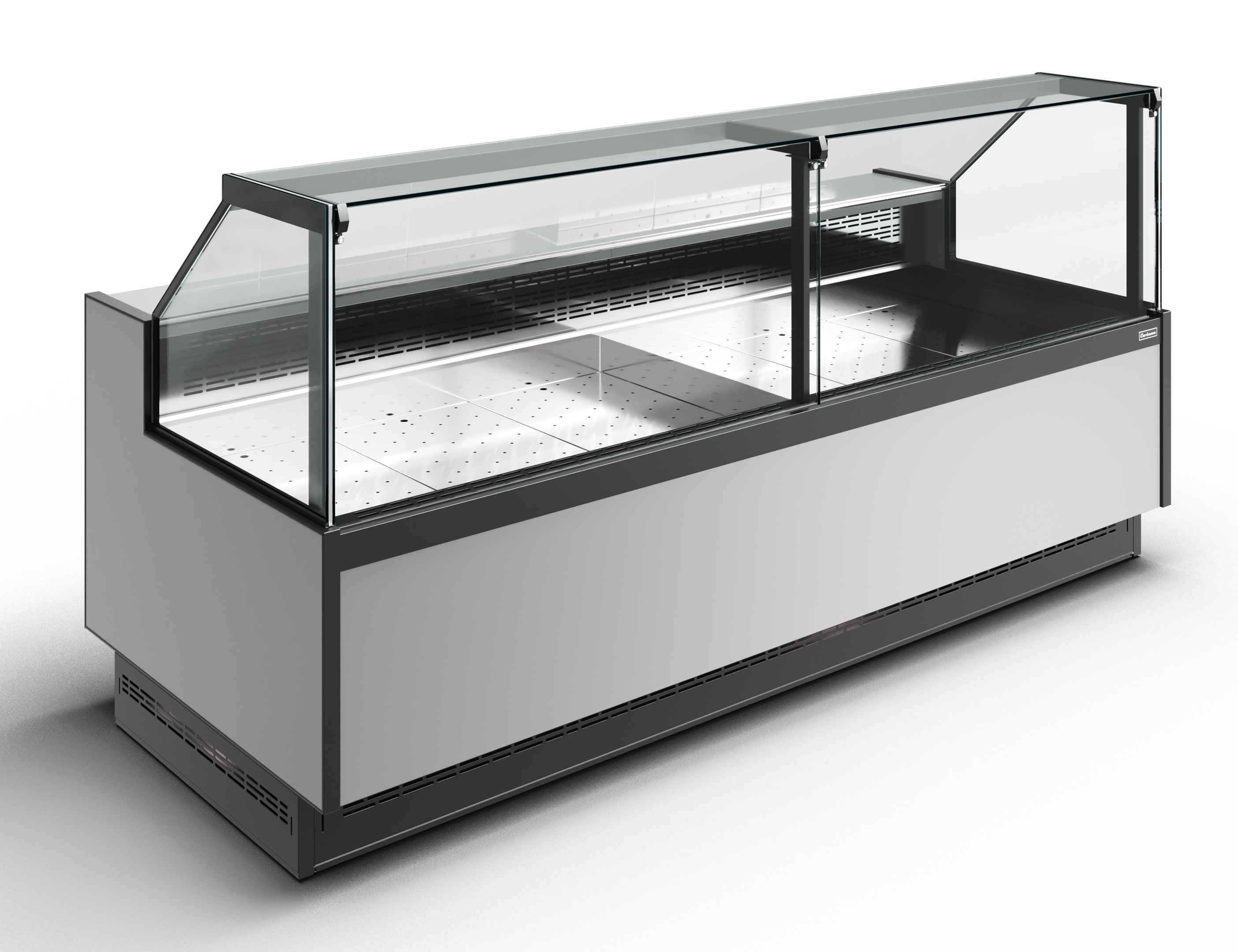

	GC110 SP 2,5-1 fish on ice closed (version 2.0) (no sidewalls ) Blueprint	2570	1040	1210(1260)	229	-1...+2	1,8	9

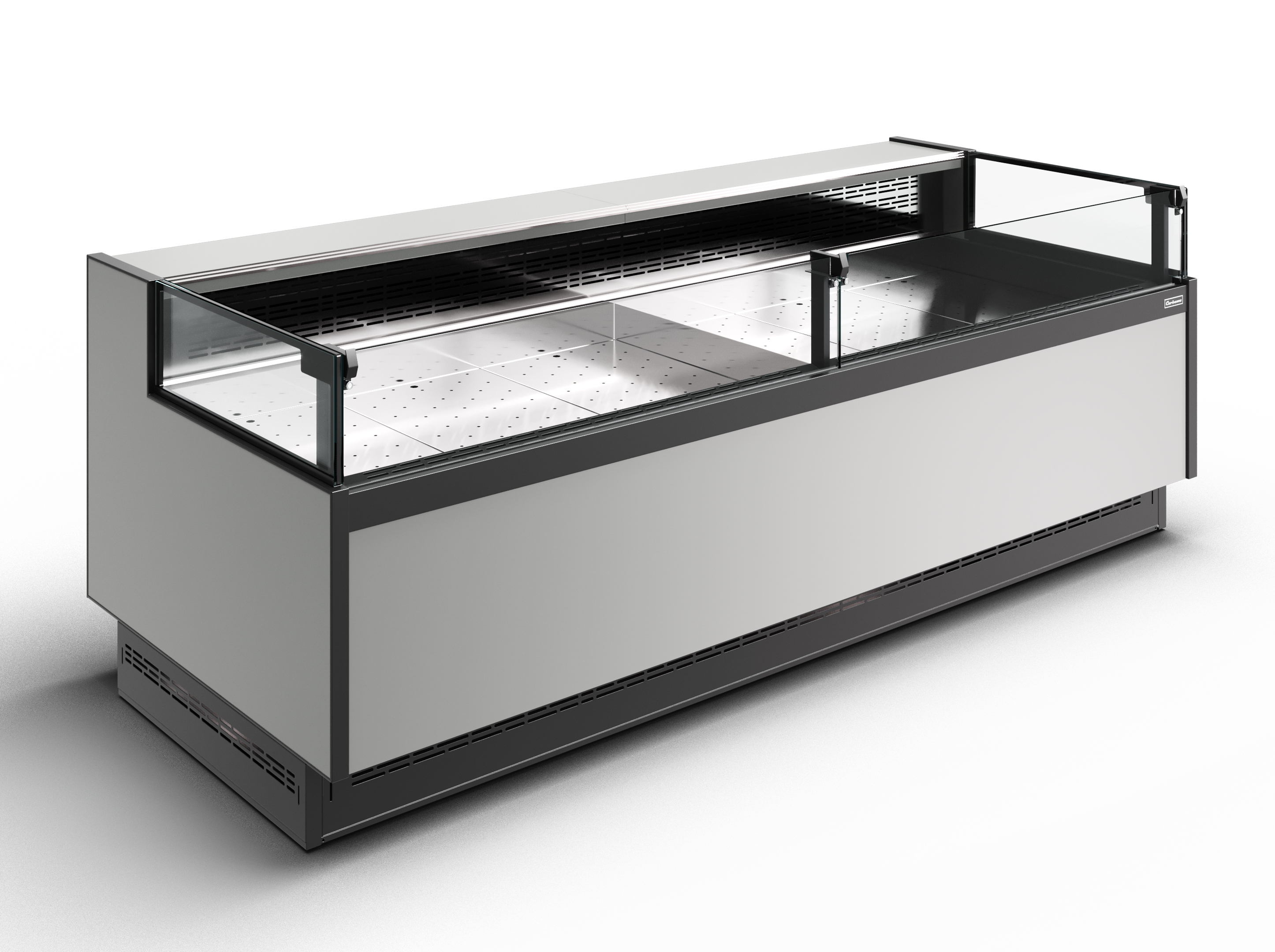

	GC110 SP 2,5-2 fish on ice, open (version 2.0) (no sidewalls ) Blueprint	2570	1040	855 (905)	203	-1...+2	1,8	9
	GC110 VM 0,94-1 (version 2.0) (no sidewalls ) Blueprint	1010	1040	1210 (1260)	139	0...+7	0,75	7
	GC110 VM 1,25-1 (version 2.0) (no sidewalls ) Blueprint	1320	1040	1210 (1260)	161	0...+7	1	7,5

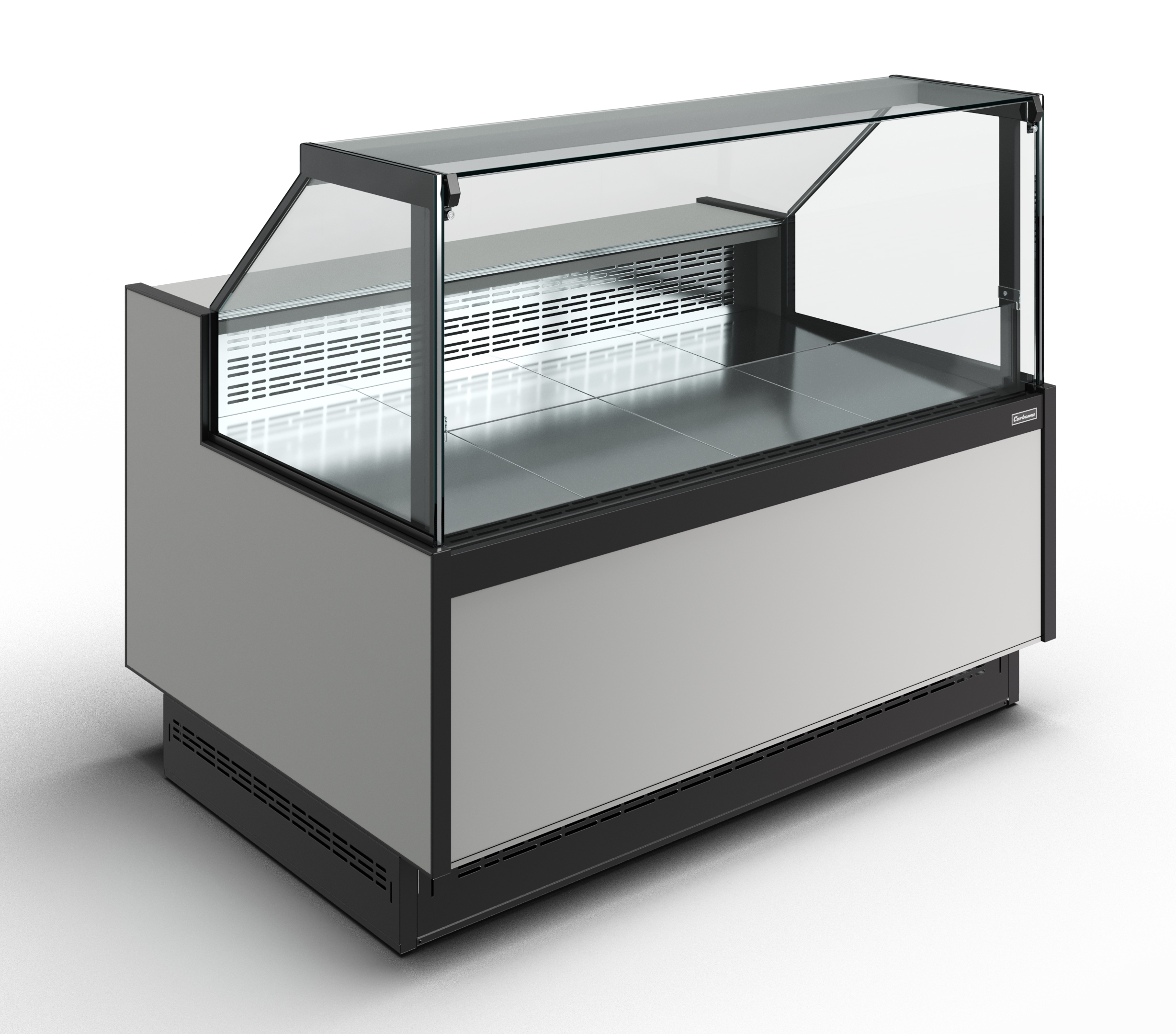

	GC110 VM 1,5-1 (version 2.0) (no sidewalls ) Blueprint	1490	1040	1210 (1260)	190	0...+7	1,14	8
	GC110 VM 2,0-1 (version 2.0) (no sidewalls ) Blueprint	1945	1040	1210 (1260)	228	0...+7	1,5	9,5

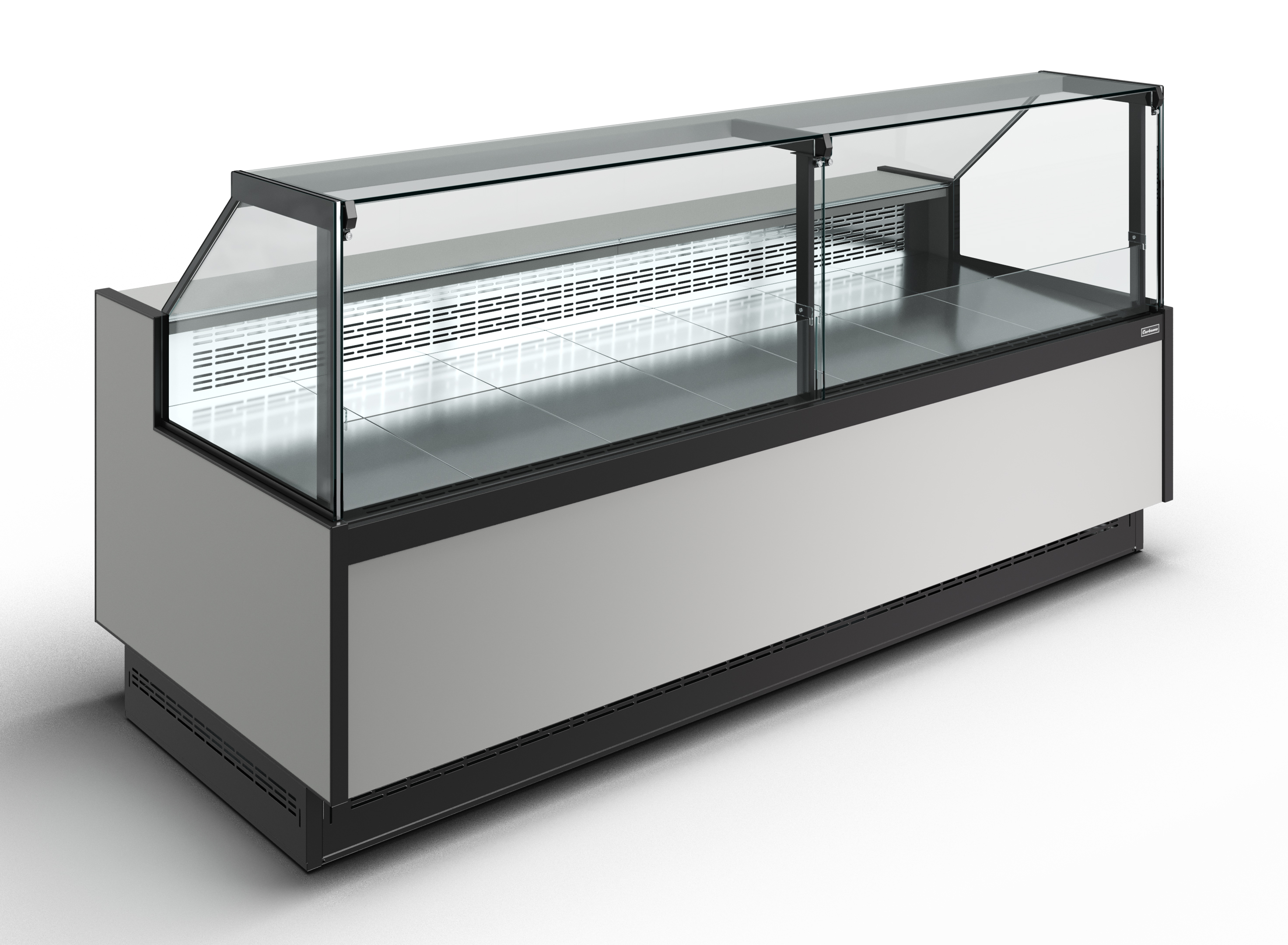

	GC110 VM 2,5-1 (version 2.0) (no sidewalls ) Blueprint	2570	1040	1210(1260)	268	0...+7	2	11,5

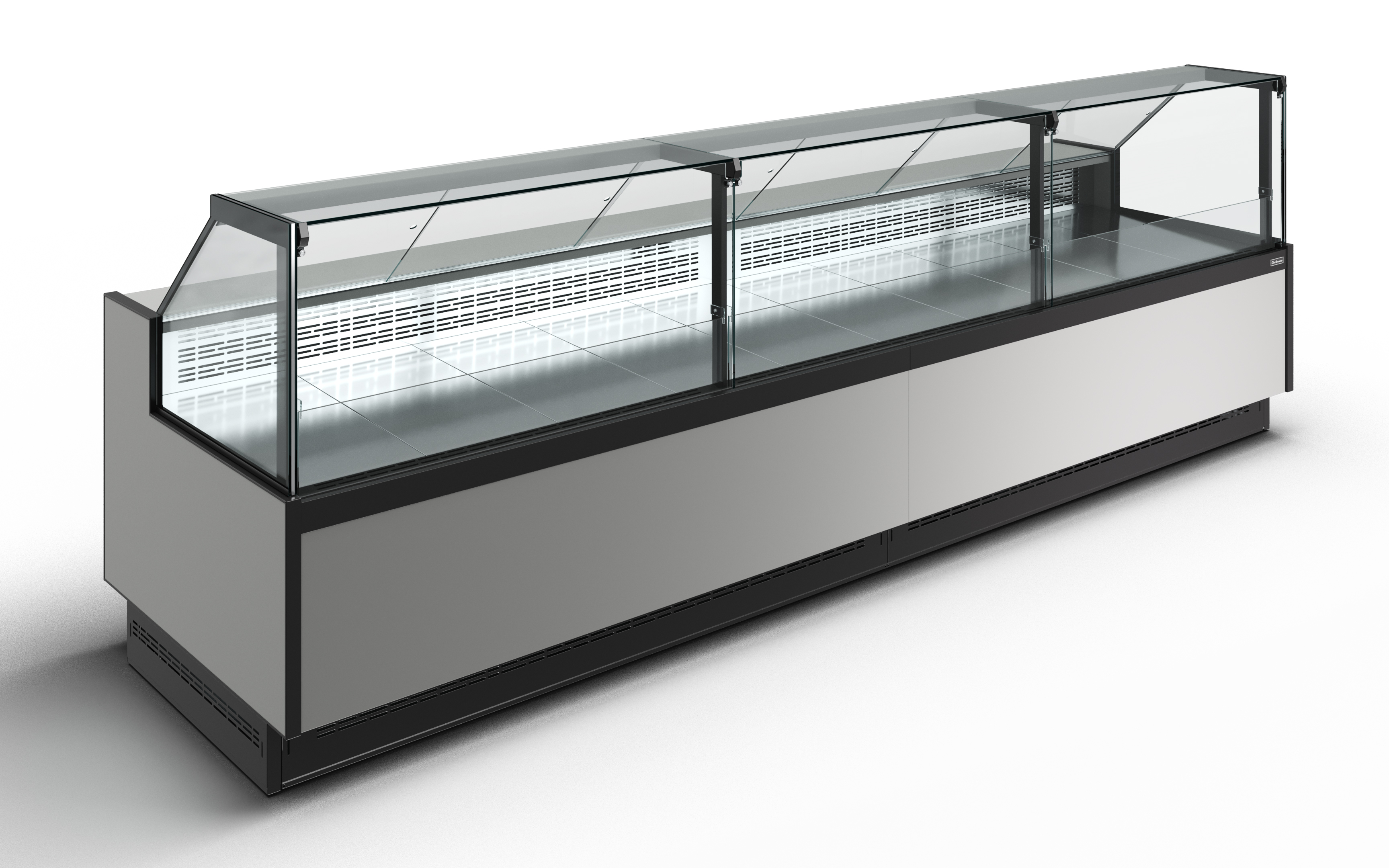

	GC110 VM 3,75-1 (version 2.0) (no sidewalls ) Blueprint	3820	1040	1210 (1260)	358	0...+7	3	18,8

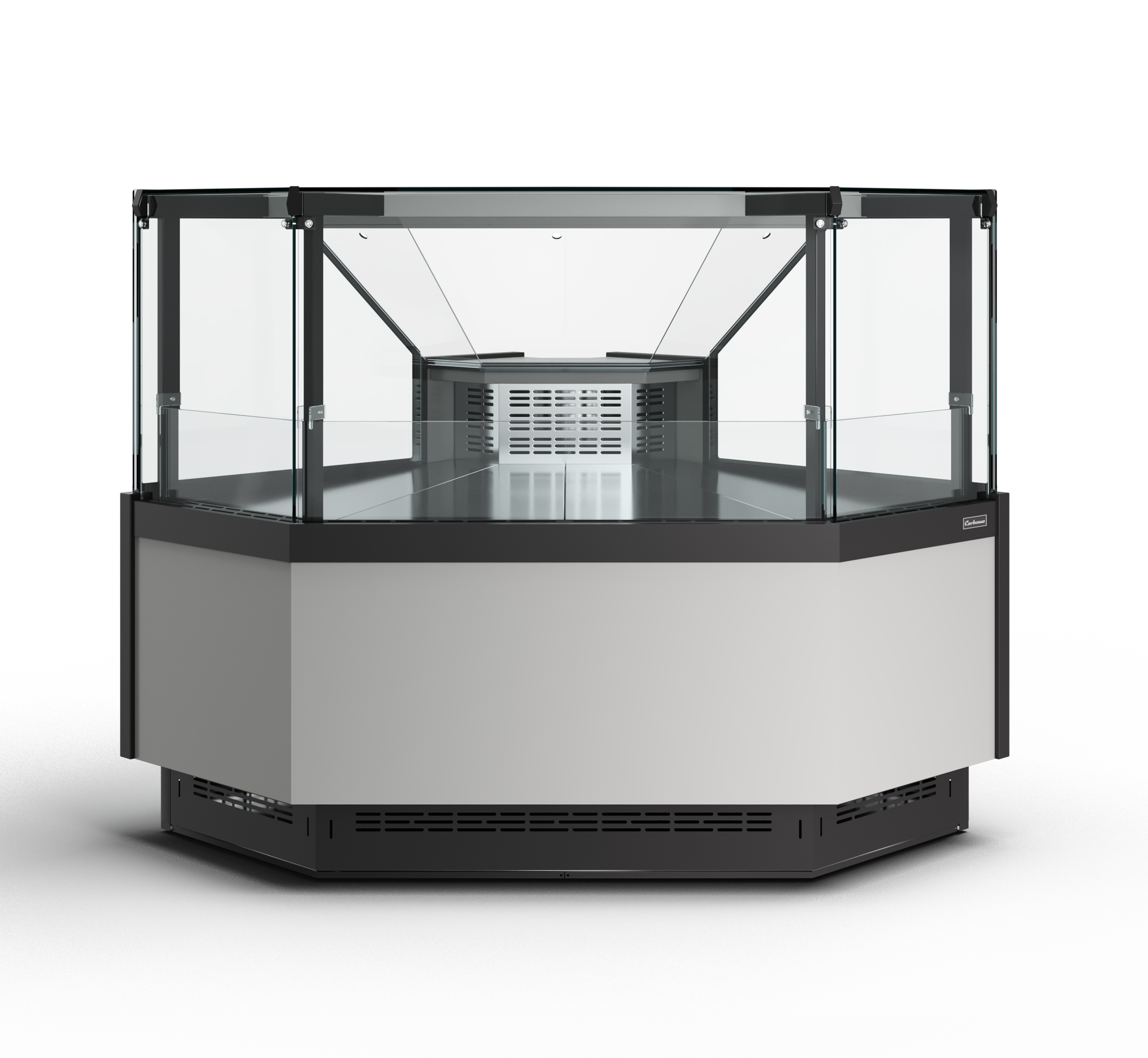

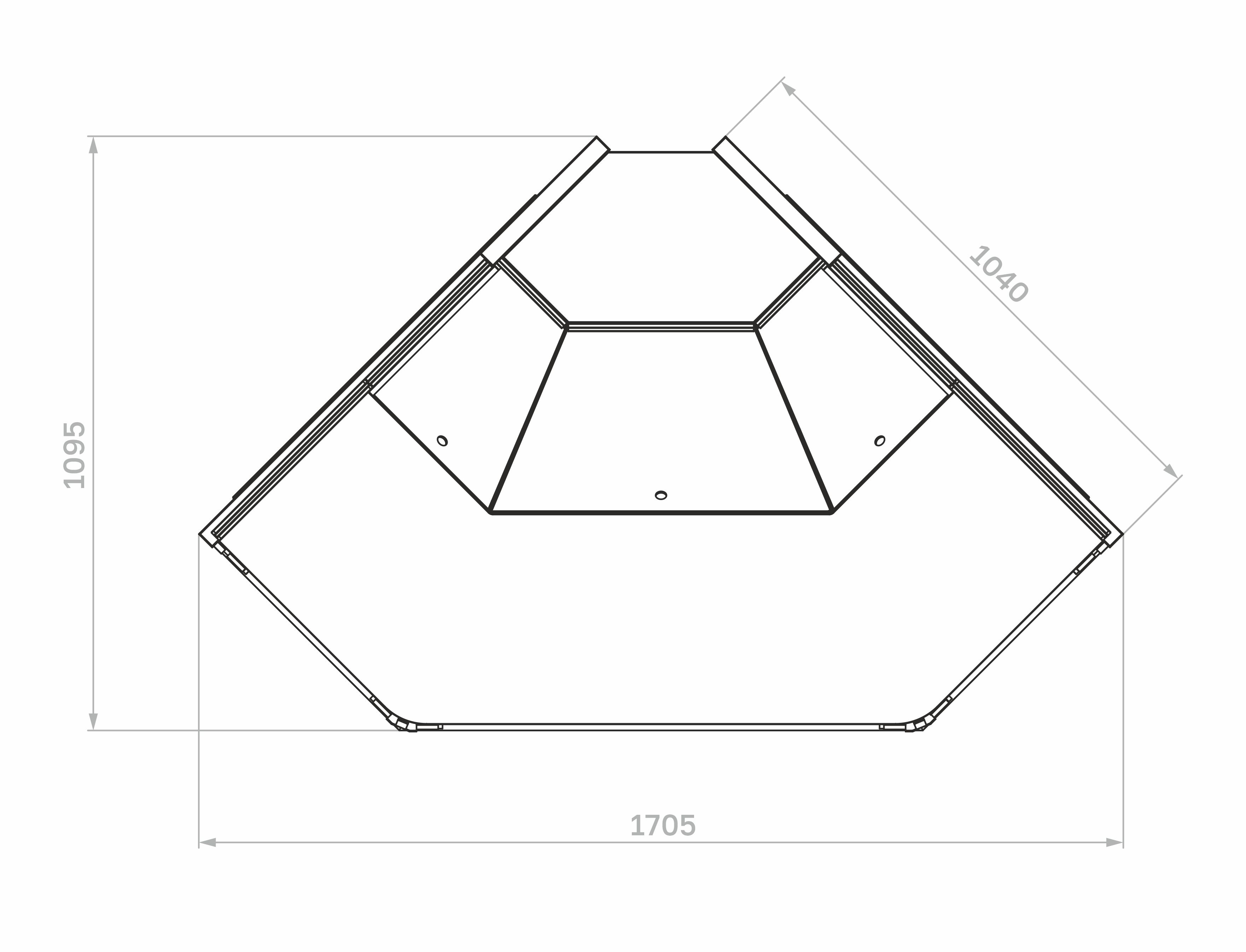

	GC110 VM-5-1 outsidecorner (version 2.0) (no sidewalls ) Blueprint	1715	1040	1210 (1260)	160	0...+7	0,85	7,2

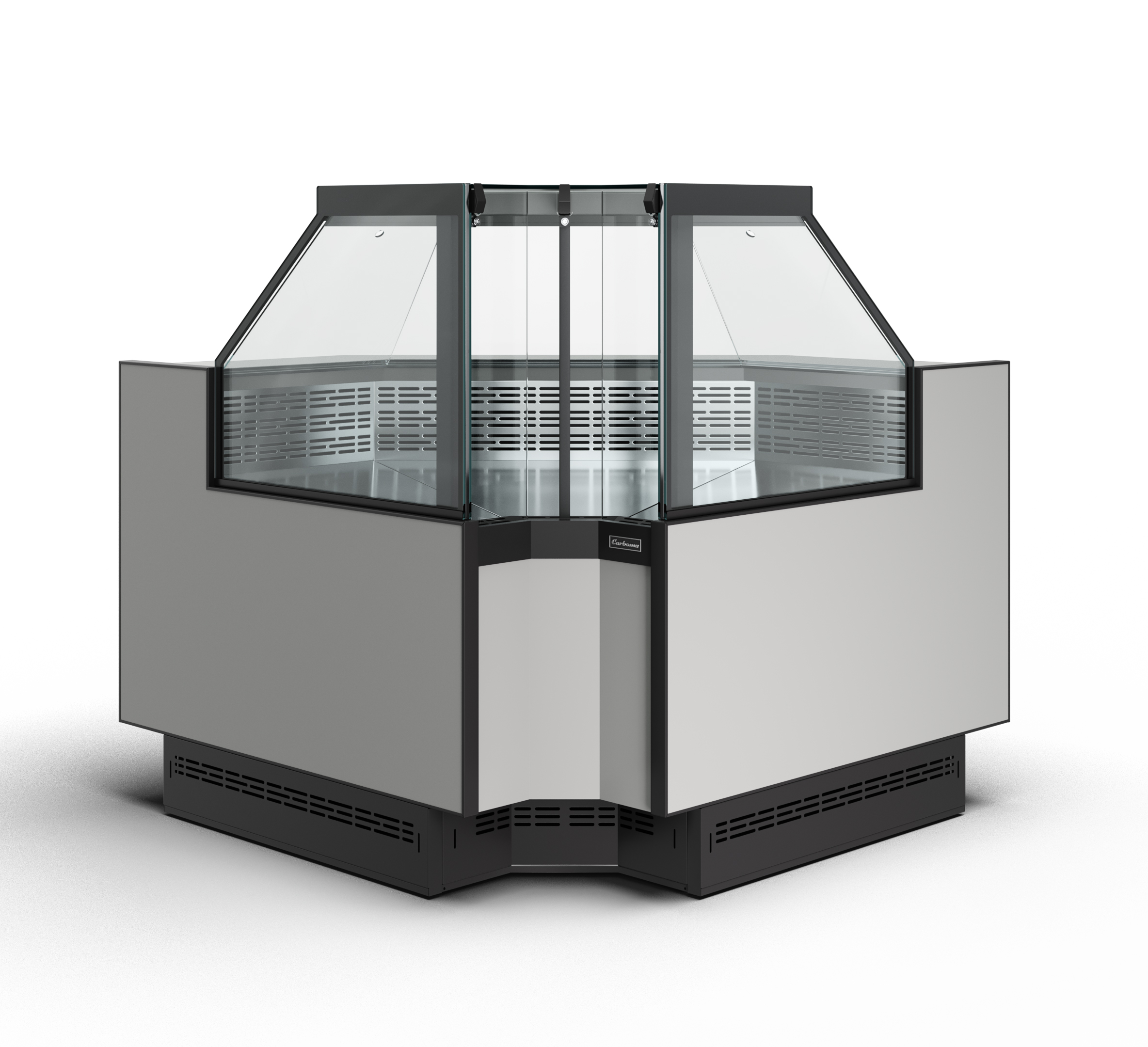

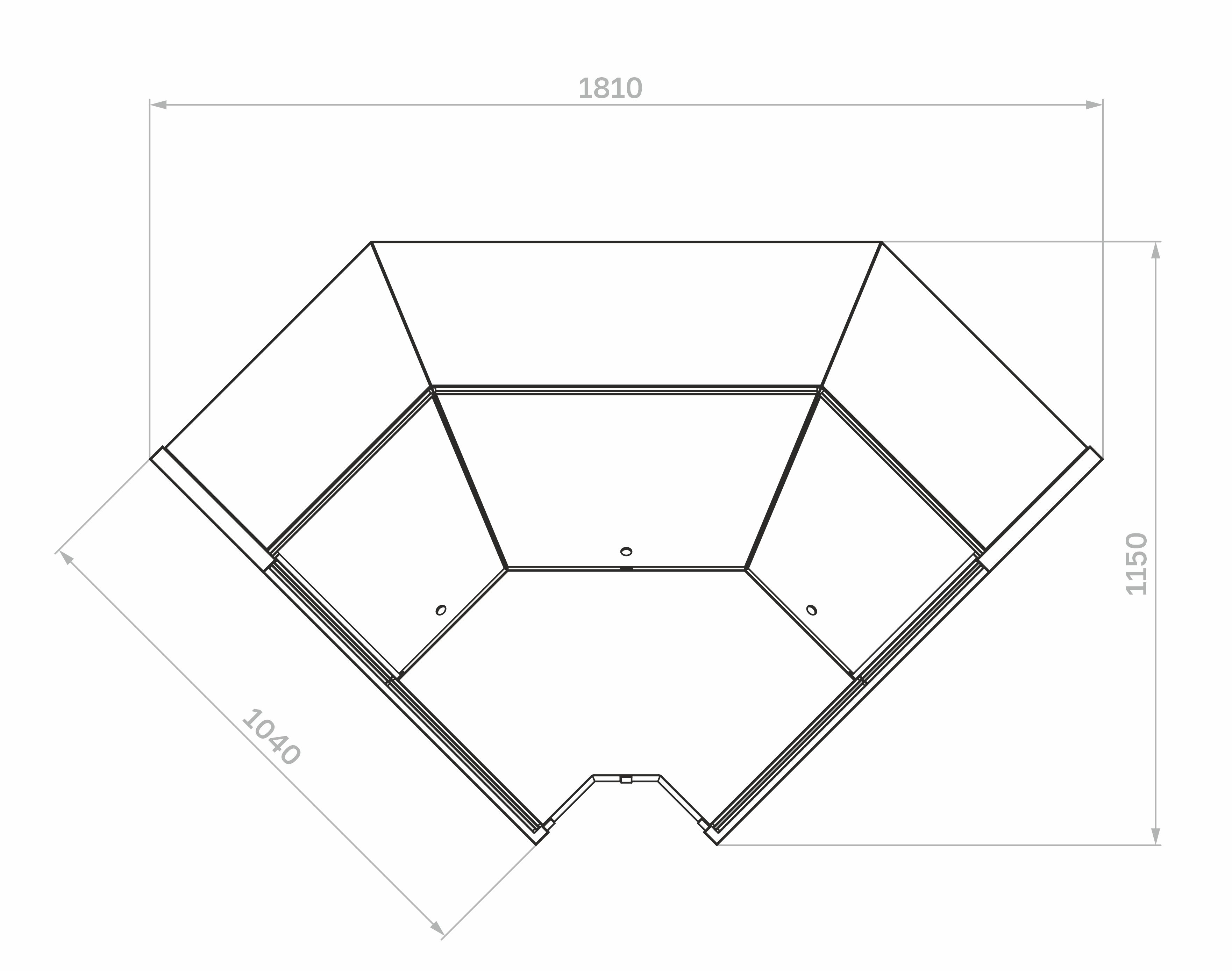

	GC110 VM-6-1 inside corner (version 2.0) (no sidewalls ) Blueprint	1830	1040	1210 (1260)	150	0...+7	0,84	7,2
	GC110 VV 0,94-1 (version 2.0) (no sidewalls ) Blueprint	1010	1040	1210 (1260)	140	-5...+5	0,75	8,8
	GC110 VV 1,25-1 (version 2.0) (no sidewalls ) Blueprint	1320	1040	1210 (1260)	162	-5...+5	1	9,1
	GC110 VV 1,5-1 (version 2.0) (no sidewalls ) Blueprint	1490	1040	1210 (1260)	191	-5...+5	1,14	9,5
	GC110 VV 2,0-1 (version 2.0) (no sidewalls ) Blueprint	1945	1040	1210 (1260)	230	-5...+5	1,5	9,8
	GC110 VV 2,5-1 (version 2.0) (no sidewalls ) Blueprint	2570	1040	1210(1260)	269	-5...+5	2	12,8
	GC110 VV 3,75-1 (version 2.0) (no sidewalls ) Blueprint	3820	1040	1210 (1260)	380	-5...+5	3	19
	GC110 VV-5-1 outsidecorner (version 2.0) (no sidewalls ) Blueprint	1715	1040	1210 (1260)	160	-5...+5	0,85	7,5
	GC110 VV-6-1 inside corner (version 2.0) (no sidewalls ) Blueprint	1830	1040	1210 (1260)	150	-5...+5	0,84	7,5
	GC110 VM 0,94-2 open (version 2.0) (no sidewalls )	1010	1040	855(905)	115	+2...+6	0,75	8,8
	GC110 VM 1,25-2 open (version 2.0) (no sidewalls )	1320	1040	855 (905)	132	+2...+6	1	9,1

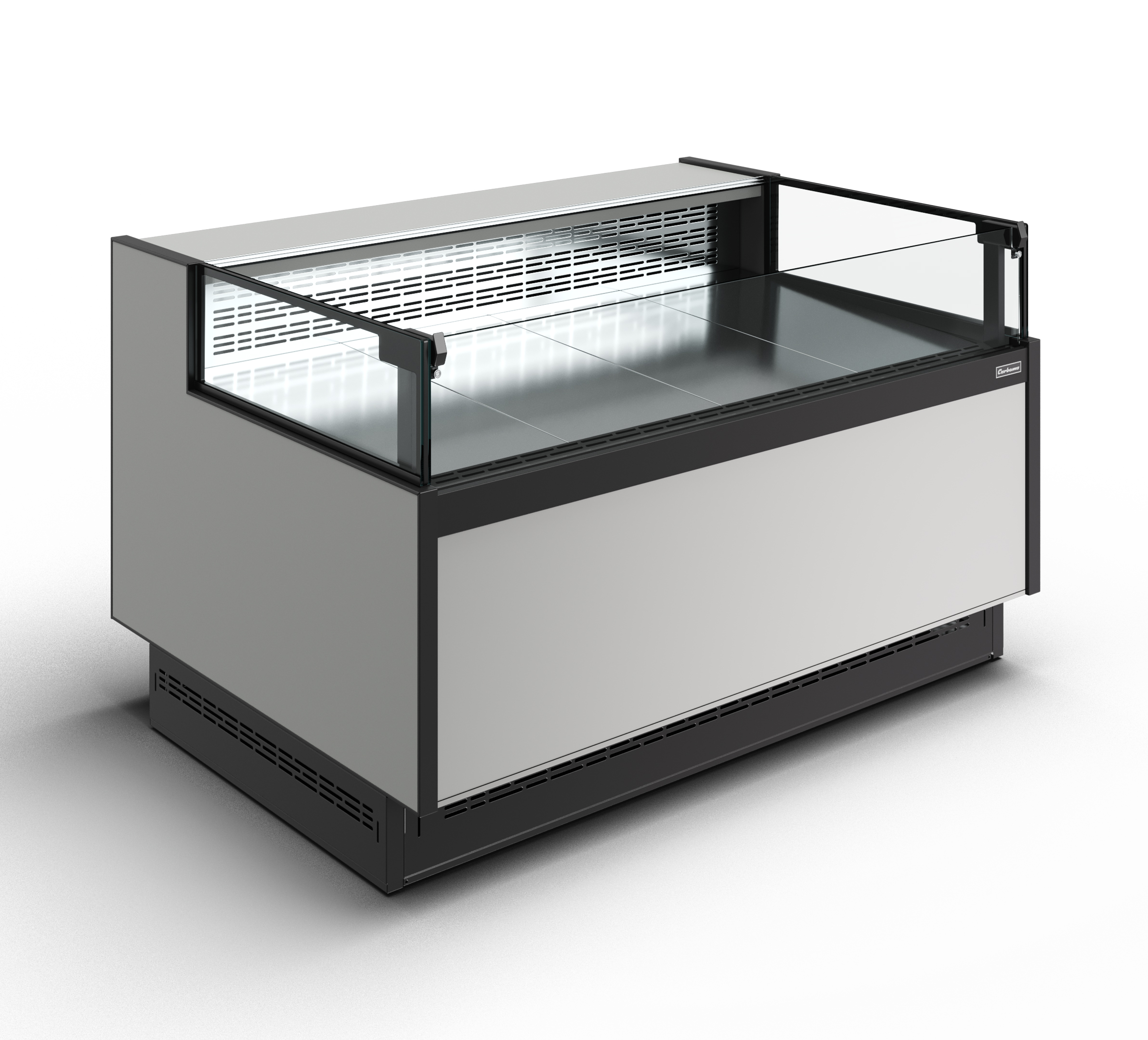

	GC110 VM 1,5-2 open (version 2.0) (no sidewalls )	1490	1040	855 (905)	147	+2...+6	1,14	9,5
	GC110 VM 2,0-2 open (version 2.0) (no sidewalls )	1945	1040	855 (905)	190	+2...+6	1,5	9,8
	GC110 VM 2,5-2 open (version 2.0) (no sidewalls )	2570	1040	855 (905)	268	+2...+6	2	12,8

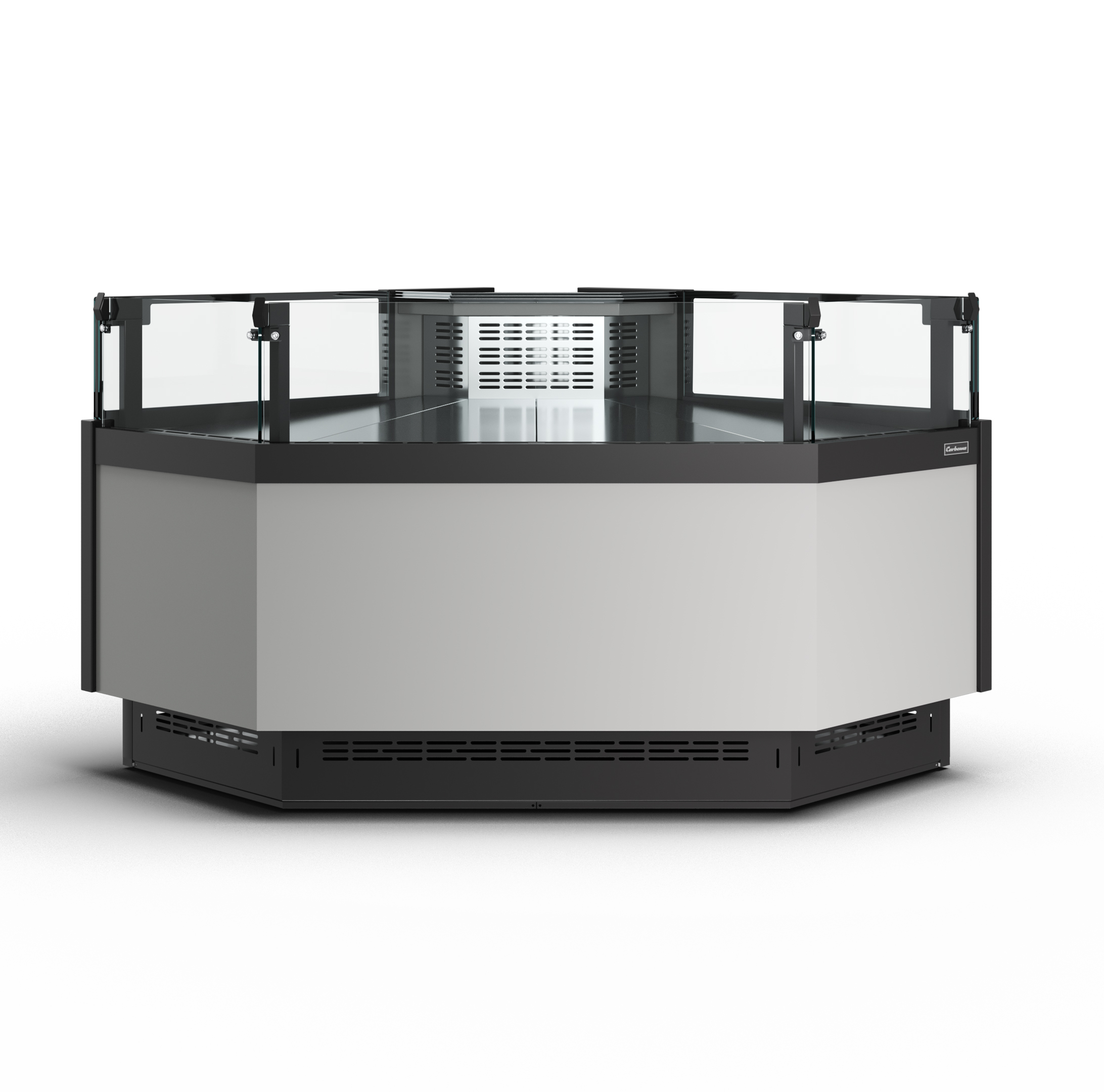

	GC110 VM-5-2 outsidecorner open (version 2.0) (no sidewalls ) Blueprint	1715	1040	855 (905)	160	+2...+6	0,85	7,2

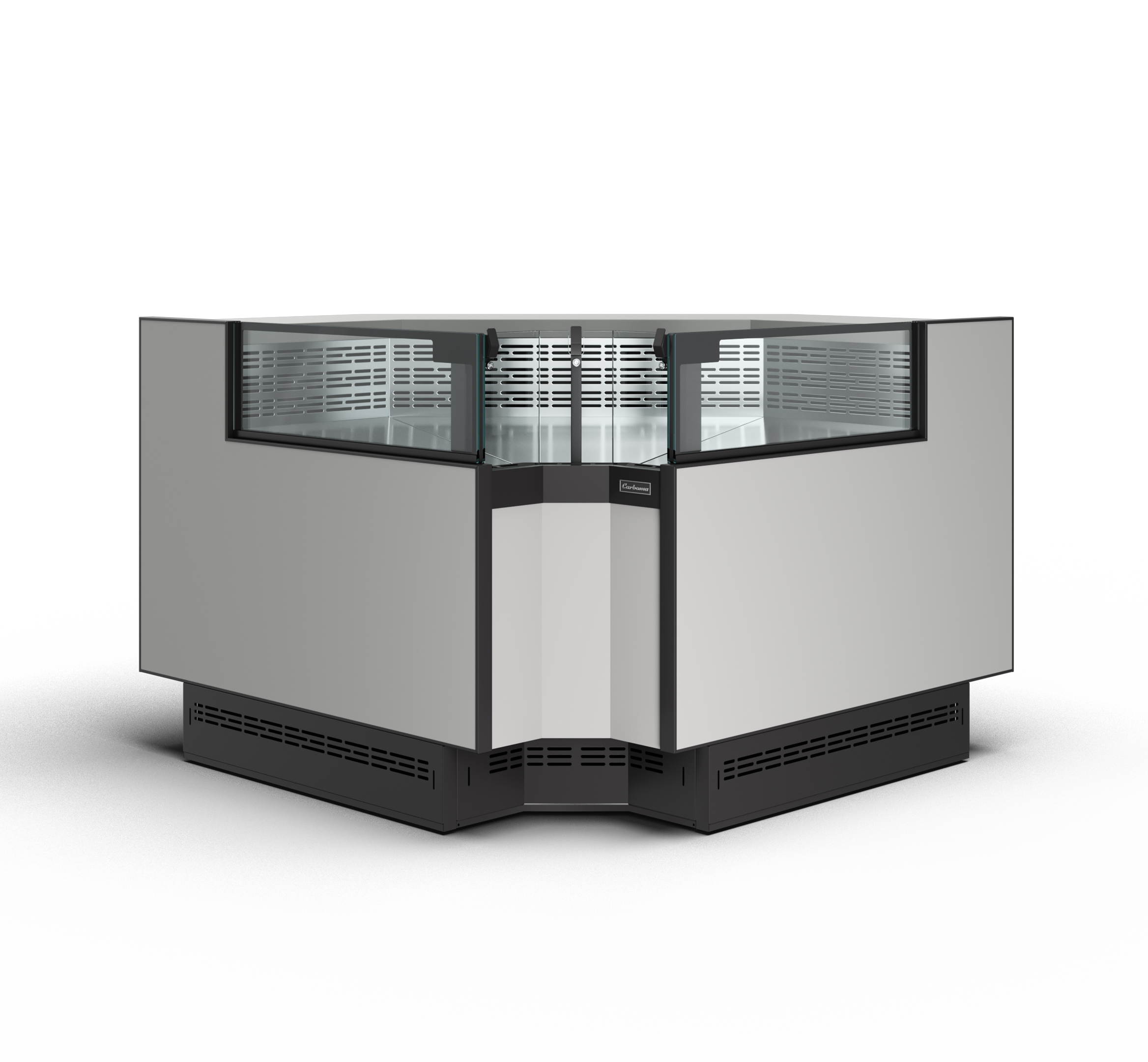

	GC110 VM-6-2 inside corner open (version 2.0) (no sidewalls ) Blueprint	1830	1040	855 (905)	150	+2...+6	0,84	7,2

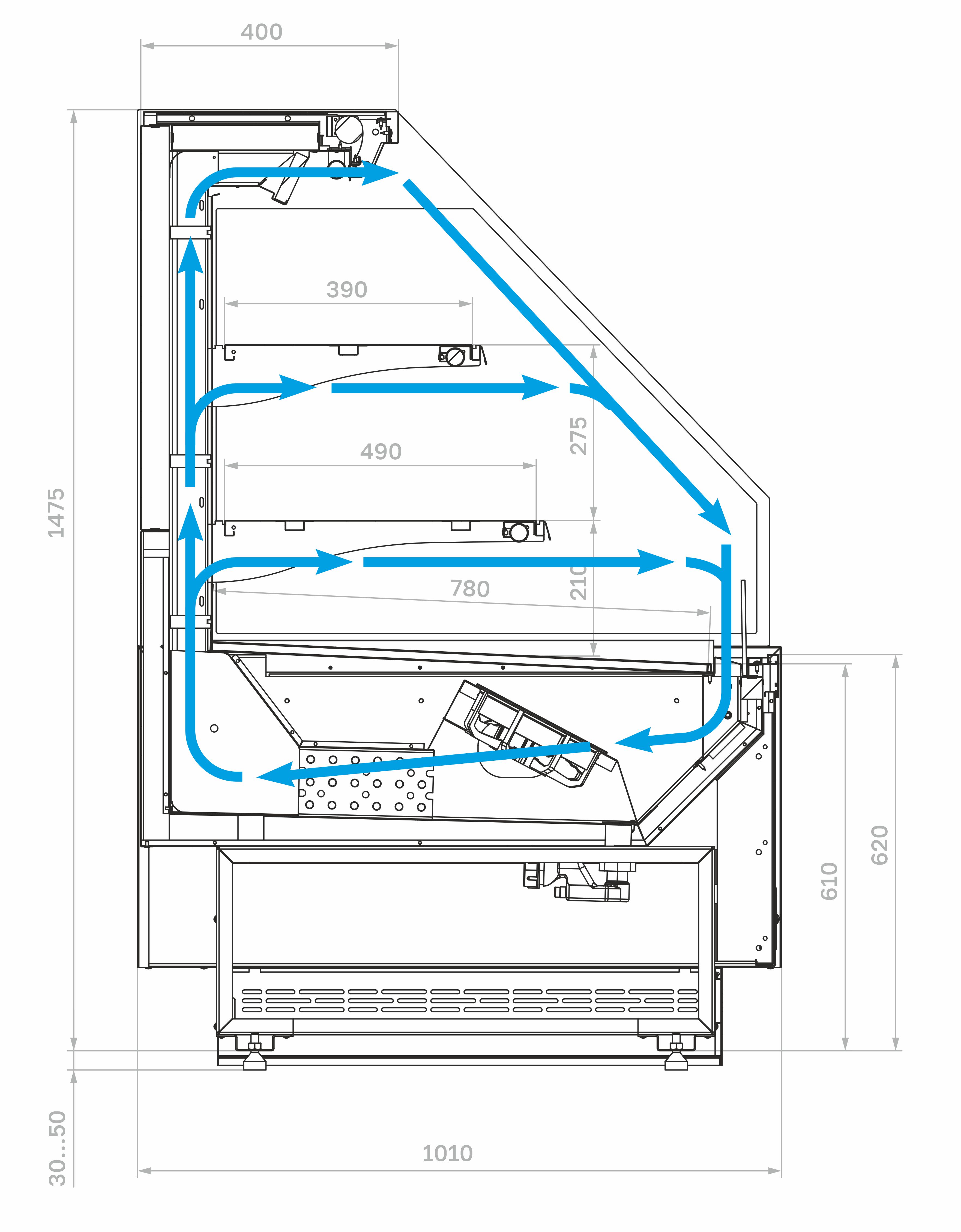

	GC110 VM 1,25-2 (refrigerated display counter) (version 2.0) (no sidewalls ) Blueprint	1320	1010	1475 (1525)		0...+7	2,1
	GC110 VM 2,0-2 (refrigerated display counter) (version 2.0) (no sidewalls ) Blueprint	1945	1010	1475 (1525)		0...+7	1,35	3,2
	GC110 VM 2,5-2 (refrigerated display counter) (version 2.0) (no sidewalls ) Blueprint	2570	1010	1475 (1525)		0...+7	1,8
	GC110 VM 1,25-1 pull-out trays (version 2.0) (no sidewalls )	1320	1040	1210 (1260)		0...+7	1
	GC110 VM 2,0-1 pull-out trays (version 2.0) (no sidewalls )	1945	1040	1210 (1260)		0...+7	1,5

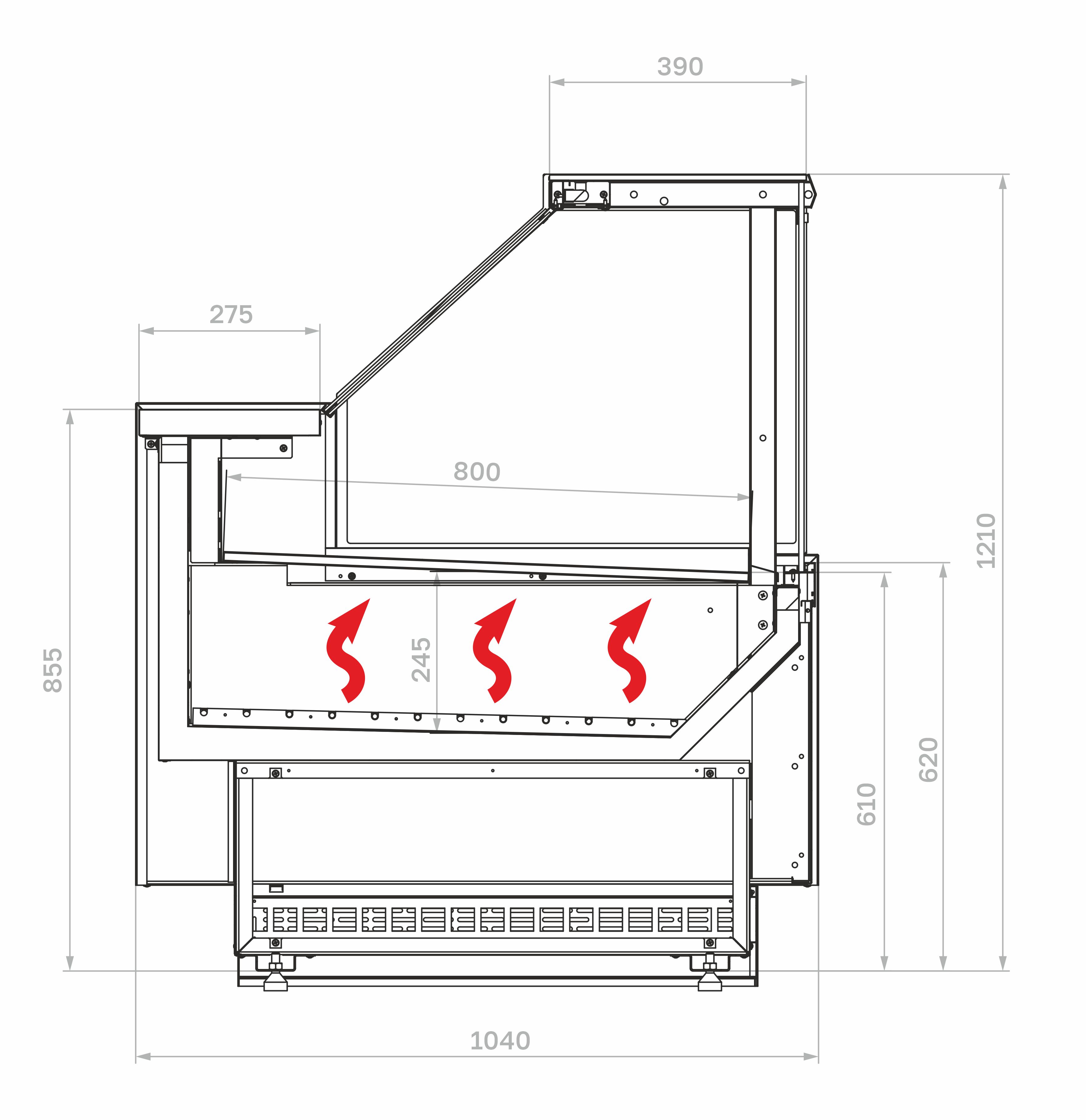

	GC110 SH 1,25-1 Thermal (version 2.0) (no sidewalls ) Blueprint	1320	1040	1210 (1260)	150	up to +45	0,98	12

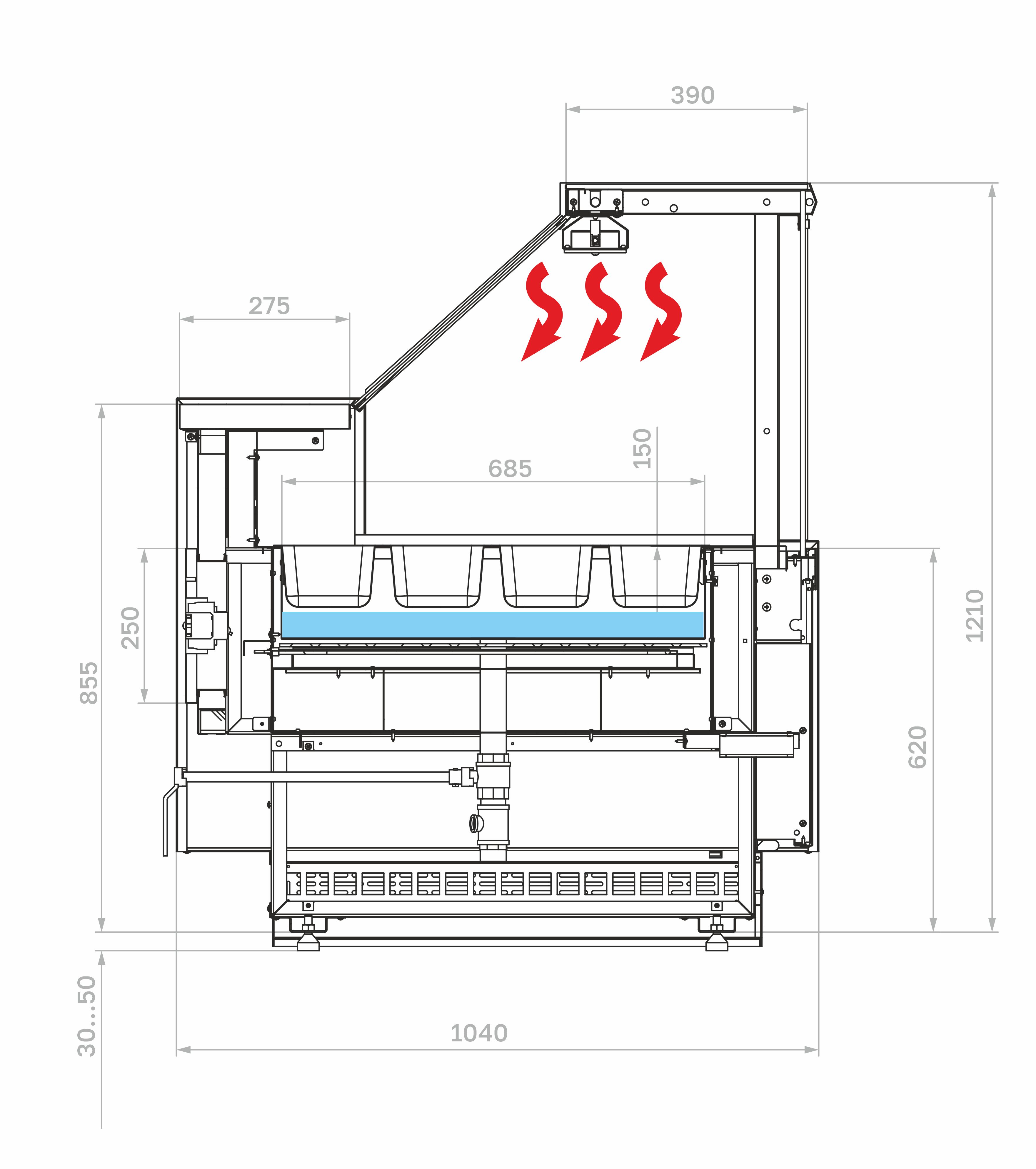

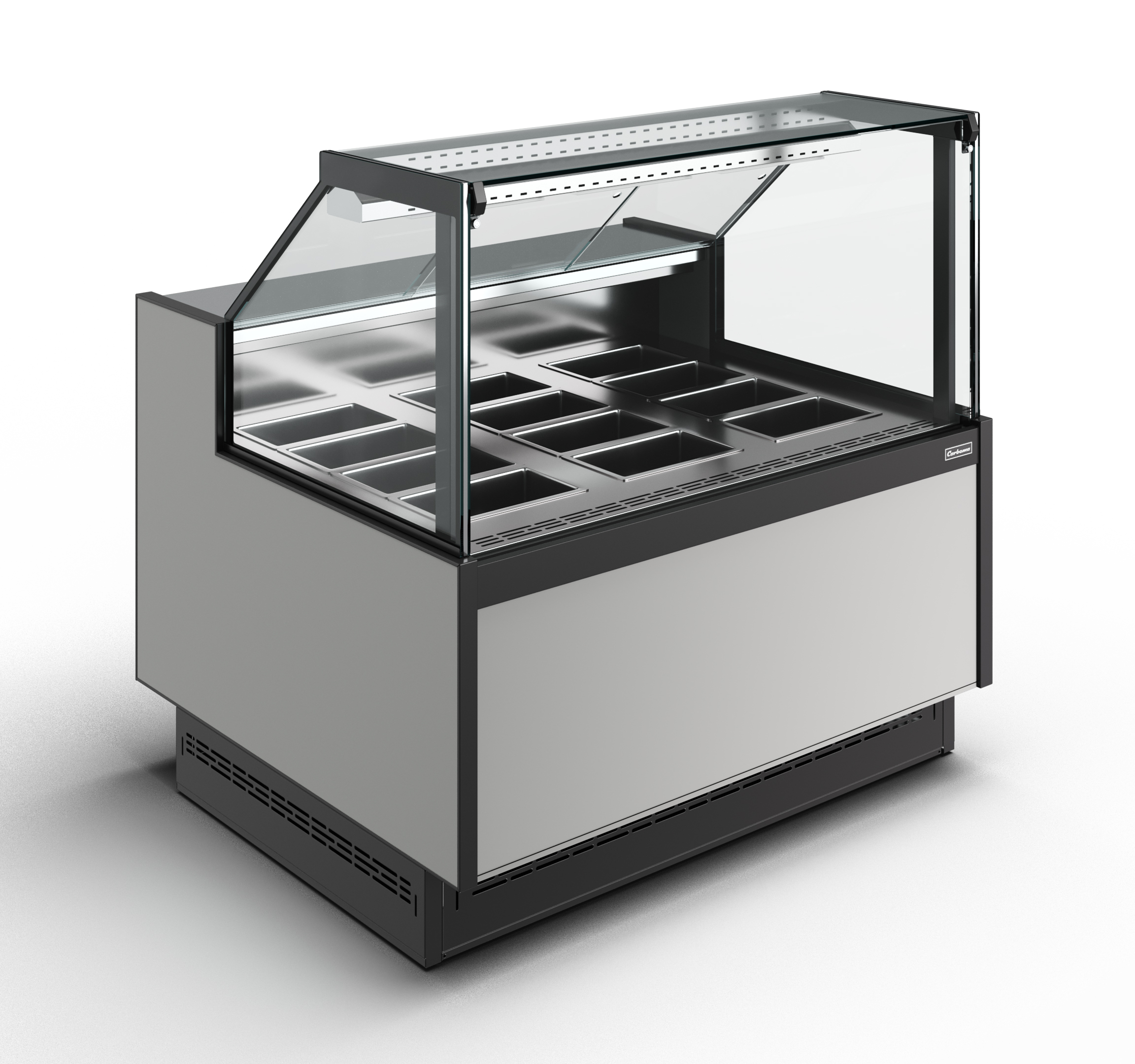

	GC110 BM 1,25-1 Food warmer (version 2.0) (steam) (no sidewalls ) Blueprint	1320	1040	1210 (1260)	193	up to +65	0,9
	GC110 N 0,94-1 (version 2.0) (no sidewalls )	1010	1040	1210 (1260)		-	0.75
	GC110 N 1,25-1 (version 2.0) (no sidewalls )	1320	1040	1210 (1260)			1.0
	GC110 N 1,5-1 (version 2.0) (no sidewalls )	1490	1040	1210 (1260)			1,14
	GC110 N 2,0-1 (version 2.0) (no sidewalls )	1945	1040	1210 (1260)			1,5
	GC110 N 2,5-1 (version 2.0) (no sidewalls )	2570	1040	1210(1260)			2
	GC110 N 3,75-1 (version 2.0) (no sidewalls )	3820	1040	1210 (1260)			3

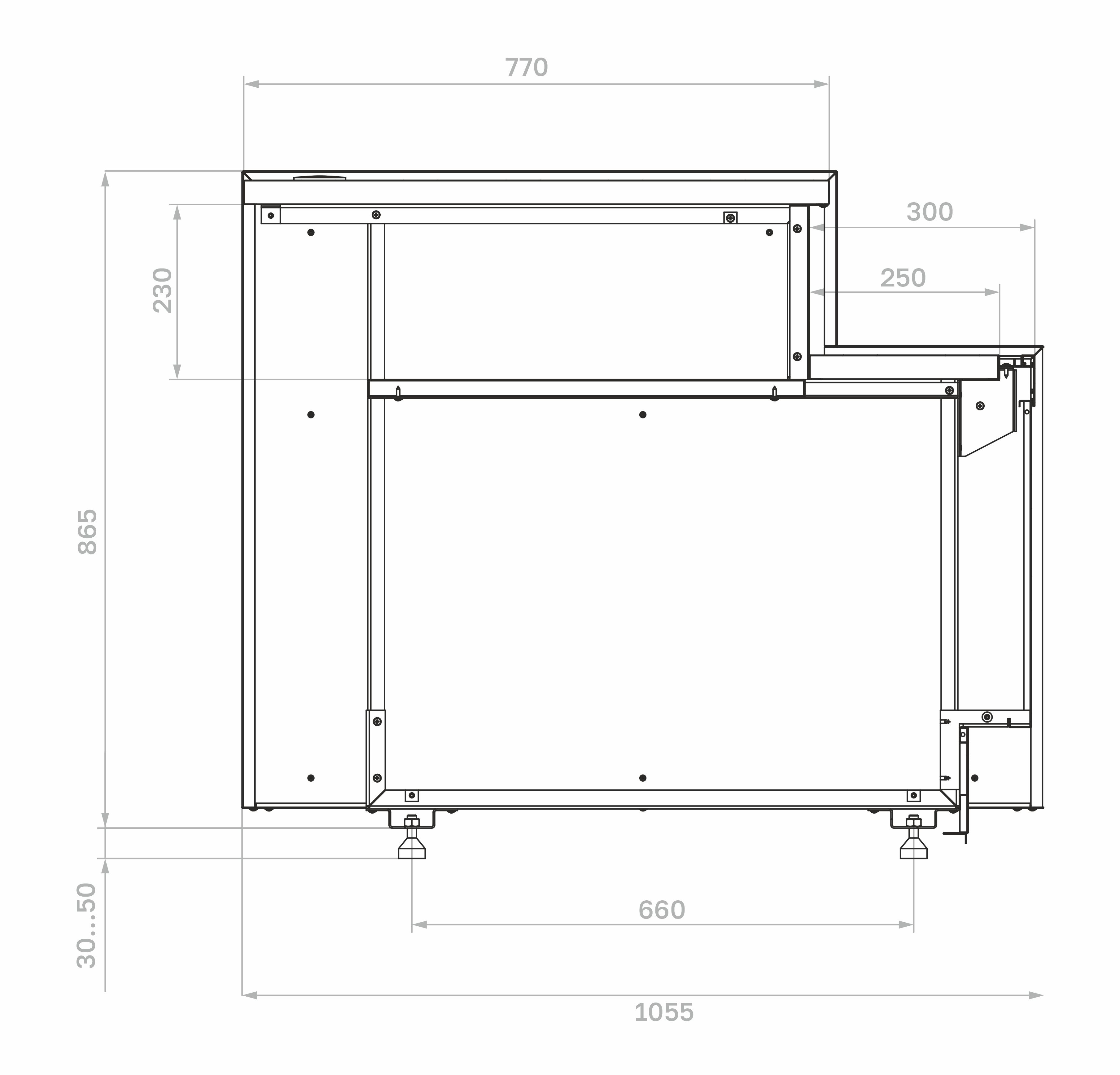

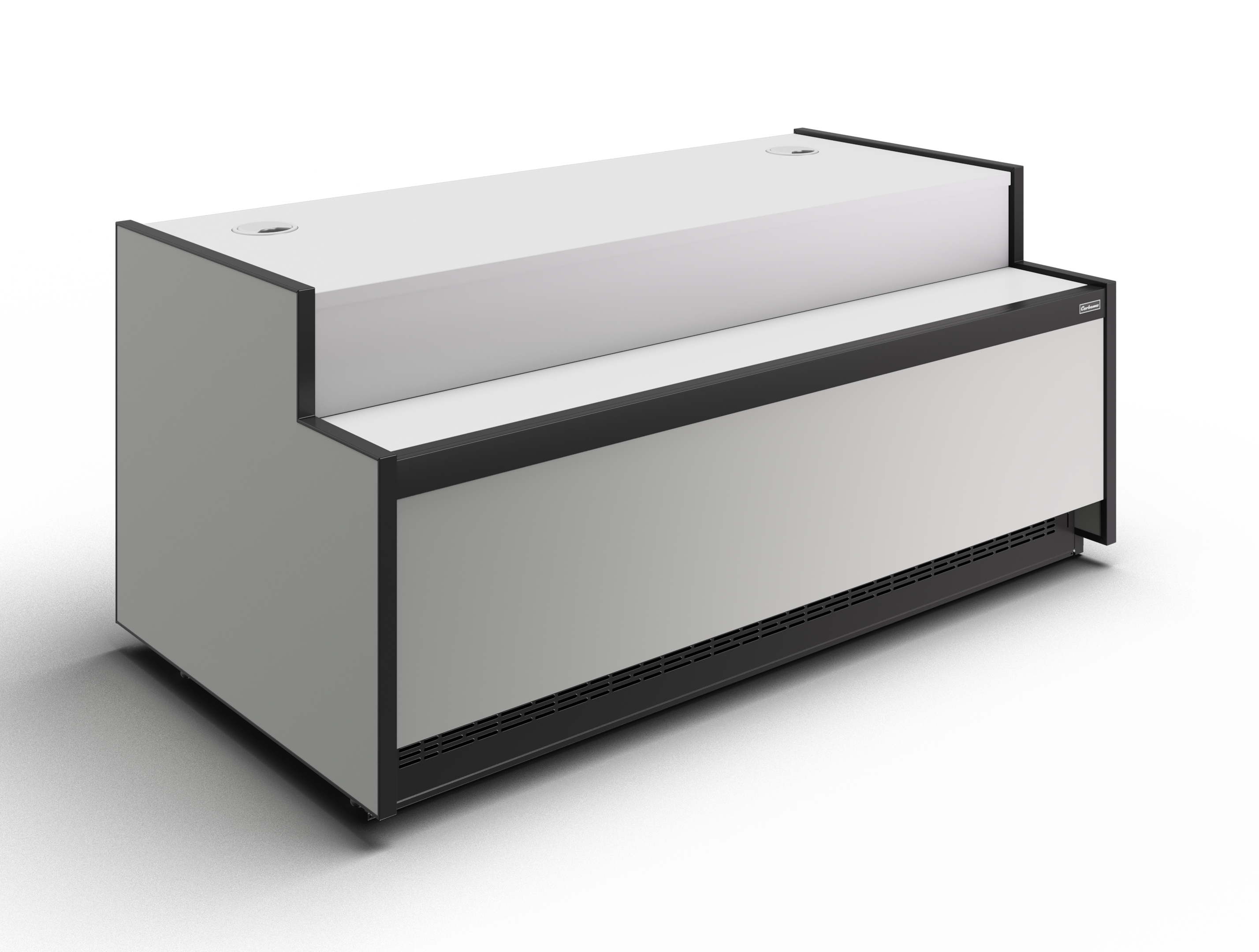

	counter GC110 N 0,9-7 (version 2.0) Blueprint	944	1055	865 (915)		-
	counter GC110 N 1,2-7 (version 2.0) Blueprint	1244	1055	865 (915)		-
	sidewall GС110 version 2.0 with insulated glass unit (closed modular unit), pcs
	sidewall GС110 version 2.0 with insulated glass unit (open modular unit), pcs
	sidewall GС110 version 2.0 with insulated glass unit (refrigerated display counter), pcs
	sidewall GС110 version 2.0 with insulated glass unit (low temperature modular unit), pcs

Showcase prices include the cost of front panels
Side panels with 35 mm thick DOUBLE GLAZING are NOT INCLUDED in the showcase price
The dimensions in the technical specifications are given including the side panels

ATTENTION! The RRP is for the STANDARD VERSION.
CUSTOM VERSIONS PRICE ON REQUEST

Microprocessor control unit with temperature indication
Fixed front glass
Structural glass unit side
Defrost by natural heat inflows (medium temperature)
Automatic electric defrost mode (reversible, open, low temperature, fish on ice

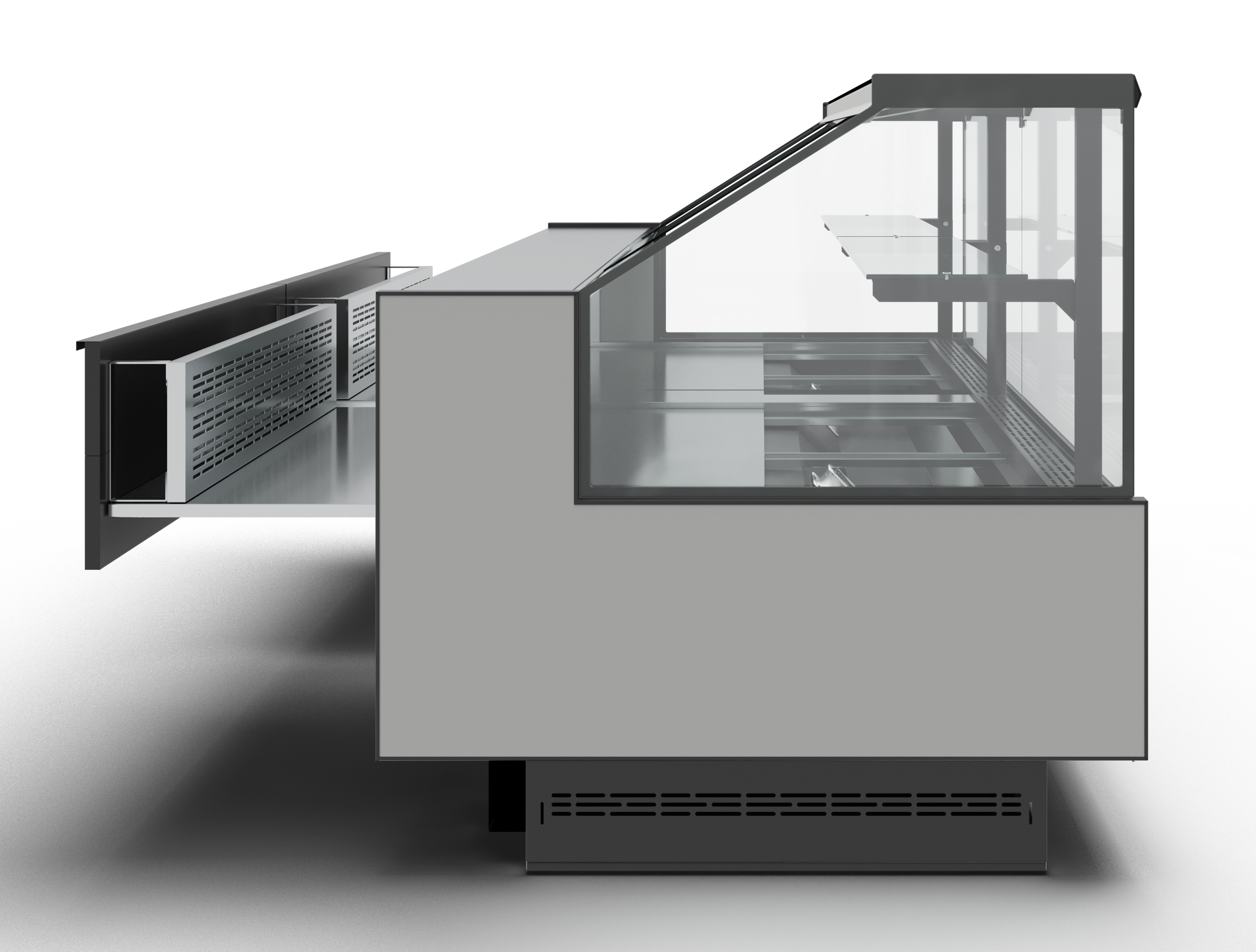

Unrefrigerated glass shelf (pastry)
Height-adjustable metal shelves with a tilt angle of 15 degrees (Slide)
LED lighting of the main area (4000 K)
Halogen lamps for lighting and heating (Bain-marie)
Energy-saving curtains (except Gorka)
Mesh grids (low temperature)
Exhibition surface, table top made of polished stainless steel
Pallets with perforation (fish on ice)
Additional storage - static, dynamic (medium temperature, reversible, open, neutral). Low temperature, fish on ice - WITHOUT STORAGE.
Glass cold breakers (medium-temperature, reversible), double-glazed windows (low-temperature)
PEN defrost condensate drain pan (low temperature, reversible)

Sidewall with fiberglass
Docking kit
Partition (medium temperature, reversible)
Full-profile partition (medium temperature, reversible) is placed between display cases or in display cases with a length of 2.0 2.5
Full-size divider (plexiglass)
Connector through a transparent separator (sidewall + double-glazed window)
LED lighting of the main area (3000 K, PINK)
Leading edge lighting (3000K, 4000K, PINK)
Additional display shelf (except for the confectionery)
Automatic electric defrost (heater) (medium temperature, slide, confectionery)
Wooden shelf for bread, cheese, delicacies
Shelf for scales (HDPE)
2-stage pallets for display. The total height of the pallet is 120 mm, the total depth is 480 mm
Wheel support h-130 mm
Protective bumper
Night curtain (Slide)
Illumination of each shelf 3000 K, 4000K, PINK (Slide)
Wire/plexiglass limiter (Slide)
Price holders (Slide)
Any color scheme (according to RAL)
Front panel pattern
Egger finish of front panel
