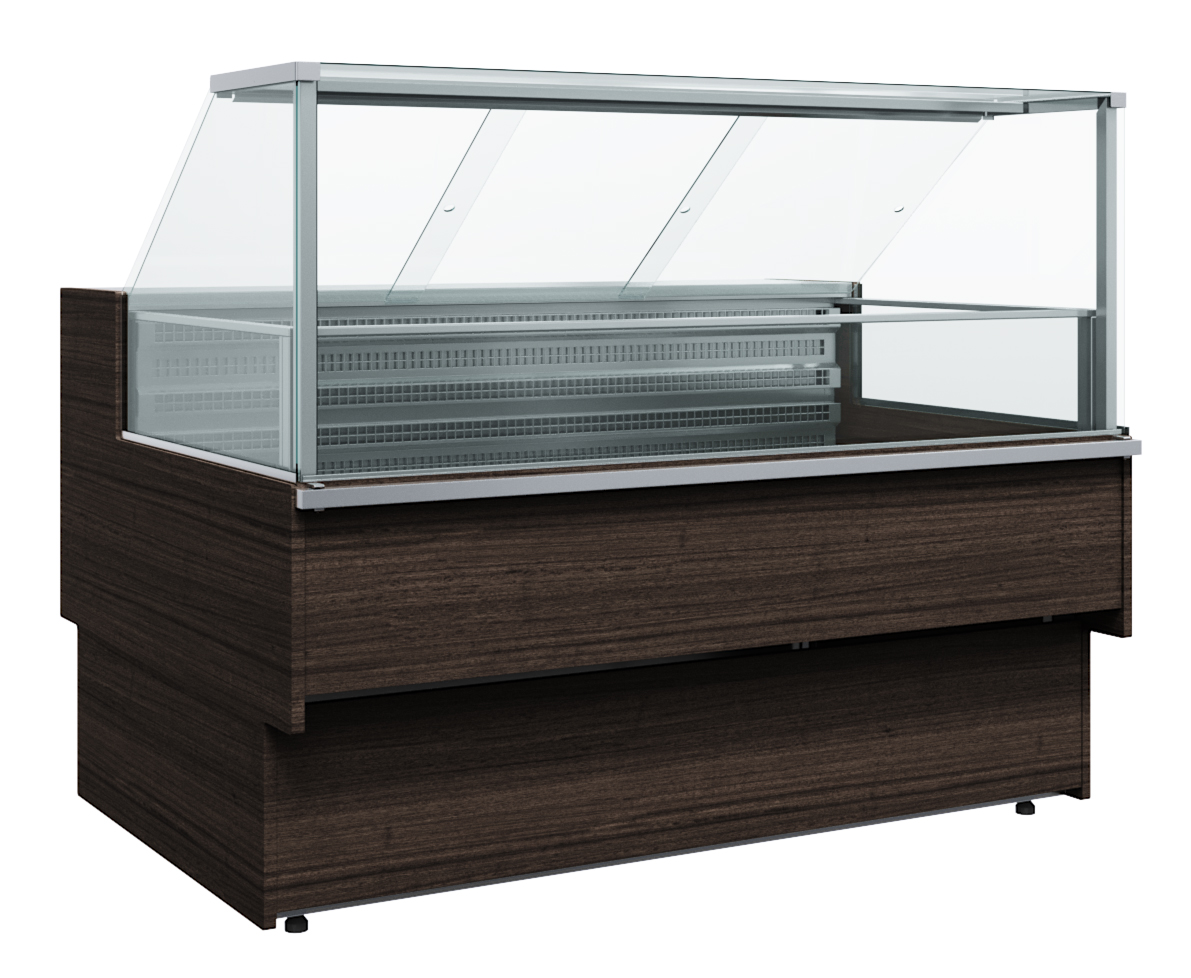

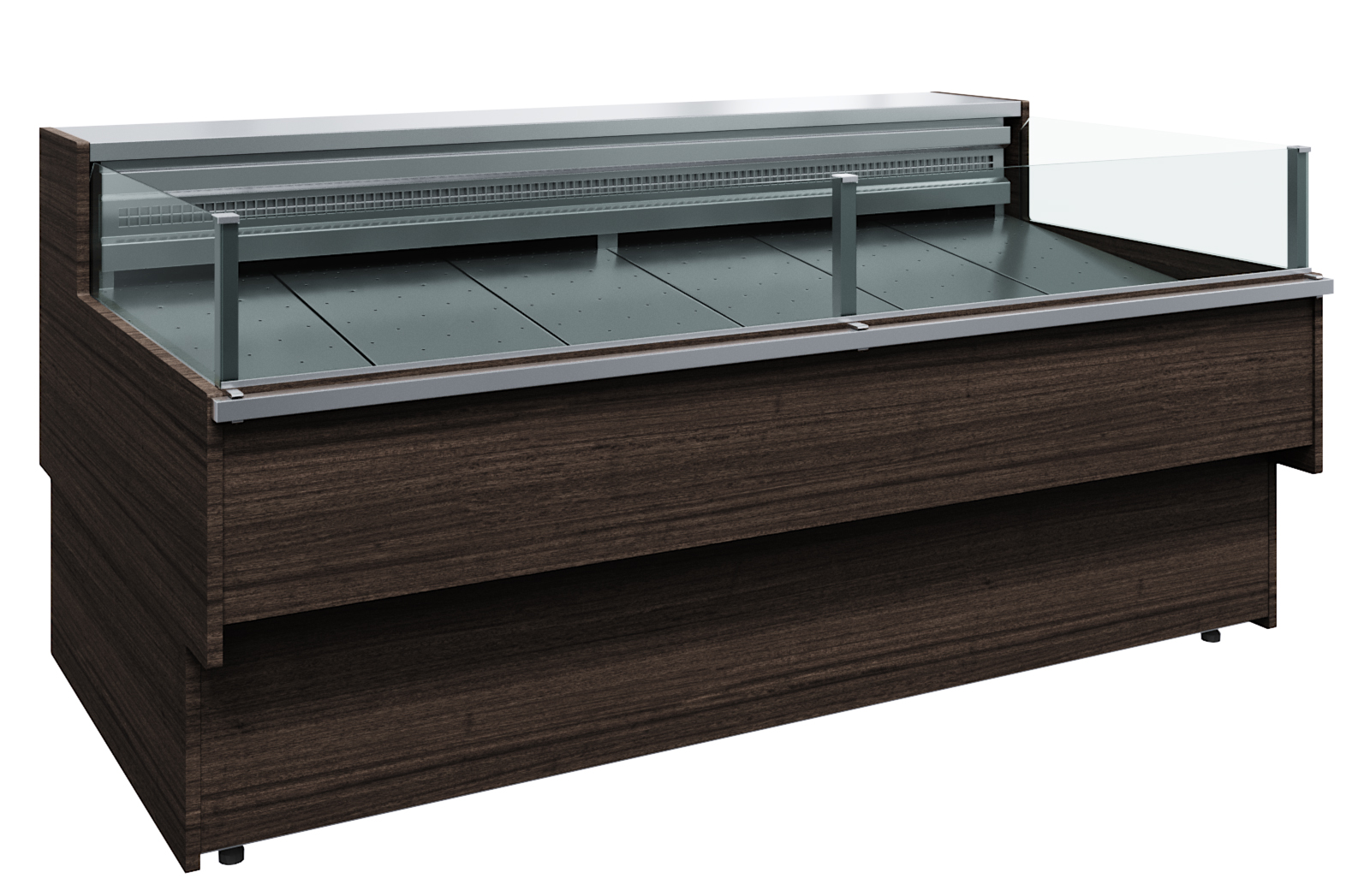

DISPLAY CASES GC110 (Bavaria 2)

картинка DISPLAY CASES GC110 (Bavaria 2)
картинка DISPLAY CASES GC110 (Bavaria 2)
картинка DISPLAY CASES GC110 (Bavaria 2)
картинка DISPLAY CASES GC110 (Bavaria 2)
картинка DISPLAY CASES GC110 (Bavaria 2)
картинка DISPLAY CASES GC110 (Bavaria 2)
картинка DISPLAY CASES GC110 (Bavaria 2)
картинка DISPLAY CASES GC110 (Bavaria 2)

Display cases GC110 combine concise forms with one purpose of maximum focus on products, configuration of any shape,  possibility of connecting in a line and energy-saving technologies (low-emission glass, LED-lighting in standard complectation)

Main features:

  • Nominal voltage 220 V, 50 Hz
  • Type of cooling: static / dynamic
  • Climate class: 3
  • The showcases are designed for indoor use with natural ventilation at ambient temperature from +12°C to +25°C, relative humidity not more than 60%
  • Possibility of connecting in a line
  • Front panels are included in the price

Possible colors of the front panel:

  • painted steel (9003, 9005, 9006, 3020,1023, 5017, 6029, 1015), stainless steel (0430), laminate 0105 (WENGE), 0106 (OAK), 0108 (DARK OAK)
  • glass side panels (laminate MDF 1005 -WENGE), 1006 (OAK). Not included in the price
Dimensions are specified including sidewalls

DEPTH: up to 870 mm

Brochure 3D models
Model Dimensions, mm Weight, kg t, °C Exhibited area, mm Electricity consumption per day, kW
Length Width Height

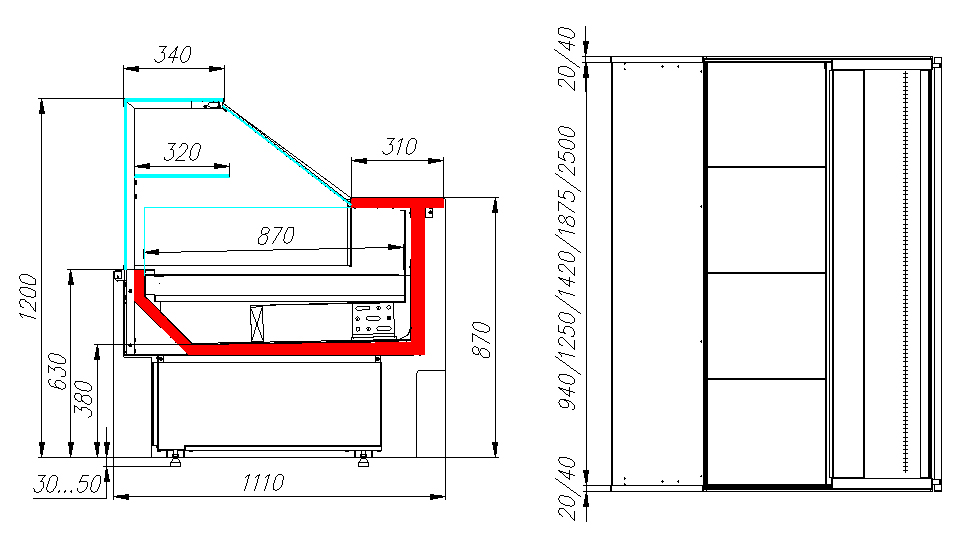

GC110 SM 0,94-1 (ВХС-0,94 Carboma GC110)GC110 SM 0,94-1 (ВХС-0,94 Carboma GC110) GC110 SM 0,94-1 (ВХС-0,94 Carboma GC110)

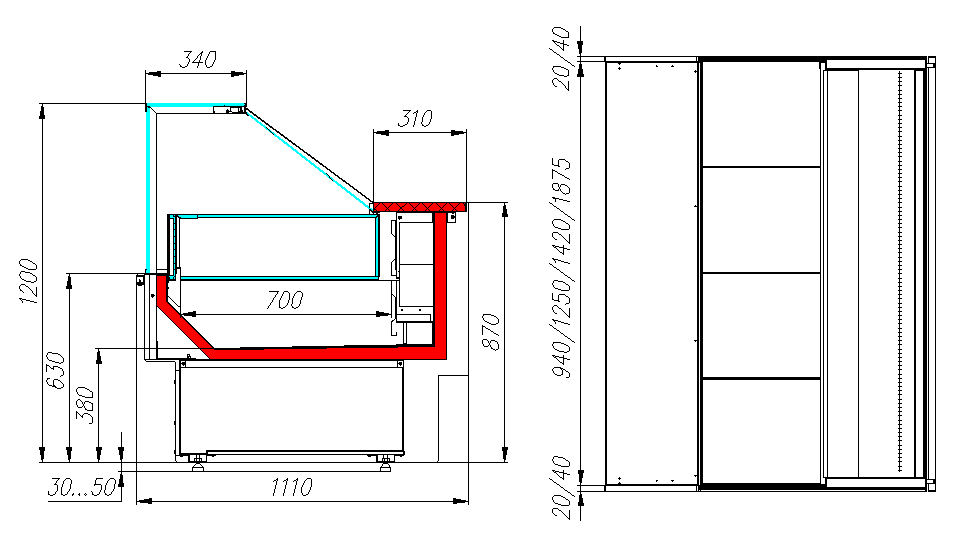

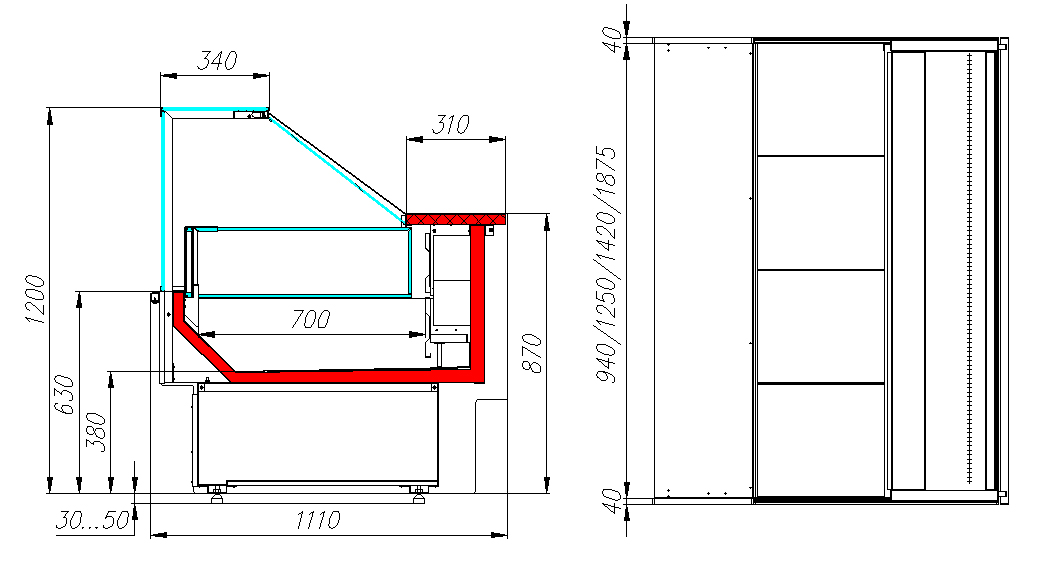

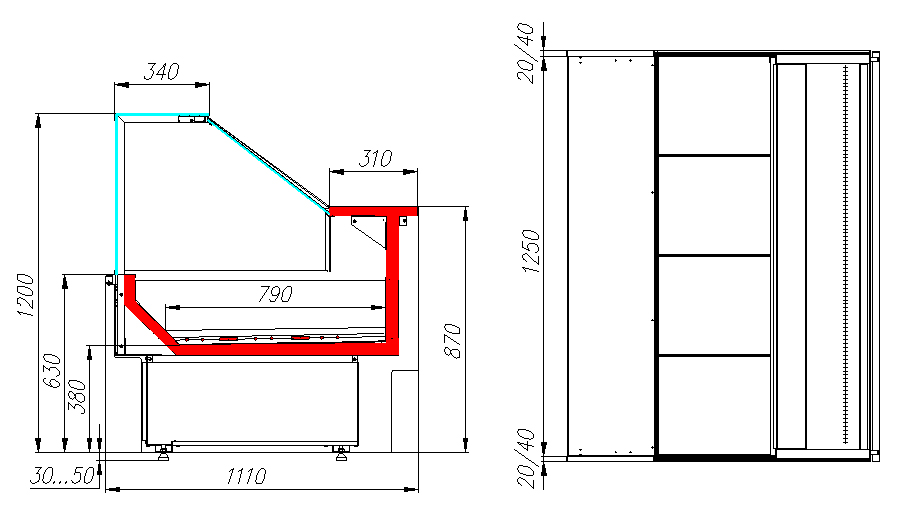

Blueprint
980 1110 1200(1235) 146 0...+7 0,69 4,0
GC110 SM 1,25-1 (ВХС-1,25 Carboma GC110)GC110 SM 1,25-1 (ВХС-1,25 Carboma GC110) GC110 SM 1,25-1 (ВХС-1,25 Carboma GC110)
Blueprint
1290 1110 1200(1235) 168 0...+7 0,92 5,0
GC110 SM 1,5-1 (ВХС-1,5 Carboma GC110)GC110 SM 1,5-1 (ВХС-1,5 Carboma GC110) GC110 SM 1,5-1 (ВХС-1,5 Carboma GC110)
Blueprint
1460 1110 1200(1235) 184 0...+7 1,04 5,0
GC110 SM 2,0-1 (ВХС-2,0 Carboma GC110)GC110 SM 2,0-1 (ВХС-2,0 Carboma GC110) GC110 SM 2,0-1 (ВХС-2,0 Carboma GC110)
Blueprint
1915 1110 1200(1235) 202 0...+7 1,38 6,0
GC110 SM 2,5-1 (ВХС-2,5 Carboma GC110)GC110 SM 2,5-1 (ВХС-2,5 Carboma GC110) GC110 SM 2,5-1 (ВХС-2,5 Carboma GC110)
Blueprint
2540 1110 1200(1235) 242 0...+7 1,84 11,0
GC110 SV 0,94-1 (ВХСр-0,94 Carboma GC110)GC110 SV 0,94-1 (ВХСр-0,94 Carboma GC110) GC110 SV 0,94-1 (ВХСр-0,94 Carboma GC110)
Blueprint
980 1110 1200(1235) 148 -5...+5 0,69 6,6
GC110 SV 1,25-1 (ВХСр-1,25 Carboma GC110)GC110 SV 1,25-1 (ВХСр-1,25 Carboma GC110) GC110 SV 1,25-1 (ВХСр-1,25 Carboma GC110)
Blueprint
1290 1110 1200(1235) 170 -5...+5 0,92 7,6
GC110 SV 1,5-1 (ВХСр-1,5 Carboma GC110)GC110 SV 1,5-1 (ВХСр-1,5 Carboma GC110) GC110 SV 1,5-1 (ВХСр-1,5 Carboma GC110)
Blueprint
1460 1110 1200(1235) 186 -5...+5 1,04 8,0
GC110 SV 2,0-1 (ВХСр-2,0 Carboma GC110)GC110 SV 2,0-1 (ВХСр-2,0 Carboma GC110) GC110 SV 2,0-1 (ВХСр-2,0 Carboma GC110)
Blueprint
1915 1110 1200(1235) 205 -5...+5 1,38 10,2
GC110 SV 2,5-1 (ВХСр-2,5 Carboma GC110)GC110 SV 2,5-1 (ВХСр-2,5 Carboma GC110) GC110 SV 2,5-1 (ВХСр-2,5 Carboma GC110)
Blueprint
2540 1110 1200(1235) 245 -5...+5 1,84 12,8
GC110 SL 0,94-1 (ВХСн-0,94 Carboma GC110)
Blueprint
980 1110 1200(1235) 158 до -18 0,64 10,6
GC110 SL 1,25-1 (ВХСн-1,25 Carboma GC110)
Blueprint
1290 1110 1200(1235) 182 до -18 0,84 12,0
GC110 SL 1,5-1 (ВХСн-1,5 Carboma GC110)
Blueprint
1460 1110 1200(1235) 199 до -18 0,96 13,0
GC110 SL 2,0-1 (ВХСн-2,0 Carboma GC110)
Blueprint
1915 1110 1200(1235) 217 до -18 1,28 15,2

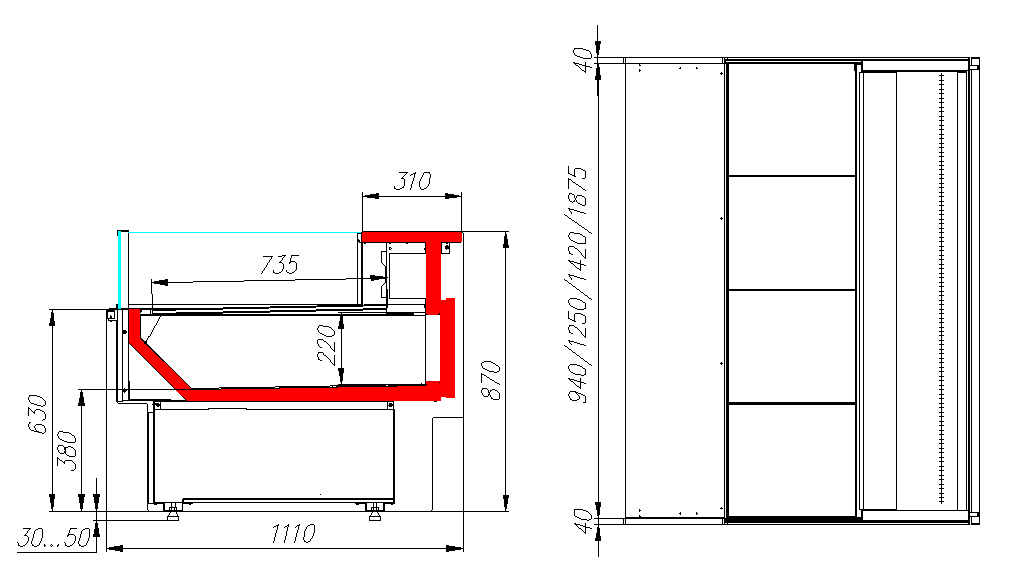

GC110 SM 0,94-2 (ВХСо-0,94 Carboma GC110)

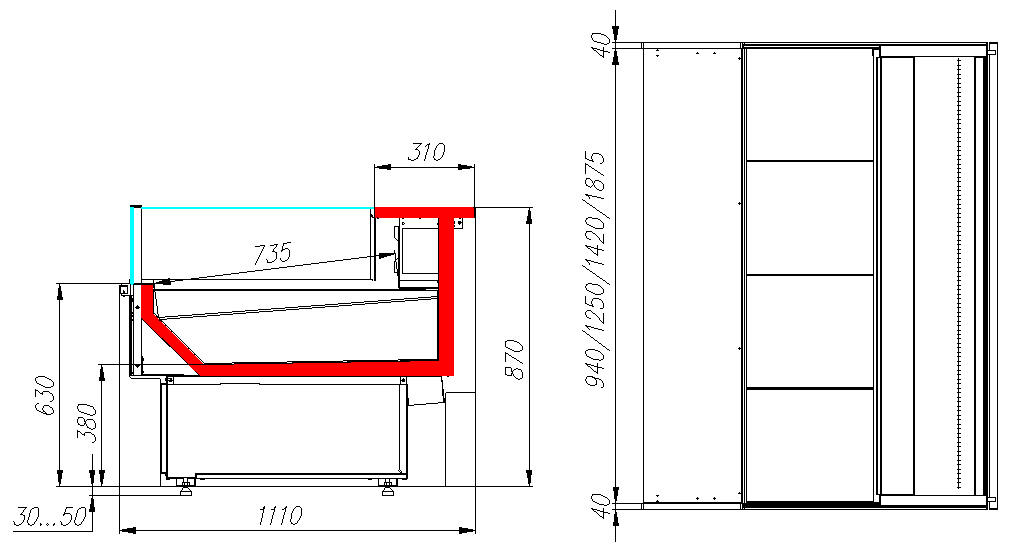

Blueprint
980 1110 870(905) 133 +2...+6 0,69 6,9
GC110 SM 1,25-2 (ВХСо-1,25 Carboma GC110)
Blueprint
1290 1110 870(905) 144 +2...+6 0,92 7,9
GC110 SM 1,5-2 (ВХСо-1,5 Carboma GC110)
Blueprint
1460 1110 870(905) 170 +2...+6 1,04 8,5
GC110 SM 2,0-2 (ВХСо-2,0 Carboma GC110)
Blueprint
1915 1110 870(905) 185 +2...+6 1,38 10,5

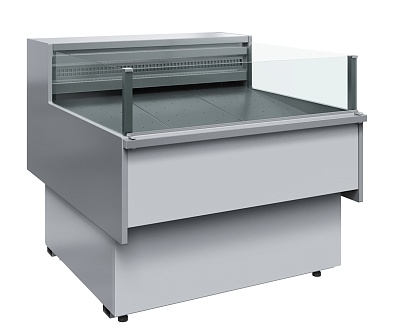

GC110 SP 0,94-2 (ВХСл-0,94 Carboma GC110)
Blueprint
980 1110 870(905) 133 -1...+2 0,69 7,2
GC110 SP 1,25-2 (ВХСл-1,25 Carboma GC110)
Blueprint
1290 1110 870(905) 144 -1...+2 0,92 8,2
GC110 SP 1,5-2 (ВХСл-1,5 Carboma GC110)
Blueprint
1460 1110 870(905) 170 -1...+2 1,04 8,8
GC110 SP 2,0-2 (ВХСл-2,0 Carboma GC110)
Blueprint
1915 1110 870(905) 185 -1...+2 1,38 10,9

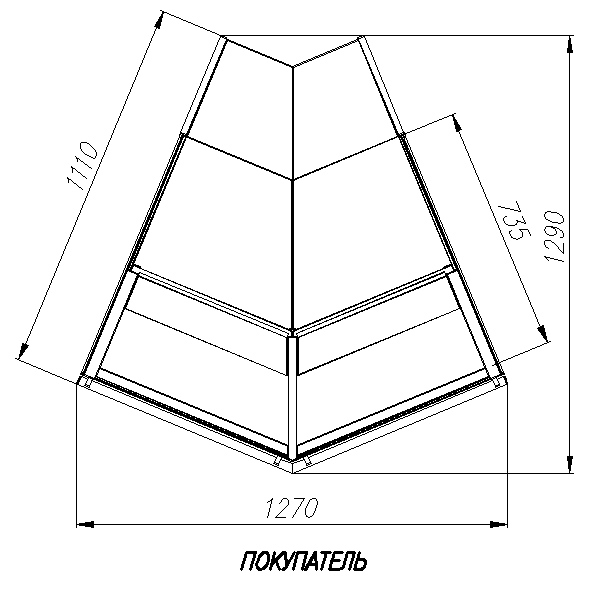

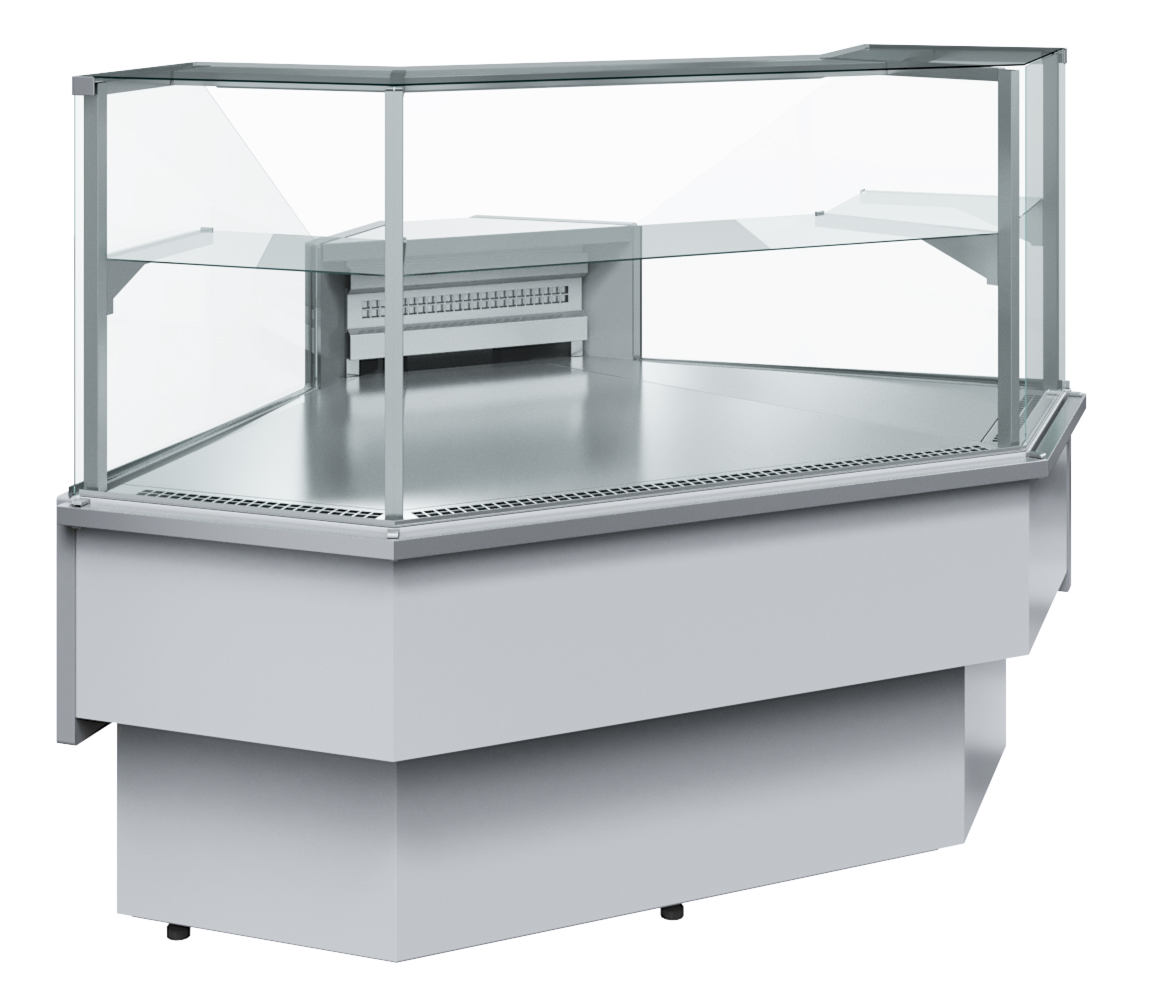

GC110 VM-3 (ВХСу-1 Carboma GC110 external 45 dynamic)
Blueprint
1270 1290 1200(1235) 165 0...+7 0,67 7,2
GC110 VM-4 (ВХСу-2 Carboma GC110 internal 45 dynamic)

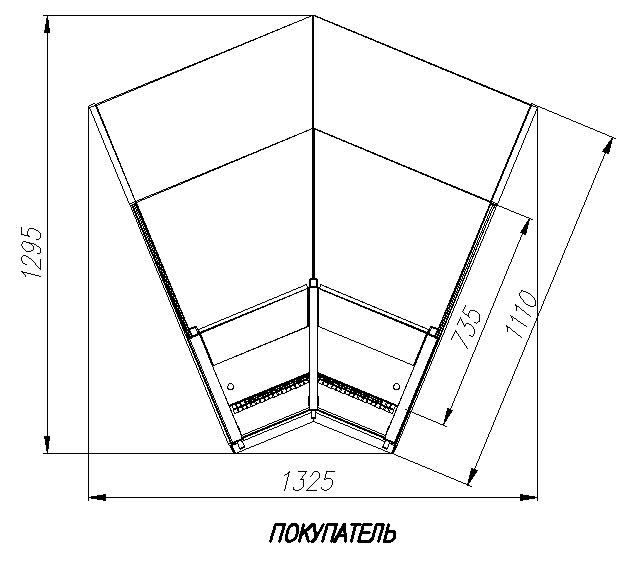

Blueprint
1325 1295 1200(1235) 165 0...+7 0,67 7,2

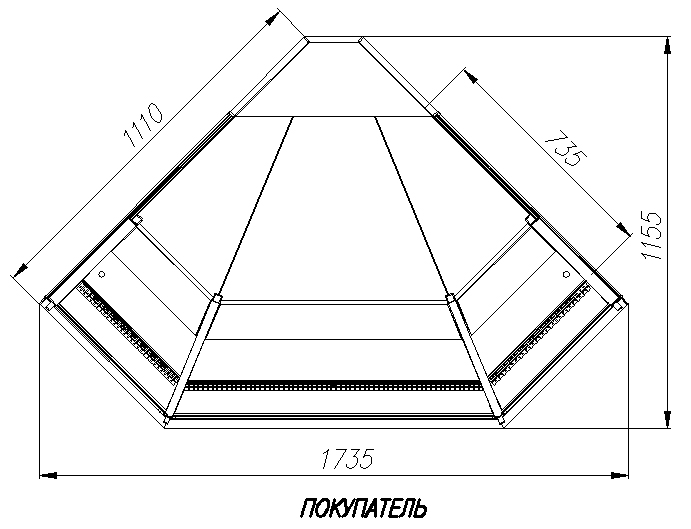

GC110 VM-5 (ВХСу-1 Carboma GC110 external 90 dynamic)GC110 VM-5 (ВХСу-1 Carboma GC110 external 90 dynamic) GC110 VM-5 (ВХСу-1 Carboma GC110 external 90 dynamic)
Blueprint
1735 1155 1200(1235) 190 0...+7 0,85 7,7

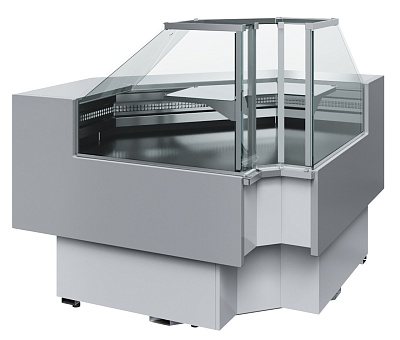

GC 110 VM-6 (ВХСу-2 Carboma GC110 internal 90 dynamic)

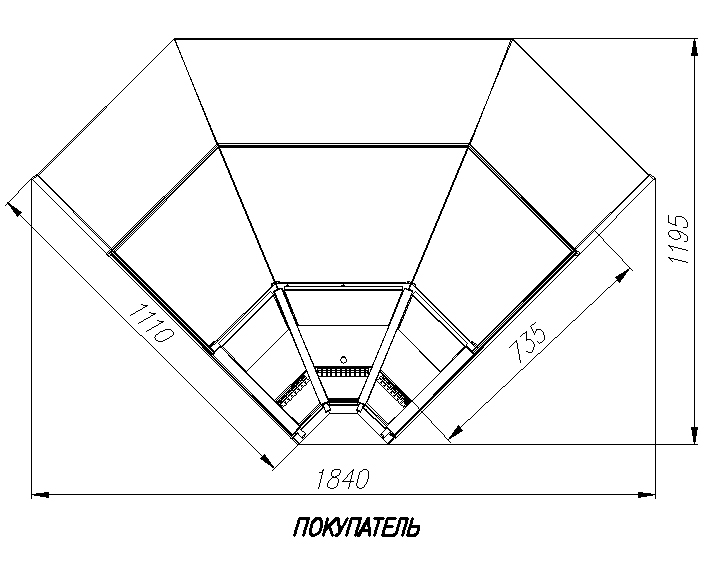

Blueprint
1840 1195 1200(1235) 180 0...+7 0,84 7,7
GC110 VM 0,94-1 (ВХС-0,94 Carboma GC110 dynamic)
Blueprint
980 1110 1200(1235) 147 0...+7 0,69 4,2
GC110 VM 1,25-1 (ВХС-1,25 Carboma GC110 dynamic)
Blueprint
1290 1110 1200(1235) 169 0...+7 0,92 5,7
GC110 VM 1,5-1 (ВХС-1,5 Carboma GC110 dynamic)
Blueprint
1460 1110 1200(1235) 186 0...+7 1,04 6,1
GC110 VM 2,0-1 (ВХС-2,0 Carboma GC110 dynamic)
Blueprint
1915 1110 1200(1235) 0...+7 1,63 7,6
GC110 VM 2,5-1 (ВХС-2,5 Carboma GC110 dynamic)
Blueprint
2540 1110 1200(1235) 244 0...+7 1,84 12,8
GC110 VV 0,94-1 (ВХСр-0,94 Carboma GC110 dynamic)
Blueprint
980 1110 1200(1235) 148 -5...+5 0,69 6,6
GC110 VV 1,25-1 (ВХСр-1,25 Carboma GC110 dynamic)
Blueprint
1290 1110 1200(1235) 170 -5...+5 0,92 7,6
GC110 VV 1,5-1 (ВХСр-1,5 Carboma GC110 dynamic)
Blueprint
1460 1110 1200(1235) 188 -5...+5 1,04 8,0
GC110 VV 2,0-1 (ВХСр-2,0 Carboma GC110 dynamic)
Blueprint
1915 1110 1200(1235) 206 -5...+5 1,38 12,5
GC110 VV 2,5-1 (ВХСр-2,5 Carboma GC110 dynamic)
Blueprint
2540 1110 1200(1235) 246 -5...+5 1,84 20,8
GC110 VM 0,94-2 (ВХСо-0,94 Carboma GC110 dynamic)
Blueprint
980 1110 870(905) 135 +2...+6 0,69 6,7
GC110 VM 1,25-2 (ВХСо-1,25 Carboma GC110 dynamic)
Blueprint
1290 1110 870(905) 157 +2...+6 0,92 7,7
GC110 VM 1,5-2 (ВХСо-1,5 Carboma GC110 dynamic)
Blueprint
1460 1110 870(905) 175 +2...+6 1,04 8,1
GC110 VM 2,0-2 (ВХСо-2,0 Carboma GC110 dynamic)
Blueprint
1915 1110 870(905) 190 +2...+6 1,38 12,6
GC110 SH 1,25-1 (ВТ-1,25 Carboma GC110)
Blueprint
1290 1110 1200(1235) 153 +45 0,95 12,0
GC110 N 0,94-1 (0,94 Carboma GC110)
Blueprint
980 1110 1200(1235) - 0,69 0,19
GC110 N 1,25-1 (1,25 Carboma GC110)
Blueprint
1290 1110 1200(1235) - 0,92 0,21
GC110 N 1,5-1 (1,5 Carboma GC110)
Blueprint
1460 1110 1200(1235) - 1,04 0,38
GC110 N 2,0-1 (2,0 Carboma GC110)
Blueprint
1915 1110 1200(1235) - 1,38 0,38
GC110 N 2,5-1 (2,5 Carboma GC110)
Blueprint
2540 1110 1200(1235) - 1,84 0,43

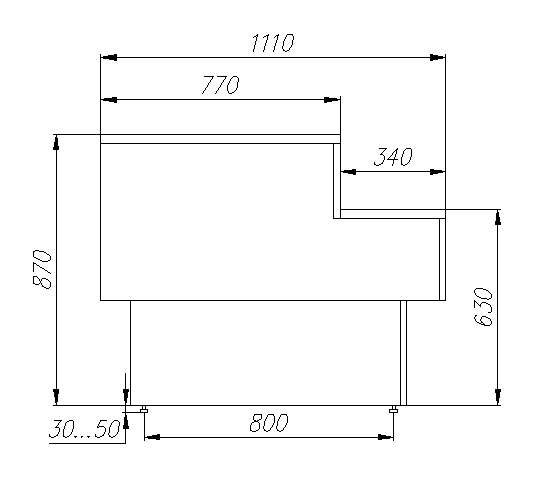

GC110 N 1,25-7 1015 beige, 0102 brown (П-1,25 Carboma GC110)
Blueprint
1250 1110 870(905) - - -
Sidewall Carboma GC110 for ВХС, ВХСр, ВХСн with glass, pc.
Sidewall Carboma GC110 for ВХСо, ВХСл with glass, pc.
GC110 N 1,25-7 MDF 1005 oak,1006 wenge (П-1,25 Carboma GC110)
Blueprint
1250 1110 870(905) - - -
  • Microprocessor control unit with temperature indicator
  • Defrost with natural heat leakage (medium temperature showcases)
  • Automatic electric defrost mode (reversible, open, low-temperature, fish on ice showcases)
  • Uncooled glass shelf (medium temperature, reversible showcases)
  • Exposition surface: tabletop made of stainless steel
  • LED-lighting (warm white)
  • Additional storage - for static (reversible, open, low-temperature, fish on ice showcases), dynamic - no additional storage
  • Glass baffle (reversible showcases), front double-glazing (low-temperature showcases)
  • Protective bumper (stainless steel tube)
  • Thermal insulation - polyurethane foam (the body, tabletop)
  • Compressors of the world leading manufacturers
  • The body is made of steel
  • Glass side walls laminate MDF (WENGE/OAK)
  • Docking kit
  • LED-lighting of the front
  • LED-lightning of shelf
  • Lightning of the main zone (warm white, neutral white, pink meat)

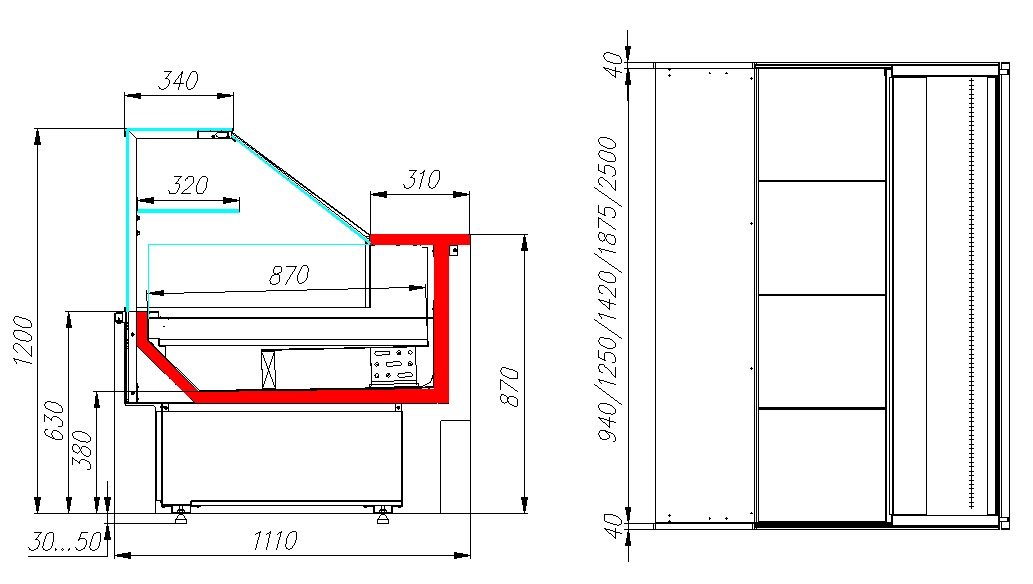

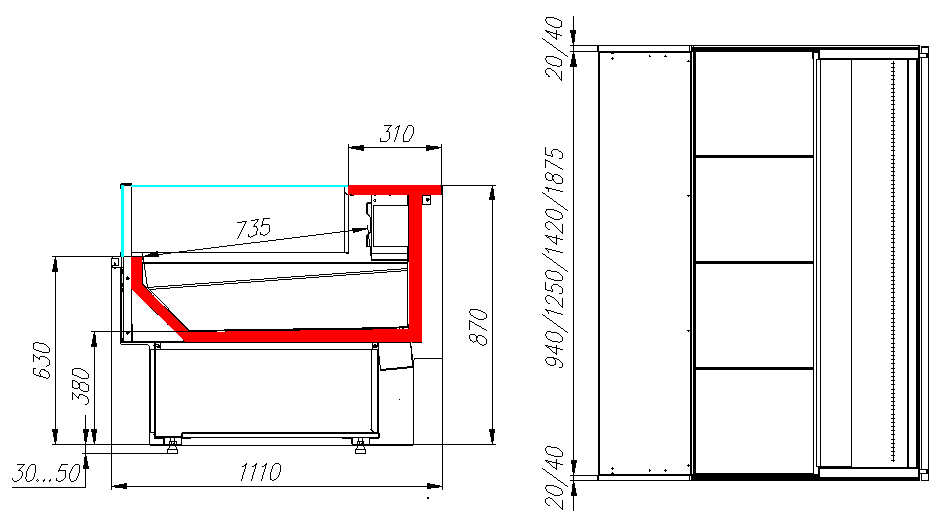

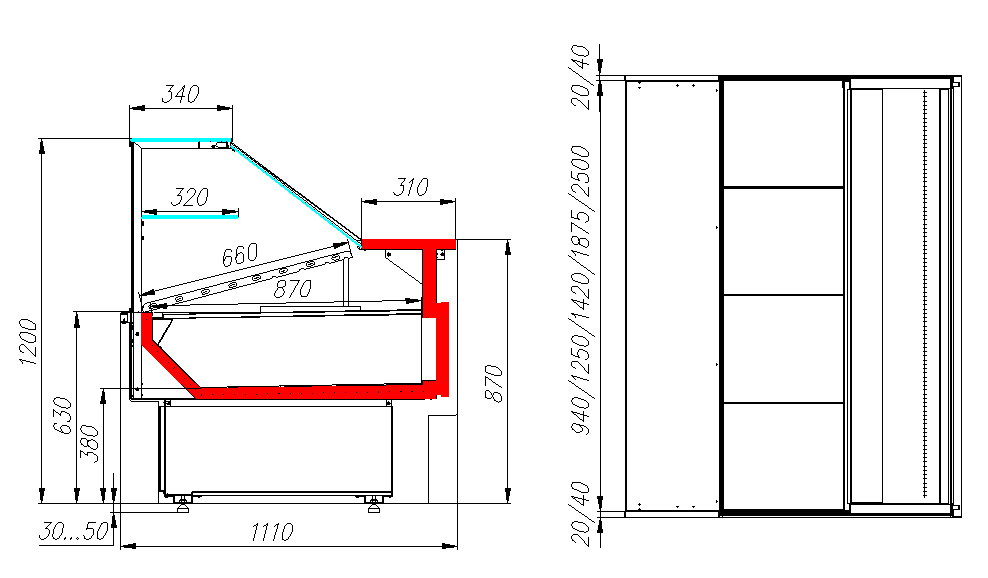

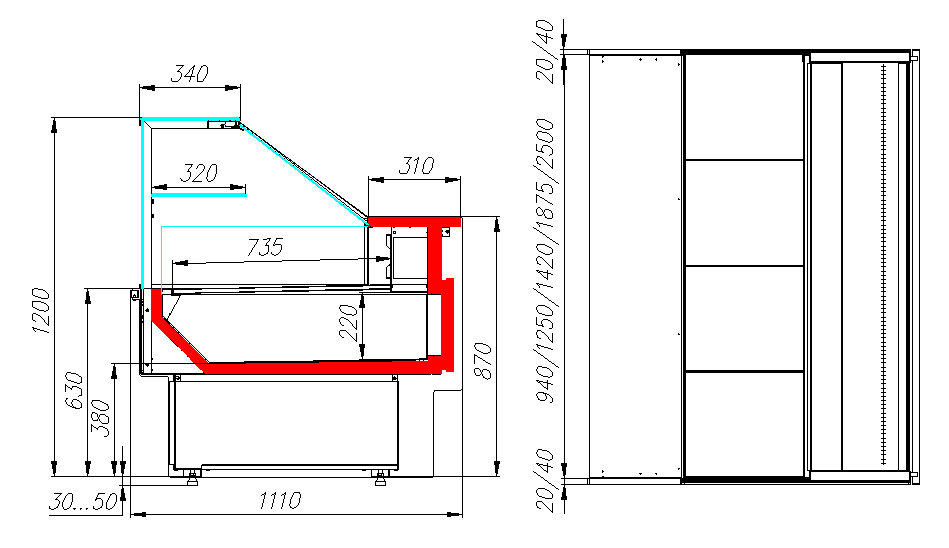

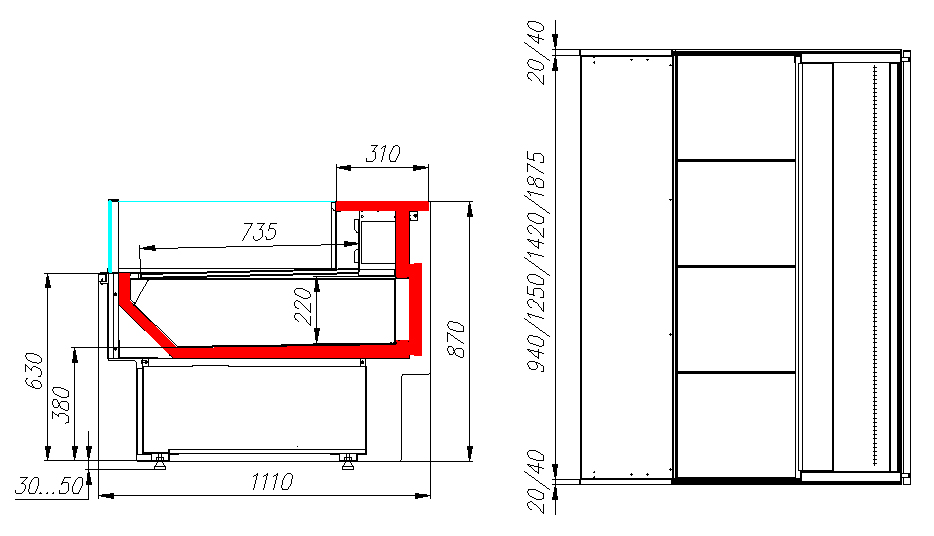

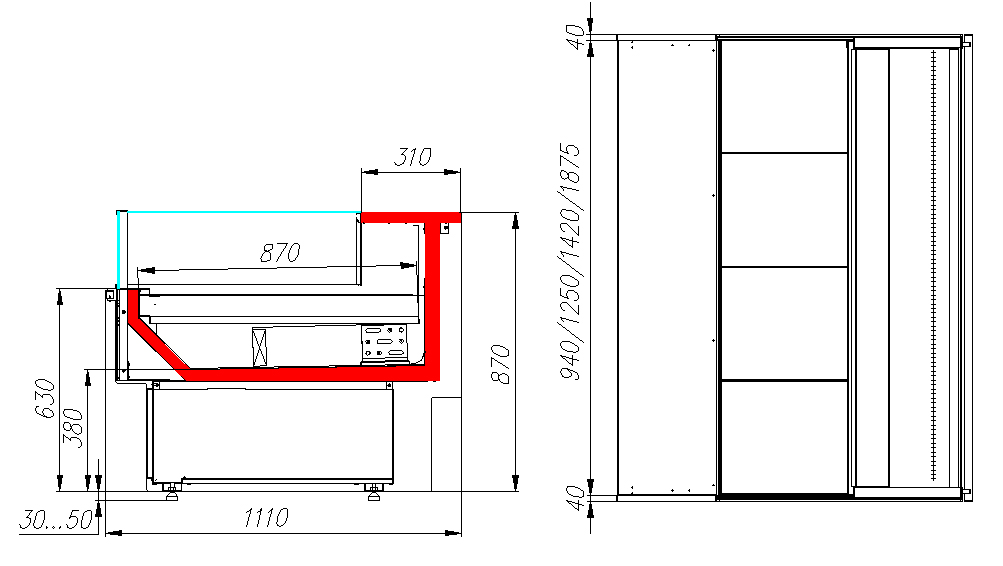

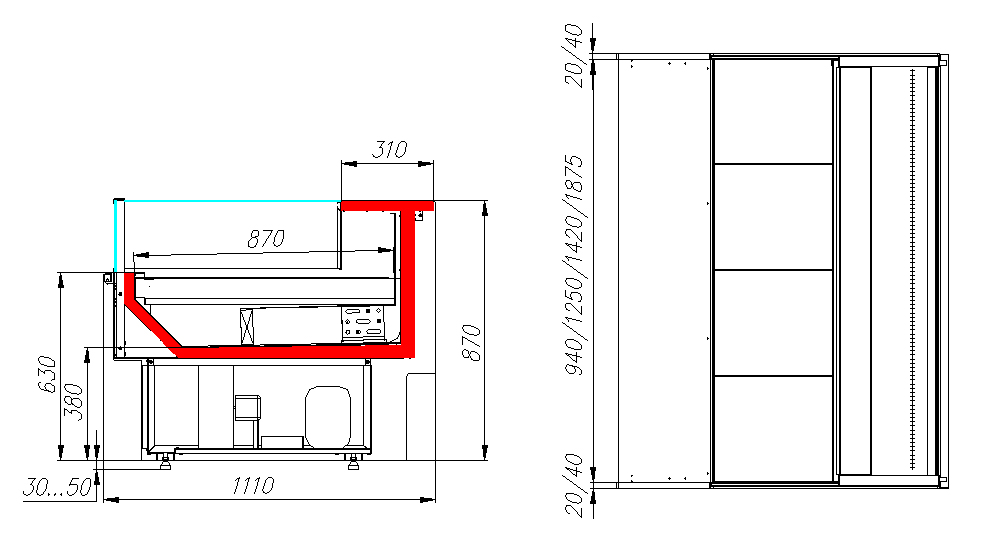

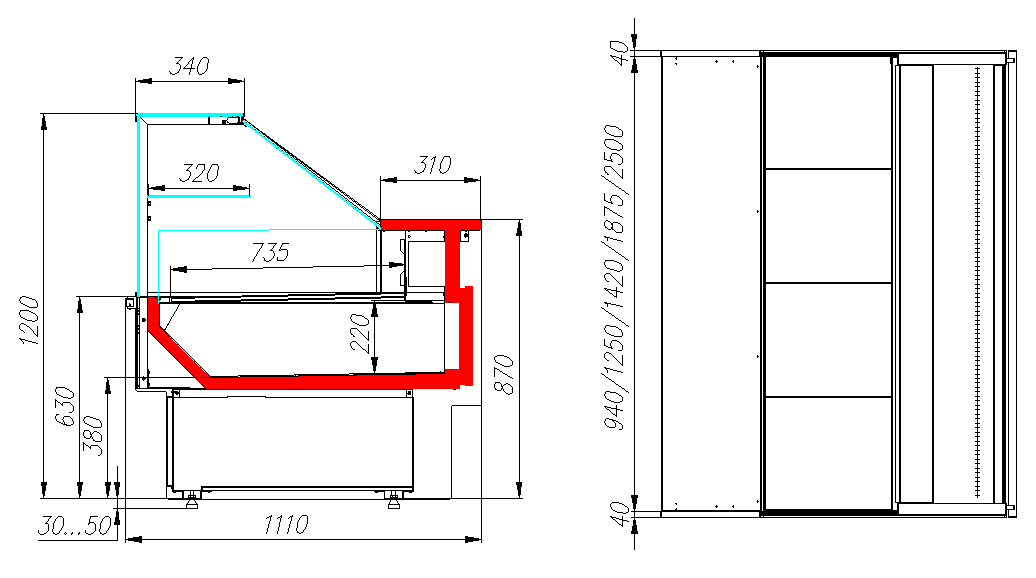

Blueprints
