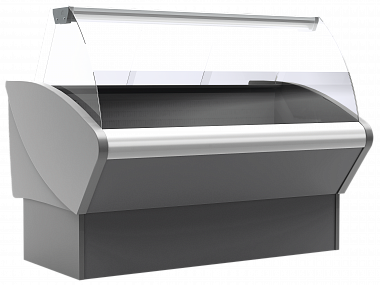

DISPLAY CASES G95 (Palm)

картинка DISPLAY CASES G95 (Palm)
картинка DISPLAY CASES G95 (Palm)
картинка DISPLAY CASES G95 (Palm)

The showcases G95 are ideal for presentation and sale of meat, poultry, sausages, dairy and other gastronomic products. The relatively small size of the showcases gives the advantages that promote the usage of showcases G95 in the small sizes of the stores.

Main features:

  • Nominal voltage 220 V, 50 Hz
  • Type of cooling: static
  • Ambient temperature +12…+25 °С, relative humidity not more than 60%
  • Climate class: 3
  • Electronic control unit with temperature indicator Carel

Possible colors of the front panel:

  • Standard: gray&steel
  • Optional: RAL 9003, 9006, 9005, 1015, 1023, 6029, 3020, 5017
Brochure Color scheme 3D models
Model Dimensions, mm Weight, kg t, °C Exhibited area, mm Electricity consumption per day, kW
Length Width Height
G95 SM 1,2-1 (ВХС-1,2 Полюс)G95 SM 1,2-1 (ВХС-1,2 Полюс) G95 SM 1,2-1 (ВХС-1,2 Полюс)

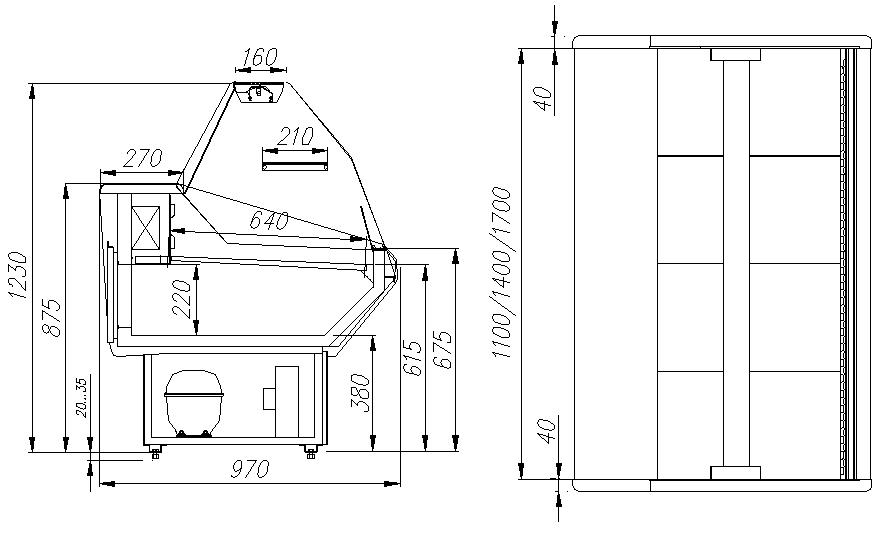

Blueprint
1180 970 1230 100 0…+7 1100х640 5,2
G95 SM 1,5-1 (ВХС-1,5 Полюс)G95 SM 1,5-1 (ВХС-1,5 Полюс) G95 SM 1,5-1 (ВХС-1,5 Полюс)
Blueprint
1480 970 1230 110 0…+7 1400х640 5,4
G95 SM 1,8-1 (ВХС-1,8 Полюс)
Blueprint
1780 970 1230 130 0…+7 1700х640 6,8
G95 SV 1,2-1 (ВХСр-1,2 Полюс)

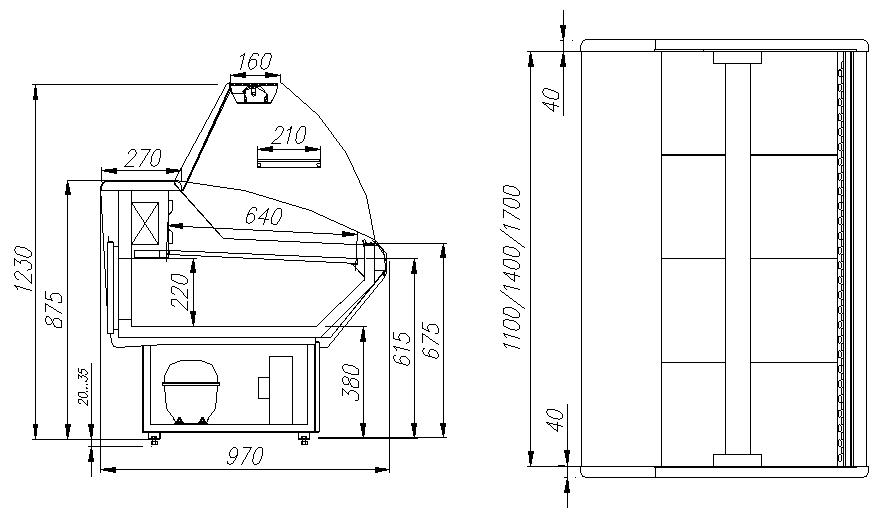

Blueprint
1180 970 1230 100 -5…+5 1100х640 5,8
G95 SV 1,5-1 (ВХСр- 1,5 Полюс)
Blueprint
1480 970 1230 110 -5…+5 1400х640 6,6
G95 SV 1,8-1 (ВХСр- 1,8 Полюс)
Blueprint
1780 970 1230 130 -5…+5 1700х640 7,2

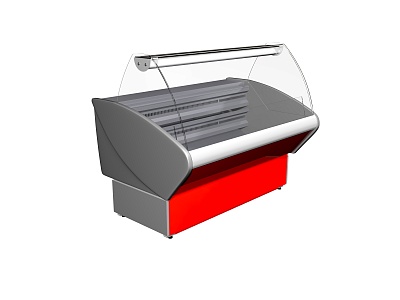

G95 SL 1,2-1 (ВХСн-1,2 Полюс)G95 SL 1,2-1 (ВХСн-1,2 Полюс) G95 SL 1,2-1 (ВХСн-1,2 Полюс)

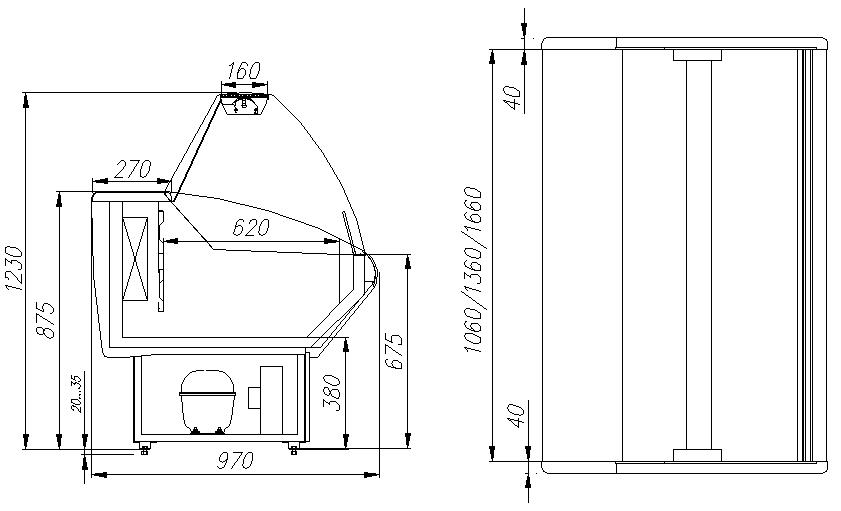

Blueprint
1180 970 1230 110 до -18 1060х620 6,8
G95 SL 1,5-1 (ВХСн-1,5 Полюс)
Blueprint
1480 970 1230 120 до -18 1360х620 7,2
G95 SL 1,8-1 (ВХСн-1,8 Полюс)
Blueprint
1780 970 1230 140 до -18 1660х620 9,2
  • Microprocessor control unit with temperature indicator
  • Automatic defrost mode
  • Isolating of the body, tabletop and sidewalls with polyurethane foam
  • Exposition surface, tabletop made of stainless steel;
  • Lamp made of aluminum shape
  • Additional storage (for reverible)
  • Glass baffle (reversible showcases, low-temperature)
  • Night curtains made of organic glass
  • Thermal insulation - polyurethane foam (the body, tabletop, sidewalls)
  • The body is made of steel
  • Lightning set of the main zone
  • A shelf for the weights
  • Wooden grid
  • Two-stage tray system
