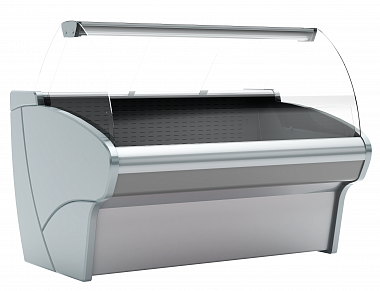

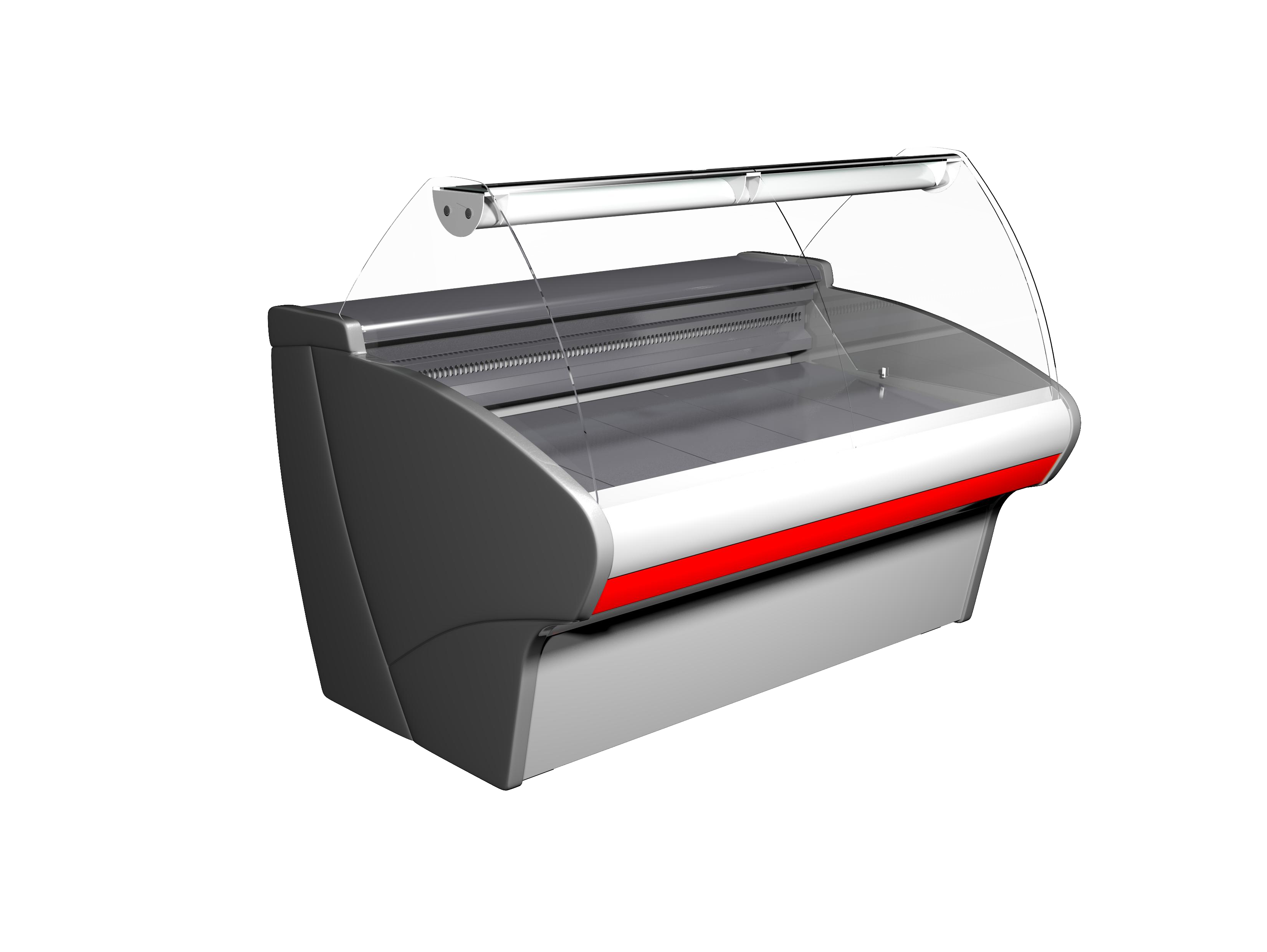

DISPLAY CASES G110 (Bavaria)
Main features:
- Nominal voltage 220 V, 50 Hz
- Type of cooling: static / dynamic
- Climate class: 3
- The showcases are designed for indoor use with natural ventilation at ambient temperature from +12°C to +25°C, relative humidity not more than 60%
- Possibility of connecting in a line*
Possible colors of the front panel:
- painted steel (9003, 9005, 9006, 3020,1023, 5017, 6029, 1015), stainless steel (0430), Pattern 0105 (WENGE), 0106 (OAK), 0107 (ALTER), 0108 (DARK OAK)
- Side panels WITH GLASS (silver plastic 0011) are NOT INCLUDED in the price
- Dimensions are specified including sidewalls
| Model | Dimensions, mm | Weight, kg | t, °C | Exhibited area, mm | Electricity consumption per day, kW | |||
|---|---|---|---|---|---|---|---|---|
| Length | Width | Height | ||||||

|

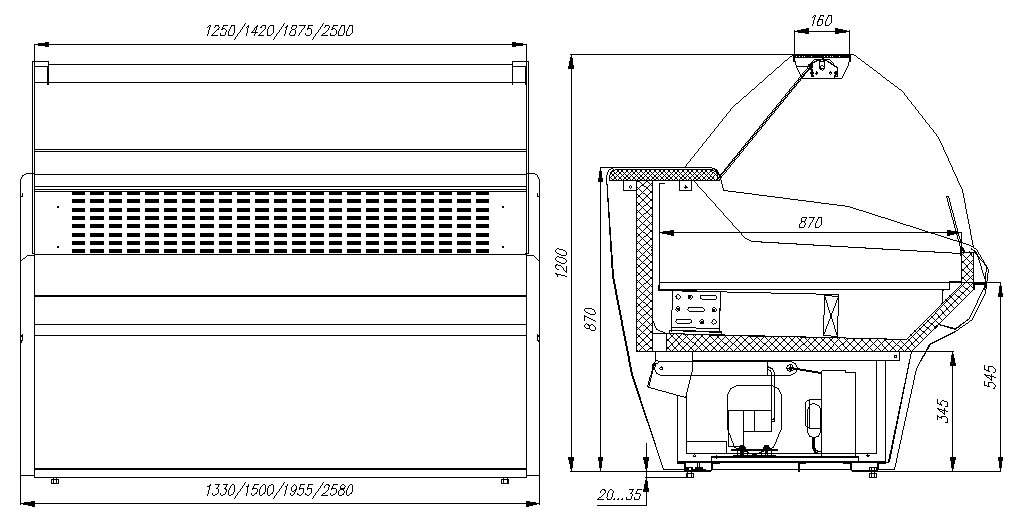

ВХС-1,25 Сarboma G110 (G110 SM 1,25-1)
Blueprint |
1330 | 1100 | 1200 (1235) | 110 | 0…+7 | 1250х735 | 5,2 |

|
ВХС-1,5 Сarboma G110 (G110 SM 1,5-1) | 1500 | 1100 | 1200 (1235) | 130 | 0…+7 | 1420х735 | 5,6 |
| ВХС-2,0 Сarboma G110 (G110 SM 2,0-1)
Blueprint |
1955 | 1100 | 1200 (1235) | 150 | 0…+7 | 1875х735 | 7,0 | |

|
ВХС-2,5 Сarboma G110 (G110 SM 2,5-1) | 2580 | 1100 | 1200 (1235) | 190 | 0…+7 | 2500х735 | 9,8 |

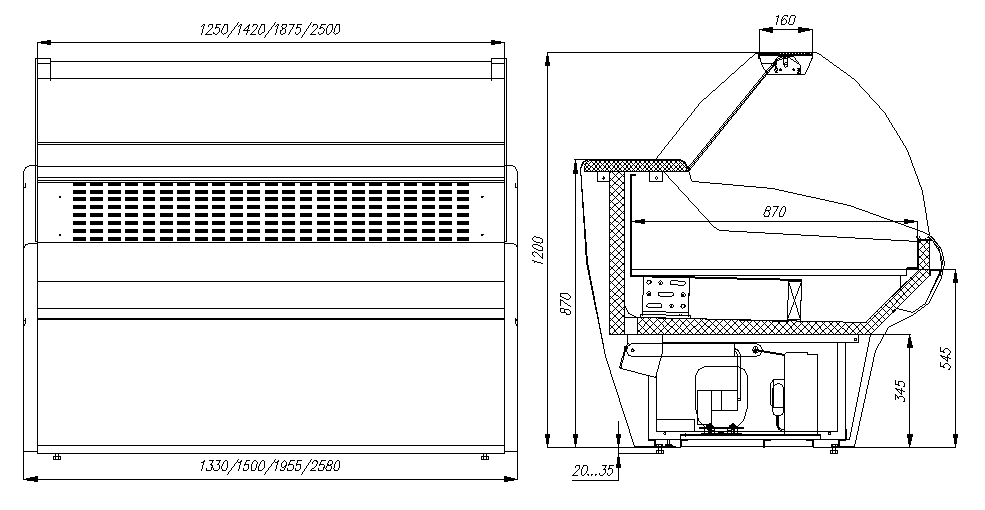

| ВХСр-1,25 Сarboma G110 (G110 SV 1,25-1) | 1330 | 1100 | 1200 (1235) | 130 | -5…+5 | 1250х735 | 6,6 | |
| ВХСр-1,5 Сarboma G110 (G110 SV 1,5-1) | 1500 | 1100 | 1200 (1235) | 130 | -5…+5 | 1420х735 | 6,8 | |
| ВХСр-2,0 Сarboma G110 (G110 SV 2,0-1)
Blueprint |
1955 | 1100 | 1200 (1235) | 150 | -5…+5 | 1875х735 | 8,8 | |
| ВХСр-2,5 Сarboma G110 (G110 SV 2,5-1) | 2580 | 1100 | 1200 (1235) | 190 | -5…+5 | 2500х735 | 10,2 | |

|
ВХСн-1,5 Сarboma G110 (G110 SL 1,5-1)
Blueprint |
1500 | 1100 | 1200 (1235) | 140 | до -18 | 1370х700 | 8,8 |

|
ВХСн-2,0 Сarboma G110(G110 SL 2,0-1) | 1955 | 1100 | 1200 (1235) | 160 | до -18 | 1825х700 | 10,7 |

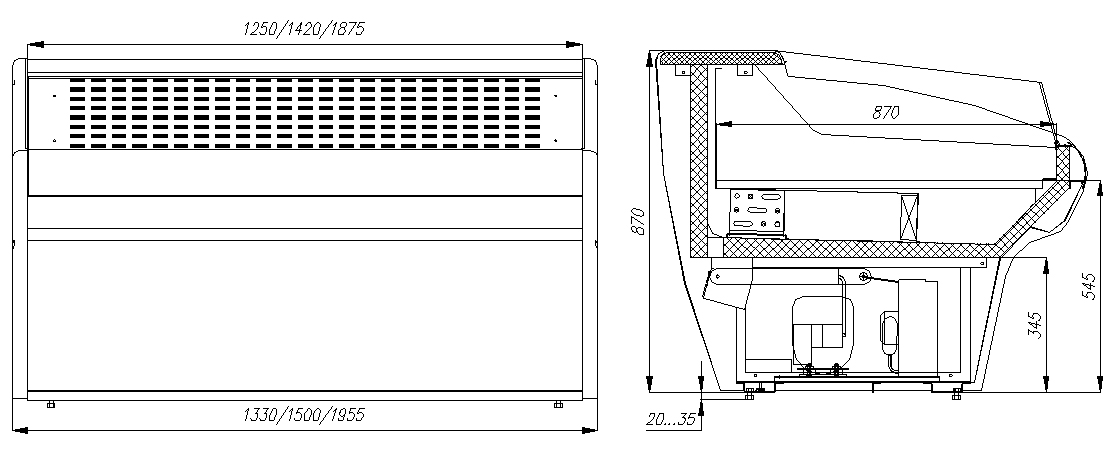

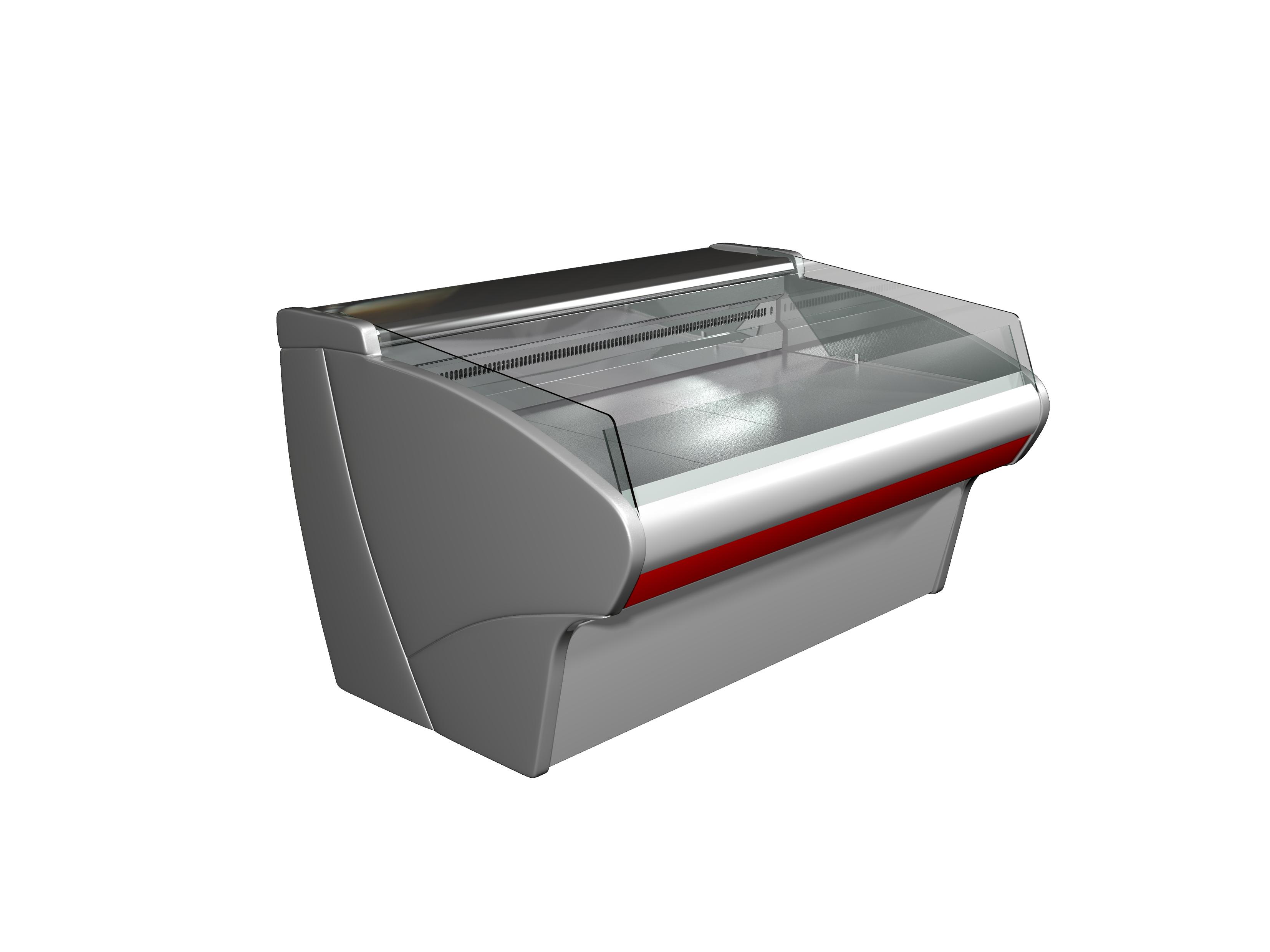

| ВХСо-1,25 Сarboma G110 (G110 SM 1,25-2) | 1330 | 1100 | 870 (905) | 100 | +2…+6 | 1250х735 | 6,8 | |

|

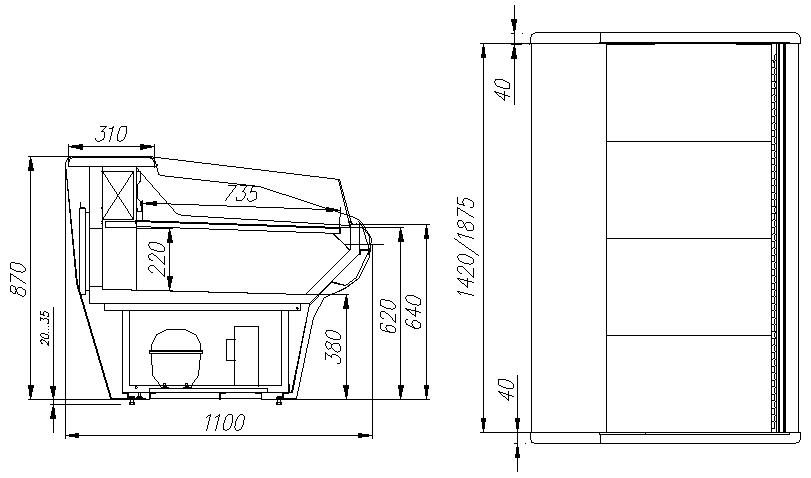

ВХСо-1,5 Сarboma G110 (G110 SM 1,5-2)
Blueprint |
1500 | 1100 | 870 (905) | 100 | +2…+6 | 1420х735 | 6,2 |

|
ВХСо-2,0 Сarboma G110 (G110 SM 2,0-2) | 1955 | 1100 | 870 (905) | 130 | +2…+6 | 1875х735 | 9,1 |
| ВХСл-1,25 Сarboma G110 (G110 SP 1,25-2) | 1330 | 1100 | 870 (905) | 100 | -1…+2 | 1200х735 | 6,9 | |

|

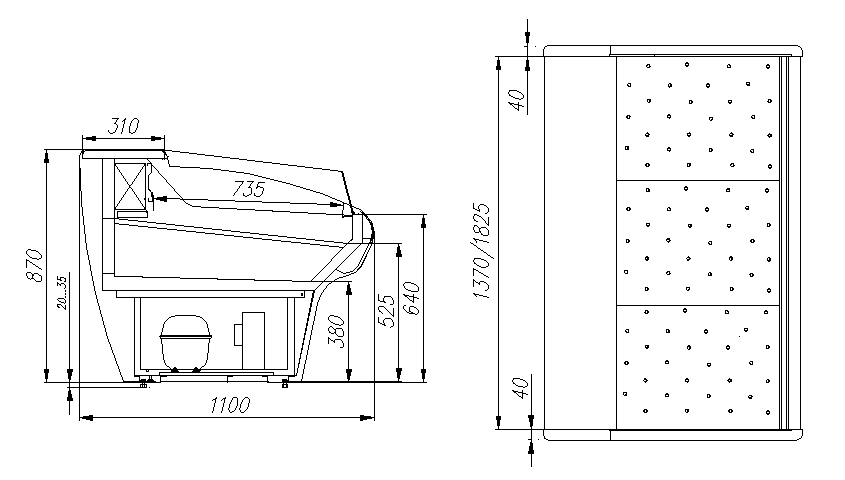

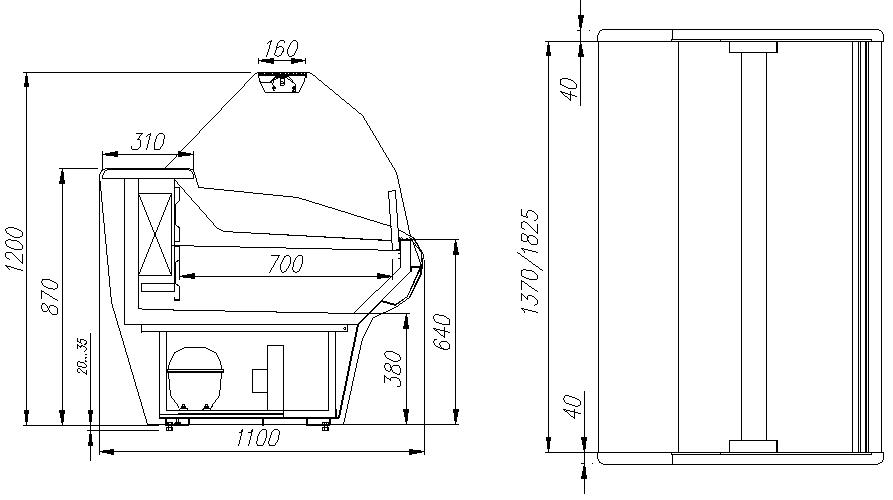

ВХСл-1,5 Сarboma G110 (G110 SP 1,5-2)
Blueprint |
1500 | 1100 | 870 (905) | 100 | -1…+2 | 1370х735 | 6,9 |

|
ВХСл-2,0 Сarboma G110 (G110 SP 2,0-2) | 1955 | 1100 | 870 (905) | 130 | -1…+2 | 1825х735 | 9,8 |

|

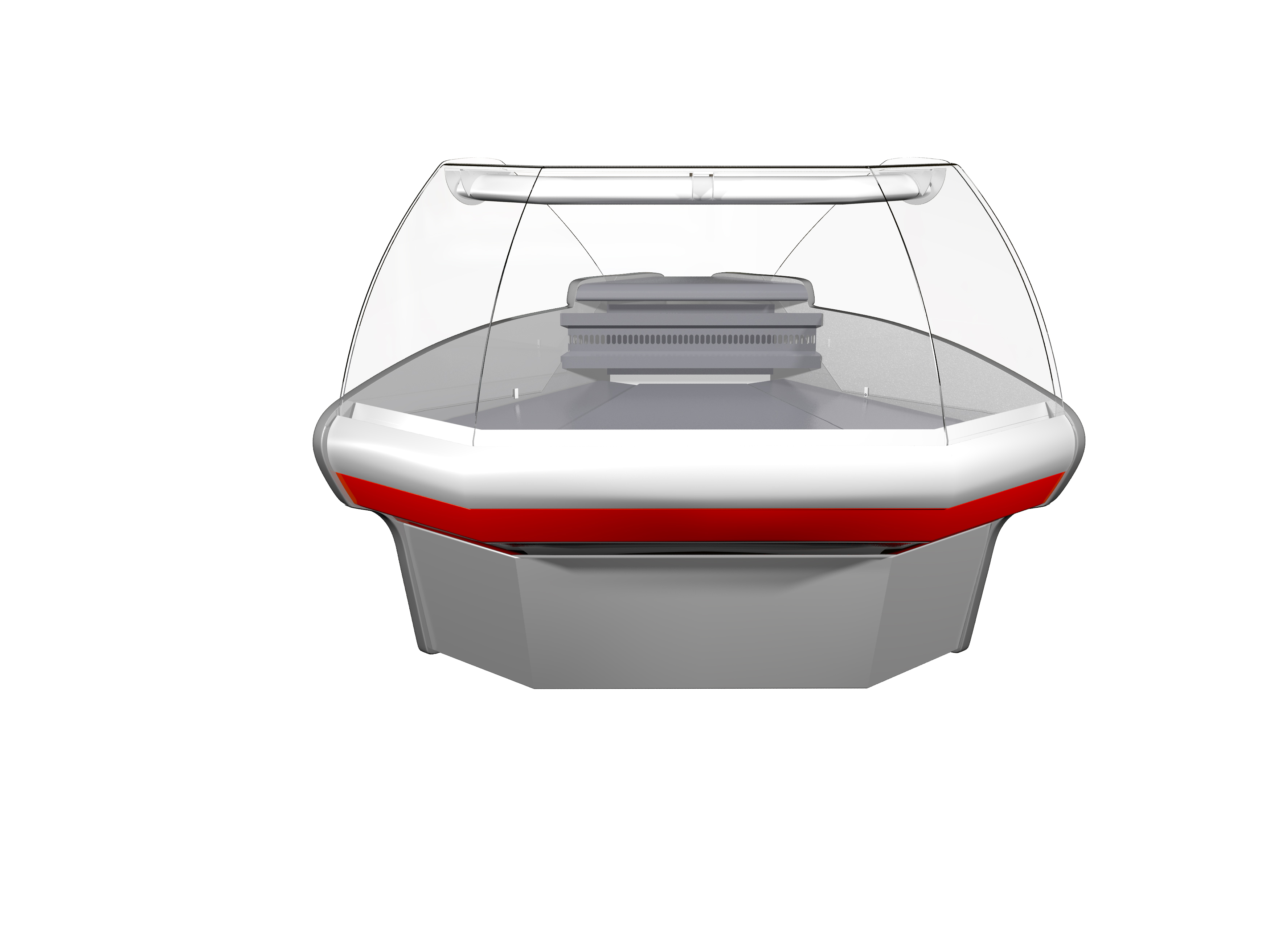

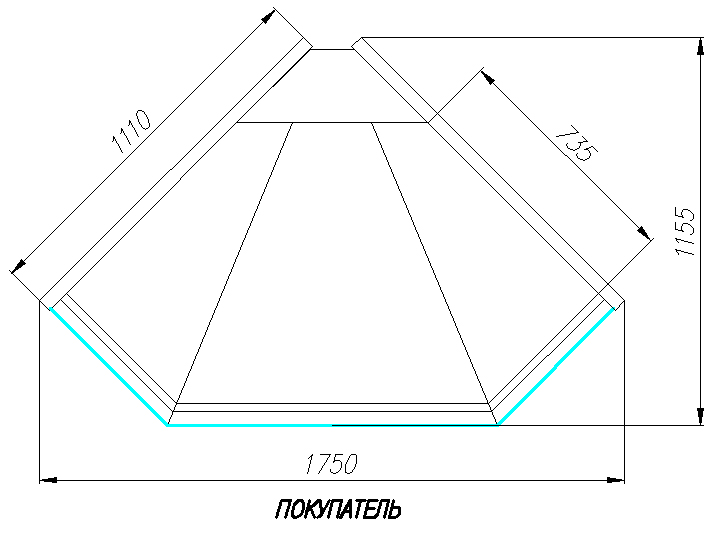

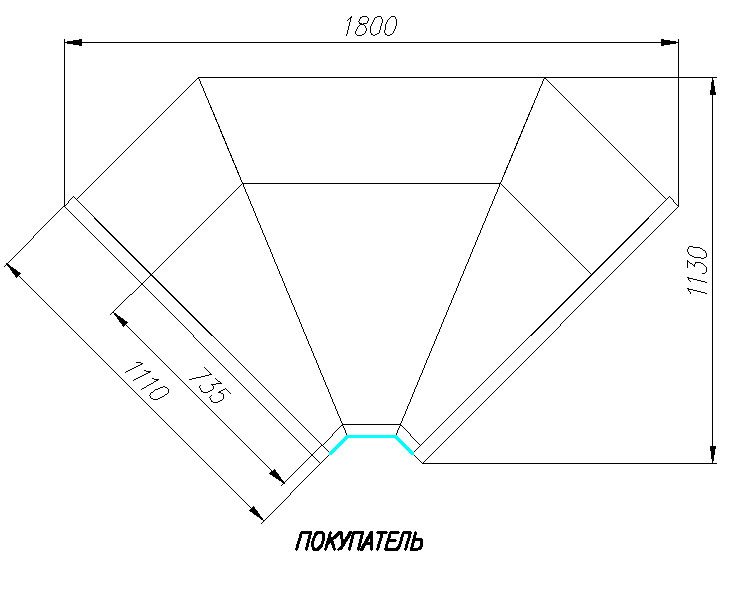

ВХСу-1 Carboma G110 external 90 (dynamic) (G110 VM-5)
Blueprint |
1230 | 1230 | 1200 (1235) | 150 | 0…+7 | - | 6,0 |
| ВХСу-2 Carboma G110 internal 90 (dynamic) (G110 VM-6) | 1270 | 1270 | 1200 (1235) | 150 | 0…+7 | - | 6,0 | |

|

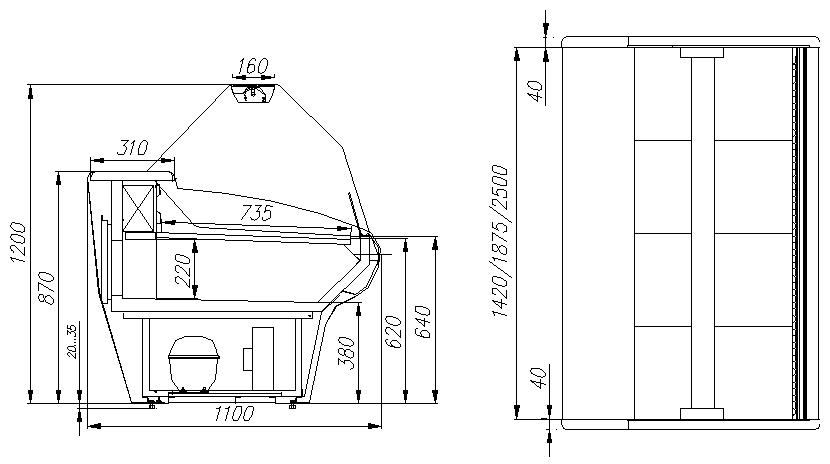

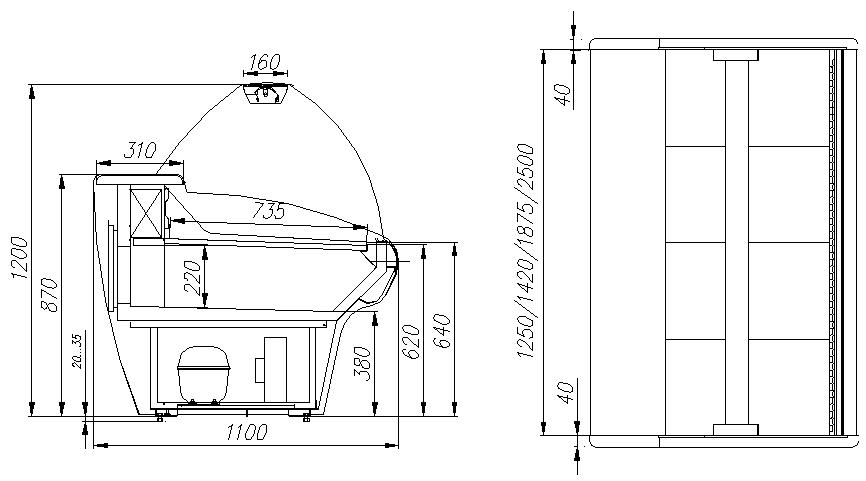

ВХС-1,25 Сarboma G110 (dynamic)(G110 VM 1,25-1)
Blueprint |
1330 | 1100 | 1200 (1235) | 115 | 0…+7 | 1,09 | 5,7 |

|
ВХС-1,5 Сarboma G110 (dynamic)(G110 VM 1,5-1)
Blueprint |
1500 | 1100 | 1200 (1235) | 135 | 0…+7 | 1,24 | 6,1 |

|
ВХС-2,0 Сarboma G110 (dynamic) (G110 VM 2,0-1)
Blueprint |
1955 | 1100 | 1200 (1235) | 157 | 0…+7 | 1,63 | 7,6 |

|
ВХС-2,5 Сarboma G110 (dynamic) (G110 VM 2,5-1)
Blueprint |
2580 | 1100 | 1200 (1235) | 190 | 0…+7 | 2,18 | 12,6 |

|
ВХСр-1,25 Сarboma G110 (dynamic) (G110 VV 1,25-1)
Blueprint |
1330 | 1100 | 1200 (1235) | 115 | -5…+5 | 1,09 | 7,1 |

|
ВХСр-1,5 Сarboma G110 (dynamic) (G110 VV 1,5-1)
Blueprint |
1500 | 1100 | 1200 (1235) | 135 | -5…+5 | 1,24 | 7,3 |

|
ВХСр-2,0 Сarboma G110 (dynamic) (G110 VV 2,0-1)
Blueprint |
1955 | 1100 | 1200 (1235) | 160 | -5…+5 | 1,63 | 12,5 |

|
ВХСр-2,5 Сarboma G110 (dynamic) (G110 VV 2,5-1)
Blueprint |
2580 | 1100 | 1200 (1235) | 195 | -5…+5 | 2,18 | 20,5 |
| ВХСо-1,25 Сarboma G110 (dynamic) (G110 VM 1,25-2)
Blueprint |
1330 | 1100 | 870 (905) | 85 | +2…+6 | 1,09 | 7,7 | |
| ВХСо-1,5 Сarboma G110 (dynamic) (G110 VM 1,5-2)
Blueprint |
1500 | 1100 | 870 (905) | 105 | +2…+6 | 1,24 | 10,1 | |
| ВХСо-2,0 Сarboma G110 (dynamic) (G110 VM 2,0-2)
Blueprint |
1955 | 1100 | 870 (905) | 130 | +2…+6 | 1,63 | 18,5 | |
Showcases G110 are designed for demonstration, sale and shortterm storage of pre-chilled meat and fish gastronomy, cheese, dairy and other products. Energy-saving technologies (low-emission glass, LED-lighting).
- Microprocessor control unit with temperature indicator
- Defrost with natural heat leakage (medium temperature showcases)
- Automatic electric defrost mode (reversible, open, low-temperature, fish on ice showcases)
- Exposition surface: tabletop made of stainless steel
- LED-lightning of the main zone (warm white)
- Additional storage - for static (reversible, open, low-temperature showcases), dynamic - no additional storage
- Glass baffle (reversible showcases), front double-glazing (low-temperature showcases)
- Thermal insulation - polyurethane foam (the body, tabletop, sidewalls)
- Compressors of the world leading manufacturers
- Electronic control unit with temperature indicator Carel
- The body is made of steel
- Tubular electric heaters for medium temperature showcases
- Glass sidewalls (silver plastic 0011)
- Docking kit
- Glass shelf
- Lightning of the main zone (warm white, neutral white, pink meat)
- Wooden grid bor bread
- Shelf for the weights (stainless steel)
- Two-stage tray system for expose of the goods (stainless steel)
- Baskets for low-temperature showcases
- Wheels
