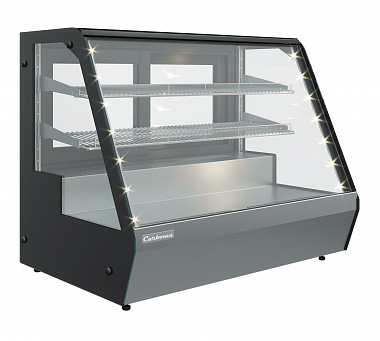

Showcases A59 (ASTI)
.jpg)
Main features:
- Rated voltage 220 V, 50 Hz
- Cooling type – dynamic
- Climatic class of equipment: 3
- Refrigerant R600a, R290
- The display cases are intended for use indoors with natural ventilation at ambient temperatures from +12 to +25 and relative humidity no more than 60%
DEPTH: 270 (245mm each, 2 grid shelves)
Загрузить листовку A59 (ASTI) Загрузить изображения ASTI Загрузить 3D моделиINSTALLING a refrigerated display case:
The display case should be installed no closer than 2 m from heating appliances. It is prohibited to operate the display case if it is exposed to direct sunlight, air flows from air conditioners, fans and heaters.
SOME PARTS HAVE A PROTECTIVE COATING (FILM) THAT MUST BE REMOVED.
After starting the unit, and when the required temperature is reached, load the display case with products pre-cooled to the temperature of the useful volume.
The height of display of products for display should be no more than 150 mm on the bottom tray and no more than 100 mm on the shelves.
Attention, the load on the grid shelf is no more than:
0.7 -8 kg
0.9 11 kg
1.2 14 kg
Do not block the air ducts.
If the requirements are not met, air circulation is disrupted, the performance characteristics of the product deteriorate, which can lead to food spoilage.
In rainy or humid weather, condensation may form on the display case. This is not a malfunction. In this case, wipe the display case with a soft cloth from time to time.
Overall packaging dimensions LxWxH, mm (wooden lathing):
0.7 850x750x890
0.9 1050x750x890
1.2 1350x750x890
The display case should be installed no closer than 2 m from heating appliances. It is prohibited to operate the display case if it is exposed to direct sunlight, air flows from air conditioners, fans and heaters.
SOME PARTS HAVE A PROTECTIVE COATING (FILM) THAT MUST BE REMOVED.
After starting the unit, and when the required temperature is reached, load the display case with products pre-cooled to the temperature of the useful volume.
The height of display of products for display should be no more than 150 mm on the bottom tray and no more than 100 mm on the shelves.
Attention, the load on the grid shelf is no more than:
0.7 -8 kg
0.9 11 kg
1.2 14 kg
Do not block the air ducts.
If the requirements are not met, air circulation is disrupted, the performance characteristics of the product deteriorate, which can lead to food spoilage.
In rainy or humid weather, condensation may form on the display case. This is not a malfunction. In this case, wipe the display case with a soft cloth from time to time.
Overall packaging dimensions LxWxH, mm (wooden lathing):
0.7 850x750x890
0.9 1050x750x890
1.2 1350x750x890
- Compressor made in Europe
- Carel electronic control unit
- Steel body
- Thermal insulation of the body - polyurethane foam
- Stainless steel exposure surface
- 2 grid shelves with limiters, with the ability to install at an angle of 5 degrees
- Condensate evaporator (refrigeration)
- Side LED lighting
- Glazing - double glazed windows
- Sliding rear doors
- Price holders
- Pasta tray (1 section, 2 sections)
- Sandwich stand
- Price tray for small baked goods
