AC38 (AZHA Sushi)

картинка AC38 (AZHA Sushi)
картинка AC38 (AZHA Sushi)
картинка AC38 (AZHA Sushi)

Main features:

  • Rated voltage 220 V, 50 Hz
  • Cooling type – static
  • Climatic class of equipment: 3
  • Refrigerant R600a
  • The display cases are intended for use indoors with natural ventilation at ambient temperatures from +12 to +25 and relative humidity no more than 60%
  • Загрузить листовку AC38 AZHA Sushi Загрузить 3D модели

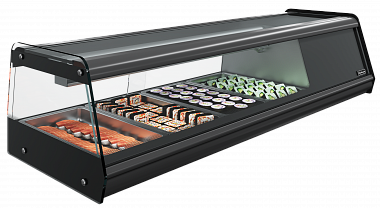

    Tabletop display AC38 AZHA Sushi for displaying and selling Japanese cuisine: sushi, rolls, sashimi and ingredients. Its small size allows it to be placed on a bar counter or in the checkout area.

    The display case should be installed no closer than 2 m from heating appliances.
    It is prohibited to operate the display case if it is exposed to direct sunlight, air flows from air conditioners, fans and heaters.

    SOME PARTS HAVE A PROTECTIVE COATING (FILM) THAT MUST BE REMOVED.

    There is no temperature control in the usable volume. The product operates in continuous mode so that the snow coat on the evaporator does not thaw. After the product has been in use for a day, it must be turned off and defrosted, having first removed the food from the display case.

    After starting the unit, and when the required temperature is reached, load the display case with products pre-cooled to the temperature of the useful volume.

    We recommend using gastronorm containers for displaying and storing food. The height of product display should be no more than 50 mm.

    Do not block the air ducts.
    If the requirements are not met, air circulation is disrupted, the performance characteristics of the product deteriorate, which can lead to food spoilage.
    In rainy or humid weather, condensation may form on the display case. This is not a malfunction. In this case, wipe the display case with a soft cloth from time to time.
    • Compressor made in Europe
    • Digital controller
    • Steel body
    • Thermal insulation of the body - polyurethane foam
    • Stainless steel exposure surface
    • Upper and lower evaporator
    • LED backlight
    • Energy saving curtains
    • Gastronorm containers 1/3 (325x176x40 mm) made of stainless steel (1.0-4 pcs; 1.5-6 pcs)
