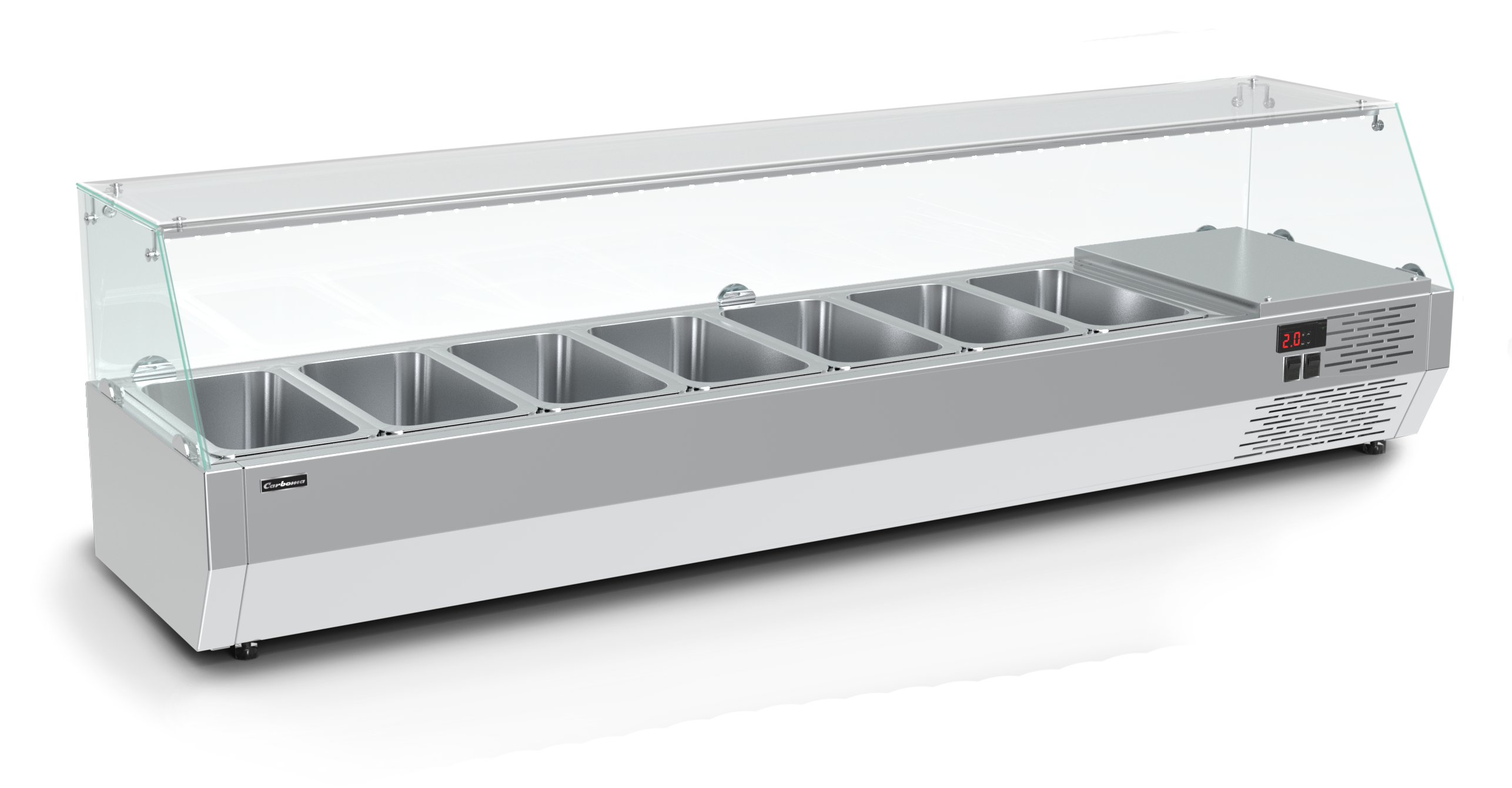

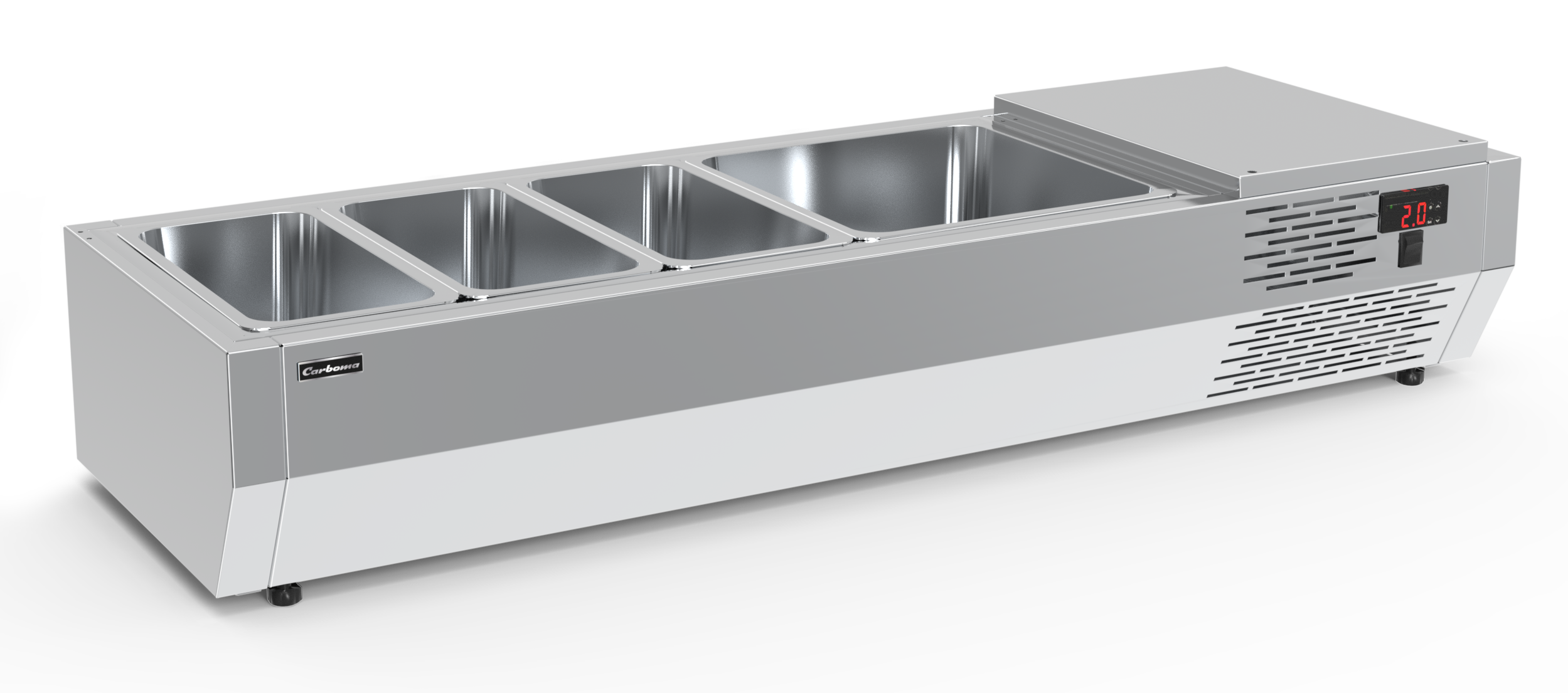

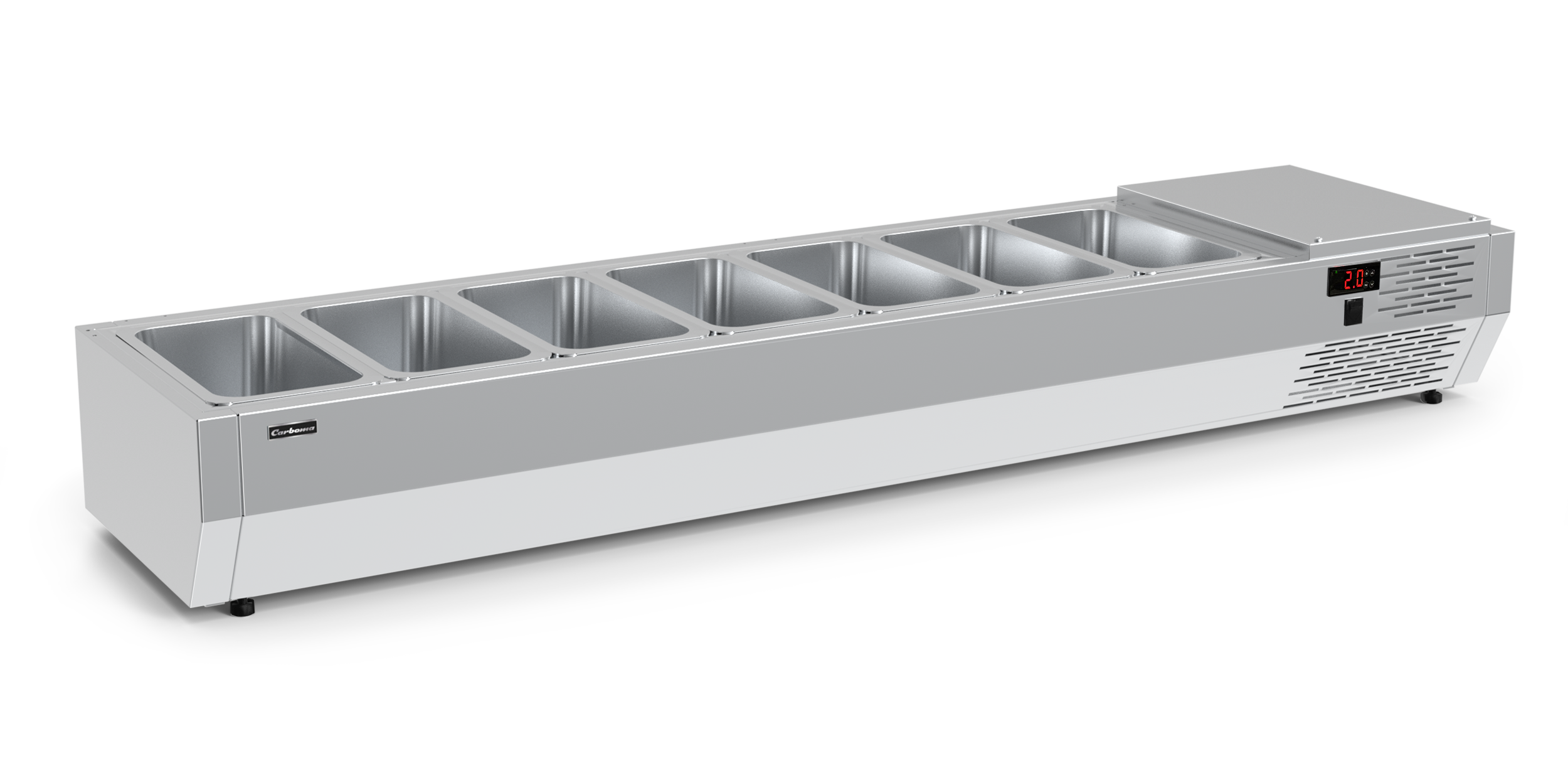

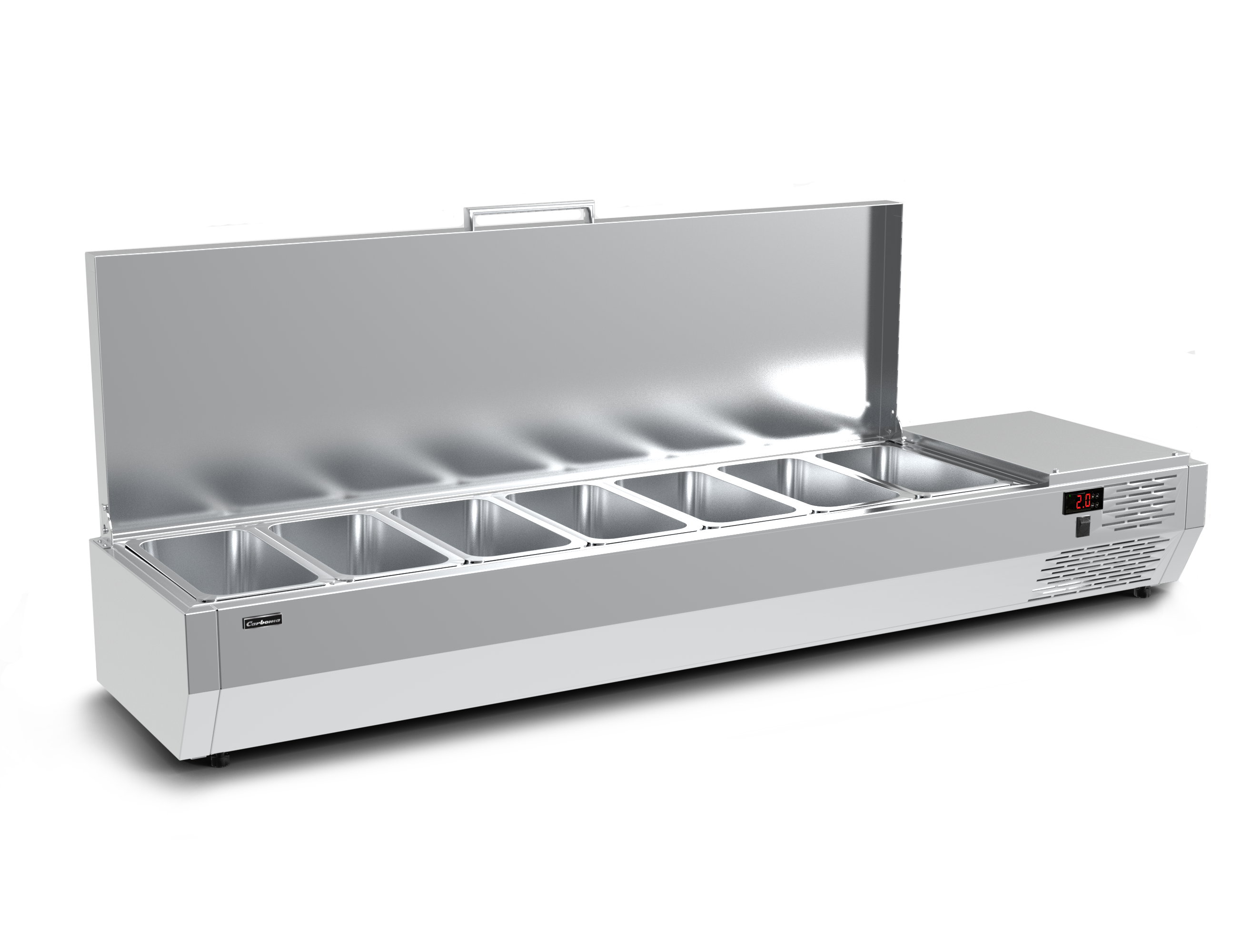

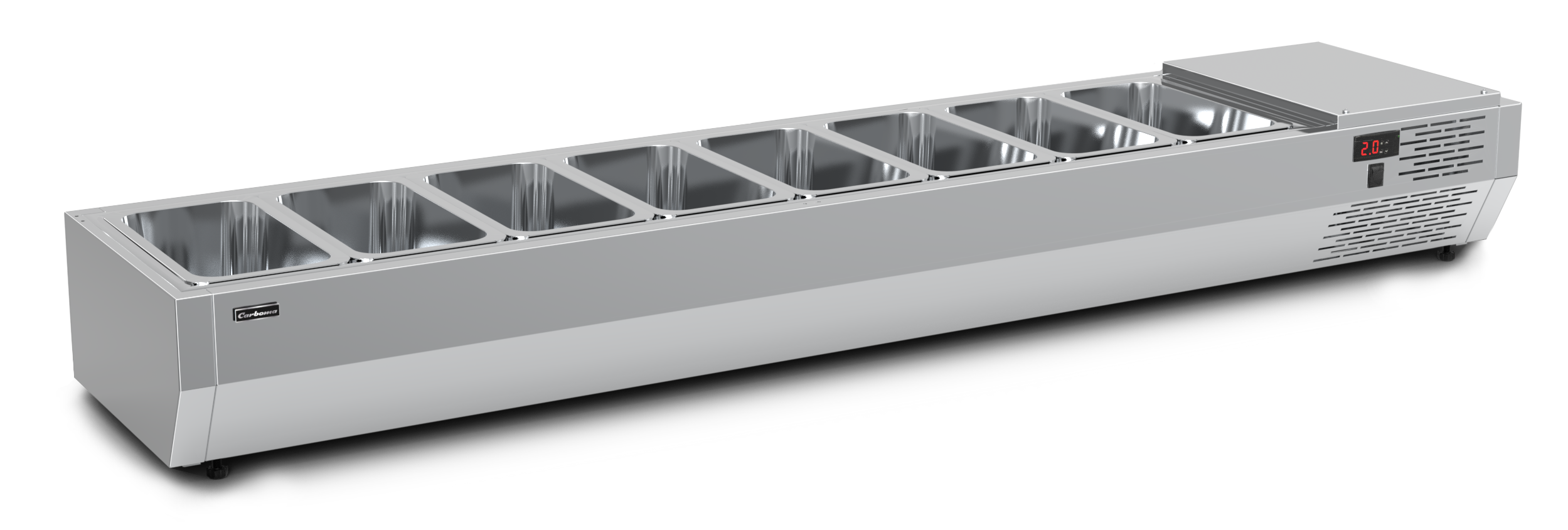

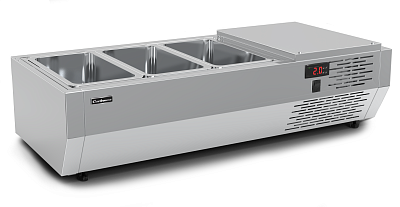

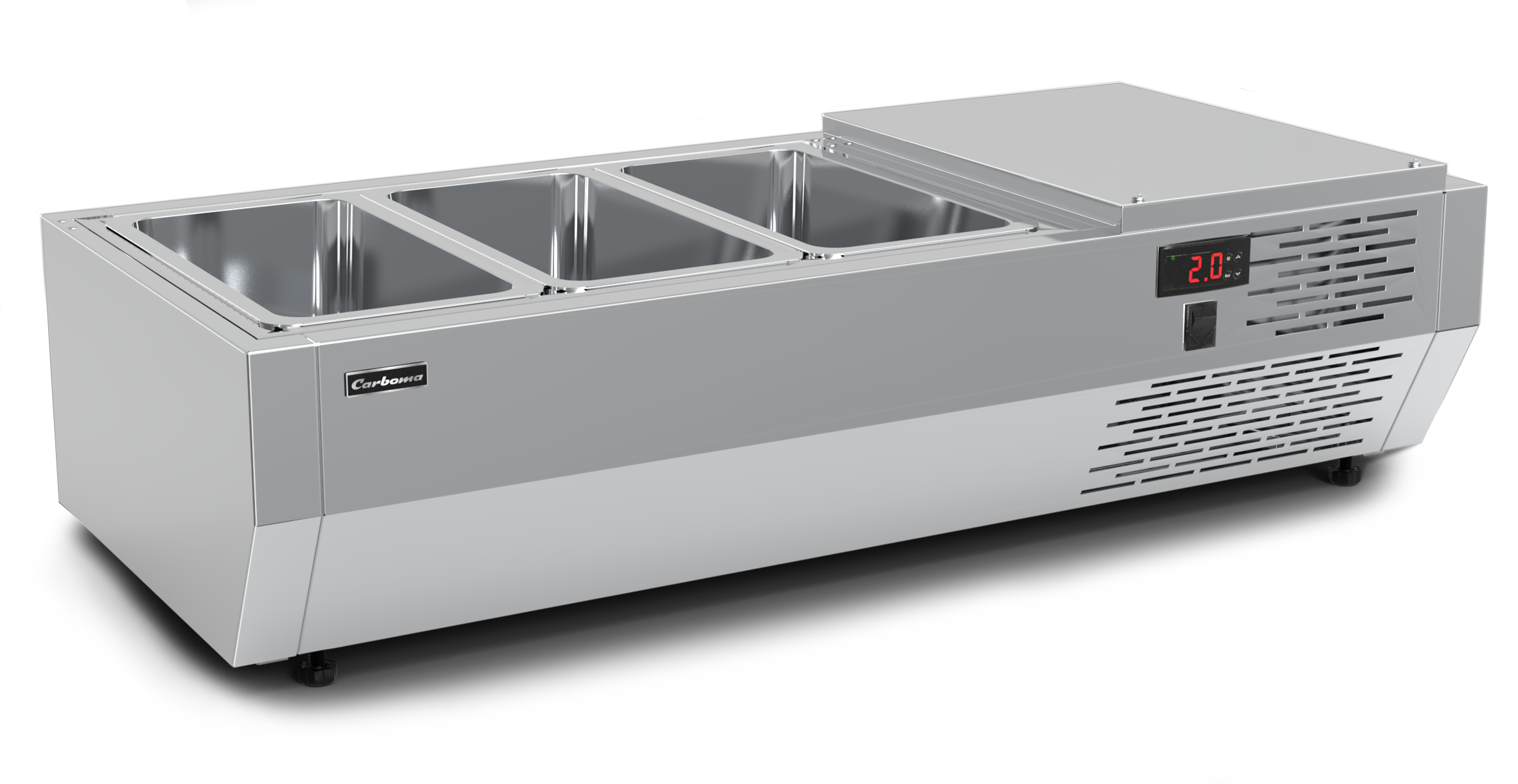

Ingredient displays A40 (IDO)

Ingredient displays A40 (IDO) can be used together with pizza tables and as separate units of refrigeration equipment.     Showcases A40 (IDO) are gastronomically rated GN1/3.

INSTALLING SM showcase:
The equipment can be installed on the sides of special tables for preparing pizza, and can also be used as an independent product, and is equipped with adjustable support legs.  According to the design, the refrigeration display case consists of a heat-insulated body with a built-in refrigeration module. The cover over the refrigeration unit is made in the form of a horizontal platform and serves as a tabletop for related and auxiliary items. The evaporator is located inside the gastronorm container bath. The bath has a hole for draining condensate, which ends up in a special container with an evaporator in the engine room.

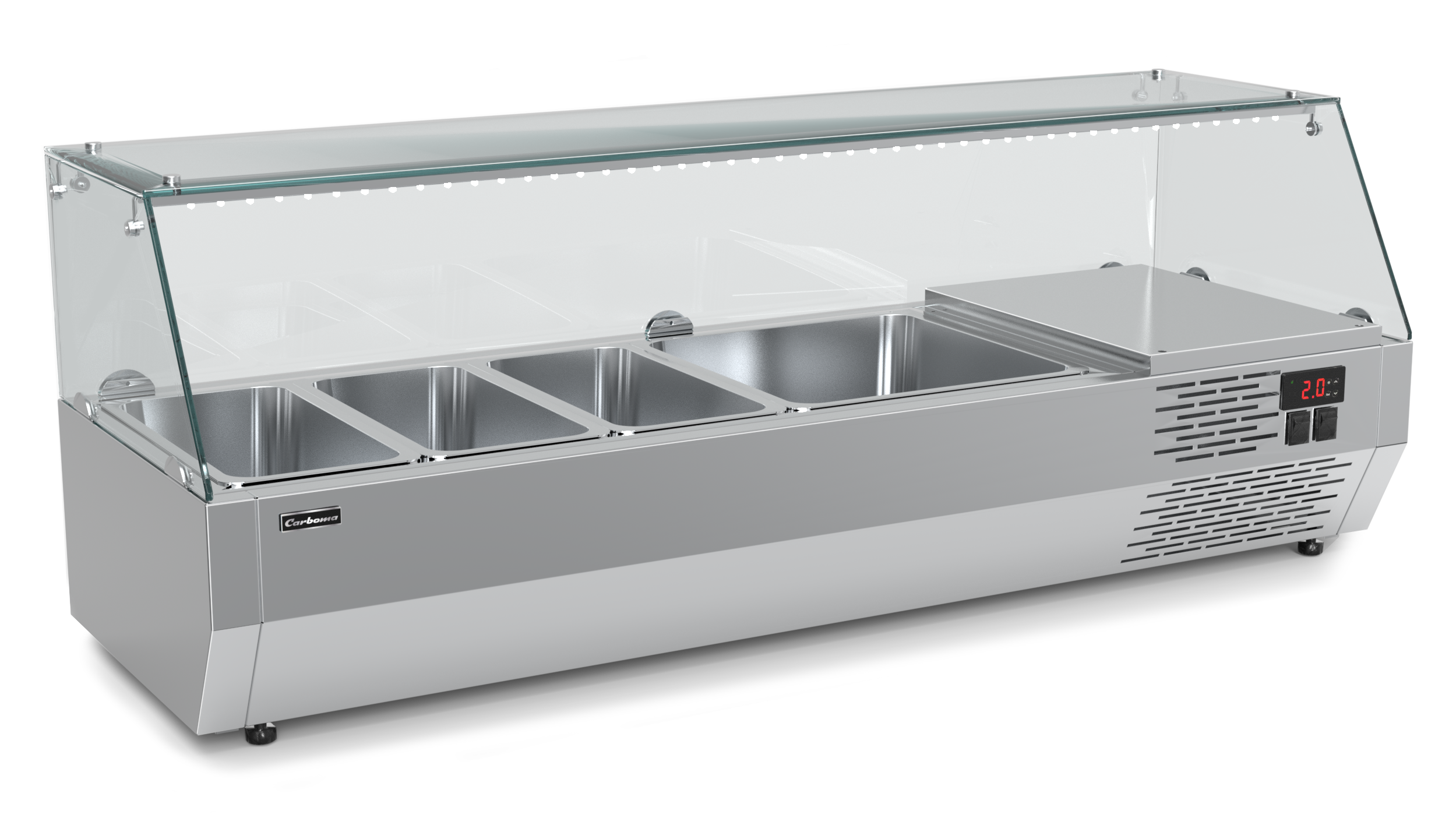

All elements of the housing that may come into contact with food are made of stainless steel. The glass fence functionally prevents the penetration of heat inflows and thereby makes the operation of the refrigeration machine more economical. To turn on and configure parameters, the display case is equipped with a switch and controller.

SOME PARTS HAVE A PROTECTIVE COATING (FILM) THAT MUST BE REMOVED.

For normal operation of the display case you need:
- install the product in a ventilated room at a distance from heat sources of at least 1.5 m;
- ensure good air circulation in the part of the display case where the refrigeration module is located;
- the maximum ambient temperature should not be higher than 32 degrees C;
- into gastronorm containers installed in the display case, load products cooled to the specified temperature.

The combination of gastronorm containers may vary. The depth of the containers is up to 150 mm.

INSTALLING SH showcase:
The display must be installed at least 1 m from flammable materials.
It is prohibited to operate the display cabinet if it is exposed to air flows from air conditioners or fans.
SOME PARTS HAVE A PROTECTIVE COATING (FILM) THAT MUST BE REMOVED.
The temperature is regulated by a thermostat, the extreme left position means the display is off.
Load the display case with products, evenly placing them in the gastronorm containers; the height of the product display should be no more than 100 mm.
